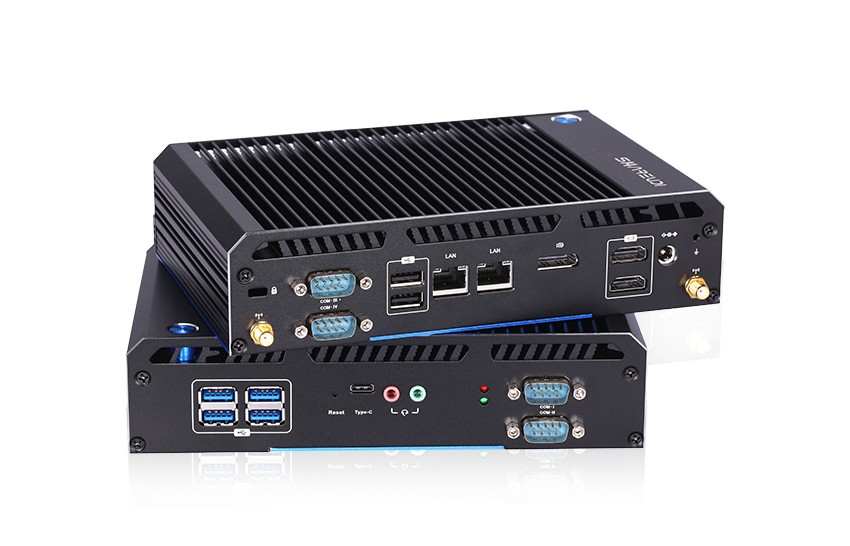

K5-F17H Rugged Box PC
Model: K5-F17H-10210
● Intel core i5-10th generation processor
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible expansion for I/O ports
● 4x COM ports (RS232, RS485)
● 3x display ports (2 x HDMI + 1 x DP)
● 2x USB3.0, 4x USB2.0
● Support 4G LTE module
● Support TPM 2.0 (optional)
● 12V ~ 64V wide range power input
● Wide temperature -20~65°C
● Support Din rail, Embedded, Stand, Mount installation
Data Sheet 1
Send InquiryK5-F17H is a rugged fanless computer with small size and compact box PC housing design. It support mini PC Din rail bracket, and optional embedded, mount, stand installation methods. K5-F17H mini PC has 2 LAN, 4 COM, 3 HD display ports, and wide options for the CPU. No matter work as a windows embedded PC or Linux mini PC server in rugged environment, K5-F17H is a good choice to meet the requirement.
-
Part No.K5-F17H-10210
-
-
Processor
CPU
Intel Core I5-10210U
Core Number
4 Cores / 8 Threads
Frequency
1.6GHz
Max Turbo Frequency
4.2 GHz
Chipset
Products formerly Comet Lake
-
Memory
Technology
2*DDR4L slot
Max. Capacity
32GB
-
Storage
M.2 SATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel® UHD Graphics for 10th Gen Intel® Processors
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps adaptive RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
support 4G module with available sim slot
-
I/O Interface
Front

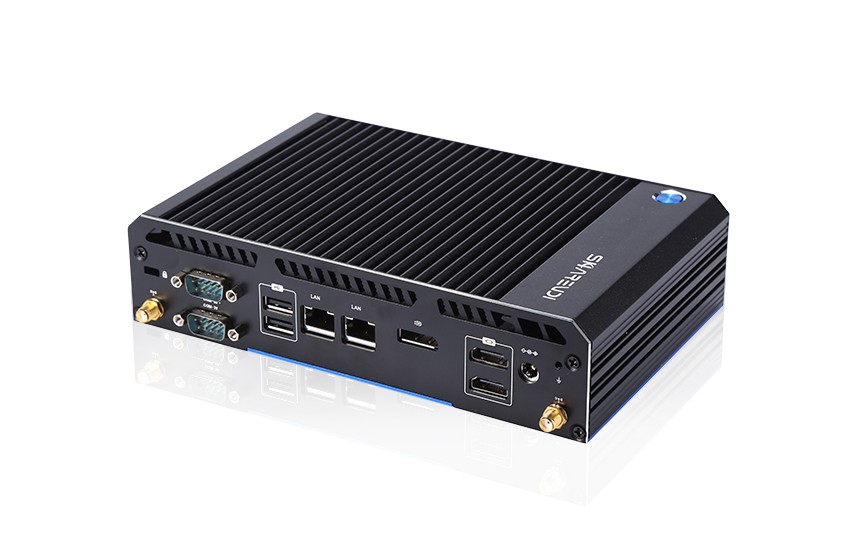

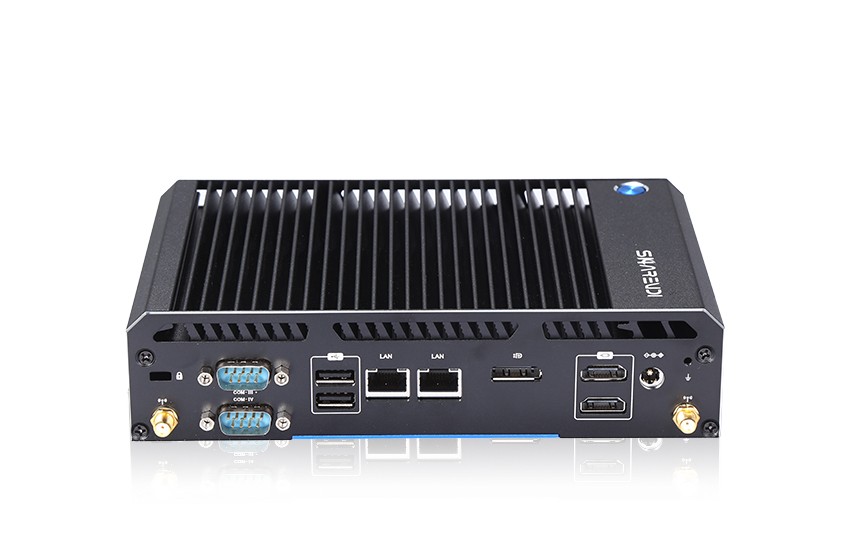

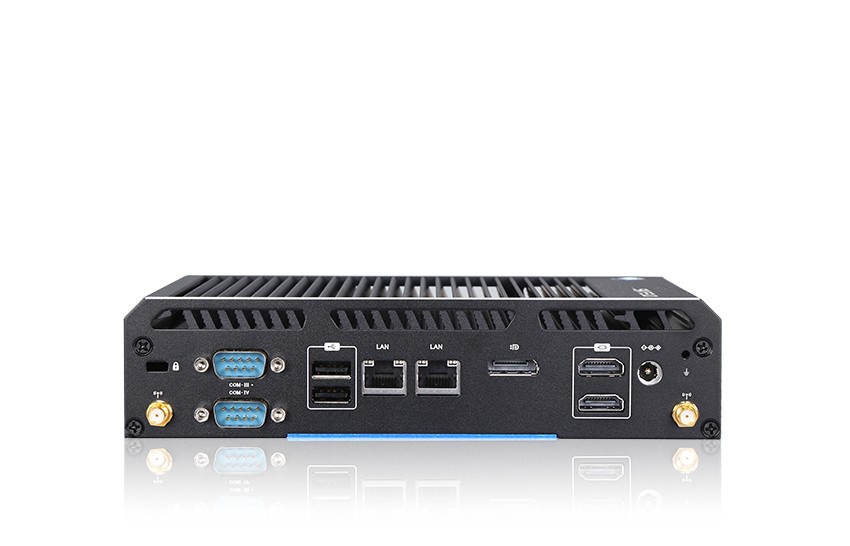

2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
Rear

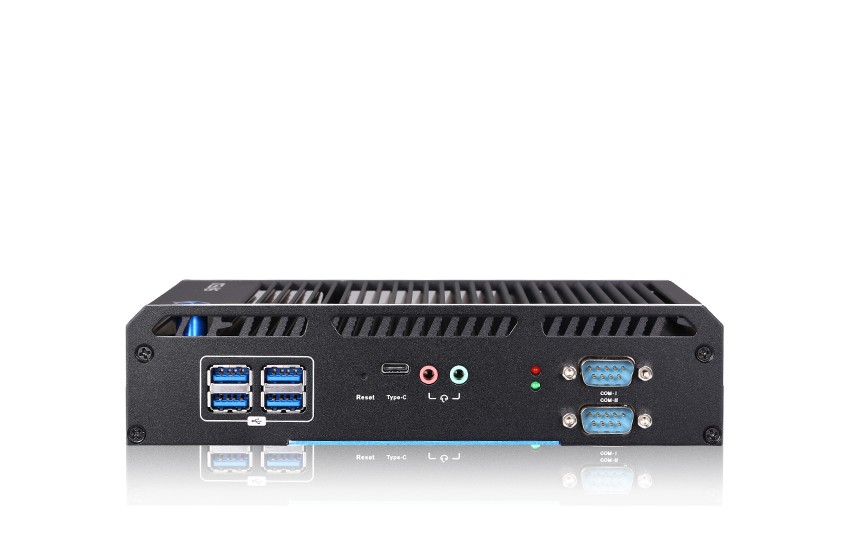

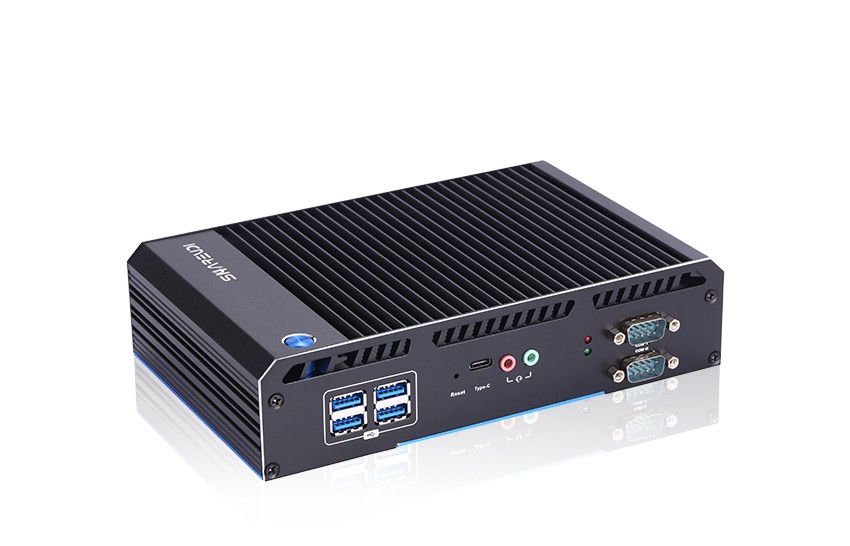

4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
4G LTE , WIFI+Bluetooth Module (Mini PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
