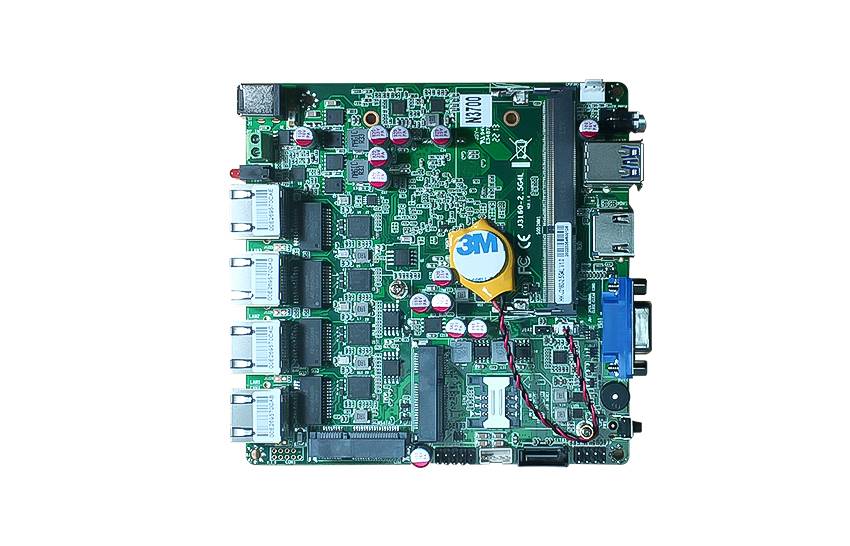

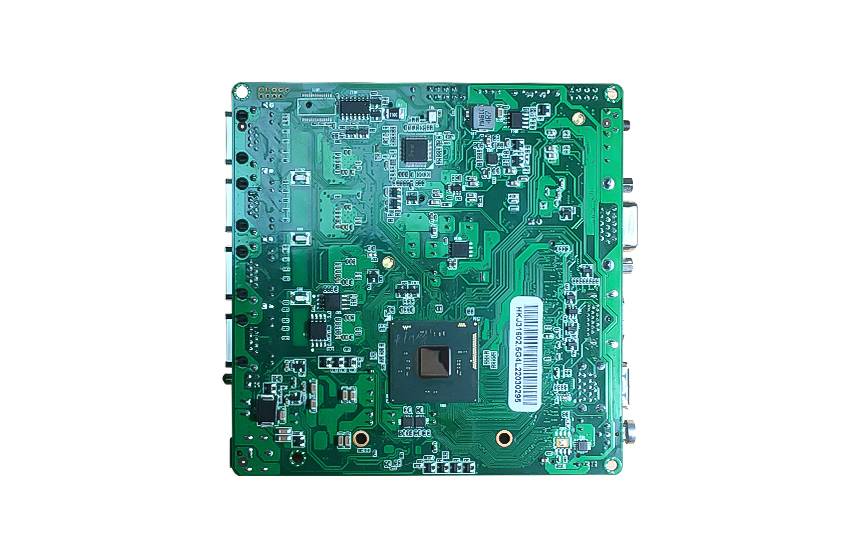

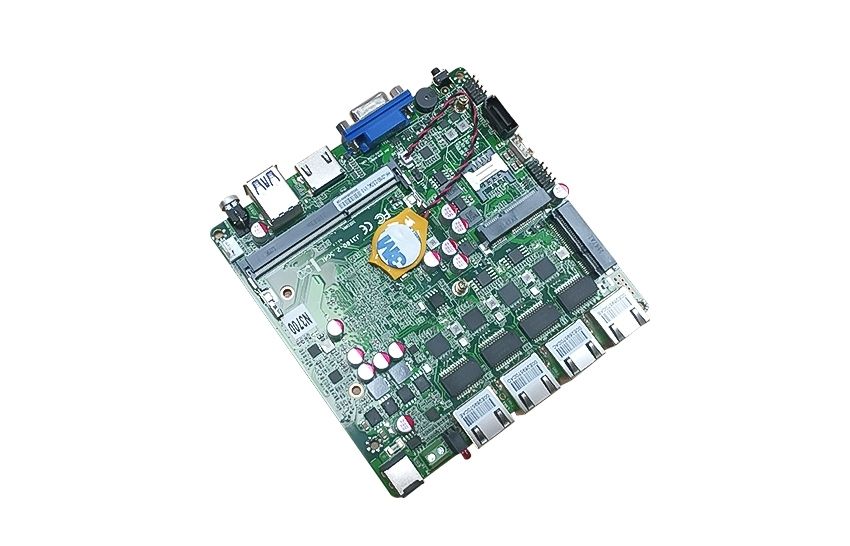

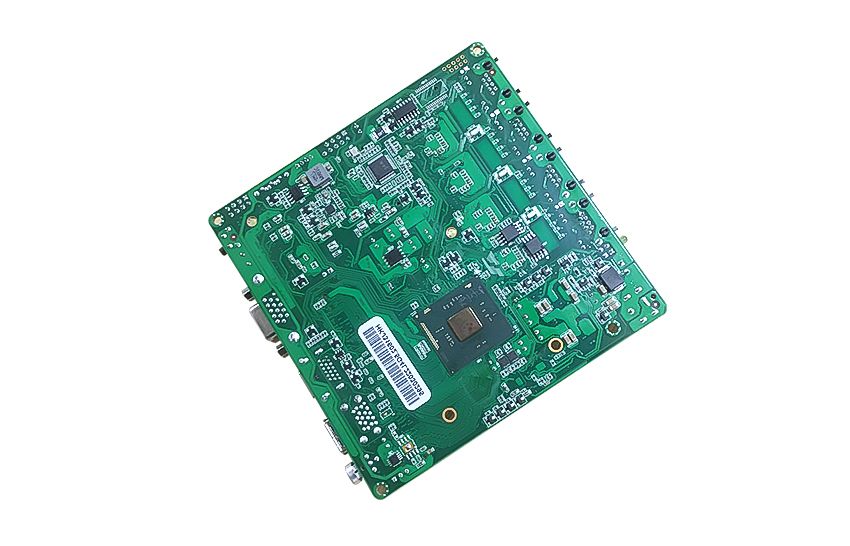

NANO-ITX AIMB-K801

Model: AIMB-K801

● Intel Pentium N3700 (Quad core) processor, 6W

● 1x 204-pin SO-DIMM up to 16 GB, DDR3L 1333MHz SDRAM

● 4x Intel I225-V Ethrenet ports, 10/100/1000 Mbps

● 1xcolay MINI PCIE(with SIM card slot), 1 SATA, 1 mSATA

● 2*USB3.0, 1 x 9Pin USB2.0

● Support AES-NI

● Support RPL/PXE diskless boot, WOL, WDT

● Support Windows, Linux, PfSense, Sophos, VyOS, Linux iptables, Untangle etc

Intel Pentium N3700 (Quad core) NANO ITX with 4 Intel I225-V LAN, 2 USB, HDMI, VGA

Product Specification
Form Factor
  • AIMB-K801

    NANO-ITX

Processor
  • CPU

    AIMB-K801

    Intel Pentium N3700

  • BIOS

    AIMB-K801

    AMI BIOS

  • Core Number

    AIMB-K801

    4

  • CPU TDP

    AIMB-K801

    6W

  • Frequency

    AIMB-K801

    1.6GHz~2.4GHz

  • L3 Cache

    AIMB-K801

    2MB

Memory
  • Technology

    AIMB-K801

    DDR3L 1333MHz

  • Max.Capacity

    AIMB-K801

    SO-DIMM up to 8GB

  • Socket

    AIMB-K801

    1*204 PIN SO-DIMM

Display
  • Controller

    AIMB-K801

    Intel HD Graphics 405(BSW)

  • Video Interface

    AIMB-K801

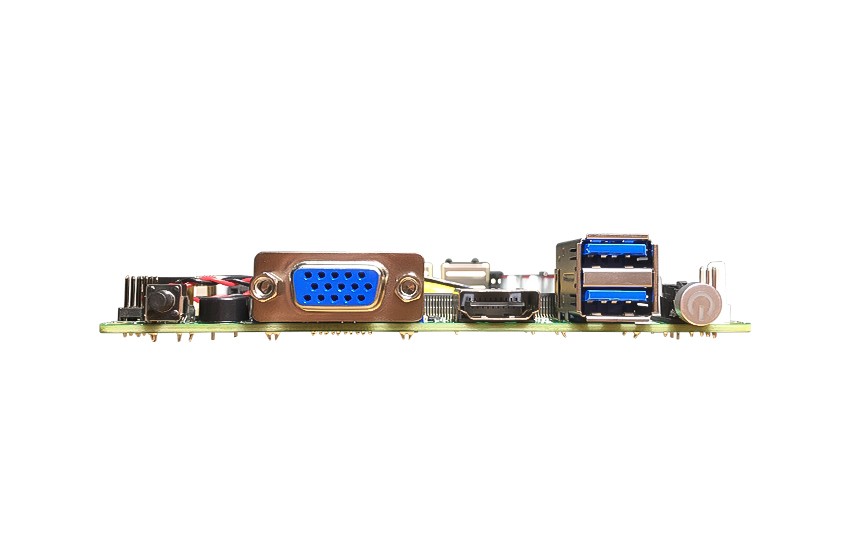

    HDMI+VGA

  • DP

    AIMB-K801

    N/A

  • Multiple Display

    AIMB-K801

    Two

Expansion
  • Slot Type

    AIMB-K801

    1

  • PCI Express

    AIMB-K801

    1 (colay MINI PCIE) Support USB channel module

Ethernet
  • Speed

    AIMB-K801

    10/100/1000/2500 Mbps

  • Controller

    AIMB-K801

    intel I225-v

  • Connector

    AIMB-K801

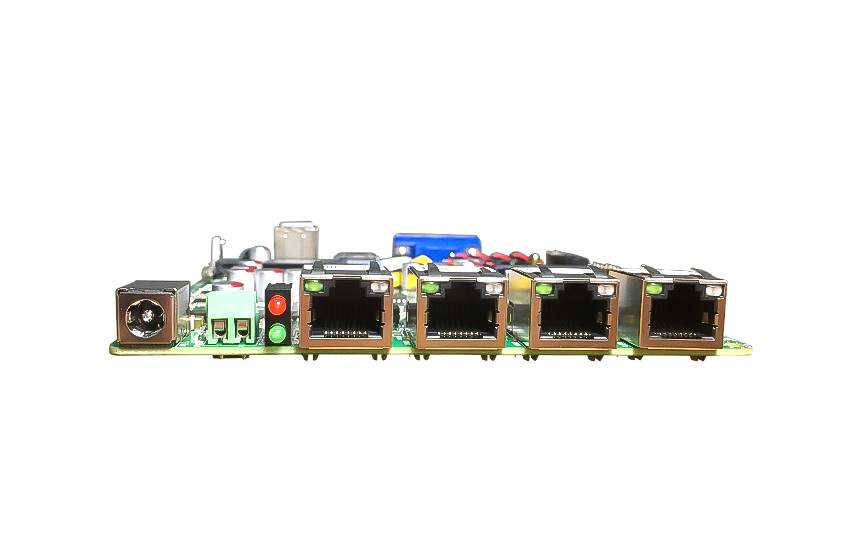

    4*RJ45

Audio
  • Audio Interface

    AIMB-K801

    N/A

  • CODEC

    AIMB-K801

    N/A

  • Connector

    AIMB-K801

    N/A

WatchDog Timer
  • AIMB-K801

    Yes

I/O
  • USB

    AIMB-K801

    2*USB3.0, 1 x 9Pin USB2.0

  • GPIO

    AIMB-K801

    N/A

  • COM Port

    AIMB-K801

    N/A

  • TPM

    AIMB-K801

    N/A

Storage
  • M-SATA

    AIMB-K801

    1*MSATA 30MM*50MM*3MM

  • SATA

    AIMB-K801

    1 x SATA Expansion port

Power
  • Power type

    AIMB-K801

    DC 12V

  • Connector

    AIMB-K801

    DC jack

  • Power Adaptor

    AIMB-K801

    Yes

Environment
  • Non-Operational Temperature

    AIMB-K801

    "-10℃~60℃"

  • Operational Temperature

    AIMB-K801

    "-10℃~60℃"

Physical
  • Dimension

    AIMB-K801

    120mmX120mm

  • Weight

    AIMB-K801

    130g

  • Construction

    AIMB-K801

    with fanless design

Operating System
  • Microsoft Windows

    AIMB-K801

    Yes

  • Linux

    AIMB-K801

    Yes
