F24-8L SFP+ Firewall PC
Model:
K5-F24-12th-SFP+
Fanless rugged design
12th Gen Intel Core i3/i5/i7 processors

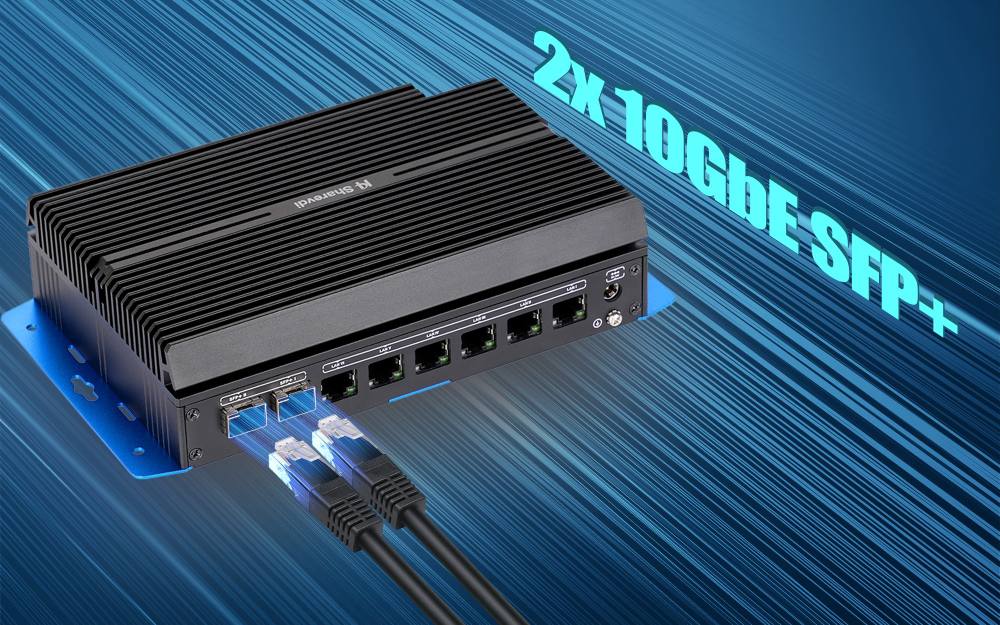

6 x Intel 2.5G Ethernet LAN ports+ 2 x Intel 82599ES SFP+ ports
5 x USB ports, 1 x RJ45 RS232 serial port, 1 x USB Type-C port
Dual M.2 slots, supporting WiFi 6 & Bluetooth, and 4G/5G modules (with SIM card slot)
Compatible with Windows 10/11, and Linux operating systems
Supports TPM 2.0 for enhanced data security

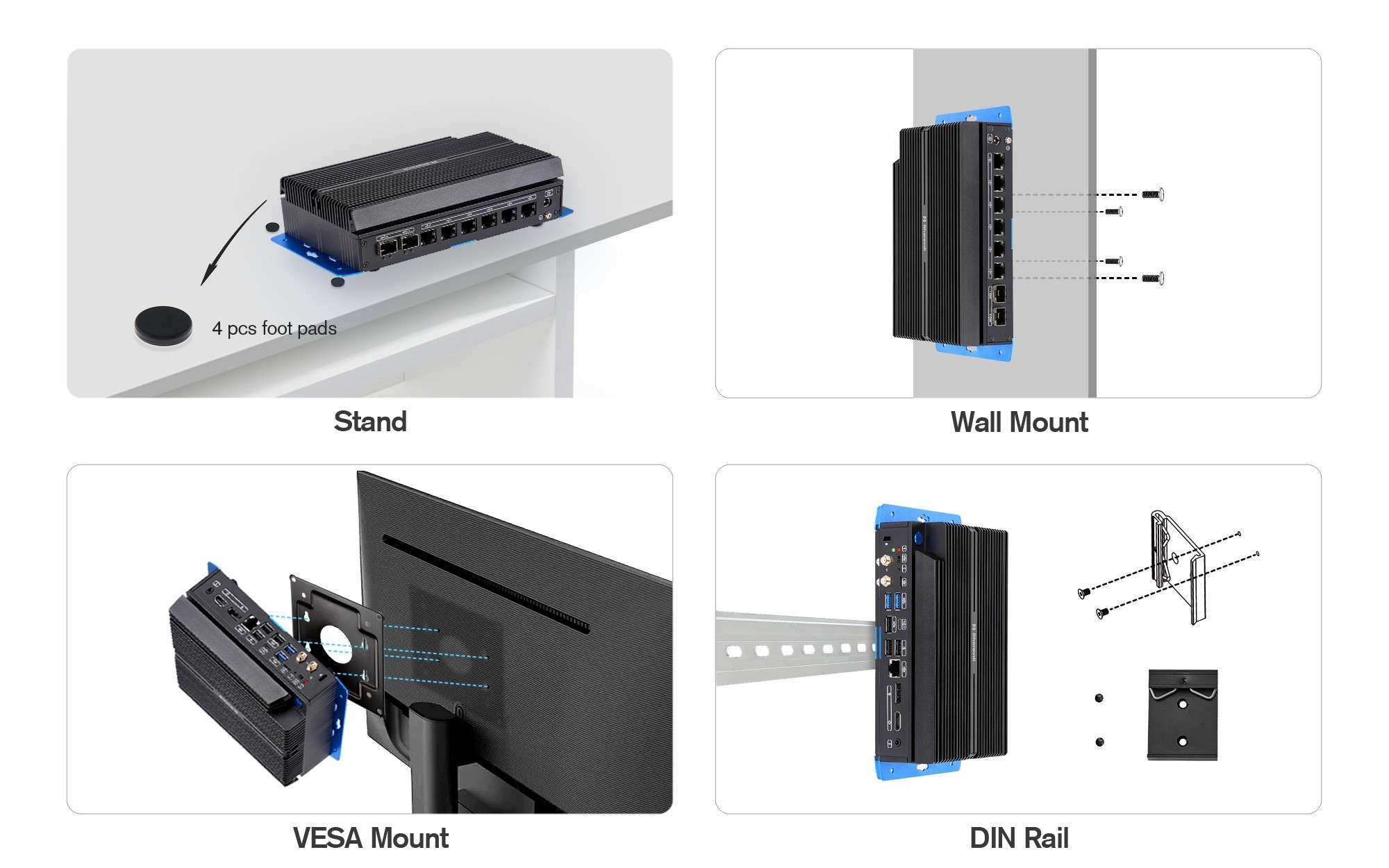

Supports VESA, Wall, DIN-rail,Embedded installation
Fanless rugged design
12th Gen Intel Core i3/i5/i7 processors
6 x Intel 2.5G Ethernet LAN ports+ 2 x Intel 82599ES SFP+ ports
5 x USB ports, 1 x RJ45 RS232 serial port, 1 x USB Type-C port
Dual M.2 slots, supporting WiFi 6 & Bluetooth, and 4G/5G modules (with SIM card slot)
Compatible with Windows 10/11, and Linux operating systems
Supports TPM 2.0 for enhanced data security
Supports VESA, Wall, DIN-rail,Embedded installation

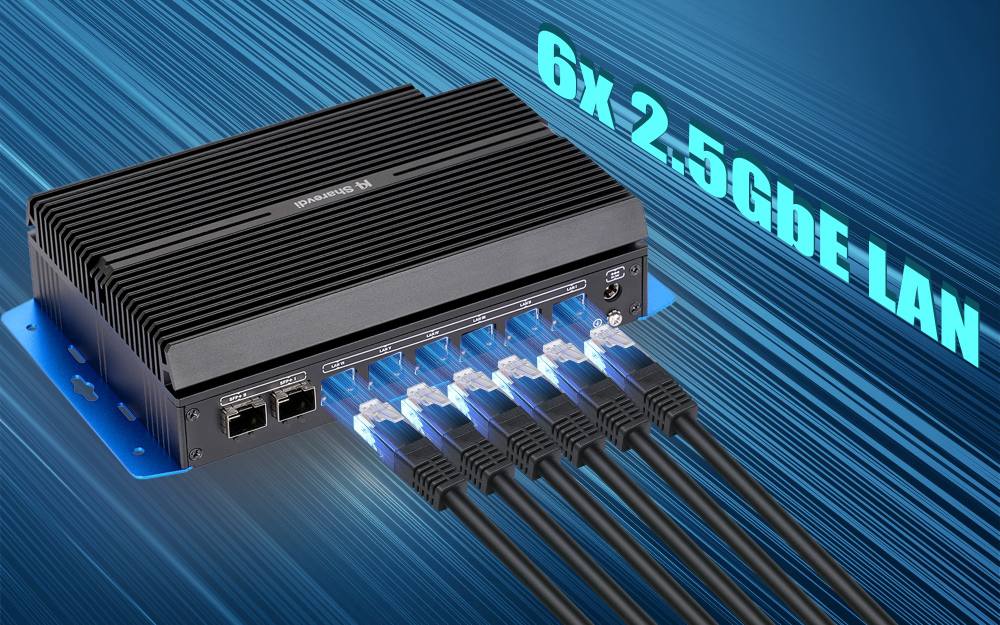

The F24-8L is an industrial-grade rugged embedded computer powered by the 12th Generation Intel Core i3/i5/i7 processors, delivering exceptional performance for mission-critical applications. Built with a robust industrial design, it ensures fanless, 24/7 reliable operation even in harsh environments. The system boasts a comprehensive I/O portfolio, featuring 6x 2.5G LAN ports for high-speed network connectivity, 2x SFP+ ports for fiber expansion, along with 2x USB 3.0, 3x USB 2.0, and 1x Type-C port for versatile connectivity. Flexible expansion is made easy with multiple mounting options including DIN rail, VESA wall-mount, and ear-hung installation.
Compatible with both Windows 10/11 and Linux systems, this embedded solution is ideal for industrial automation, network security firewalls, and high-bandwidth data transmission tasks.
-
Part No.K5-F24-12th
-
-
Processor
CPU
Intel® Core I5-12th Gen，8C / 12T
Cache
12 MB Intel® Smart Cache
Chipset
Alder Lake
-
Memory
Technology
1*DDR4L slots
Max. Capacity
16GB
-
Storage
M.2 SATA
SSD 128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel® UHD Graphics
-
Audio
Audio
HD Audio realtek ALC 897
-
Network
LAN
10/100/1000/2500BASE-T Ethernet (RJ45) x 6, Intel I226V ; 82599ES SFP+ x 2
Wireless
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 4G/5G module (with SIM card slot)
4G/5G module
support 4G/5G module with available sim slot
-
I/O Interface

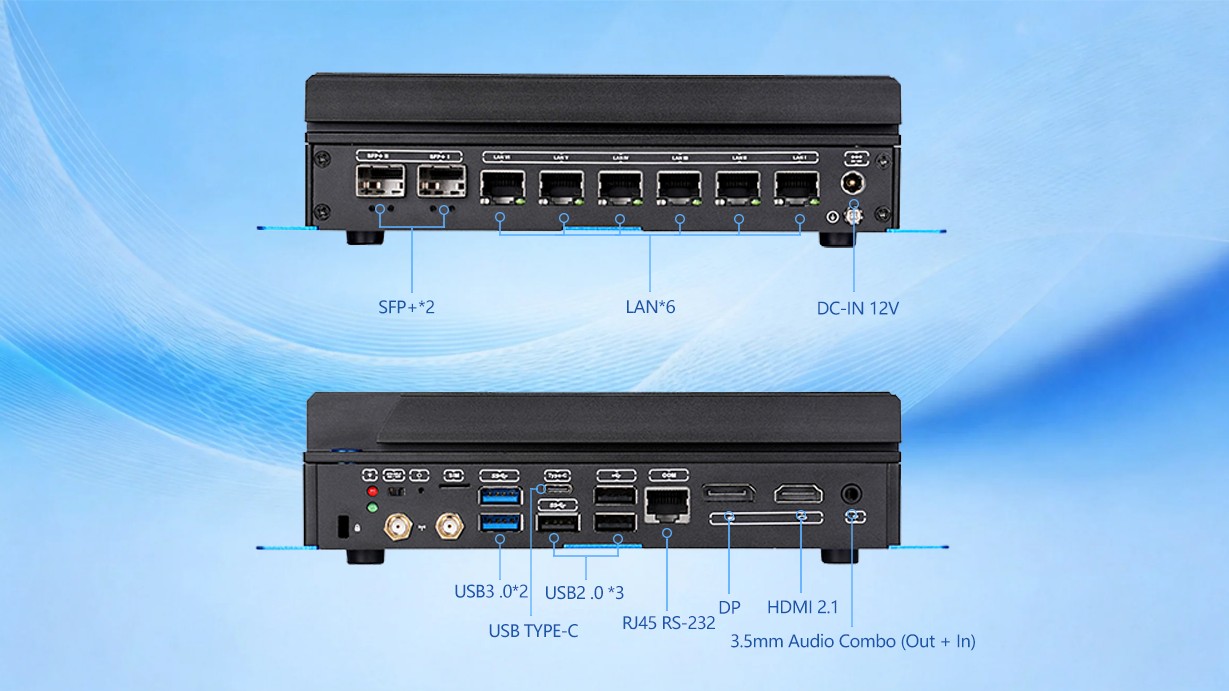

Front

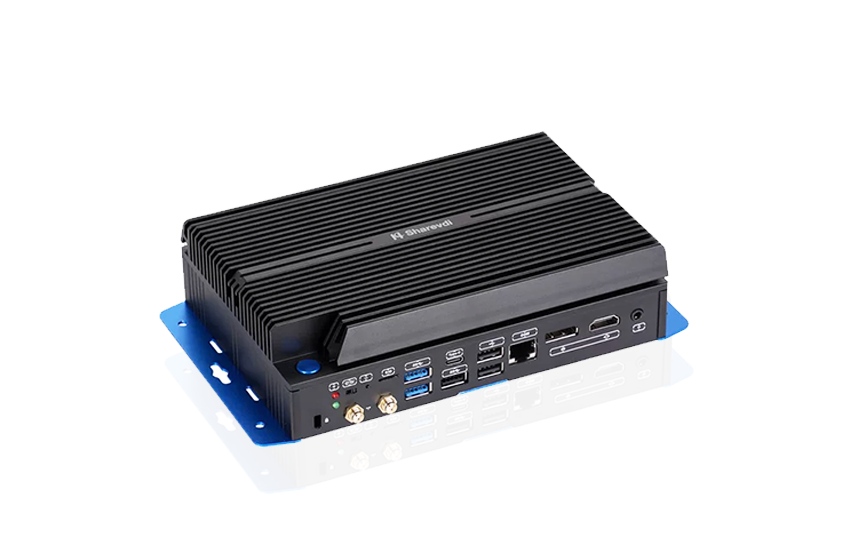

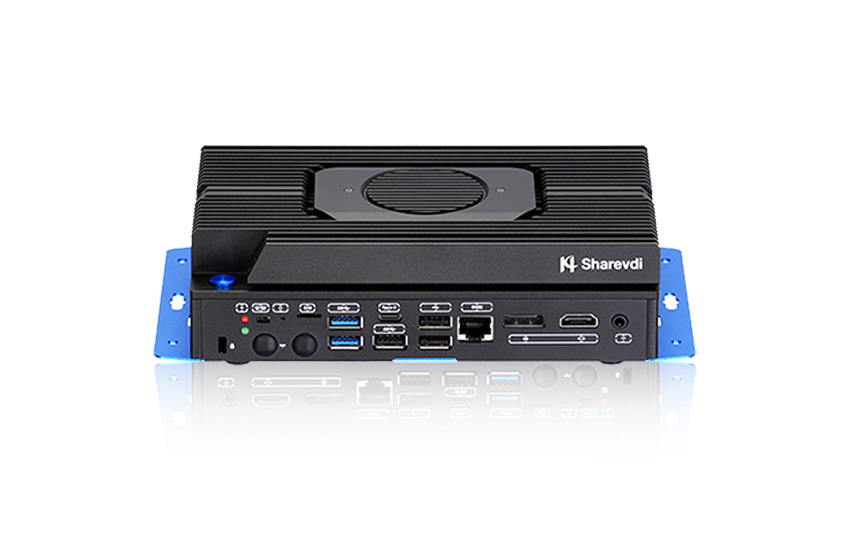

USB3.0 x 2, USB2.0 x 3, HDMI 2.1 x 1, DP 1.4 x 1, USB TYPE-C x 1, ATX Self-Power-On x 1, 3.5mm Audio Combo (Out + In) x 1, RJ45 RS-232 x 1, BIOS Reset Button x 1
Rear

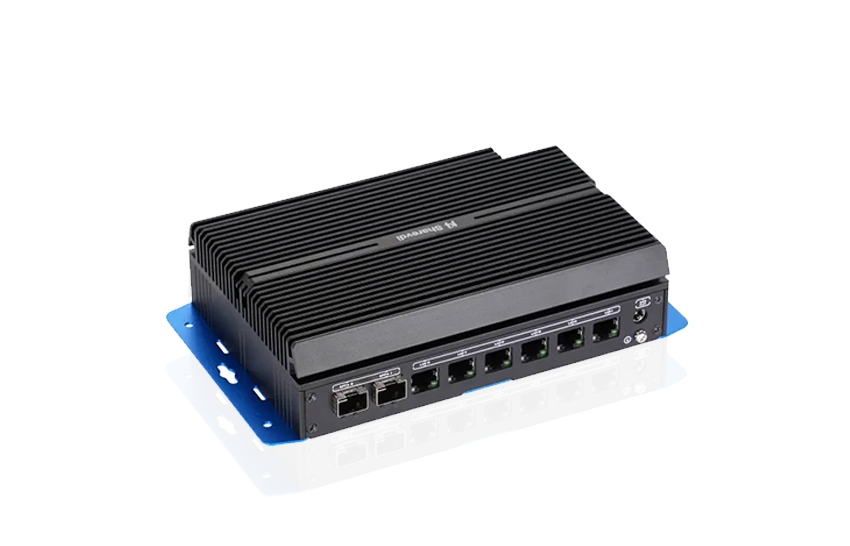

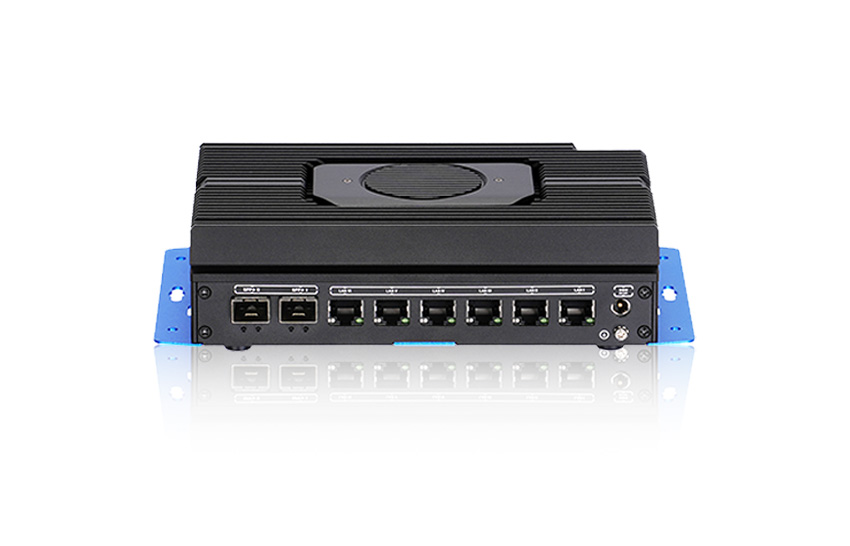

LAN x 6, SFP+ x 2,DC-IN 12V x 1
-
Extendable
I/O Ports
FP USB1 x 1, FP 8PINx 1, TPM 14PIN x 1, CPU FAN1 x 1, SPK CON 4PIN x 1, GPIO 10PIN x 1. ESPI DEBUG 10PIN x 1, M2B PWR1 3PIN x 1, JBAT 2PIN x 1, BATCON x 1, SYS FAN1 4PIN x 1, PW IN 2PIN Power Terminal x 1.
Module
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 4G/5G module (with SIM card slot)
-
Power
Output
12V-5A
-
Operating System
Windows 10, Windows 11, Ubuntu 24.04, Centos 9
-
Physical
Dimension
L 218mm x W 134mm x H 65mm
Weight(Net)
1.3KG
Color
Black
Cooling Method
Passive cooling (natural heat dissipation)
Mounting Options
Dedicated bracket;Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K5-F24-12th
Intel® Core I5-12th Gen，8C / 12T
-
Cache
K5-F24-12th
12 MB Intel® Smart Cache
-
Chipset
K5-F24-12th
Alder Lake
-
Technology
K5-F24-12th
1*DDR4L slots
-
Max. Capacity
K5-F24-12th
16GB
-
M.2 SATA
K5-F24-12th
SSD 128GB/256GB/512GB/1TB
-
SATA
K5-F24-12th
HDD 500GB/1TB/2TB (Optional)
-
Graphics
K5-F24-12th
Intel® UHD Graphics
-
Audio
K5-F24-12th
HD Audio realtek ALC 897
-
LAN
K5-F24-12th
10/100/1000/2500BASE-T Ethernet (RJ45) x 6, Intel I226V ; 82599ES SFP+ x 2
-
Wireless
K5-F24-12th
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 4G/5G module (with SIM card slot)
-
4G/5G module
K5-F24-12th
support 4G/5G module with available sim slot
-
Front
K5-F24-12th
USB3.0 x 2, USB2.0 x 3, HDMI 2.1 x 1, DP 1.4 x 1, USB TYPE-C x 1, ATX Self-Power-On x 1, 3.5mm Audio Combo (Out + In) x 1, RJ45 RS-232 x 1, BIOS Reset Button x 1
-
Rear
K5-F24-12th
LAN x 6, SFP+ x 2,DC-IN 12V x 1
-
I/O Ports
K5-F24-12th
FP USB1 x 1, FP 8PINx 1, TPM 14PIN x 1, CPU FAN1 x 1, SPK CON 4PIN x 1, GPIO 10PIN x 1. ESPI DEBUG 10PIN x 1, M2B PWR1 3PIN x 1, JBAT 2PIN x 1, BATCON x 1, SYS FAN1 4PIN x 1, PW IN 2PIN Power Terminal x 1.
-
Module
K5-F24-12th
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 4G/5G module (with SIM card slot)
-
Output
K5-F24-12th
12V-5A
-
K5-F24-12th
Windows 10, Windows 11, Ubuntu 24.04, Centos 9
-
Dimension
K5-F24-12th
L 218mm x W 134mm x H 65mm
-
Weight(Net)
K5-F24-12th
1.3KG
-
Color
K5-F24-12th
Black
-
Cooling Method
K5-F24-12th
Passive cooling (natural heat dissipation)
-
Mounting Options
K5-F24-12th
Dedicated bracket;Support VESA bracket
-
Certification
K5-F24-12th
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K5-F24-12th
-10~60 ℃
-
Storage Temperature
K5-F24-12th
-10~60 ℃
-
Operation Humidity
K5-F24-12th
0~95% (No Condensation)
-
Storage Humidity
K5-F24-12th
0~95% (No Condensation)
