G7-RK3576S Andoroid AI Box PC
Model:
G7-F1-RK3576S
Built on 8nm process with RK3576S octa-core (4×A72 + 4×A53) architecture
Embedded 3 TOPS NPU for edge AI and intelligent display
Ultra-low 6W power consumption for 24/7 continuous operation
4K video processing with both encoding and decoding
Supports portrait-landscape playback, video split-screen, scrolling subtitles, and scheduled power on/off
Gigabit Ethernet and Wi-Fi + Bluetooth for flexible connectivity
Supports Android 14 or Debian 12 operating systems
Built on 8nm process with RK3576S octa-core (4×A72 + 4×A53) architecture
Embedded 3 TOPS NPU for edge AI and intelligent display
Ultra-low 6W power consumption for 24/7 continuous operation
4K video processing with both encoding and decoding
Supports portrait-landscape playback, video split-screen, scrolling subtitles, and scheduled power on/off
Gigabit Ethernet and Wi-Fi + Bluetooth for flexible connectivity
Supports Android 14 or Debian 12 operating systems

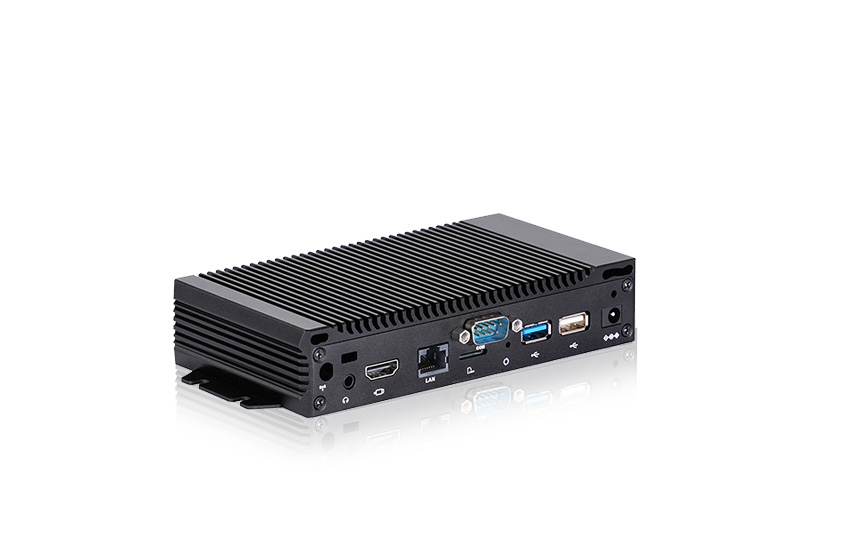

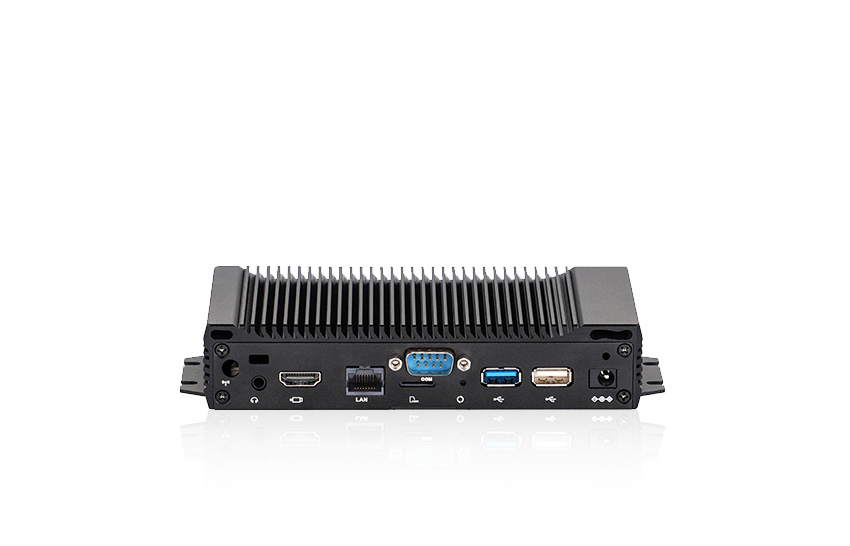

The G7-F1-RK3576S is an Android 14 digital signage player built on the 8nm RK3576S octa-core architecture, delivering high performance with ultra-low 6W power consumption for 24/7 operation. Equipped with ARM Mali-G52 MC3 GPU and integrated 2D graphics acceleration engine (RGA). With a built-in 3 TOPS NPU, it enables on-device AI inference for smart content delivery. As a 4K video decoding media player, it supports 4K encoding and decoding. The fanless design with -20°C to 70°C wide temperature range ensures reliable operation in harsh environments. Gigabit Ethernet and integrated Wi-Fi + Bluetooth provide flexible wired and wireless connectivity. Multiple USB ports (USB3.0×1, USB2.0×4) and RS232/TTL interfaces offer extensive peripheral connectivity and serial communication options.
-
Part No.G6-RK3576S-F1
-
-
System
SOC
4×A72 + 4×A53
CPU
RK3576S
NPU
3 TOPS AI performance
Memory
4GB
Storage & Expansion
64 GB eMMC storage
-
Others
Watchdog
Customizable support
RTC
Supported
-
Video
GPU
ARM Mali-G52 MC3
Hardware Codec
JPEG encoder/decoder; 4K@30fps encoding for H.264/H.265; 4K@60fps decoding for H.265/H.264/AV1/VP9/AVS2
Display Interfacs
HDMI IN ×1, (On-board LVDS and EDP pin headers)
-
Network
Ethernet
1 × RJ45 ports, 10/100/1000 Mbps
Wireless Network
Wi-Fi + Bluetooth module（Yftech 20800D8-04）
-
I/O
USB
USB3.0×1，USB2.0(OTG）×1, USB2.0 Receptacles ×3
IO
1 × RS232, TTL（On-board) x3
Audio
Audio Combo(Out +In), MIC x 1, SPK x 1
TF Card
1 × TF card slot, ( Max. support 128 GB)
-
Power input
Power Input
DC 12V/2A
Buttons/Indicators
Red/Green LED
-
Physical parameters
Enclosure Dimension
179.4mm × 79mm × 32.5mm
Package Dimension
213mm × 210mm × 50mm
Net Weight
0.47kg
Gross Weight
0.95kg
-
Software
Operating System
Android 14.0 / Debian 12
-
Environment
Operating Temperature
-20℃ ~ 70℃
Storage Temperature
-40℃ ~ 85℃
Operating/Storage Humidity
0~85% RH (non-condensing)
Safety Certifications
CCC，CE，ISO
-
SOC
G6-RK3576S-F1
4×A72 + 4×A53
-
CPU
G6-RK3576S-F1
RK3576S
-
NPU
G6-RK3576S-F1
3 TOPS AI performance
-
Memory
G6-RK3576S-F1
4GB
-
Storage & Expansion
G6-RK3576S-F1
64 GB eMMC storage
-
Watchdog
G6-RK3576S-F1
Customizable support
-
RTC
G6-RK3576S-F1
Supported
-
GPU
G6-RK3576S-F1
ARM Mali-G52 MC3
-
Hardware Codec
G6-RK3576S-F1
JPEG encoder/decoder; 4K@30fps encoding for H.264/H.265; 4K@60fps decoding for H.265/H.264/AV1/VP9/AVS2
-
Display Interfacs
G6-RK3576S-F1
HDMI IN ×1, (On-board LVDS and EDP pin headers)
-
Ethernet
G6-RK3576S-F1
1 × RJ45 ports, 10/100/1000 Mbps
-
Wireless Network
G6-RK3576S-F1
Wi-Fi + Bluetooth module（Yftech 20800D8-04）
-
USB
G6-RK3576S-F1
USB3.0×1，USB2.0(OTG）×1, USB2.0 Receptacles ×3
-
IO
G6-RK3576S-F1
1 × RS232, TTL（On-board) x3
-
Audio
G6-RK3576S-F1
Audio Combo(Out +In), MIC x 1, SPK x 1
-
TF Card
G6-RK3576S-F1
1 × TF card slot, ( Max. support 128 GB)
-
Power Input
G6-RK3576S-F1
DC 12V/2A
-
Buttons/Indicators
G6-RK3576S-F1
Red/Green LED
-
Enclosure Dimension
G6-RK3576S-F1
179.4mm × 79mm × 32.5mm
-
Package Dimension
G6-RK3576S-F1
213mm × 210mm × 50mm
-
Net Weight
G6-RK3576S-F1
0.47kg
-
Gross Weight
G6-RK3576S-F1
0.95kg
-
Operating System
G6-RK3576S-F1
Android 14.0 / Debian 12
-
Operating Temperature
G6-RK3576S-F1
-20℃ ~ 70℃
-
Storage Temperature
G6-RK3576S-F1
-40℃ ~ 85℃
-
Operating/Storage Humidity
G6-RK3576S-F1
0~85% RH (non-condensing)
-
Safety Certifications
G6-RK3576S-F1
CCC，CE，ISO
