Industrial PCs/ Touch Panel PC/ 15'' Industrial Panel PC/ A14 Embedded Panel PC Linux/Android

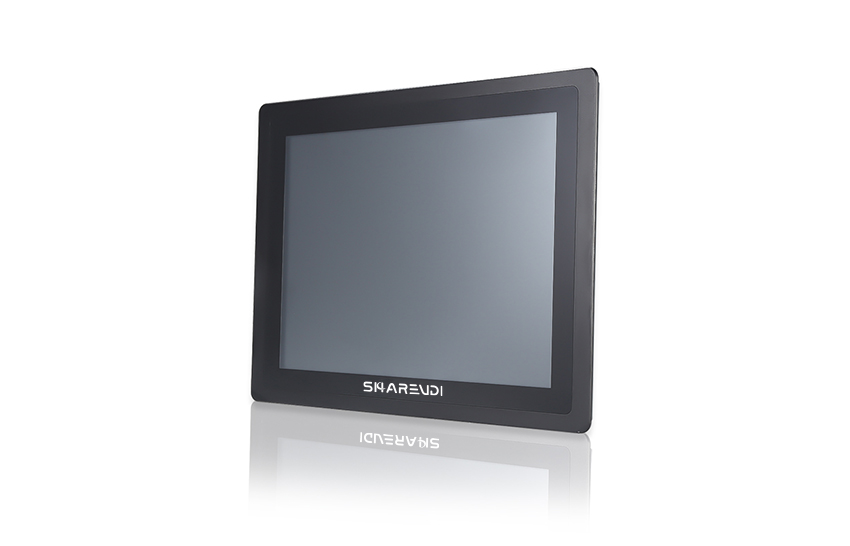

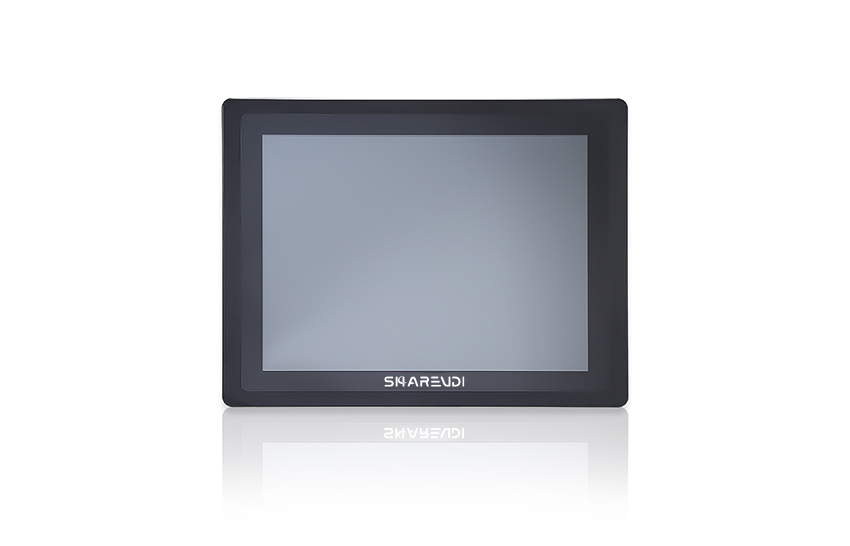

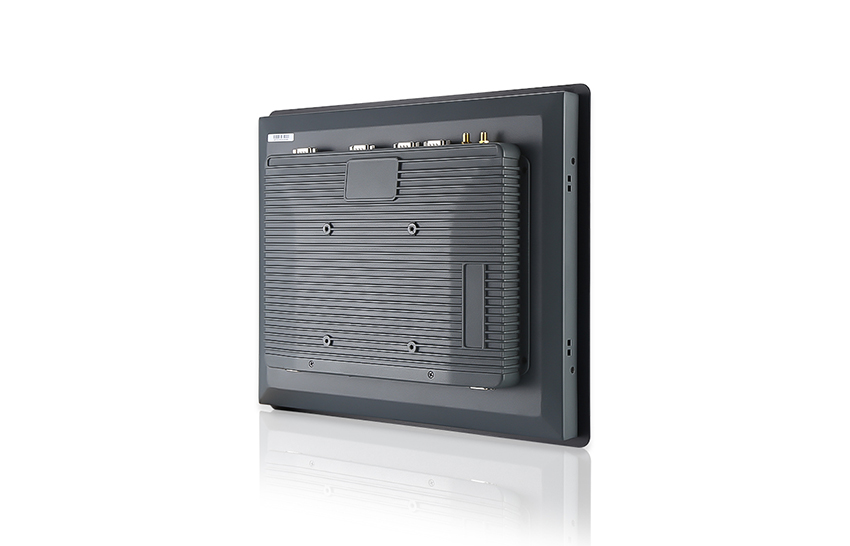

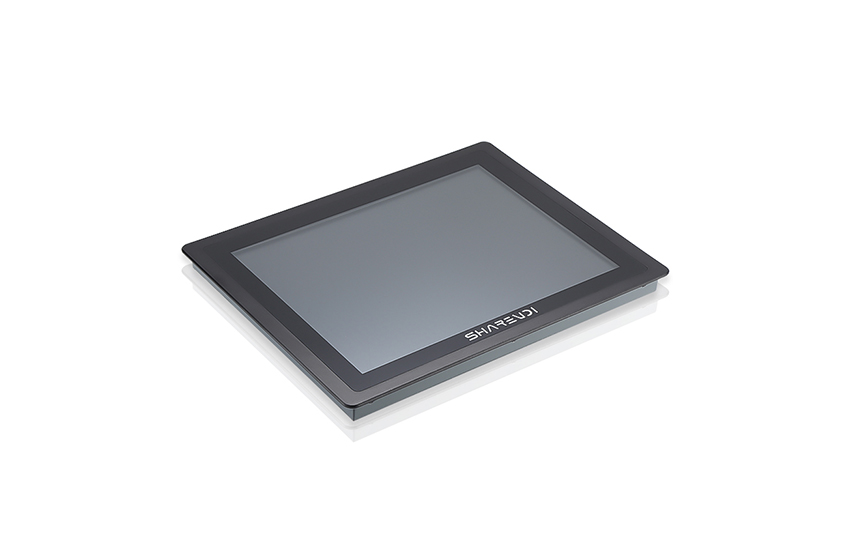

A14 Embedded Panel PC Linux/Android

Model:

A14-RK3576
A14-RK3576 主图1.jpg
A14-RK3576 主图2.jpg
A14-RK3576 主图3.jpg
A14-RK3576 主图4.jpg
A14-RK3576 主图1.jpg
A14-RK3576 主图2.jpg
A14-RK3576 主图3.jpg
A14-RK3576 主图4.jpg

● ARM® RK3576 Eight nuclear processor

● 10 points touch screen

● Customizable RAM/Flash

● Optional android/ubuntu OS

● Can be embedded or vesa mount

● Apply for Digital Signage/KIOSK/Queuing System

Data sheet Send Inquiry

A14-RK3576 is an industrial-grade panel PC featuring an octa-core RK3576 processor, 10-point touchscreen, and flexible OS/memory options, designed for digital signage, kiosks, and queuing systems in demanding environments.

Specification A14-RK3576
  • Part No.
    A14-RK3576
  • Get A Quote
  • Processor System

    CPU

    ARM® RK3576 Eight nuclear processor

    RAM

    DDR4 8GB

    Storage

    Onboard 128GB EMMC

    NPU

    6TOPS

  • Display

    Panel Size

    15''

    Max. Resolution

    1024*768p

    Max. Colors

    16.7M (6-bit+Hi-FRC)

    Treatment

    Anti-Glare

    Brightness

    250-1000nits

    Viewing Direction

    Full Viewing

    Aspect Ratio

    4:3

  • Touch Screen

    Touch Points

    10 Points

    Type

    Capacitive Touch

  • Color

    Gray

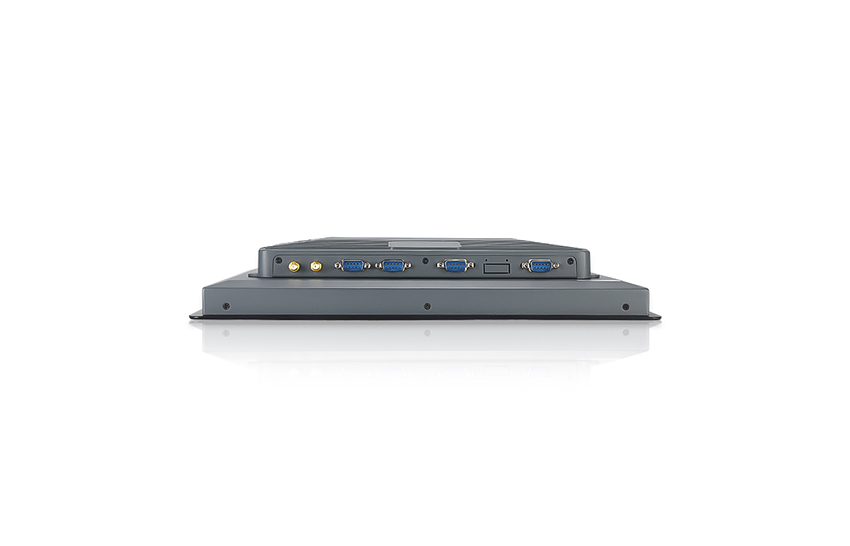

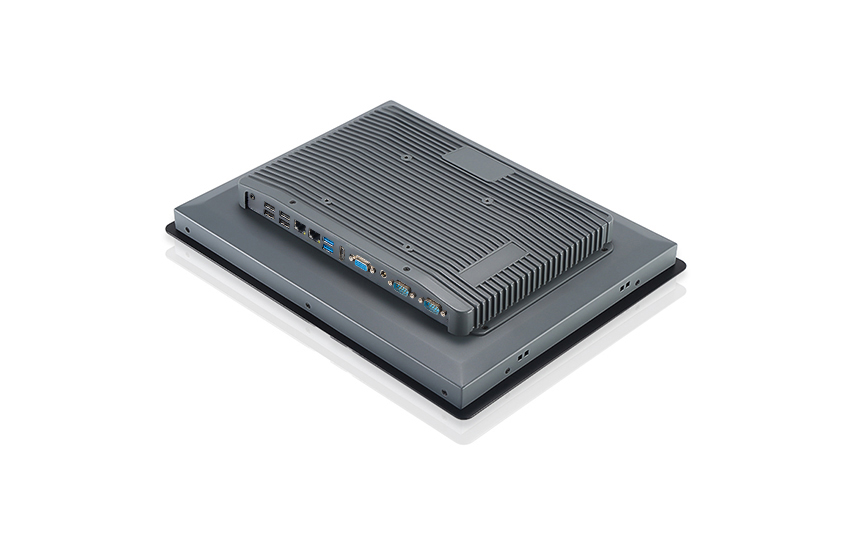

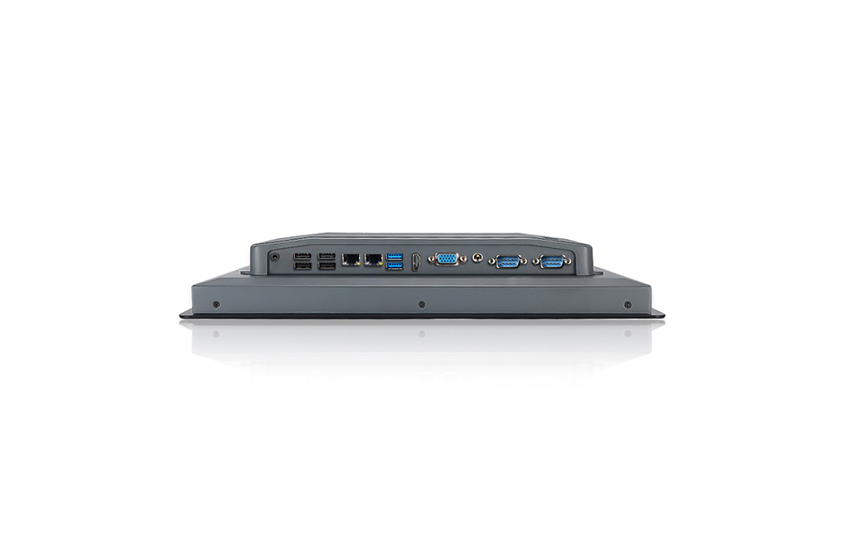

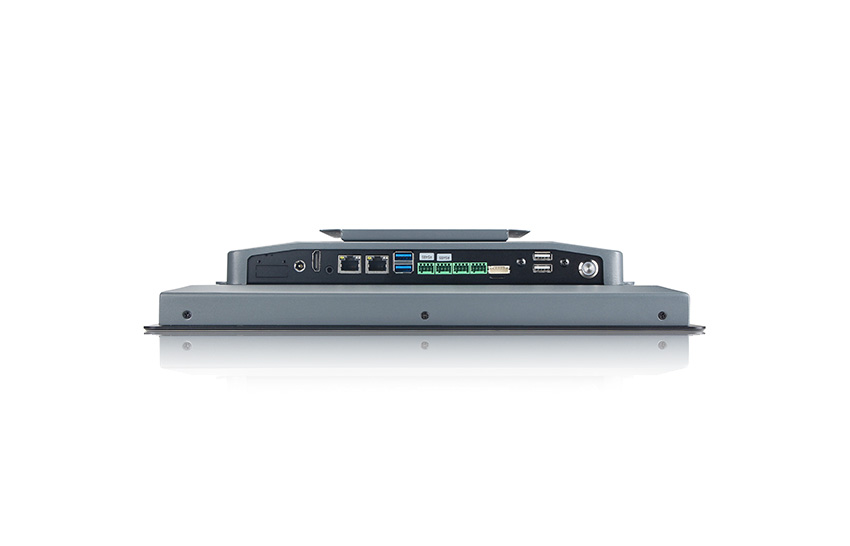

  • I/O Interface

    Video output

    1*HDMI

    Serial Port

    2 x RS232 & 2 x RS485

    USB Port

    2 x USB 2.0 & 2 x USB 3.0

    Ethernet

    2 x Ethernet

    Extendable Port

    1 x SIM card,1 x GPIO(4PIN)

  • General

    Certification

    CE,FCC,ROHS,ISO

    Dimension(W*H*D)

    378*297*60.8mm

    Power Input

    AC100-240V.50-60HZ

    Power Output

    DC12V 2A~5A

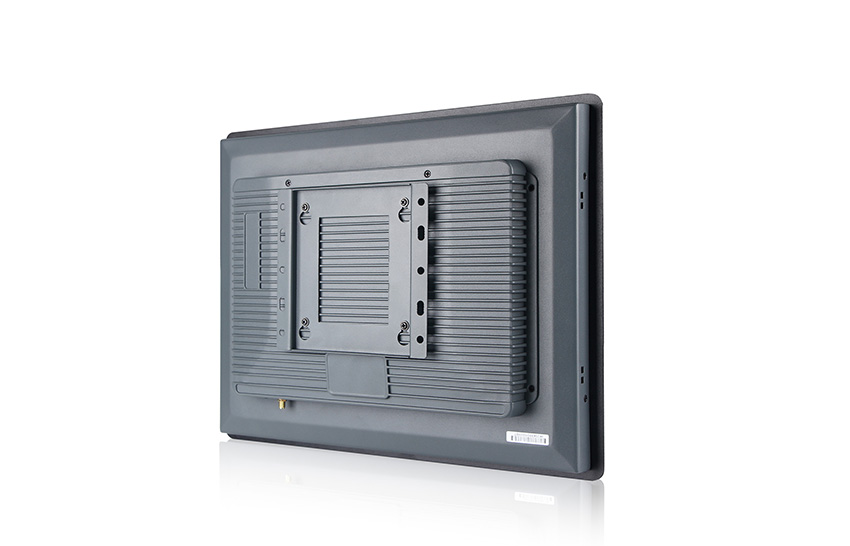

    Mounting Options

    Wall Mount/Embedded Vesa Mount/Vertical Stand

    Weight(Net)

    7.5kg

  • Environment

    Operating Temperature

    -10 ~ 60℃

    Storage Temperature

    -20 ~ 75℃

    Operation Humidity

    10% ~ 80%

    Storage Humidity

    10% ~ 90%

Get A Quote
Processor System
  • CPU

    A14-RK3576

    ARM® RK3576 Eight nuclear processor

  • RAM

    A14-RK3576

    DDR4 8GB

  • Storage

    A14-RK3576

    Onboard 128GB EMMC

  • NPU

    A14-RK3576

    6TOPS

Display
  • Panel Size

    A14-RK3576

    15''

  • Max. Resolution

    A14-RK3576

    1024*768p

  • Max. Colors

    A14-RK3576

    16.7M (6-bit+Hi-FRC)

  • Treatment

    A14-RK3576

    Anti-Glare

  • Brightness

    A14-RK3576

    250-1000nits

  • Viewing Direction

    A14-RK3576

    Full Viewing

  • Aspect Ratio

    A14-RK3576

    4:3

Touch Screen
  • Touch Points

    A14-RK3576

    10 Points

  • Type

    A14-RK3576

    Capacitive Touch

Color

  • A14-RK3576

    Gray

I/O Interface
  • Video output

    A14-RK3576

    1*HDMI

  • Serial Port

    A14-RK3576

    2 x RS232 & 2 x RS485

  • USB Port

    A14-RK3576

    2 x USB 2.0 & 2 x USB 3.0

  • Ethernet

    A14-RK3576

    2 x Ethernet

  • Extendable Port

    A14-RK3576

    1 x SIM card,1 x GPIO(4PIN)

General
  • Certification

    A14-RK3576

    CE,FCC,ROHS,ISO

  • Dimension(W*H*D)

    A14-RK3576

    378*297*60.8mm

  • Power Input

    A14-RK3576

    AC100-240V.50-60HZ

  • Power Output

    A14-RK3576

    DC12V 2A~5A

  • Mounting Options

    A14-RK3576

    Wall Mount/Embedded Vesa Mount/Vertical Stand

  • Weight(Net)

    A14-RK3576

    7.5kg

Environment
  • Operating Temperature

    A14-RK3576

    -10 ~ 60℃

  • Storage Temperature

    A14-RK3576

    -20 ~ 75℃

  • Operation Humidity

    A14-RK3576

    10% ~ 80%

  • Storage Humidity

    A14-RK3576

    10% ~ 90%
