Rugged Mini PC K5-F24 11th Gen

Industrial PCs/ Rugged Mini PC/ F24 Industrial Mini PC/ K5-F24 11th-Gen Industrial PC

K5-F24 11th-Gen Industrial PC

Model:

K5-F24-1155G7

Add To Compare

● Industrial rugged design with a fanless cooling system

● 11th Gen Intel® Core™ i3/i5/i7 Processors and Intel® Iris® Xe Graphics

● 2x DDR4L slots up to 64GB RAM, 1x M.2 2280 SATA/NVMe, and 1x 2.5" SATA for SSD/HDD

● 4x Serial ports (Optional RS232/RS485)

● Dual Gigabit LAN ports with Intel I226-V and Realtek 8111H chipsets

● Simultaneous triple-display support via 1x HDMI, 1x VGA, and 1x DP port

● 1x M.2 PCIe slot for 4G/5G module or Wi-Fi & Bluetooth, with SIM card support

● OS: Windows 11 / IoT / Linux

● Supports various mounting methods: Ear, VESA, and Din Rail

Data sheet Data sheet Send Inquiry

The ShareVDI K5-F24 11th Gen rugged mini PC is equipped with high-performance 11th Gen Intel CPUs, offering options for i3, i5, and i7 processors to meet various computational needs. This fanless rugged mini PC features an upgraded enclosure that facilitates superior heat dissipation, ensuring reliable operation even under heavy workloads. With a comprehensive array of interfaces, the K5-F24 industrial rugged mini PC is designed for seamless connectivity and integration in industrial settings.

ShareVDI industrial rugged computer K5-F24 with robust industrial design guarantees dependable 24/7 operation, making it suitable for environments with temperature ranges from -10 to 60 degrees Celsius. This rugged embedded computer stands out as a reliable solution for industries that require both performance and durability.

Overview
Specification

The K5-F24 industrial rugged computer delivers all-around connectivity to integrate seamlessly with industrial peripherals and systems: it comes with 4 COM ports, 2×USB3.0 and 4×USB2.0 (for linking both traditional and modern devices like sensors or scanners), dual Ethernet controllers (Intel I216-V and Realtek 8111H) for reliable networking, 3 display outputs (HDMI + DP + VGA) to support multi-screen setups, plus RJ11, PS/2, audio I/O and dual DC power ports. This extensive interface suite makes the fanless K5-F24 an ideal fit for diverse industrial applications.

High-Performance Processing Power

The K5-F24 rugged mini PC is built on 11th Gen Intel Core i3/i5/i7 processor architecture — paired with Intel Iris Xe Graphics to deliver smooth, high-fidelity visual performance. Designed to thrive in industrial environments, it handles data-intensive, complex computational tasks with consistent, reliable efficiency.

Intel Core i5-1155G7: 4 Cores / 8 Threads | 2.50GHz Base Frequency | Up to 4.50GHz Max Turbo | 8MB Smart Cache) + Intel Iris Xe Graphics

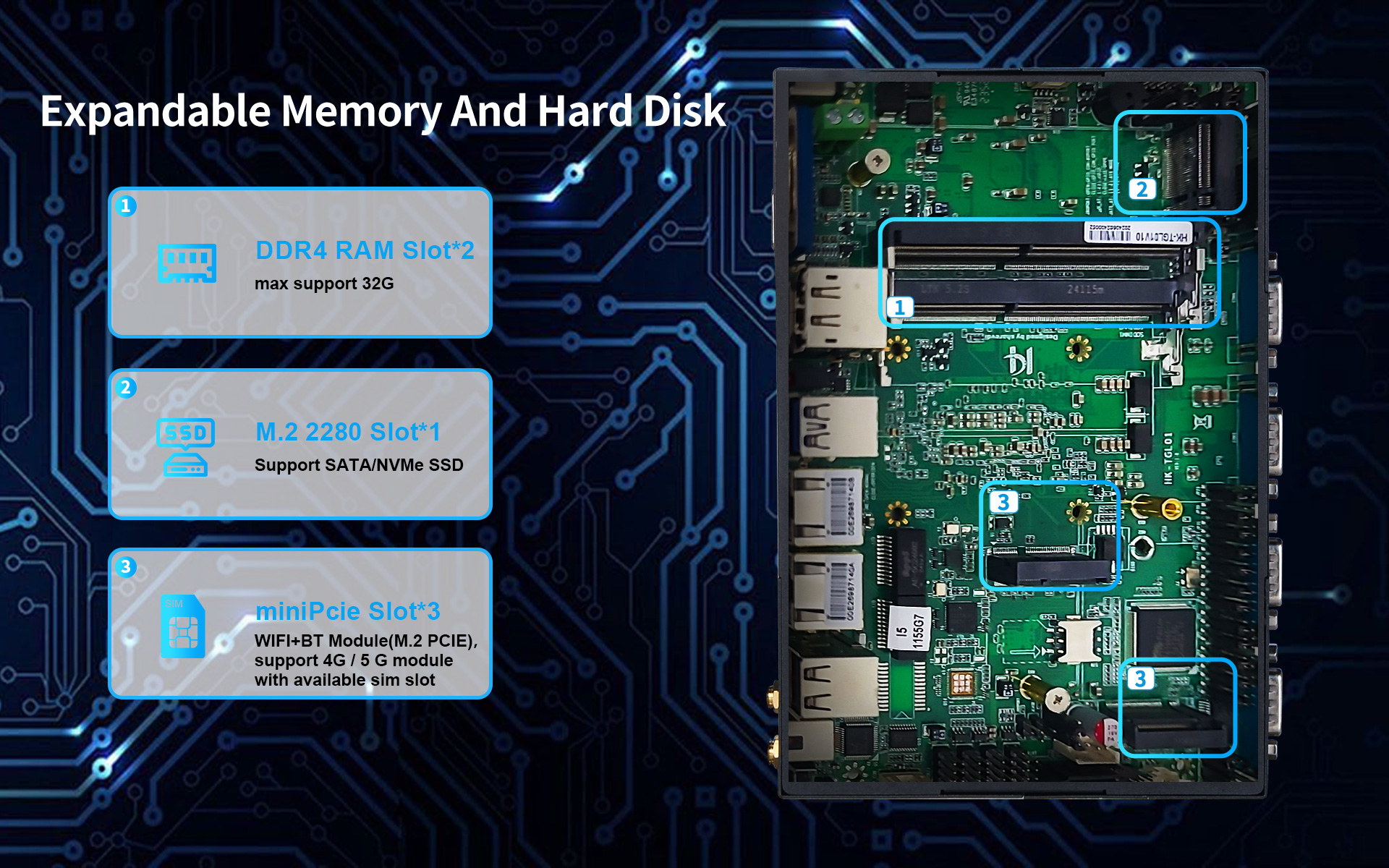

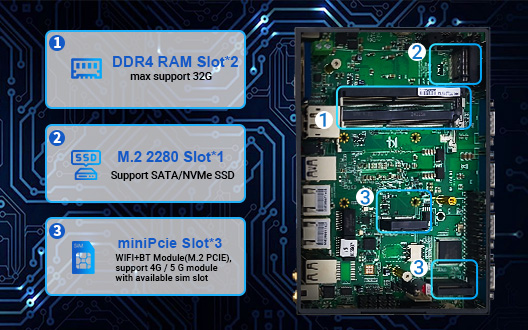

Flexible Expansion & Connectivity

The K5-F24 rugged PC comes with built-in TPM 2.0 for enhanced data and system security, paired with scalable hardware and versatile connectivity. It features expandable memory (2×SO-DIMM DDR4 slots, max 32GB) and flexible storage (1×M.2 2280 SATA/NVME SSD slot, 1×SATA interface for 2.5-inch drives, plus a miniPCIe slot), along with multi-network access options: WiFi/Bluetooth via M.2 E KEY 2230 and 4G/5G via M.2 PCIE (with SIM slot) — ideal for dynamic, security-focused industrial operations.

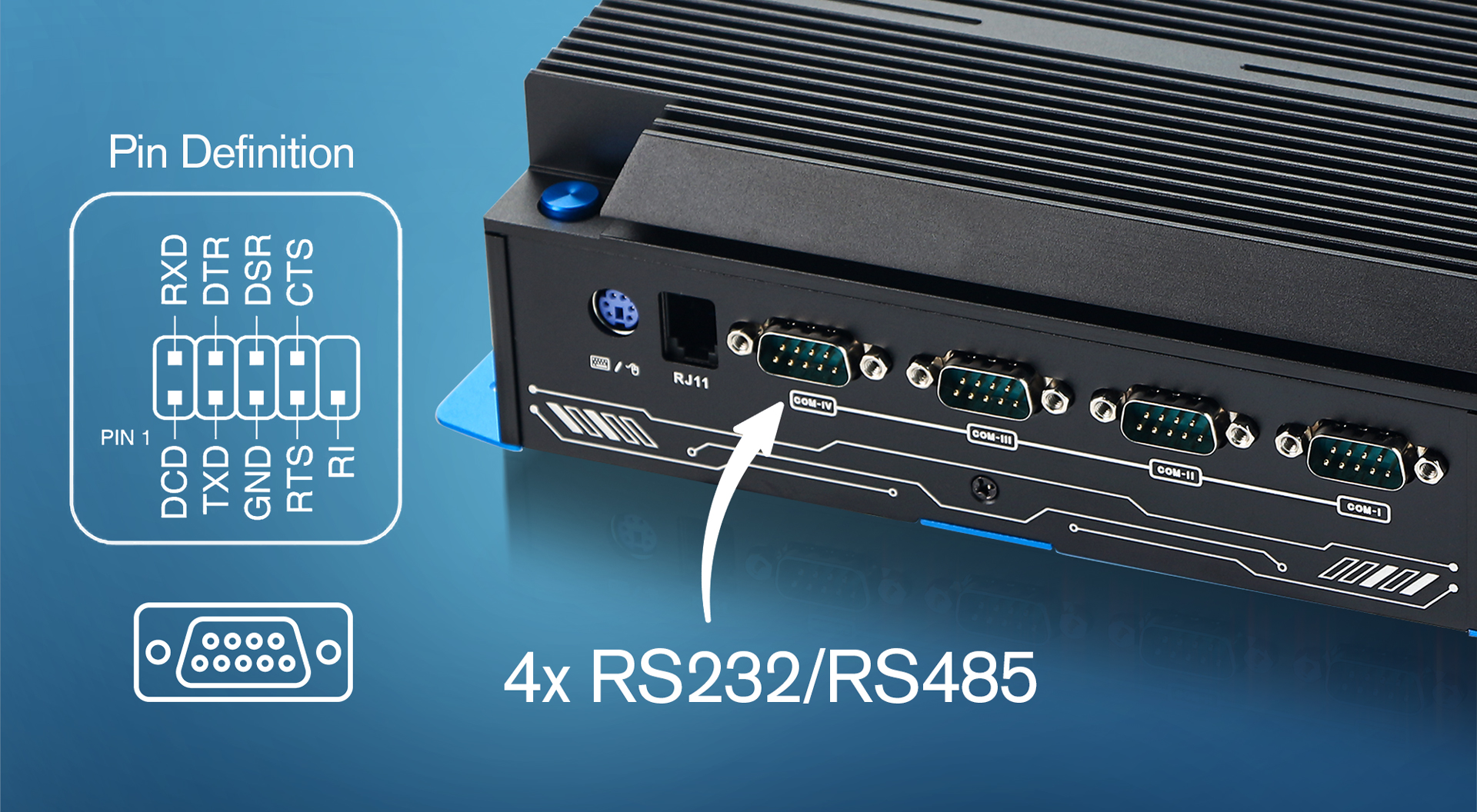

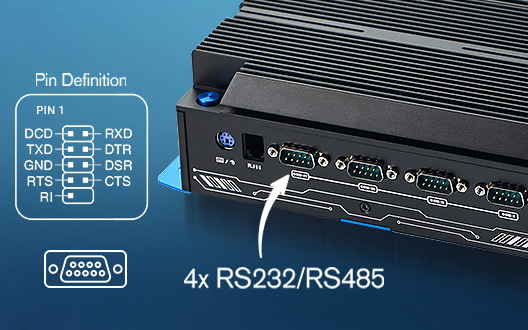

4 serial ports-RS232/RS485

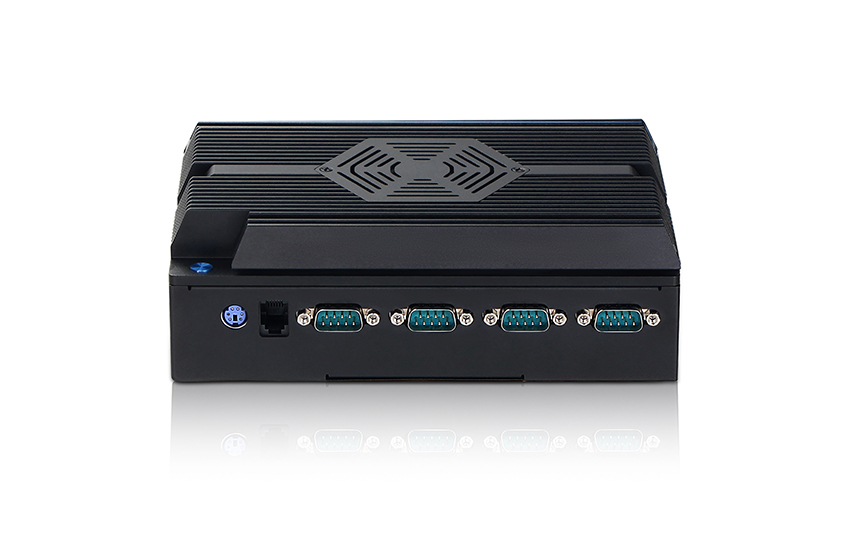

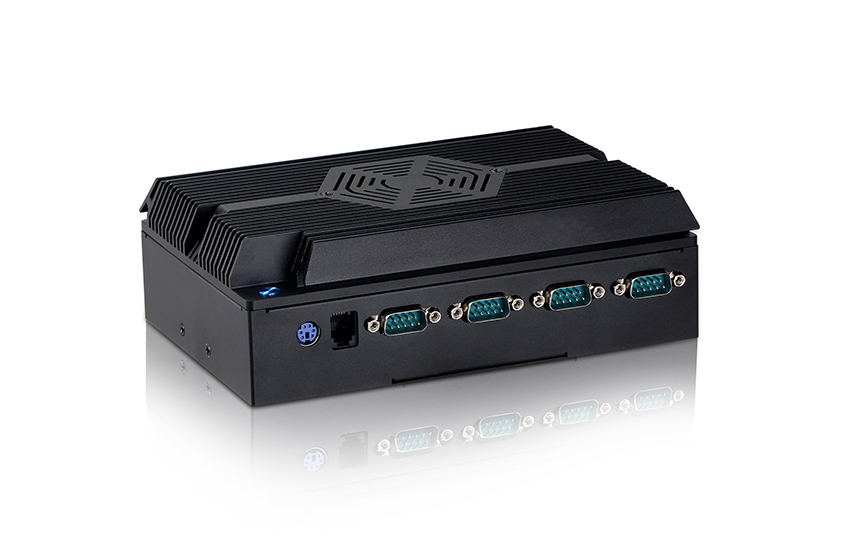

The K5-F24 industrial mini PC is equipped with 4 built-in serial ports as standard — a practical configuration for industrial scenarios that rely on multi-device connectivity.

Each COM port supports jumper-based switching (via the motherboard) between RS232 and RS485 protocols, letting you adapt the ports to match different peripheral devices (such as sensors, controllers, or terminals) without extra hardware. This flexibility makes it ideal for diverse industrial communication needs.

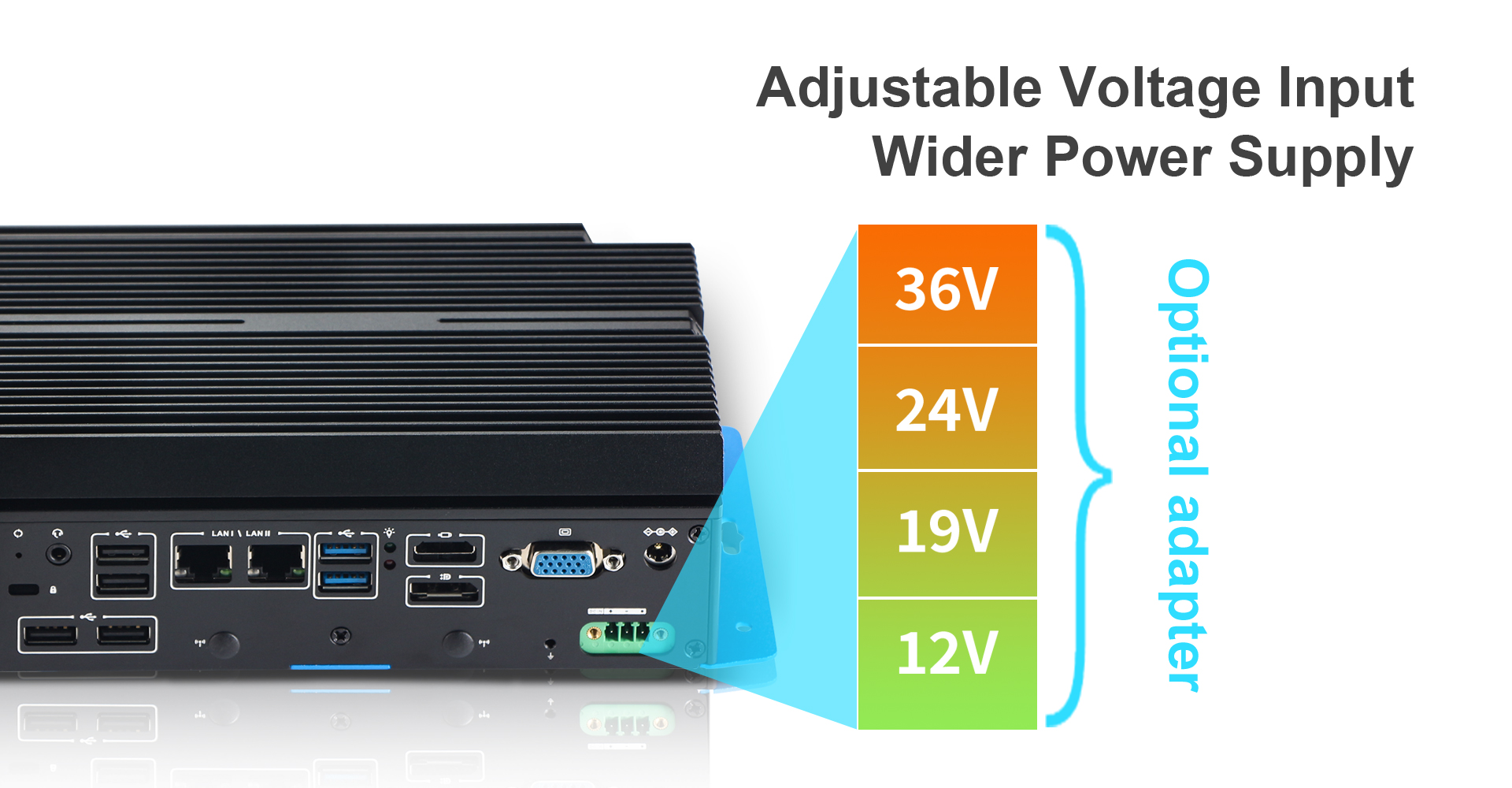

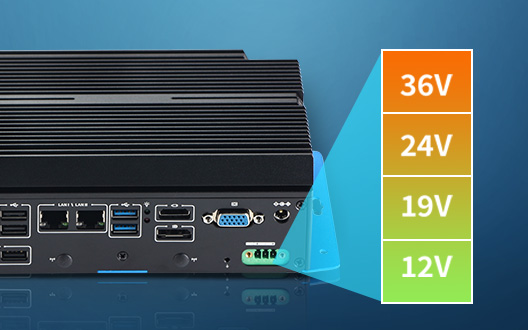

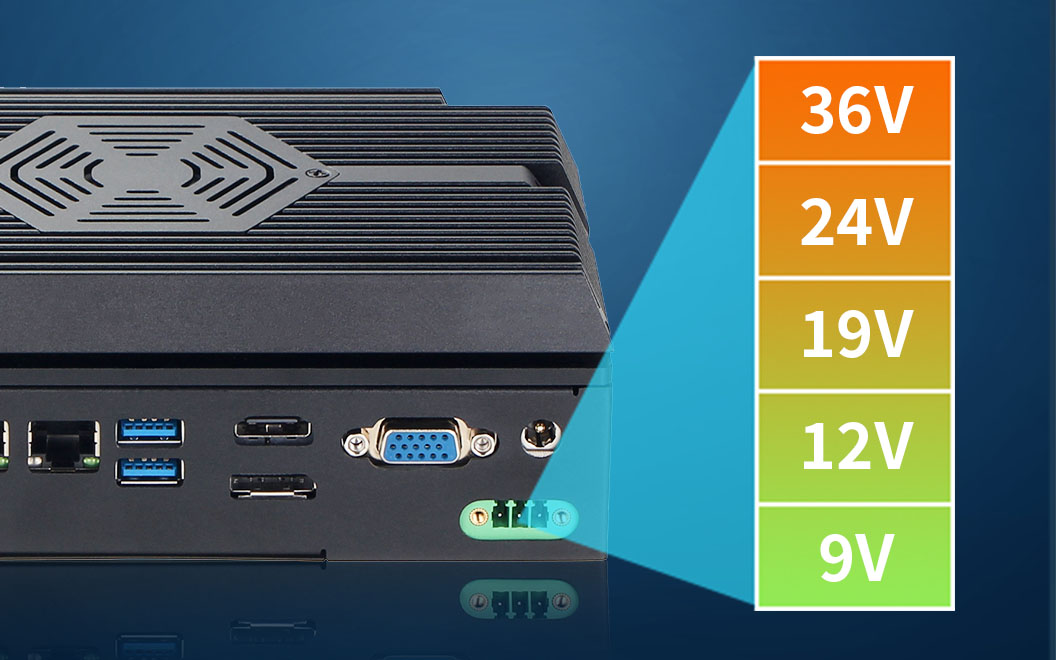

9-36V Power Support

Designed for flexibility in power supply options, K5-F24 fanless rugged mini PC supports a wide voltage range of 9-36V through its power connector. This adaptability makes it suitable for various industrial environments where power supply conditions may vary. This power connector is optional with K5-F24 Industrial rugged min PC,customer should clarify the needs before manufacturing.

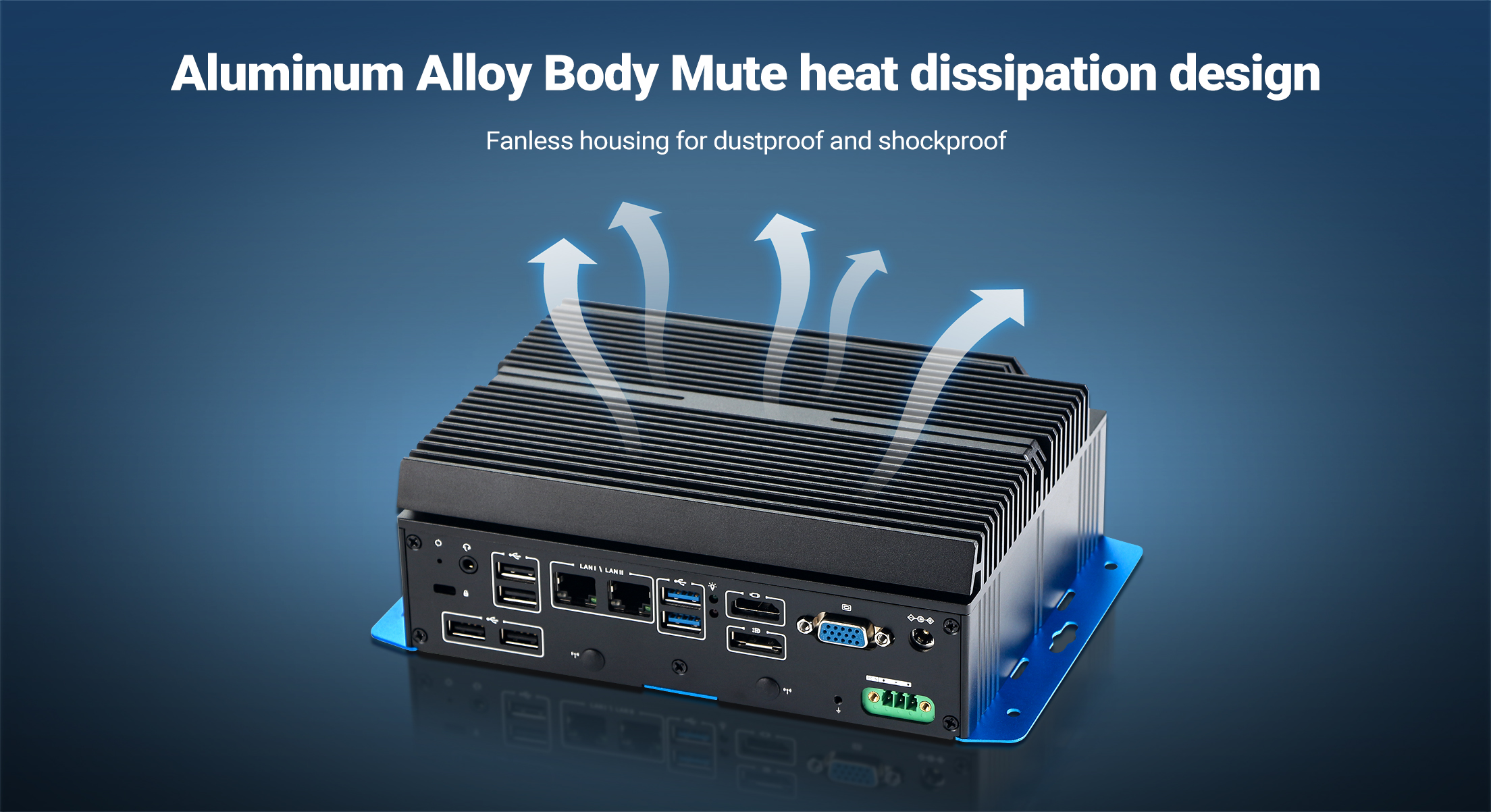

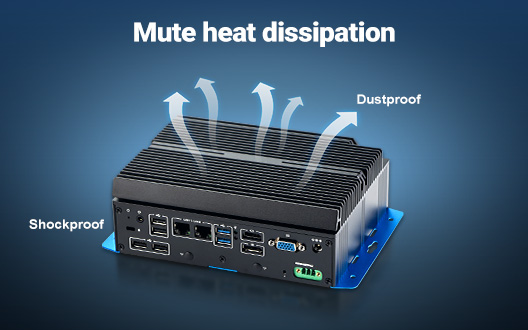

Mute Heat Dissipation

Crafted for rugged industrial landscapes, K5-F24 merges robust functionality with precision engineering. It operates in complete silence. Its unique ice spine exterior enhances heat dissipation, ensuring stable performance even under intense loads. Built to withstand harsh conditions, it boasts exceptional dust resistance and shockproof capabilities, thriving in temperatures ranging from -10°C to 60°C. A reliable powerhouse for demanding industrial applications.

3-Screen Independent Display

The K5-F24 rugged mini PC enables triple independent display output via HDMI, VGA, and DP. This supports distinct industrial content (e.g., separate equipment status dashboards, production line monitoring feeds, and safety alert interfaces) across three screens simultaneously — ideal for industrial control rooms, manufacturing floor operations, and automated system oversight, delivering comprehensive, split visual oversight from a compact rugged platform.

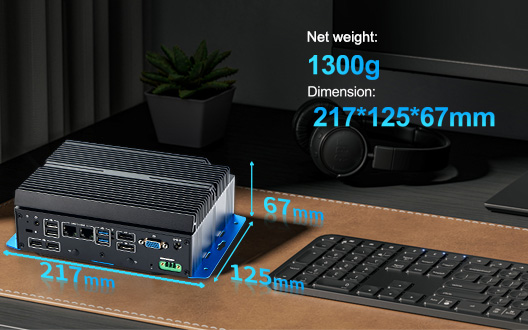

24×7 Reliable K5-F24

The ShareVDI K5-F24 (11th-Gen industrial rugged mini PC) is engineered for non-stop industrial demands: its fanless, robust build ensures stable 24×7 operation, balancing durability and high performance — ideal for environments where reliability is critical.

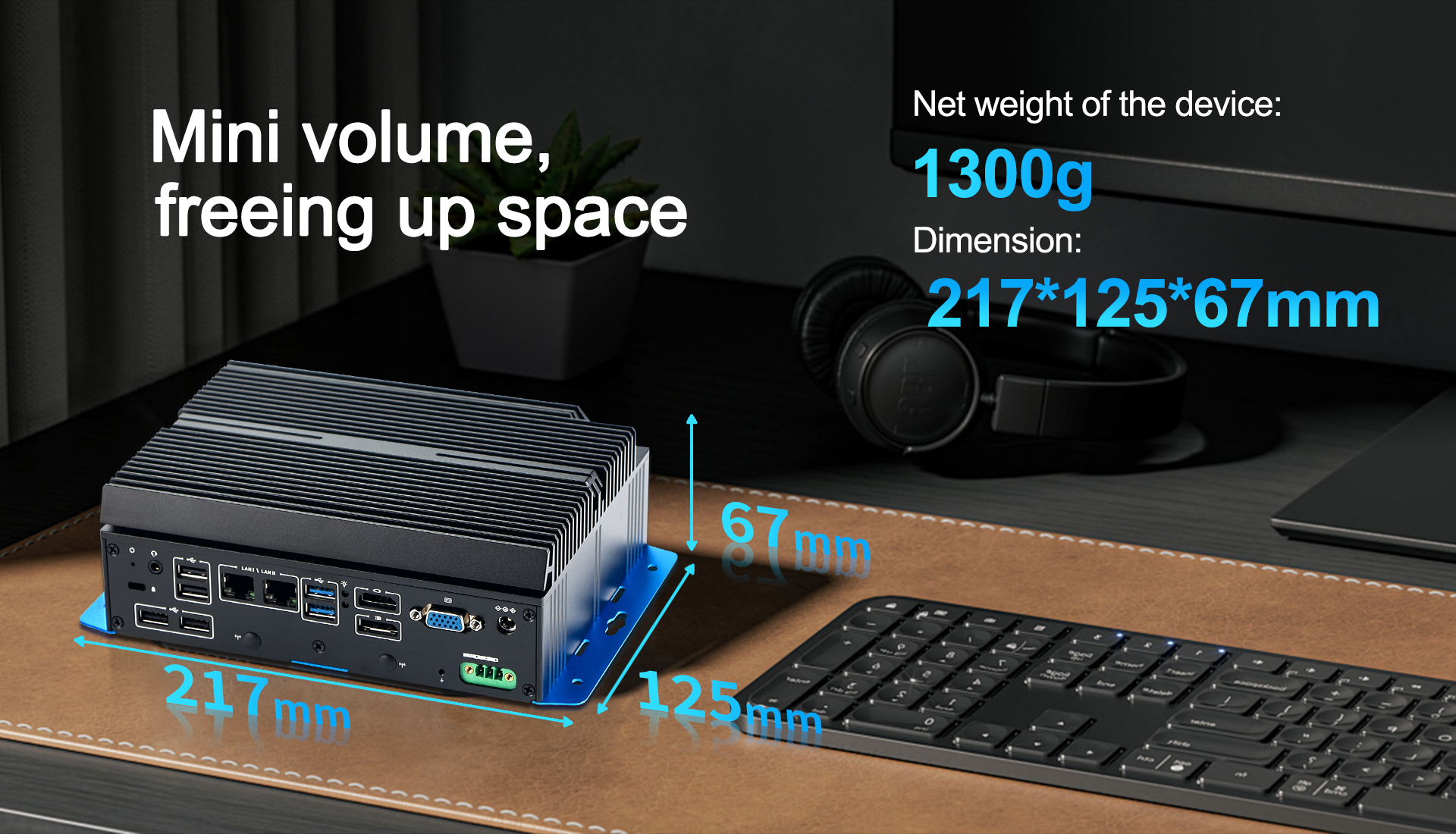

Its compact footprint (217×125×67mm, 1300g) brings space-saving flexibility, fitting seamlessly into tight industrial setups without compromising functionality.

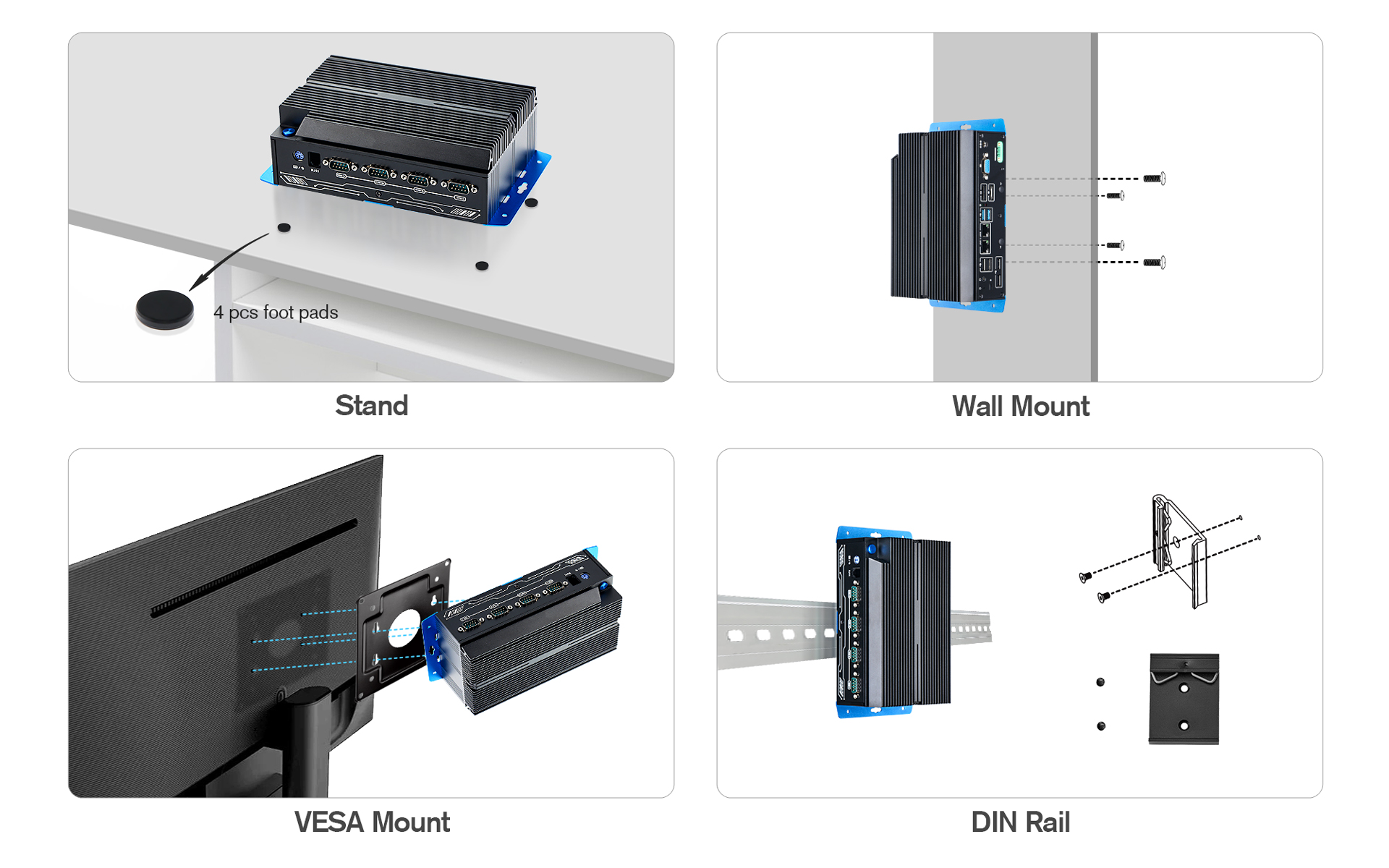

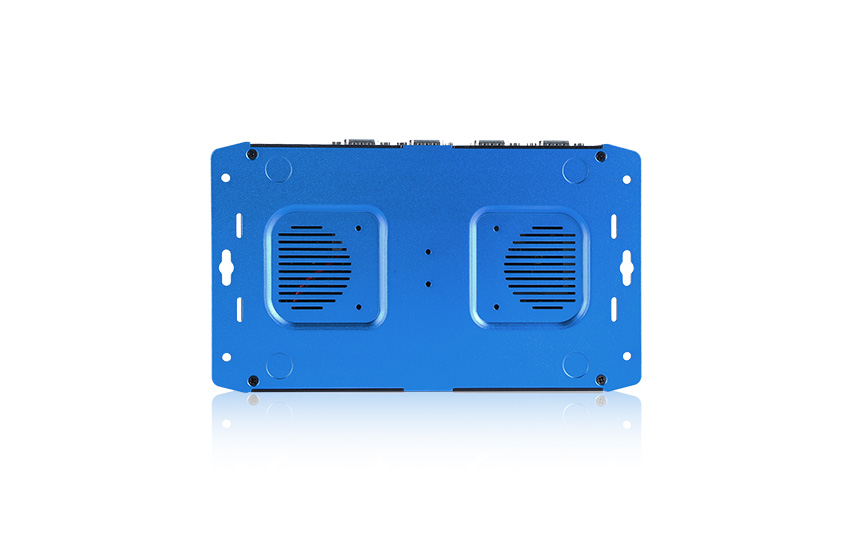

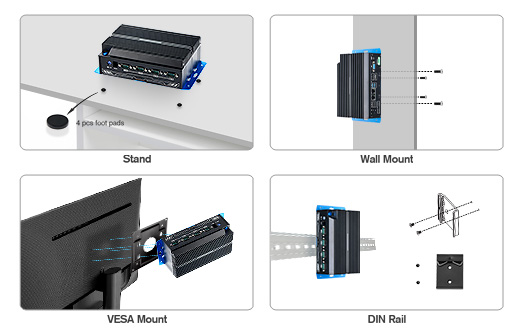

Versatile Installation Options

Measuring just L 217mm*W 125mm*H 67mm, the Embedded Windows PC K5-F24 combines ultra-compact size with flexible mounting options (shown left):

-Stand: Simple desktop placement for quick setup.

-Wall Mount: Space-saving vertical installation.

-VESA Mount: Seamless integration with monitors/displays.

-DIN Rail: Standard industrial rack compatibility.

This adaptability lets it fit effortlessly into any workspace—maximizing space efficiency across diverse deployment scenarios.

Robust System Compatibility

The K5-F24 rugged industrial PC supports multi-OS deployment, including Windows 10/11, Windows IoT, and Linux systems. It also accommodates customized solutions or image configurations — enabling businesses to build tailored setups for industrial HMI touch panel environments, aligning with specific operational needs while ensuring stable performance across diverse industrial workflows.

Specification K5-F24-1155G7

Part No.

K5-F24-1155G7

K7-F24-1195G7
Get A Quote

Get A Quote
Processor

CPU

Intel Core I5-1155G7，4 Cores / 8 Threads

Intel Core I7-1195G7, 4 Cores / 8 Threads

Frequency

2.5GHz

2.9GHz

Max Turbo Frequency

4.5GHz

5.0GHz

Cache

8 MB Intel Smart Cache

8 MB Intel Smart Cache

Chipset

Tiger Lake

Tiger Lake
Memory

Technology

2*DDR4L slots

2*DDR4L slots

Max. Capacity

32GB

32GB
Storage

M.2 SATA

SSD 128GB/256GB/512GB/1TB

SSD 128GB/256GB/512GB/1TB

SATA

HDD 500GB/1TB/2TB (Optional)

HDD 500GB/1TB/2TB (Optional)
Graphics

Graphics

Intel Iris Xe Graphics

Intel Iris Xe Graphics
Audio

Audio

HD Audio realtek ALC897

HD Audio realtek ALC897
Network

LAN

10/100/1000/2500BASE-T Ethernet (RJ45) x 2, Intel I226V x 1, Realtek 8111H x 1

10/100/1000/2500BASE-T Ethernet (RJ45) x 2, Intel I226V x 1, Realtek 8111H x 1

Wireless

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)

4G module

support 4G module with available sim slot

support 4G module with available sim slot

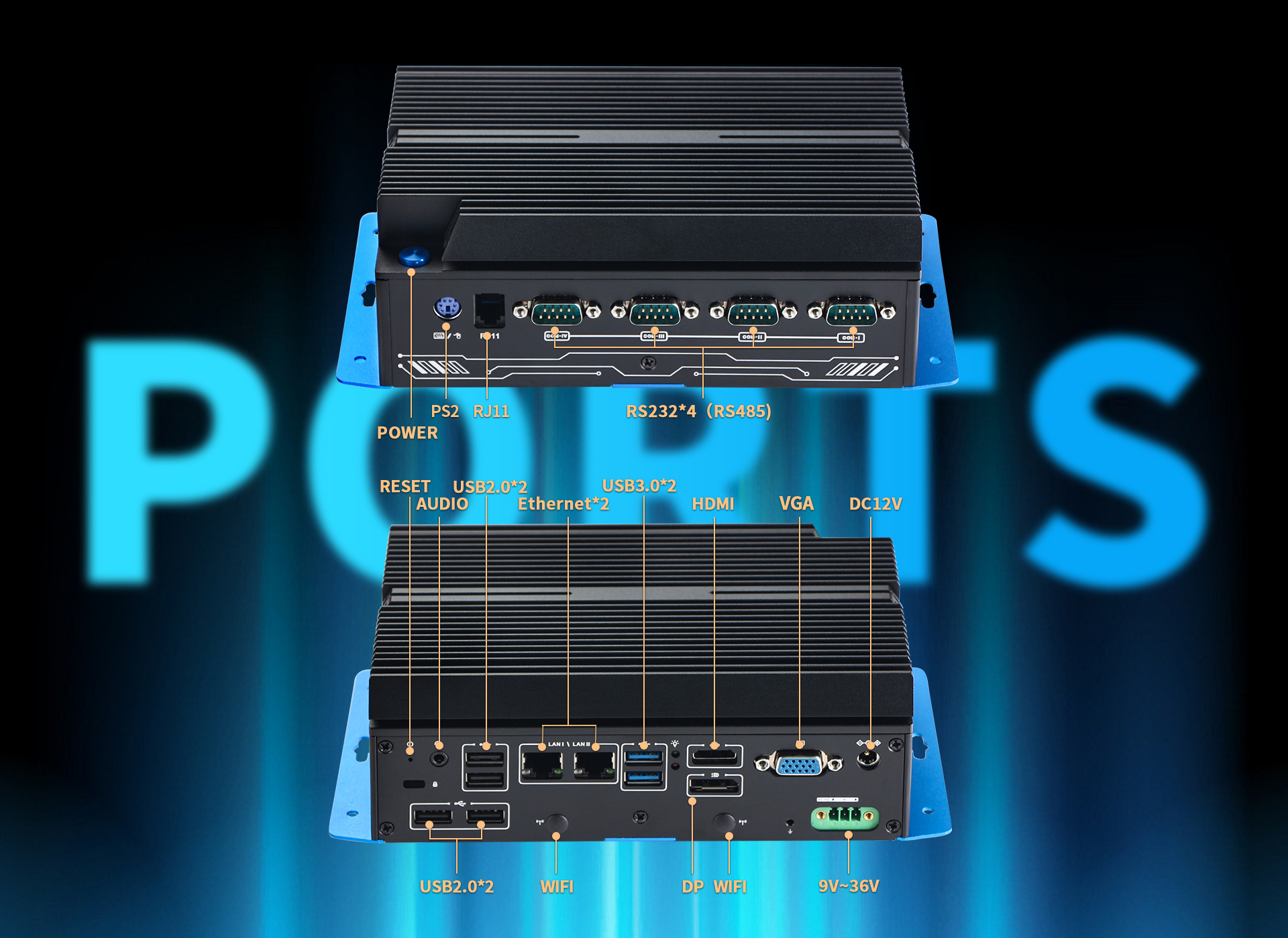

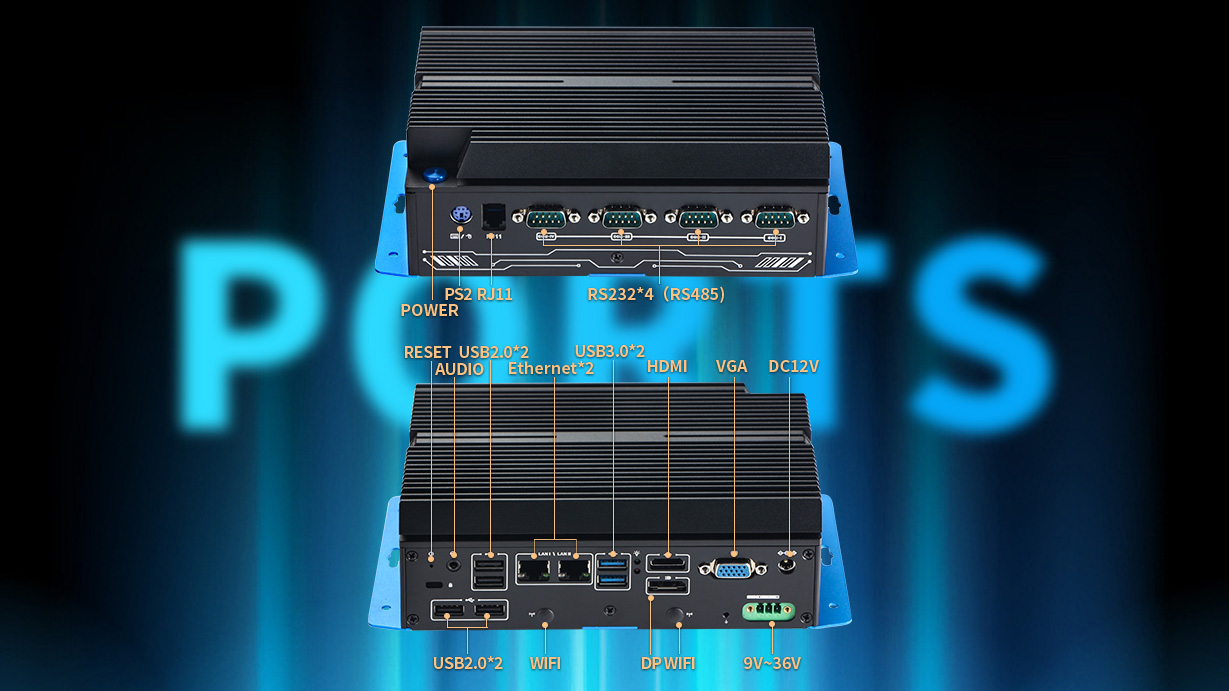

I/O Interface

Front

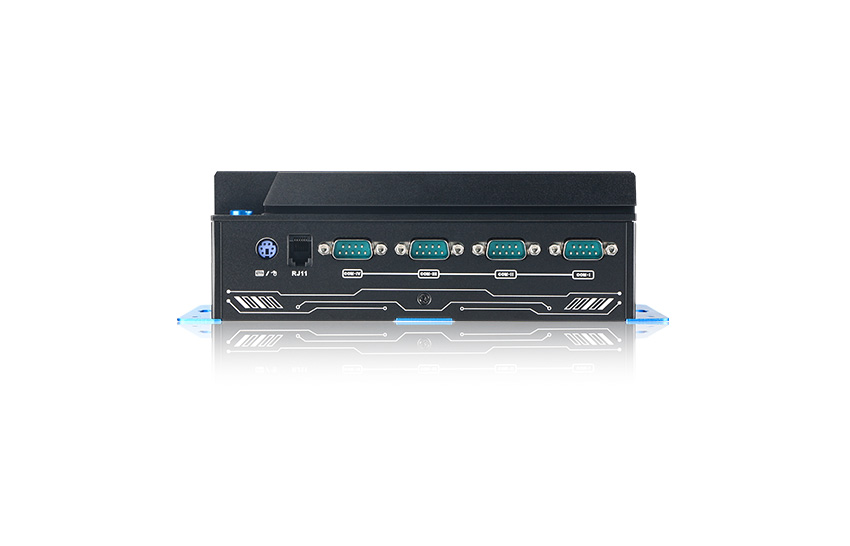

1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM

1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM

Rear

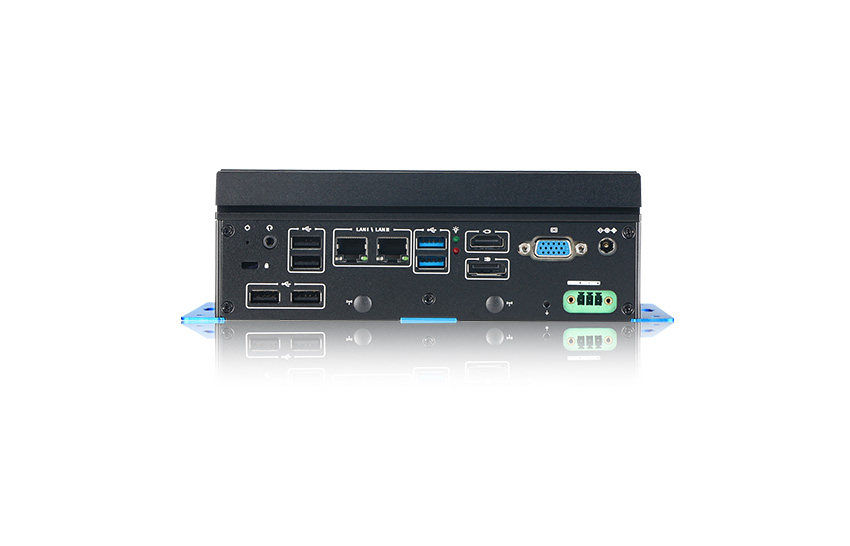

1*MIC& SPK, 4*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V, 1*3 - pin Power Terminal

1*MIC& SPK, 4*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V, 1*3 - pin Power Terminal
Extendable

I/O Ports

2PIN PW Phoenix Terminal x 1, 12-1 pin TPM2.0 pin x 1, 6PIN M. 2 hard disk mode switch PIN x 2, 4PIN switch and indicator lamp pin x 2, 9PIN USB2.0 pin x 3, 4PIN CPU pin x 1, JATX-AT pin x 1, 4PIN SATA extended hard disk 5V power supply interface x 1, 4PIN SPK power amplifier pin x 1, 3PIN JP1 jump RJ11 voltage pin x 1, 5PIN GPIO pin x 2, RS232/485 switch pin x 1

2PIN PW Phoenix Terminal x 1, 12-1 pin TPM2.0 pin x 1, 6PIN M. 2 hard disk mode switch PIN x 2, 4PIN switch and indicator lamp pin x 2, 9PIN USB2.0 pin x 3, 4PIN CPU pin x 1, JATX-AT pin x 1, 4PIN SATA extended hard disk 5V power supply interface x 1, 4PIN SPK power amplifier pin x 1, 3PIN JP1 jump RJ11 voltage pin x 1, 5PIN GPIO pin x 2, RS232/485 switch pin x 1

Module

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
Power

Input

AC100-240V. 50-60Hz DC

AC100-240V. 50-60Hz DC

Output

12V-5A

12V-5A

Wide Voltage

9-36V phoenix connector（Optional）

9-36V phoenix connector（Optional）
Operating System

Windows/Linux

Windows/Linux
Physical

Dimension

L 218mm x W 134mm x H 65mm

L 218mm x W 134mm x H 65mm

Weight(Net)

1.3KG

1.3KG

Color

Black

Black

Cooling Method

Passive cooling (natural heat dissipation)

Passive cooling (natural heat dissipation)

Mounting Options

Dedicated bracket;Support VESA bracket

Dedicated bracket;Support VESA bracket

Certification

CE, FCC, ROHS, ISO, UL

CE, FCC, ROHS, ISO, UL
Environment

Operating Temperature

-10~60 ℃

-10~60 ℃

Storage Temperature

-10~60 ℃

-10~60 ℃

Operation Humidity

0~95% (No Condensation)

0~95% (No Condensation)

Storage Humidity

0~95% (No Condensation)

0~95% (No Condensation)

Get A Quote

Processor

CPU

K5-F24-1155G7

Intel Core I5-1155G7，4 Cores / 8 Threads

K7-F24-1195G7

Intel Core I7-1195G7, 4 Cores / 8 Threads
Frequency

K5-F24-1155G7

2.5GHz

K7-F24-1195G7

2.9GHz
Max Turbo Frequency

K5-F24-1155G7

4.5GHz

K7-F24-1195G7

5.0GHz
Cache

K5-F24-1155G7

8 MB Intel Smart Cache

K7-F24-1195G7

8 MB Intel Smart Cache
Chipset

K5-F24-1155G7

Tiger Lake

K7-F24-1195G7

Tiger Lake

Memory

Technology

K5-F24-1155G7

2*DDR4L slots

K7-F24-1195G7

2*DDR4L slots
Max. Capacity

K5-F24-1155G7

32GB

K7-F24-1195G7

32GB

Storage

M.2 SATA

K5-F24-1155G7

SSD 128GB/256GB/512GB/1TB

K7-F24-1195G7

SSD 128GB/256GB/512GB/1TB
SATA

K5-F24-1155G7

HDD 500GB/1TB/2TB (Optional)

K7-F24-1195G7

HDD 500GB/1TB/2TB (Optional)

Graphics

Graphics

K5-F24-1155G7

Intel Iris Xe Graphics

K7-F24-1195G7

Intel Iris Xe Graphics

Audio

Audio

K5-F24-1155G7

HD Audio realtek ALC897

K7-F24-1195G7

HD Audio realtek ALC897

Network

LAN

K5-F24-1155G7

10/100/1000/2500BASE-T Ethernet (RJ45) x 2, Intel I226V x 1, Realtek 8111H x 1

K7-F24-1195G7

10/100/1000/2500BASE-T Ethernet (RJ45) x 2, Intel I226V x 1, Realtek 8111H x 1
Wireless

K5-F24-1155G7

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)

K7-F24-1195G7

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
4G module

K5-F24-1155G7

support 4G module with available sim slot

K7-F24-1195G7

support 4G module with available sim slot

I/O Interface

Front

K5-F24-1155G7

1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM

K7-F24-1195G7

1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM
Rear

K5-F24-1155G7

1*MIC& SPK, 4*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V, 1*3 - pin Power Terminal

K7-F24-1195G7

1*MIC& SPK, 4*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V, 1*3 - pin Power Terminal

Extendable

I/O Ports

K5-F24-1155G7

2PIN PW Phoenix Terminal x 1, 12-1 pin TPM2.0 pin x 1, 6PIN M. 2 hard disk mode switch PIN x 2, 4PIN switch and indicator lamp pin x 2, 9PIN USB2.0 pin x 3, 4PIN CPU pin x 1, JATX-AT pin x 1, 4PIN SATA extended hard disk 5V power supply interface x 1, 4PIN SPK power amplifier pin x 1, 3PIN JP1 jump RJ11 voltage pin x 1, 5PIN GPIO pin x 2, RS232/485 switch pin x 1

K7-F24-1195G7

2PIN PW Phoenix Terminal x 1, 12-1 pin TPM2.0 pin x 1, 6PIN M. 2 hard disk mode switch PIN x 2, 4PIN switch and indicator lamp pin x 2, 9PIN USB2.0 pin x 3, 4PIN CPU pin x 1, JATX-AT pin x 1, 4PIN SATA extended hard disk 5V power supply interface x 1, 4PIN SPK power amplifier pin x 1, 3PIN JP1 jump RJ11 voltage pin x 1, 5PIN GPIO pin x 2, RS232/485 switch pin x 1
Module

K5-F24-1155G7

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)

K7-F24-1195G7

M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)

Power

Input

K5-F24-1155G7

AC100-240V. 50-60Hz DC

K7-F24-1195G7

AC100-240V. 50-60Hz DC
Output

K5-F24-1155G7

12V-5A

K7-F24-1195G7

12V-5A
Wide Voltage

K5-F24-1155G7

9-36V phoenix connector（Optional）

K7-F24-1195G7

9-36V phoenix connector（Optional）

Operating System

K5-F24-1155G7

Windows/Linux

K7-F24-1195G7

Windows/Linux

Physical

Dimension

K5-F24-1155G7

L 218mm x W 134mm x H 65mm

K7-F24-1195G7

L 218mm x W 134mm x H 65mm
Weight(Net)

K5-F24-1155G7

1.3KG

K7-F24-1195G7

1.3KG
Color

K5-F24-1155G7

Black

K7-F24-1195G7

Black
Cooling Method

K5-F24-1155G7

Passive cooling (natural heat dissipation)

K7-F24-1195G7

Passive cooling (natural heat dissipation)
Mounting Options

K5-F24-1155G7

Dedicated bracket;Support VESA bracket

K7-F24-1195G7

Dedicated bracket;Support VESA bracket
Certification

K5-F24-1155G7

CE, FCC, ROHS, ISO, UL

K7-F24-1195G7

CE, FCC, ROHS, ISO, UL

Environment

Operating Temperature

K5-F24-1155G7

-10~60 ℃

K7-F24-1195G7

-10~60 ℃
Storage Temperature

K5-F24-1155G7

-10~60 ℃

K7-F24-1195G7

-10~60 ℃
Operation Humidity

K5-F24-1155G7

0~95% (No Condensation)

K7-F24-1195G7

0~95% (No Condensation)
Storage Humidity

K5-F24-1155G7

0~95% (No Condensation)

K7-F24-1195G7

0~95% (No Condensation)
