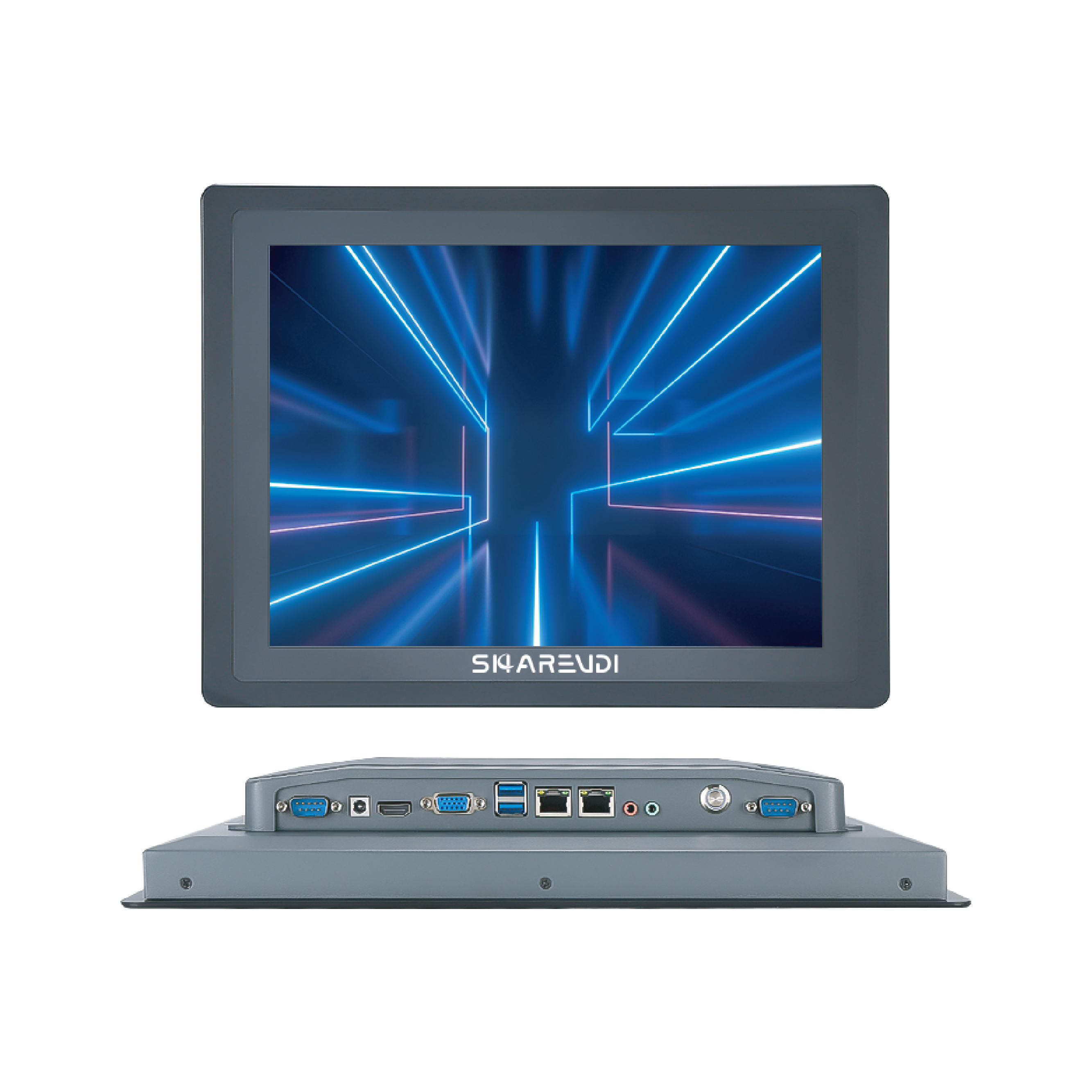

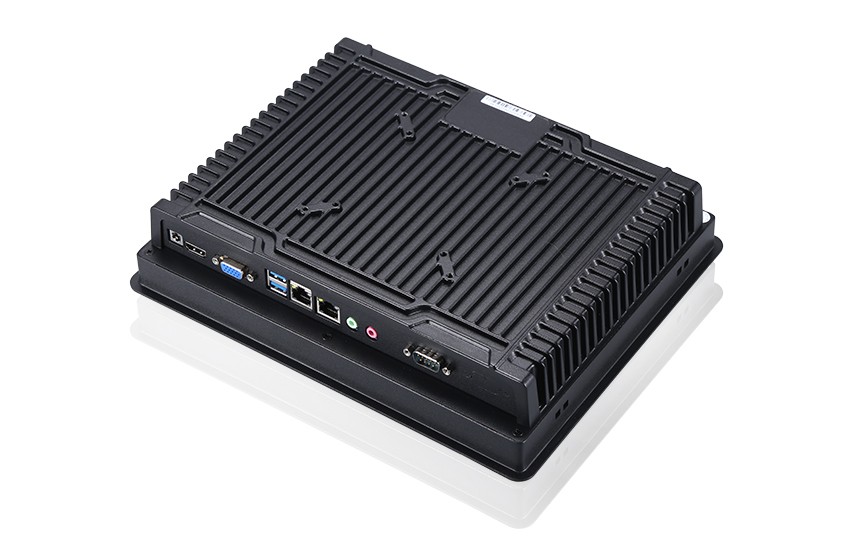

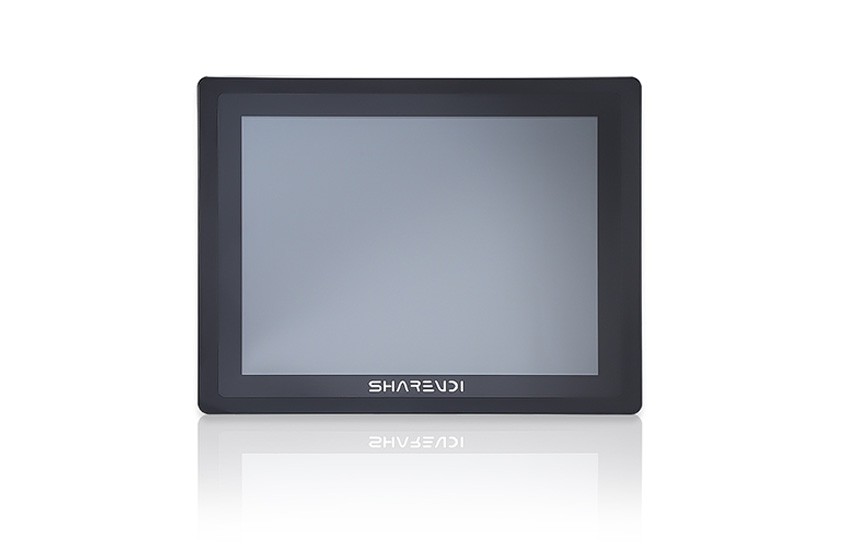

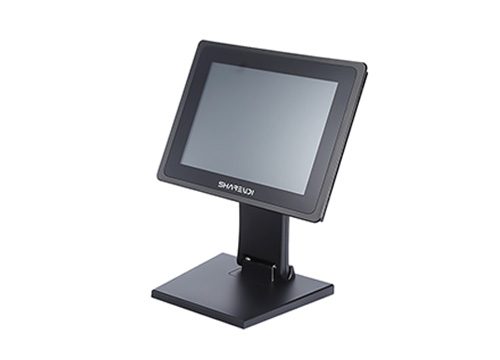

A10 10'' Panel Computer

Model : A10

● Flat 10 inch capacitive 10-point touch screen, IP65-rated front panel

● Support 5 pin Phoenix connector

● Support wide voltage 12- 64V power supply

● With 1/2 x COM port (RS232 / RS485)

● With 1/2 x LAN port

● Support 4G LTE module, mini PCIE / M.2 expansion

● Optional installation method, VESA / Stand / Embedded

● Wide range configuration available

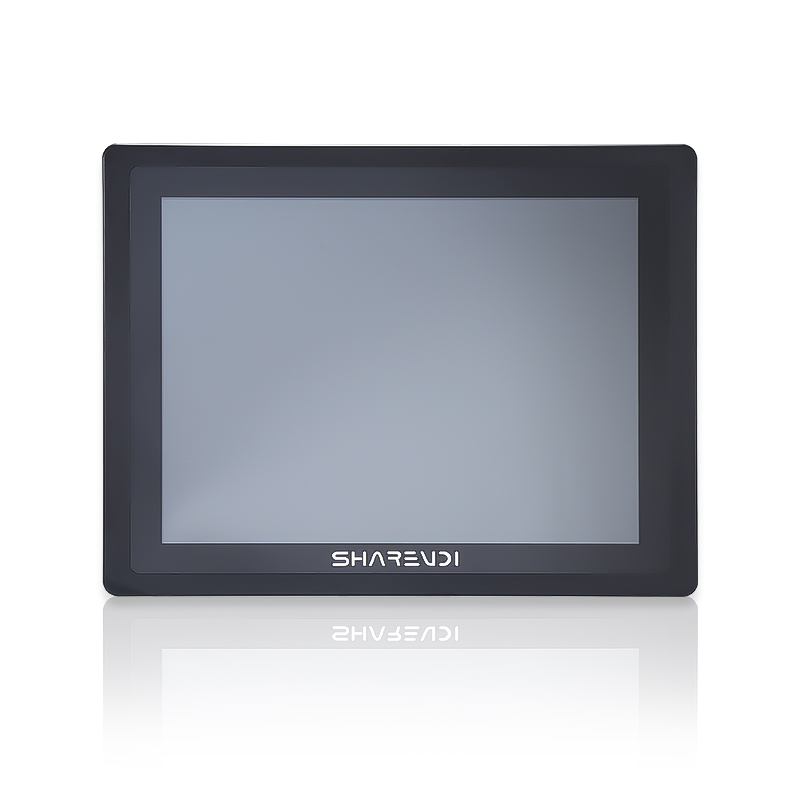

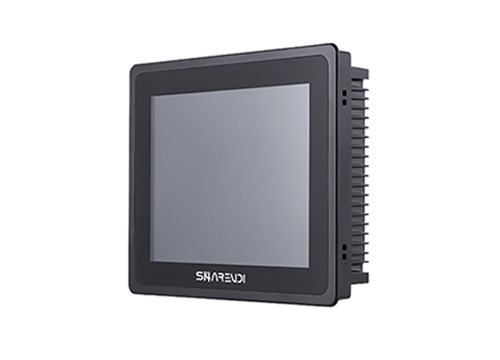

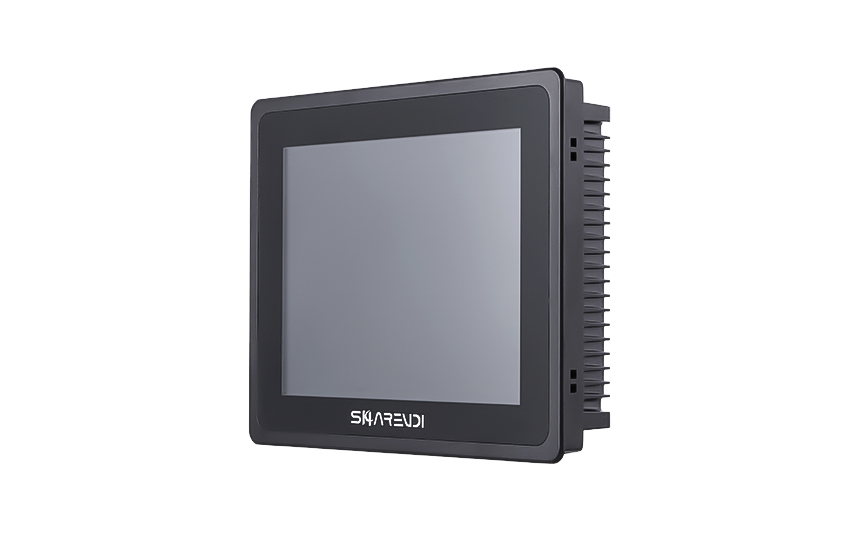

A10 is a panel PC with front IP65 rating water-proof and dust-proof protection. Equipped with 10'' touch screen, optional processor AMD/i3/i5/i7, Windows 10 or Linux operation system, A10 is a basic configured industrial panel PC that can match the basic requirement of industrial automation and digial display use.

Specification A10
Processor System
  • CPU

    A10-AMD 6500T

    AMD A6 Micro-6500T

    A10-i3/i5/i7

    Intel Core I3-5005U/I5-5300U/I7-5500U

  • RAM

    A10-AMD 6500T

    DDR3 2GB/4GB/8GB

    A10-i3/i5/i7

    DDR3 2GB/4GB/8GB

  • Storage

    A10-AMD 6500T

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    A10-i3/i5/i7

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

Display
  • Panel Size

    A10-AMD 6500T

    10.4''

    A10-i3/i5/i7

    10.4''

  • Max. Resolution

    A10-AMD 6500T

    1024*768p

    A10-i3/i5/i7

    1024*768p

  • Max. Colors

    A10-AMD 6500T

    16.7M

    A10-i3/i5/i7

    16.7M

  • Treatment

    A10-AMD 6500T

    Anti-Glare

    A10-i3/i5/i7

    Anti-Glare

  • Brightness

    A10-AMD 6500T

    250-500nits

    A10-i3/i5/i7

    250-500nits

  • Viewing Direction

    A10-AMD 6500T

    Full Viewing

    A10-i3/i5/i7

    Full Viewing

  • Aspect Ratio

    A10-AMD 6500T

    4:3

    A10-i3/i5/i7

    4:3

Touch Screen
  • Touch Points

    A10-AMD 6500T

    10 Points

    A10-i3/i5/i7

    10 Points

  • Type

    A10-AMD 6500T

    Capacitive Touch

    A10-i3/i5/i7

    Capacitive Touch

Color
  • A10-AMD 6500T

    Black

    A10-i3/i5/i7

    Black

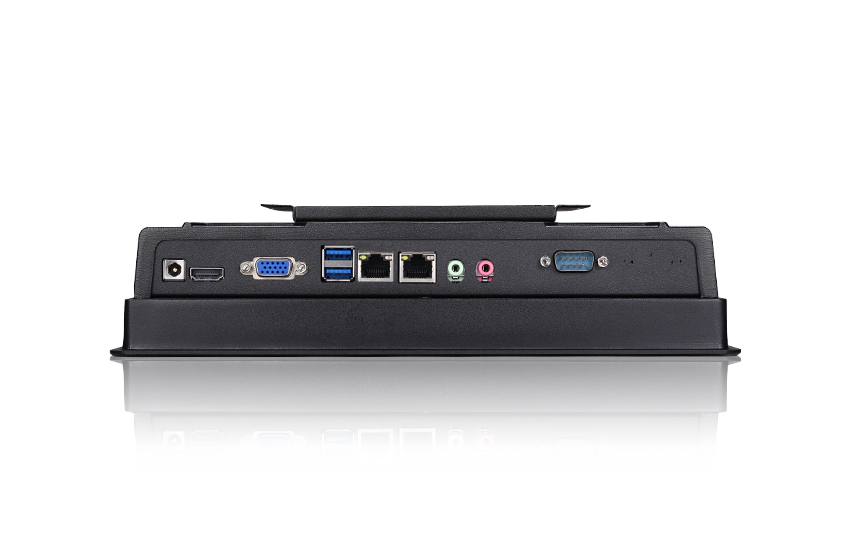

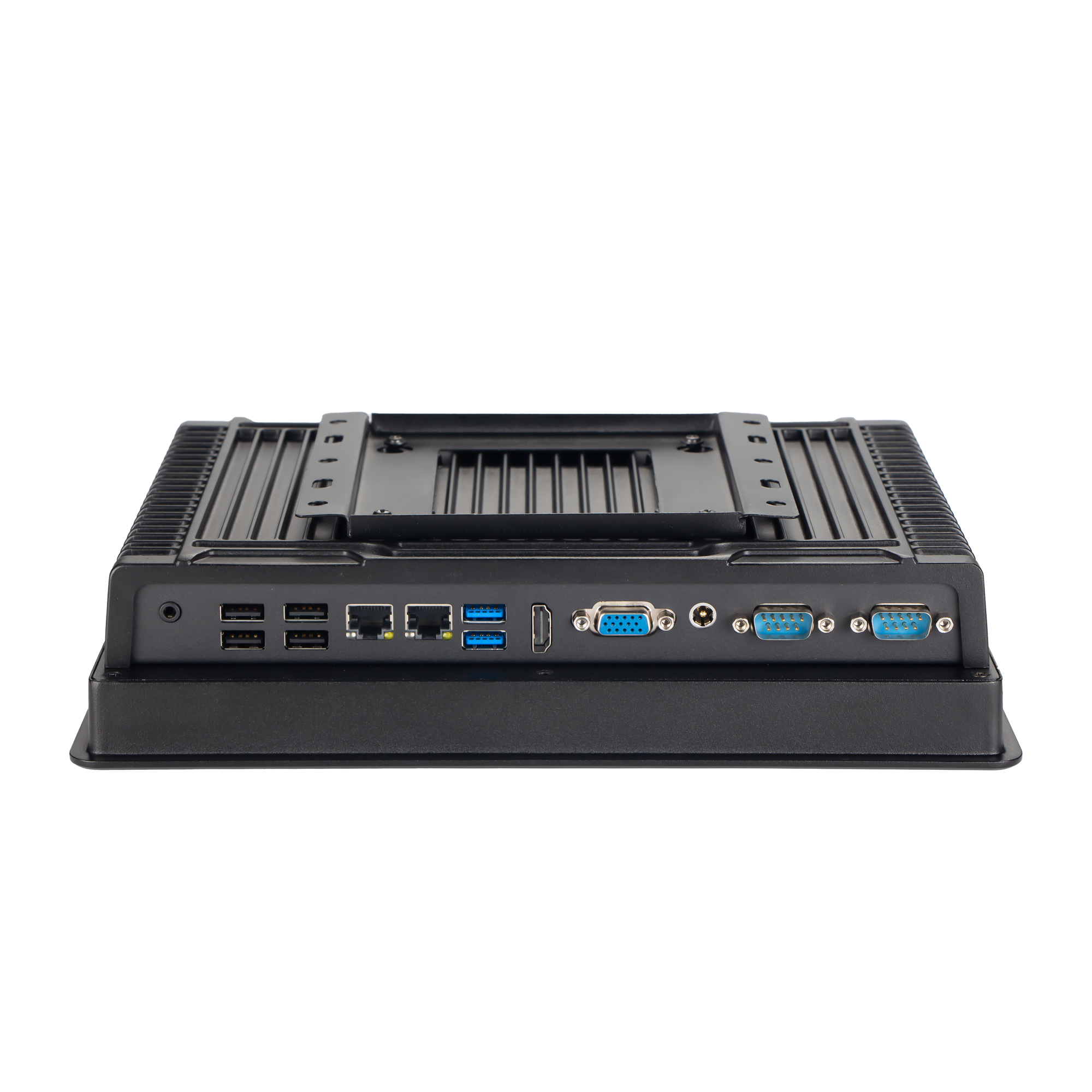

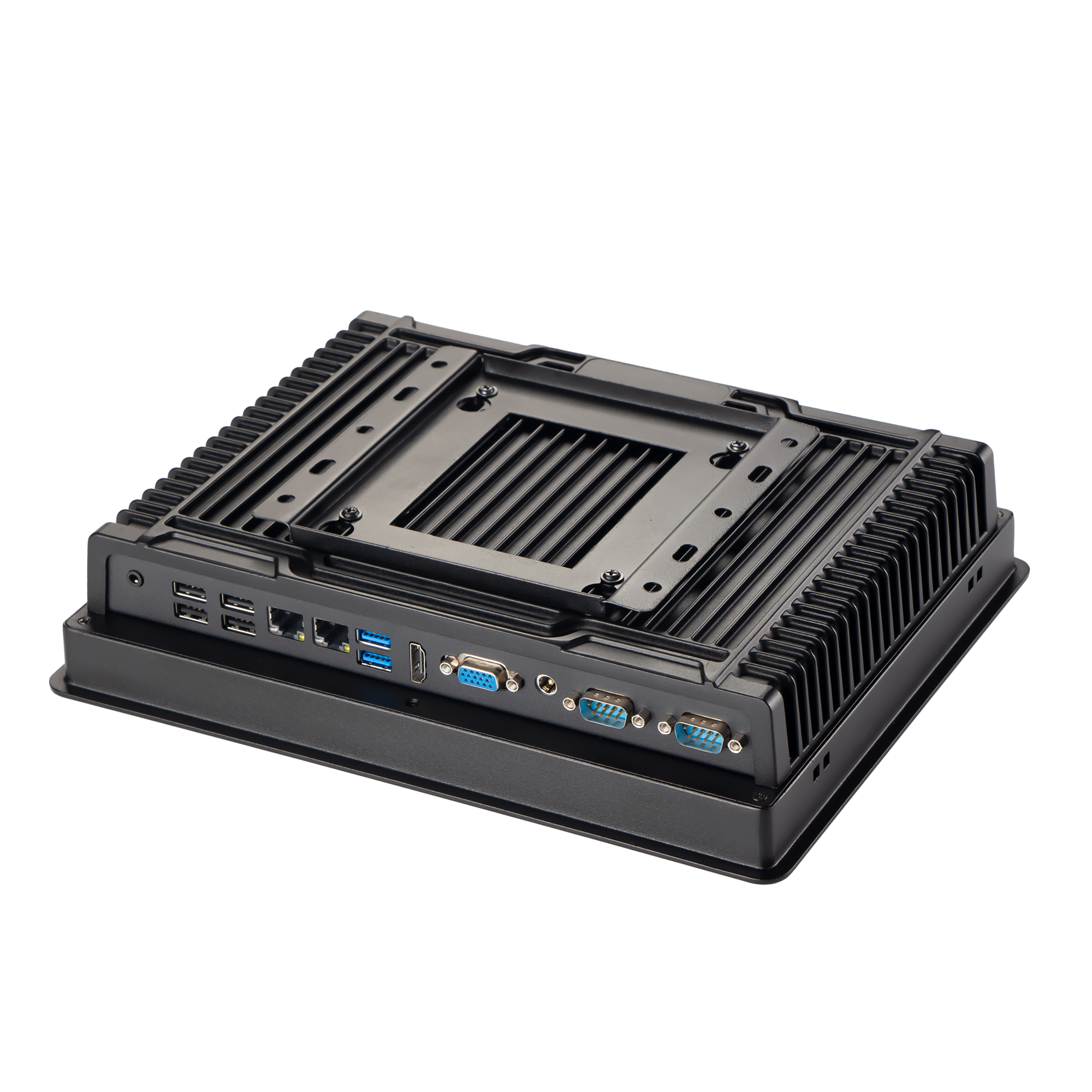

I/O Interface
  • Video output

    A10-AMD 6500T

    1*VGA,1*HDMI

    A10-i3/i5/i7

    1*VGA,1*HDMI

  • Serial Port

    A10-AMD 6500T

    1~2*RS232/RS485 (Upgradable)

    A10-i3/i5/i7

    1~2*RS232/RS485 (Upgradable)

  • USB Port

    A10-AMD 6500T

    2*USB (Upgradable)

    A10-i3/i5/i7

    6*USB (Upgradable)

  • Ethernet

    A10-AMD 6500T

    2*RJ45 (Upgradable)

    A10-i3/i5/i7

    2*RJ45 (Upgradable)

  • Extendable Port

    A10-AMD 6500T

    RS485, LPT, Phoenix terminal (Replace DC)

    A10-i3/i5/i7

    RS485, LPT, Phoenix terminal (Replace DC)

General
  • Certification

    A10-AMD 6500T

    CE,FCC,ROHS,ISO

    A10-i3/i5/i7

    CE,FCC,ROHS,ISO

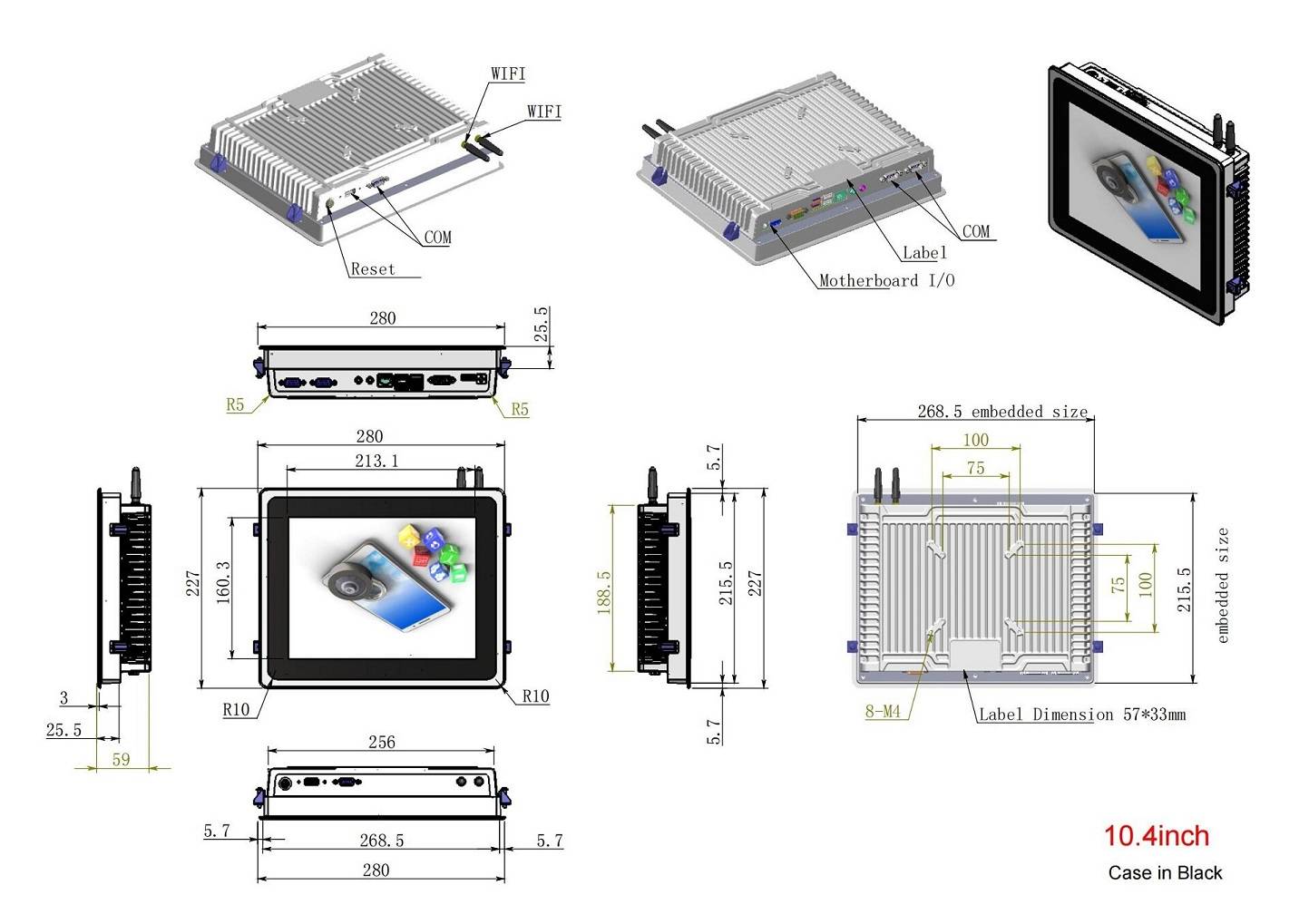

  • Dimension(W*H*D)

    A10-AMD 6500T

    283*225.2*56 mm

    A10-i3/i5/i7

    283*225.2*56 mm

  • Power Input

    A10-AMD 6500T

    AC100-240V.50-60HZ

    A10-i3/i5/i7

    AC100-240V.50-60HZ

  • Power Output

    A10-AMD 6500T

    DC12V 5A

    A10-i3/i5/i7

    DC12V 5A

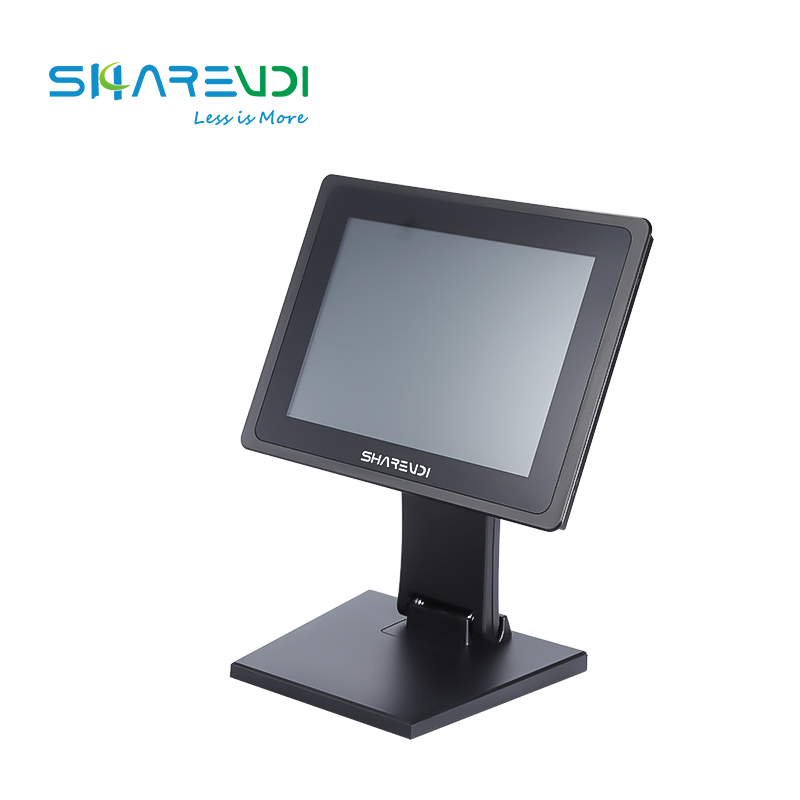

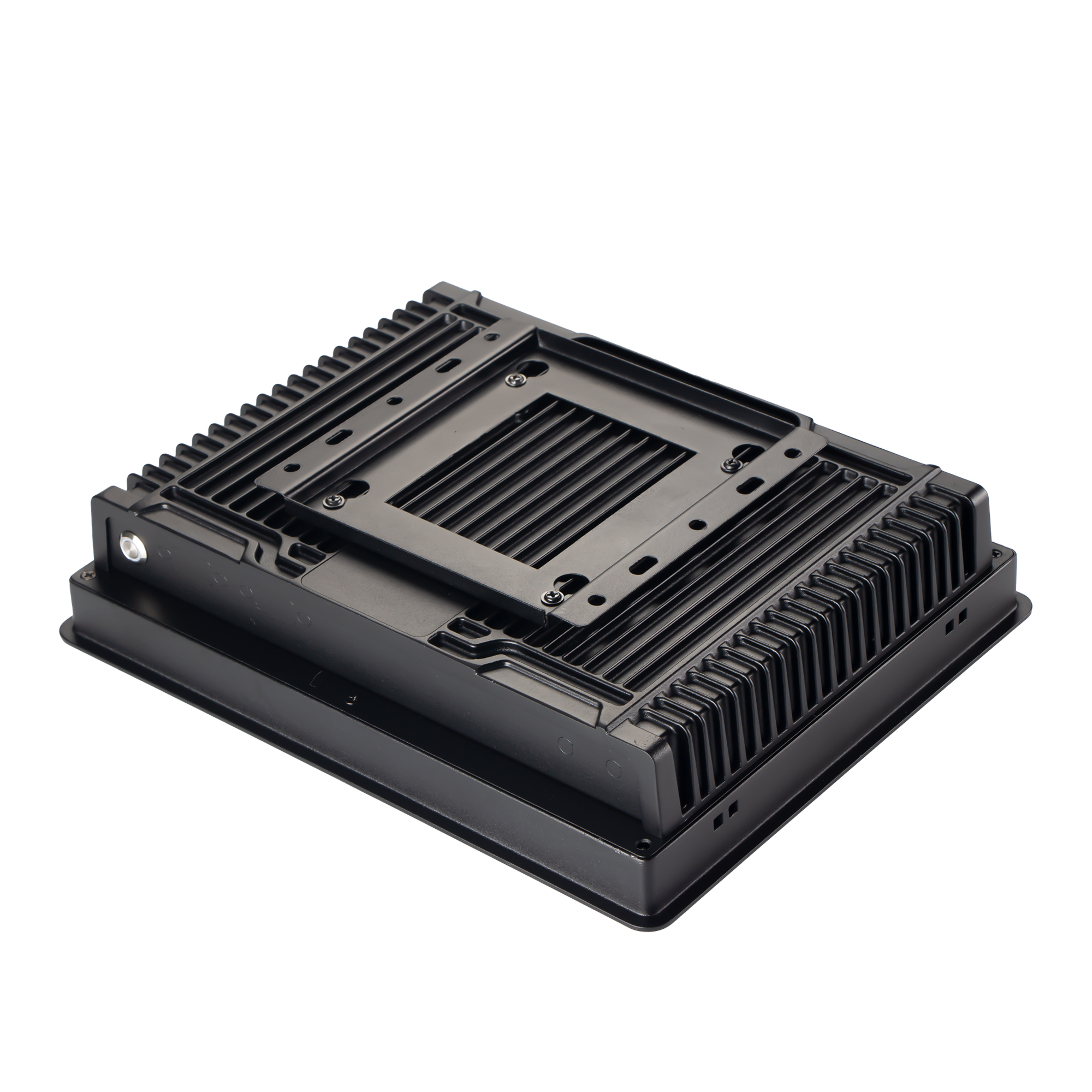

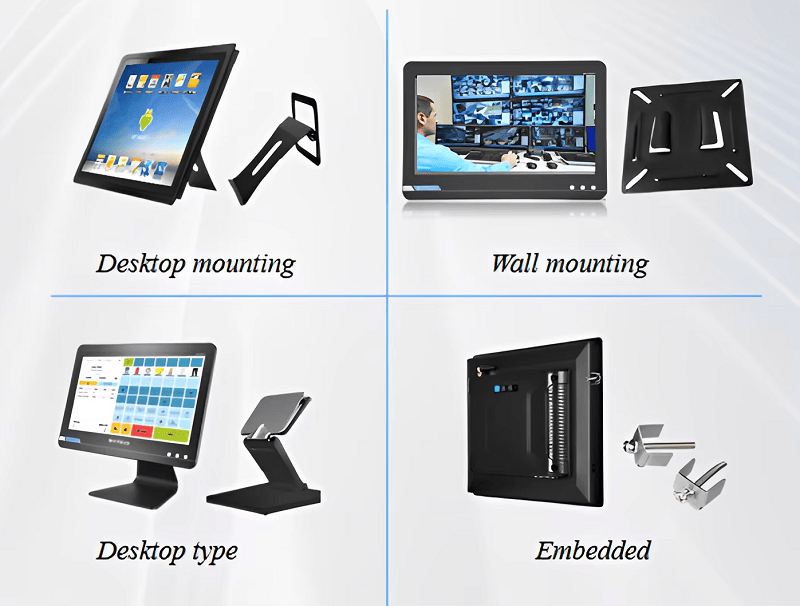

  • Mounting Options

    A10-AMD 6500T

    Wall Mount/Embedded Vesa Mount/Vertical Stand

    A10-i3/i5/i7

    Wall Mount/Embedded Vesa Mount/Vertical Stand

  • Weight(Net)

    A10-AMD 6500T

    3.6KG

    A10-i3/i5/i7

    3.6KG

Environment
  • Operating Temperature

    A10-AMD 6500T

    -20 ~ 70℃

    A10-i3/i5/i7

    -20 ~ 70℃

  • Storage Temperature

    A10-AMD 6500T

    -10 ~ 60℃

    A10-i3/i5/i7

    -10 ~ 60℃

  • Operation Humidity

    A10-AMD 6500T

    10% ~ 80%

    A10-i3/i5/i7

    10% ~ 80%

  • Storage Humidity

    A10-AMD 6500T

    10% ~ 90%

    A10-i3/i5/i7

    10% ~ 90%
