K2-F17H SFP+ Fiber

Model:

K2-F17H-N150-SFP+
K2-F17H-N150-SFP  主图1.jpg
K2-F17H-N150-SFP  主图2.jpg
K2-F17H-N150-SFP  主图3.jpg
K2-F17H-N150-SFP  主图4.jpg
K2-F17H-N150-SFP  主图5.jpg
K2-F17H-N150-SFP  主图6.jpg
K2-F17H-N150-SFP  主图7.jpg
K2-F17H-N150-SFP  主图1.jpg
K2-F17H-N150-SFP  主图2.jpg
K2-F17H-N150-SFP  主图3.jpg
K2-F17H-N150-SFP  主图4.jpg
K2-F17H-N150-SFP  主图5.jpg
K2-F17H-N150-SFP  主图6.jpg
K2-F17H-N150-SFP  主图7.jpg
  • Latest Technology with Intel N150 processor

  • Lower Power Consumption, only TDP 6W

  • Anti-vibration & shock proof, industrial grade design for 7/24 use

  • 2x display ports (1 x HDMI + 1 x DP)

  • 6x Ethernet Ports: 2x 10Gbps SFP+ (Intel 82599ES)+4x Intel I226

  • Support 4G LTE module, SIM card

  • Support TPM 2.0 (optional)

Designed for high-demand networking environments, this industrial mini PC delivers advanced performance and reliability for critical infrastructure applications. Powered by the Intel® N150 processor (up to 3.6GHz) within a 6W TDP, it enables efficient operation in space- and power-constrained deployments.

The fanless metal housing provides passive cooling and withstands shock, vibration, and extended temperature ranges, ensuring 24/7 stability in challenging conditions. Its six Ethernet ports—including two 10G SFP+ fiber interfaces (Intel 82599ES) and four Intel I226 Gigabit controllers—deliver wire-speed throughput and support for network segmentation, making it ideal for core switching, aggregation, and security appliances.

Optional 4G LTE module support offers cellular failover or WAN expansion, while TPM 2.0 enhances boot integrity and data protection. Dual 4K display support allows for local monitoring or signage alongside primary network functions.

Built for integration in data centers, enterprise gateways, industrial networks, and fiber optic backbones, this system provides a compact, rugged, and highly connected solution for next-generation network edge and automation tasks.

Specification K2-F17H-N150-SFP+
  • Part No.
    K2-F17H-N150-SFP+
  • Processor

    CPU

    Intel N150, 4 Cores / 4 Threads

    Frequency

    0.8GHz

    Max Turbo Frequency

    3.6GHz

    Cache

    6 MB

    Chipset

    Products formerly Twin Lake

  • Memory

    Technology

    1* DDR4 slot

    Max. Capacity

    16GB

  • Storage

    M.2 SATA

    SSD 128GB/256GB/512GB/1TB

    SATA

    Not support HDD expansion

  • Graphics

    Graphics

    Intel UHD Graphics

  • Audio

    Audio

    HD Audio realtek ALC 897

  • Network

    LAN

    2 x 82599ES SFP+;4 x 10/100/1000/2500BASE-T Ethernet (RJ45), Intel 226

    Wireless

    1*M. 2 E KEY 2230 socket, support WIFI + Bluetooth , support WIFI6 module

    4G module

    support 4G/5G module with available sim slot

  • I/O Interface

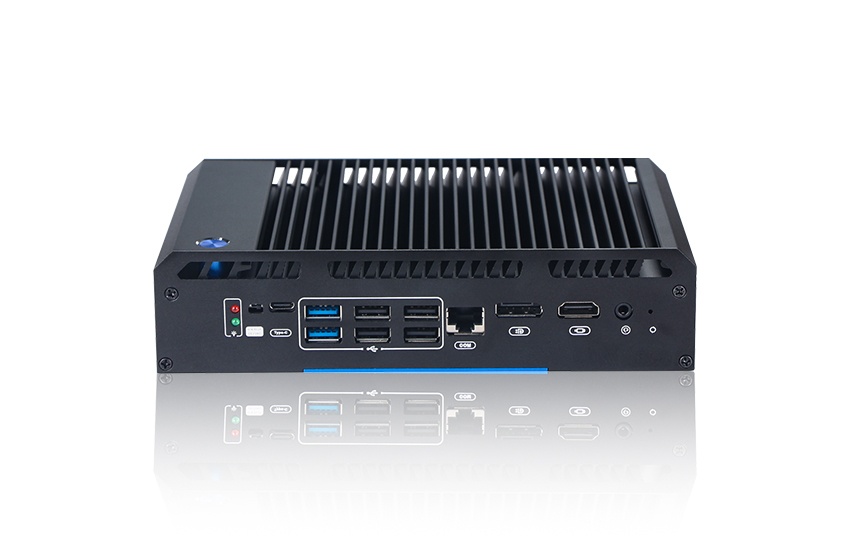

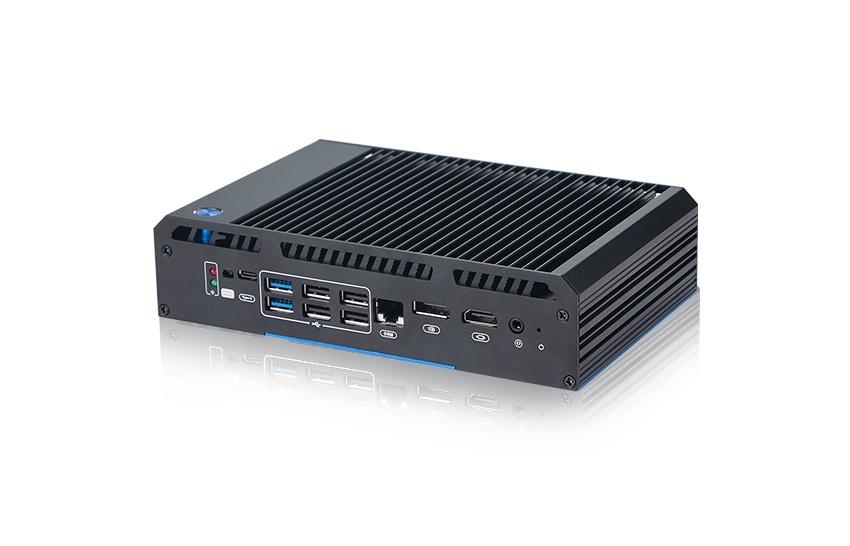

    Front

    Power ON/OFF,1*ATX Self-Power-On,1*Type-C, 2*USB3.0, 4*USB2.0,1*RJ45 RS-232, 1*DP 1.4, 1*HDMI 2.1, 3.5mm Audio Combo (Out + In), BIOS Reset Button

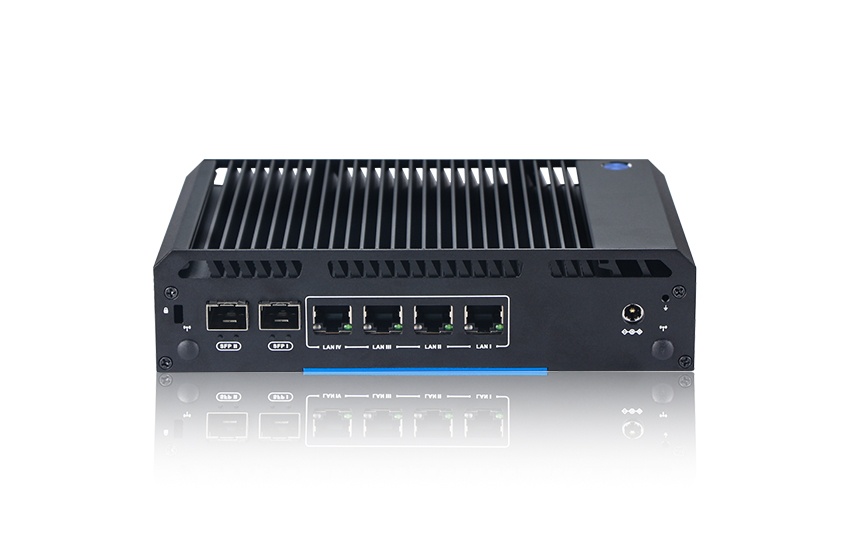

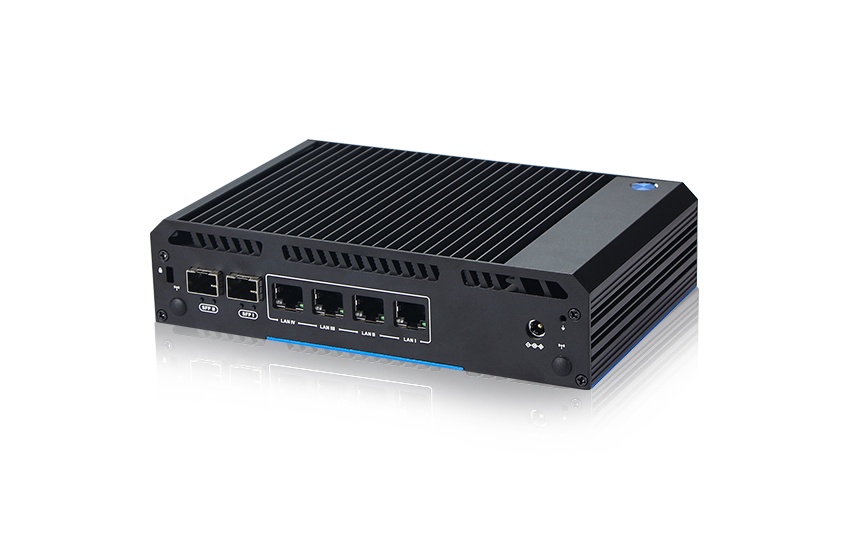

    Rear

    2*WIFI antenna,2*SFP+,4*Ethernet,1*DC

  • Extendable

    I/O Ports

    1*FP_USB1、1*FP 8PIN、1*TPM 14PIN、1*CPU FAN1、1*SPK_CON 4PIN、1*GPIO 10PIN、1*ESPI_DEBUG 10PIN、1*M2B_PWR1 3PIN、1*JBAT 2PIN、1*BATCON、1*SYS_FAN1 4PIN、1*PW_IN 2PIN Power Terminal

    Module

    WIFI+Bluetooth Module(M.2 PCIE)or 4G/5G Module( SIM card slot on the motherboard)

  • Power

    Input

    AC100-240V. 50-60Hz DC

    Output

    12V - 5A

  • Operating System

    Windows/Linux

  • Physical

    Dimension

    L 197.4mm*W 126.3mm*H 47.5mm

    Weight(Net)

    1.2KG

    Color

    Black

    Cooling Method

    Fanless Passive Cooling

    Mounting Options

    Dedicated bracket; Support VESA bracket

    Certification

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Processor
  • CPU

    K2-F17H-N150-SFP+

    Intel N150, 4 Cores / 4 Threads

  • Frequency

    K2-F17H-N150-SFP+

    0.8GHz

  • Max Turbo Frequency

    K2-F17H-N150-SFP+

    3.6GHz

  • Cache

    K2-F17H-N150-SFP+

    6 MB

  • Chipset

    K2-F17H-N150-SFP+

    Products formerly Twin Lake

Memory
  • Technology

    K2-F17H-N150-SFP+

    1* DDR4 slot

  • Max. Capacity

    K2-F17H-N150-SFP+

    16GB

Storage
  • M.2 SATA

    K2-F17H-N150-SFP+

    SSD 128GB/256GB/512GB/1TB

  • SATA

    K2-F17H-N150-SFP+

    Not support HDD expansion

Graphics
  • Graphics

    K2-F17H-N150-SFP+

    Intel UHD Graphics

Audio
  • Audio

    K2-F17H-N150-SFP+

    HD Audio realtek ALC 897

Network
  • LAN

    K2-F17H-N150-SFP+

    2 x 82599ES SFP+;4 x 10/100/1000/2500BASE-T Ethernet (RJ45), Intel 226

  • Wireless

    K2-F17H-N150-SFP+

    1*M. 2 E KEY 2230 socket, support WIFI + Bluetooth , support WIFI6 module

  • 4G module

    K2-F17H-N150-SFP+

    support 4G/5G module with available sim slot

I/O Interface
  • Front

    K2-F17H-N150-SFP+

    Power ON/OFF,1*ATX Self-Power-On,1*Type-C, 2*USB3.0, 4*USB2.0,1*RJ45 RS-232, 1*DP 1.4, 1*HDMI 2.1, 3.5mm Audio Combo (Out + In), BIOS Reset Button

  • Rear

    K2-F17H-N150-SFP+

    2*WIFI antenna,2*SFP+,4*Ethernet,1*DC

Extendable
  • I/O Ports

    K2-F17H-N150-SFP+

    1*FP_USB1、1*FP 8PIN、1*TPM 14PIN、1*CPU FAN1、1*SPK_CON 4PIN、1*GPIO 10PIN、1*ESPI_DEBUG 10PIN、1*M2B_PWR1 3PIN、1*JBAT 2PIN、1*BATCON、1*SYS_FAN1 4PIN、1*PW_IN 2PIN Power Terminal

  • Module

    K2-F17H-N150-SFP+

    WIFI+Bluetooth Module(M.2 PCIE)or 4G/5G Module( SIM card slot on the motherboard)

Power
  • Input

    K2-F17H-N150-SFP+

    AC100-240V. 50-60Hz DC

  • Output

    K2-F17H-N150-SFP+

    12V - 5A

Operating System
  • K2-F17H-N150-SFP+

    Windows/Linux

Physical
  • Dimension

    K2-F17H-N150-SFP+

    L 197.4mm*W 126.3mm*H 47.5mm

  • Weight(Net)

    K2-F17H-N150-SFP+

    1.2KG

  • Color

    K2-F17H-N150-SFP+

    Black

  • Cooling Method

    K2-F17H-N150-SFP+

    Fanless Passive Cooling

  • Mounting Options

    K2-F17H-N150-SFP+

    Dedicated bracket; Support VESA bracket

  • Certification

    K2-F17H-N150-SFP+

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K2-F17H-N150-SFP+

    -10~60 ℃

  • Storage Temperature

    K2-F17H-N150-SFP+

    -10~60 ℃

  • Operation Humidity

    K2-F17H-N150-SFP+

    0~95% (No Condensation)

  • Storage Humidity

    K2-F17H-N150-SFP+

    0~95% (No Condensation)
