K6-F1 Mini Embedded PC
Model:
K6-F1-N3160
● Compact fanless design measuring 106×159×32mm for space-constrained installations
● Intel Celeron N3160 quad-core processor
● Dual LAN, 4 USB ports, 1 VGA, 1 HDMI, and 1 Type-C port
● External ATX switch for Auto Power-On function control
● External F_Panel PIN for power switch extension cable connection
● One M.2 PCIe slot for Wi-Fi and Bluetooth module
● Integrated support for TPM 2.0
● Support Windows 10/IoT/Linux OS
● Supports PXE, Auto Power-On, WOL
● Low 6W TDP with stable 24/7 operation for continuous reliability

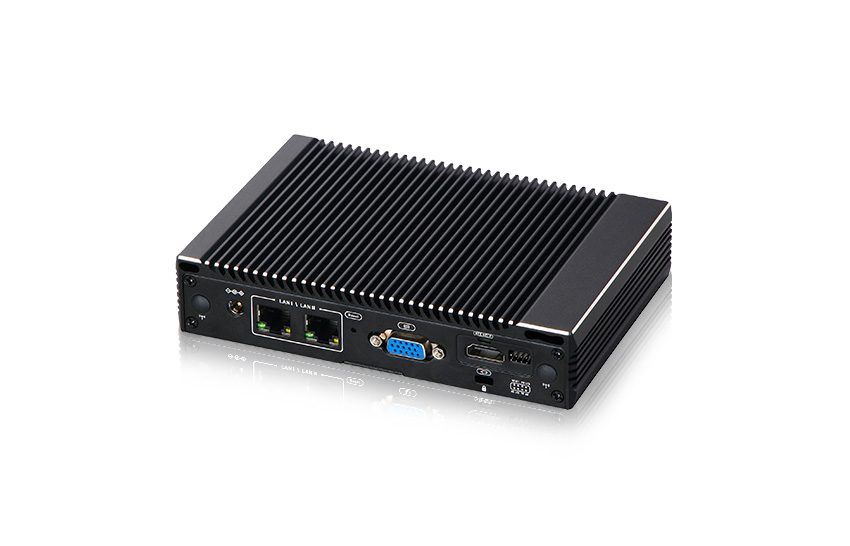

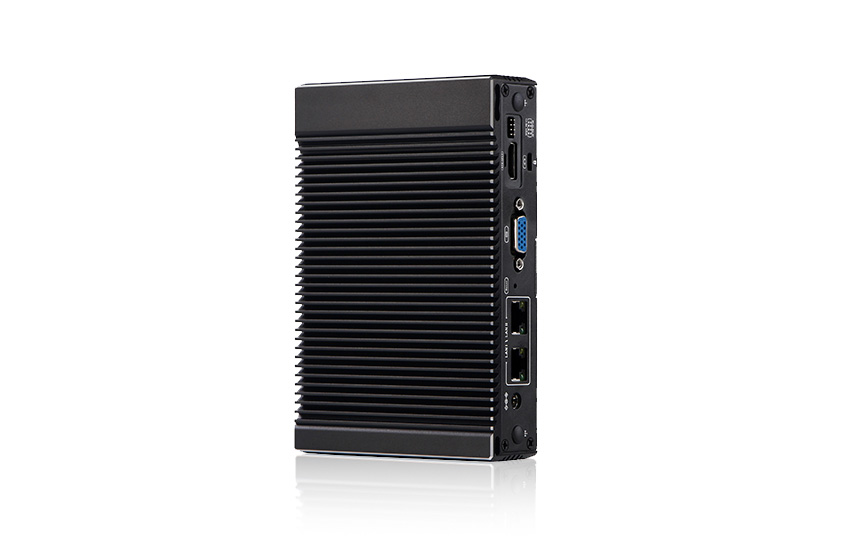

ShareVDI Fanless Mini PC K6-F1 is a compact and energy-efficient embedded box PC, ideal for space-constrained and 24/7 continuous operation environments. With a low power consumption of only 6W, it incorporates a quad-core Intel CPU and Intel HD Graphics 400, delivering reliable performance in a fanless industrial PC design.

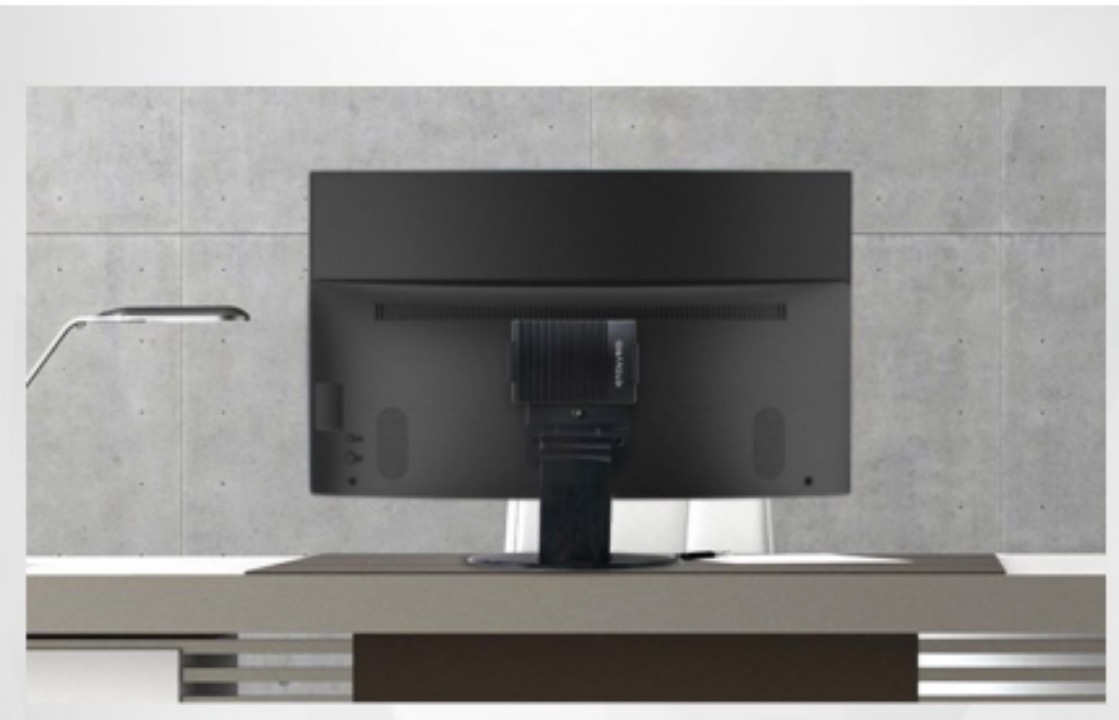

Equipped with dual Gigabit LAN ports, 4 USB 3.0, 1 Type-C, along with VGA and HDMI outputs, the K6-F1 offers versatile connectivity and display support. It also provides flexible expansion capabilities and supports both embedded and wall-mounted installation, making this rugged PC suitable for a variety of applications such as industrial control and digital signage.
Combining compact size, energy efficiency, and robust hardware, the K6-F1 fanless embedded box PC serves as a dependable computing solution across multiple fields.

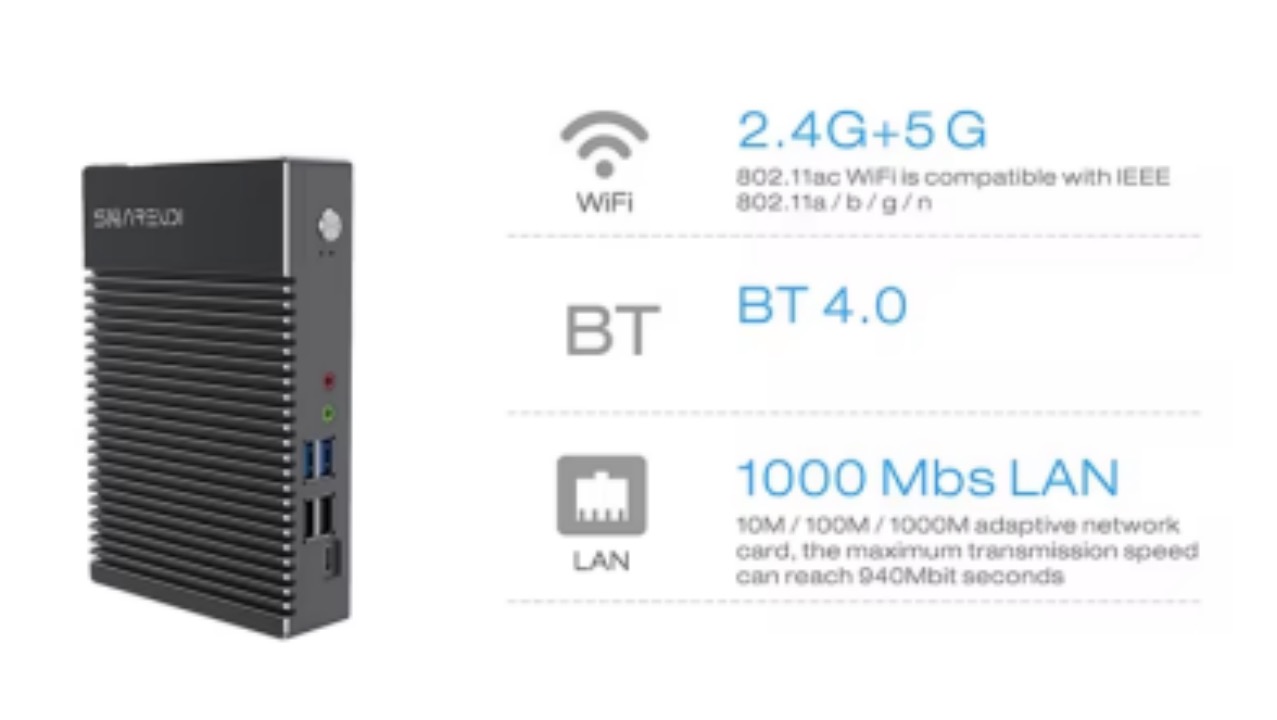

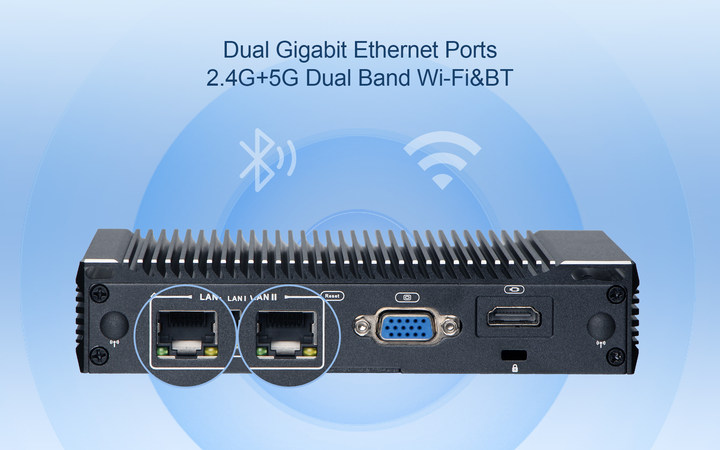

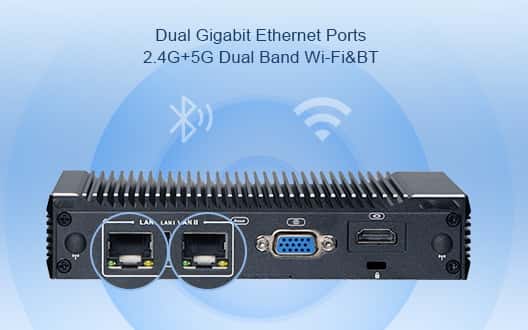

The K6-F1 fanless rugged PC includes two Gigabit Ethernet ports for fast and reliable network connections — delivering stable wired links critical for industrial workflows. As a fanless mini PC, it also supports 2.4G+5G Dual Band Wi-Fi&BT, adding flexible wireless connectivity to adapt to varied on-site network needs.

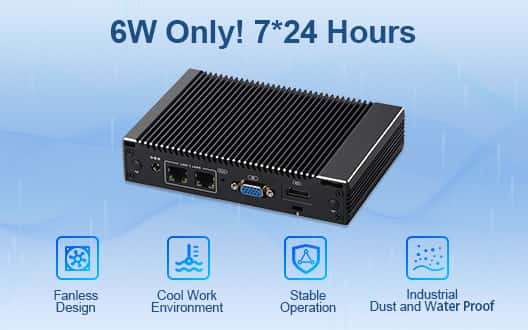

With an energy consumption of only 6W, the K6-F1 fanless embedded box computer exemplifies energy-efficient technology while maintaining stable performance. Designed for 24/7 operation, this fanless embedded box PC minimizes operational costs without compromising on reliability, making K6-F1 perfect for applications requiring constant uptime.

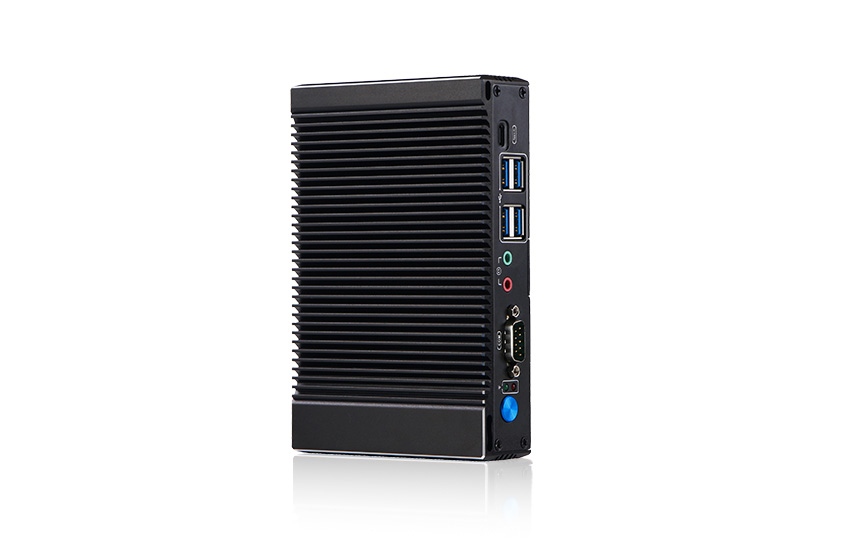

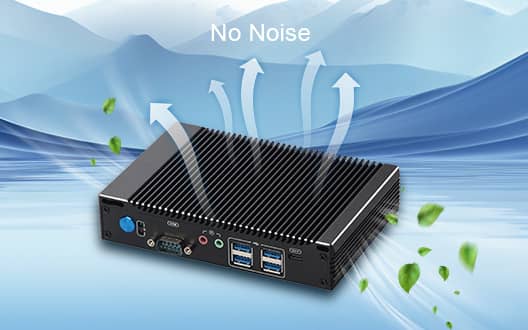

Featuring a small and thin profile, the K6-F1 embedded box PC boasts a fanless and compact housing design that saves valuable space while ensuring silent operation. This makes fanless embedded box PC K6-F1 an optimal choice for settings where noise reduction is critical, providing a distraction-free computing experience.

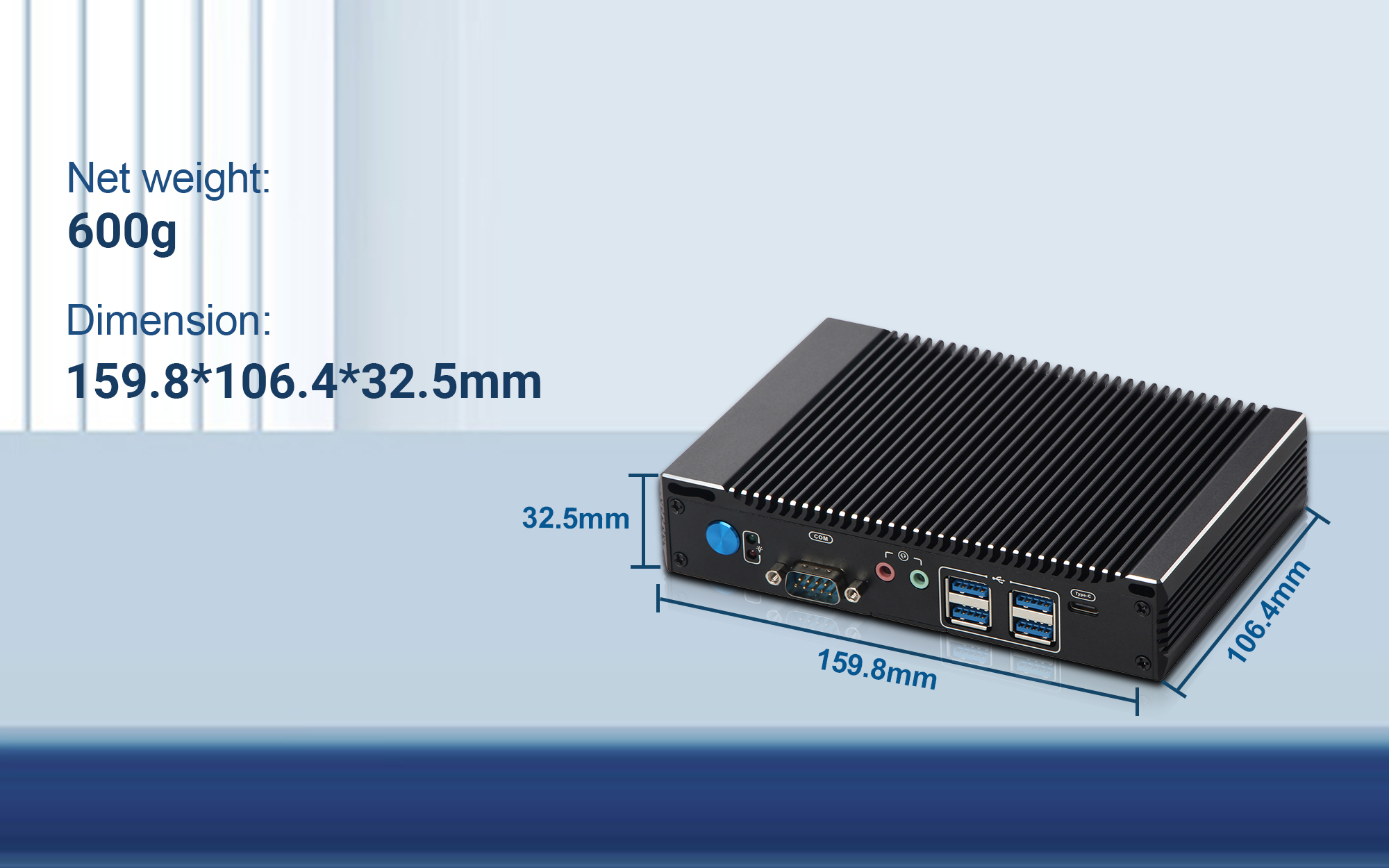

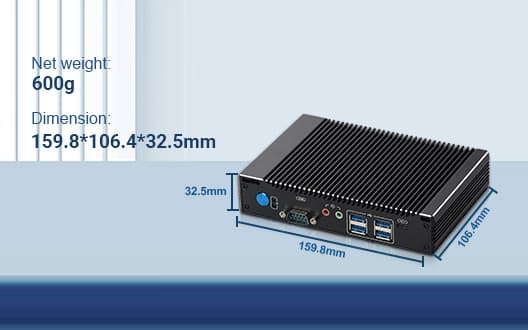

The ShareVDI K6-F1 fanless embedded mini PC features a NUC-style compact design: measuring 159.8×106.4×32.5mm and weighing only 600g, it’s ultra-portable and space-efficient. Ideal for environments with limited installation space (such as industrial control cabinets, compact workstations, or on-site equipment setups), it balances small form factor with reliable performance.

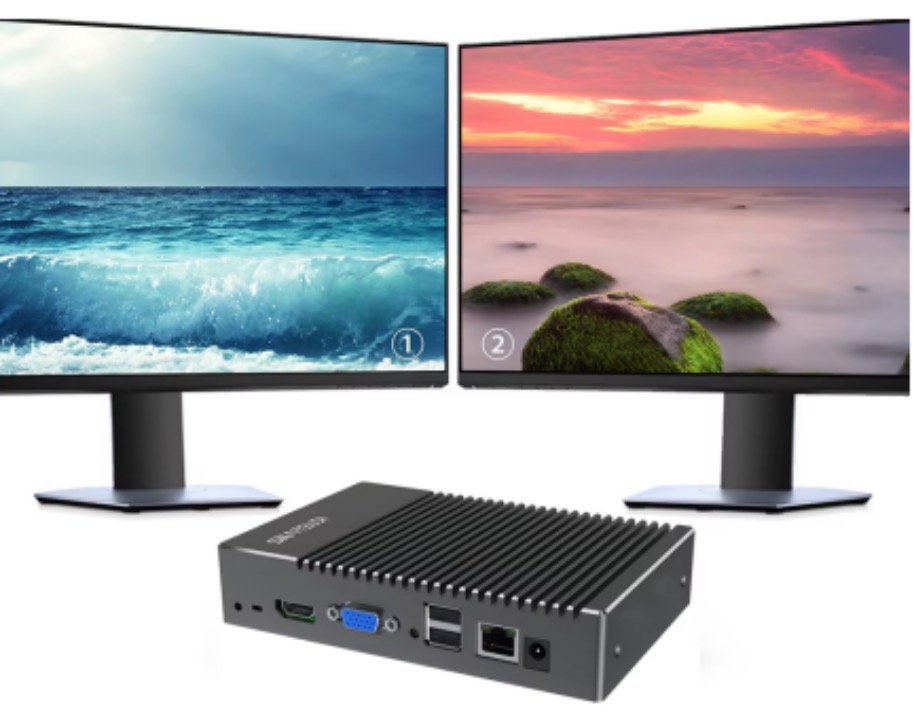

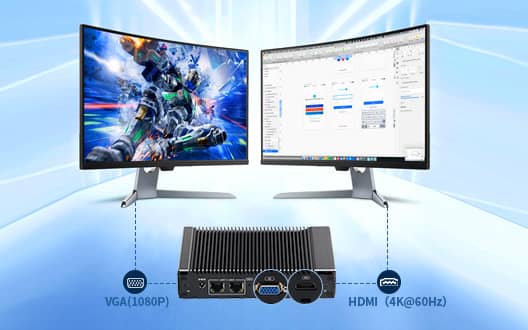

Supporting dual display configurations through VGA and HDMI interfaces, the K6-F1 embedded PC fanless allows users to connect multiple monitors, enhancing productivity and data visualization. This capability of mini embedded PC is precious in scenarios requiring simultaneous monitoring of different information sources.
-
Part No.K6-F1-N3160
-
-
Processor
CPU
Intel Celeron N3160, 4 Cores / 4 Threads
Frequency
1.60GHz
Max Turbo Frequency
2.24GHz
Cache
2MB L2 Cache
Chipset
Products formerly Braswell
-
Memory
Technology
1*DDR3L slot
Max. Capacity
8GB
-
Storage
MSATA
SSD 64GB/128GB/256GB/512GB
SATA
Not Support HDD
-
Graphics
Graphics
Intel UHD Graphics
-
Audio
Audio
HD Audio Realtek ALC 897
-
Network
LAN
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
Wireless
WIFI+Bluetooth (M.2 PCIE)
-
I/O Interface
Front

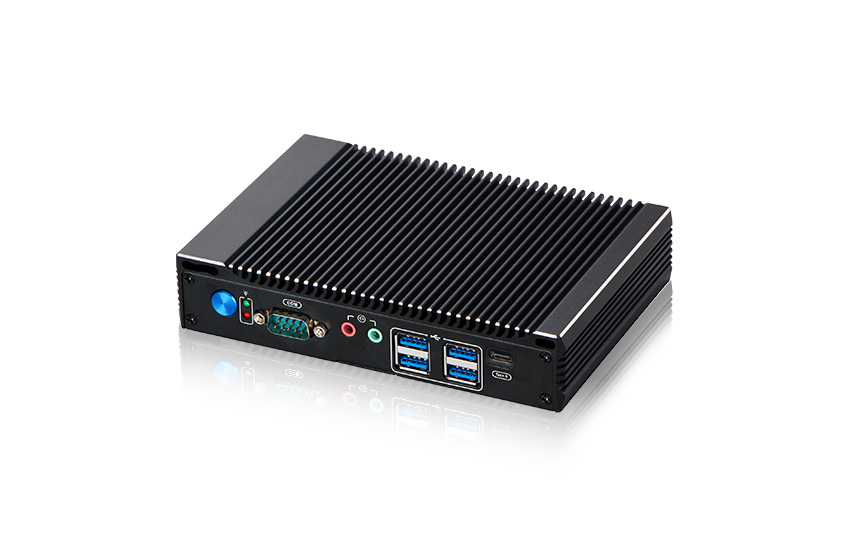

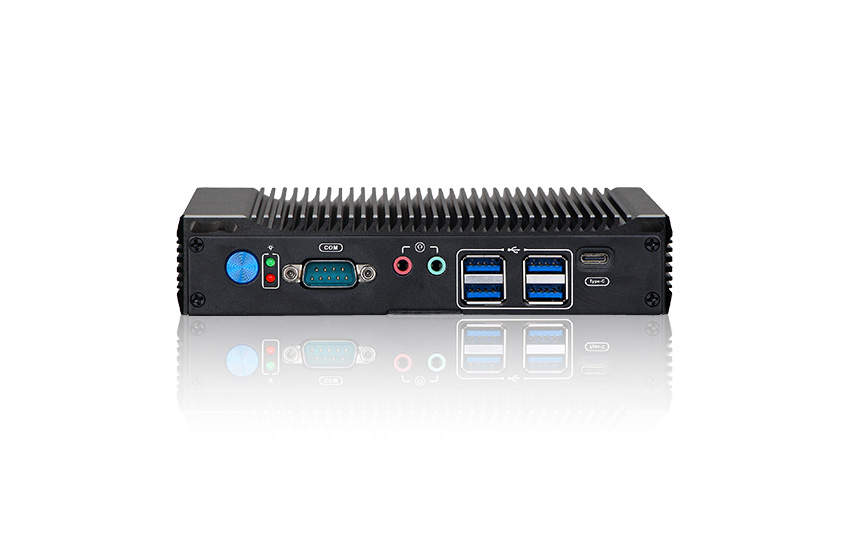

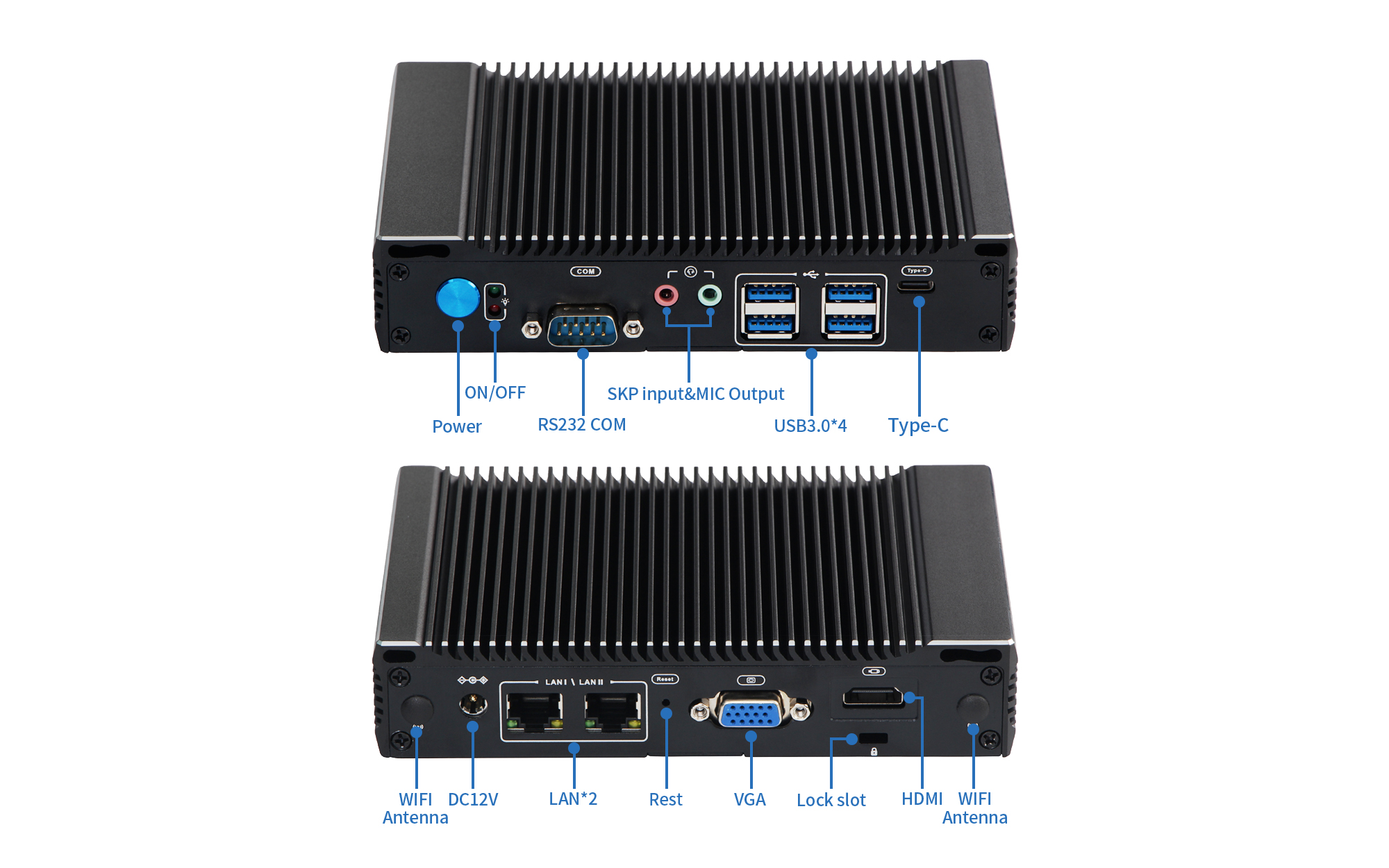

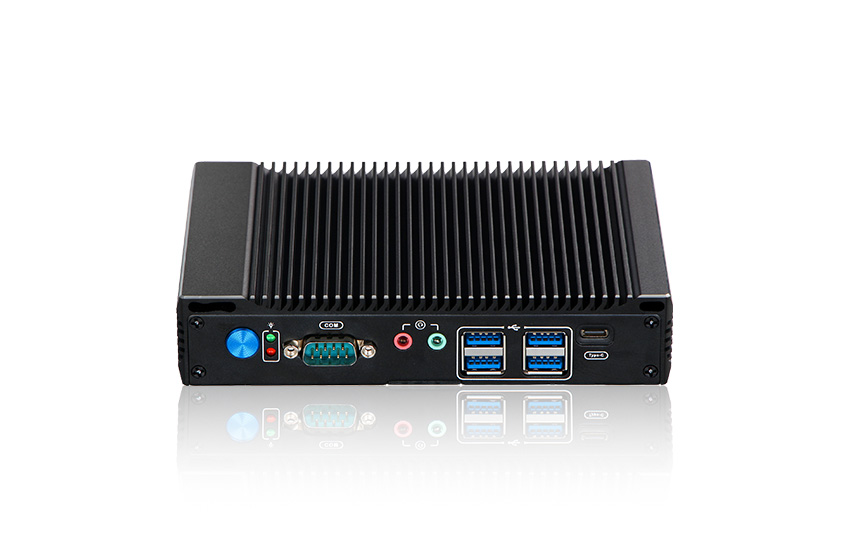

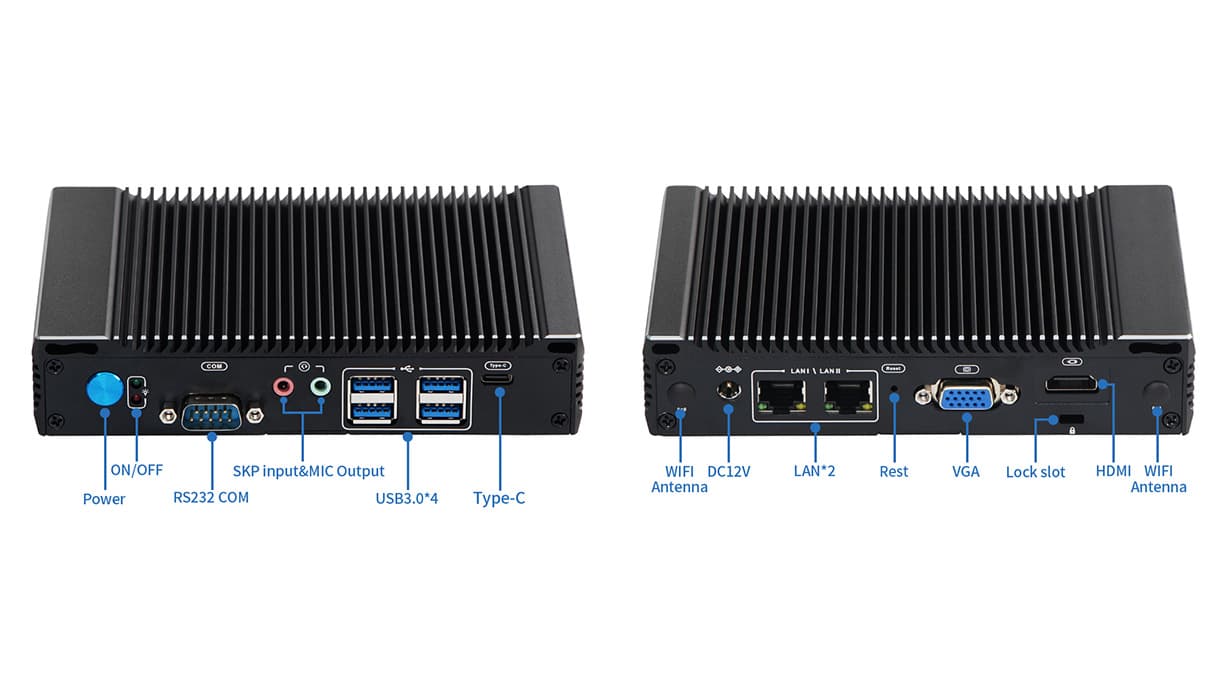

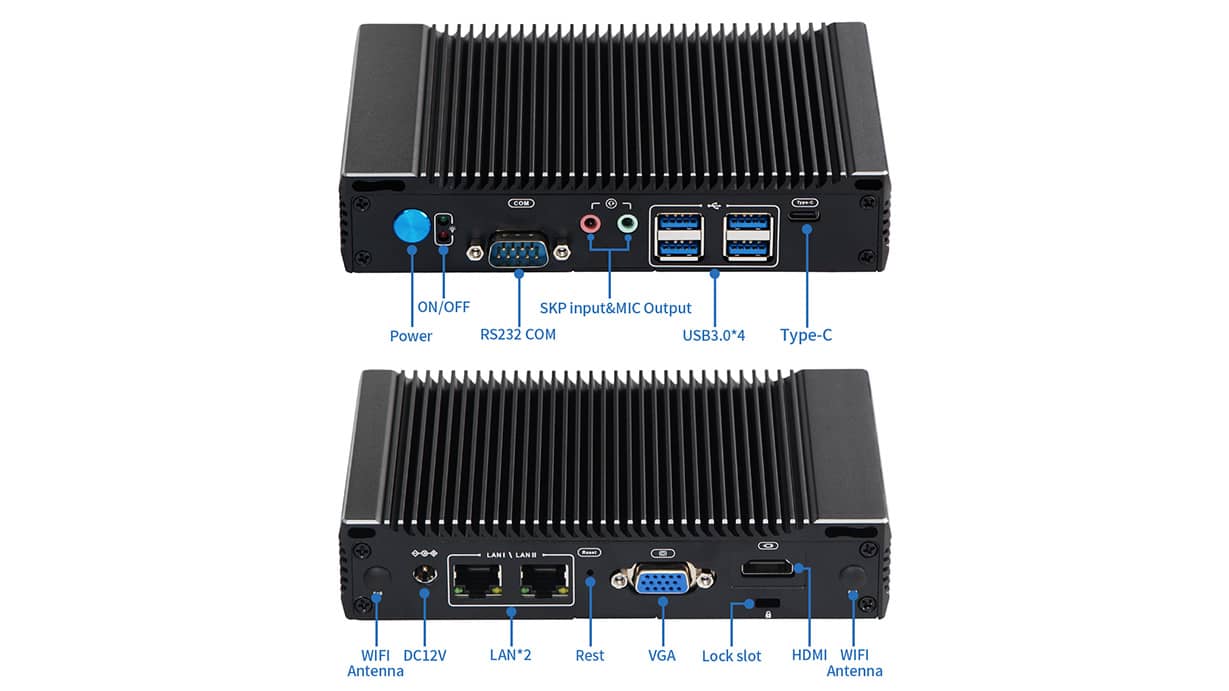

Power ON/OFF, 1*RS232 COM, 1*MIC&SPK, 4*USB3.0, 1*Type-C
Rear

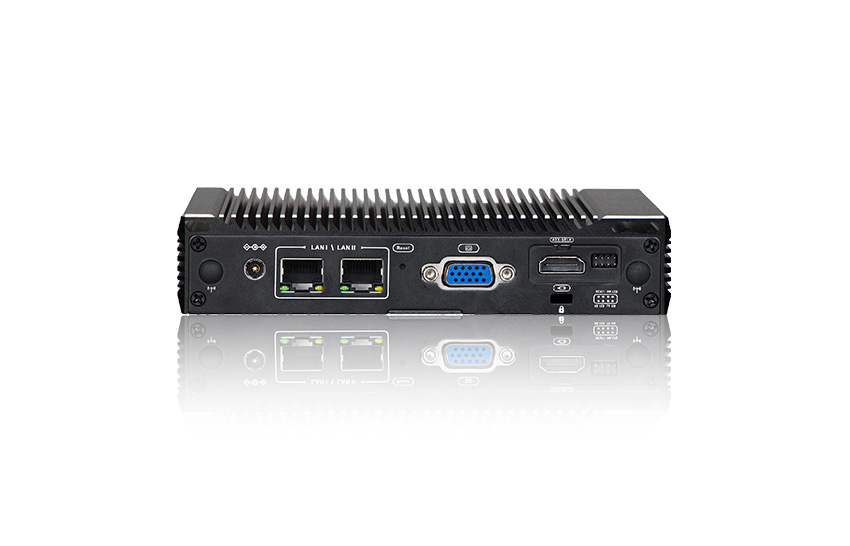

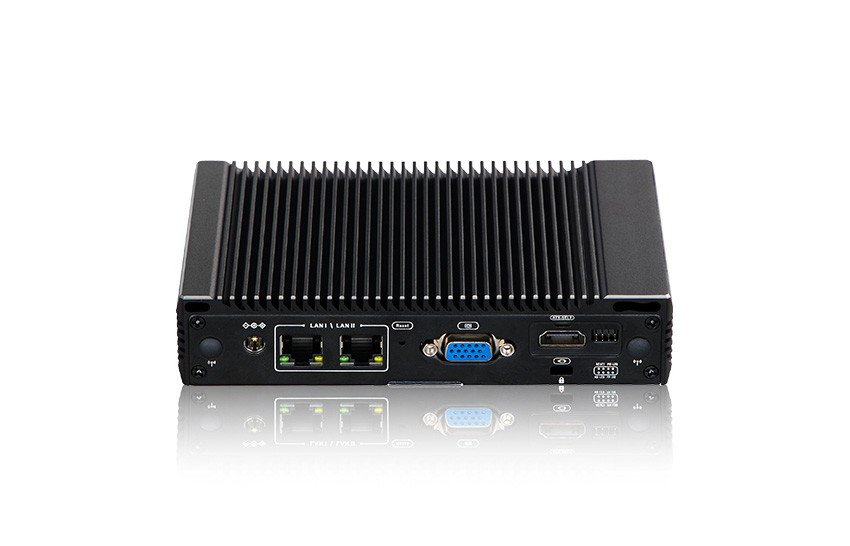

1*DC 12V, 2*LAN, 1*Reset, 1*VGA, 1*HDMI, 1*ATX Self-Power-On, 1*F_PANEL
-
Extendable
I/O Ports
FP 8PIN x 1, TPM 2.0 pin (12-1) x 1, COM PIN Headers (RS-232) x 4, TPM pin 14PIN x 1
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-3A
-
Operating System
Windows/Linux/Centos
-
Physical
Dimension
L 106.4mm*W 159.8mm*H 32.5mm
Weight(Net)
0.6KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket or DIN bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K6-F1-N3160
Intel Celeron N3160, 4 Cores / 4 Threads
-
Frequency
K6-F1-N3160
1.60GHz
-
Max Turbo Frequency
K6-F1-N3160
2.24GHz
-
Cache
K6-F1-N3160
2MB L2 Cache
-
Chipset
K6-F1-N3160
Products formerly Braswell
-
Technology
K6-F1-N3160
1*DDR3L slot
-
Max. Capacity
K6-F1-N3160
8GB
-
MSATA
K6-F1-N3160
SSD 64GB/128GB/256GB/512GB
-
SATA
K6-F1-N3160
Not Support HDD
-
Graphics
K6-F1-N3160
Intel UHD Graphics
-
Audio
K6-F1-N3160
HD Audio Realtek ALC 897
-
LAN
K6-F1-N3160
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
-
Wireless
K6-F1-N3160
WIFI+Bluetooth (M.2 PCIE)
-
Front
K6-F1-N3160
Power ON/OFF, 1*RS232 COM, 1*MIC&SPK, 4*USB3.0, 1*Type-C
-
Rear
K6-F1-N3160
1*DC 12V, 2*LAN, 1*Reset, 1*VGA, 1*HDMI, 1*ATX Self-Power-On, 1*F_PANEL
-
I/O Ports
K6-F1-N3160
FP 8PIN x 1, TPM 2.0 pin (12-1) x 1, COM PIN Headers (RS-232) x 4, TPM pin 14PIN x 1
-
Module
K6-F1-N3160
WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K6-F1-N3160
AC100-240V. 50-60Hz DC
-
Output
K6-F1-N3160
12V-3A
-
K6-F1-N3160
Windows/Linux/Centos
-
Dimension
K6-F1-N3160
L 106.4mm*W 159.8mm*H 32.5mm
-
Weight(Net)
K6-F1-N3160
0.6KG
-
Color
K6-F1-N3160
Black
-
Cooling Method
K6-F1-N3160
Fanless Passive Cooling
-
Mounting Options
K6-F1-N3160
Dedicated bracket; Support VESA bracket or DIN bracket
-
Certification
K6-F1-N3160
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K6-F1-N3160
-10~60 ℃
-
Storage Temperature
K6-F1-N3160
-10~60 ℃
-
Operation Humidity
K6-F1-N3160
0~95% (No Condensation)
-
Storage Humidity
K6-F1-N3160
0~95% (No Condensation)
