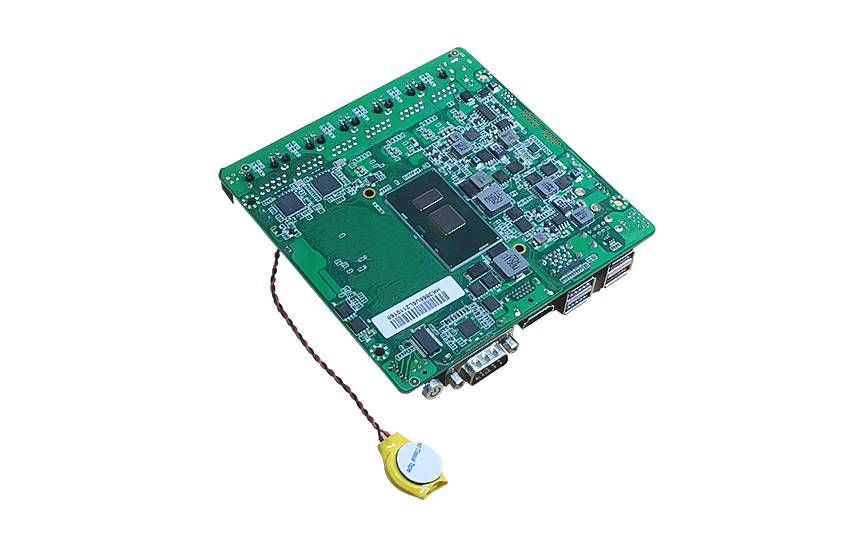

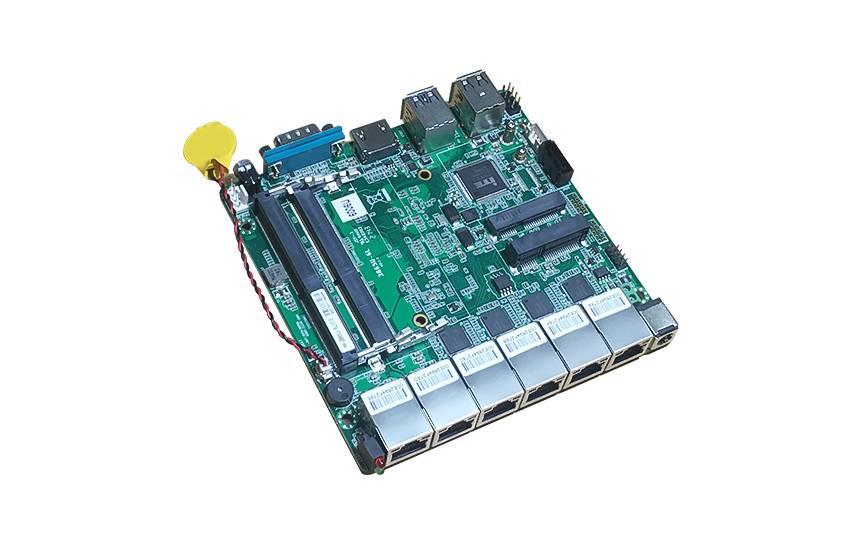

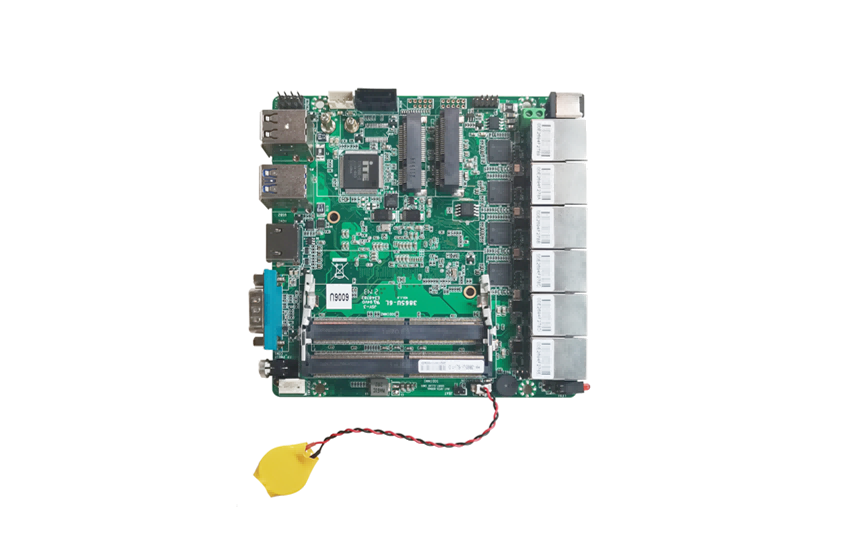

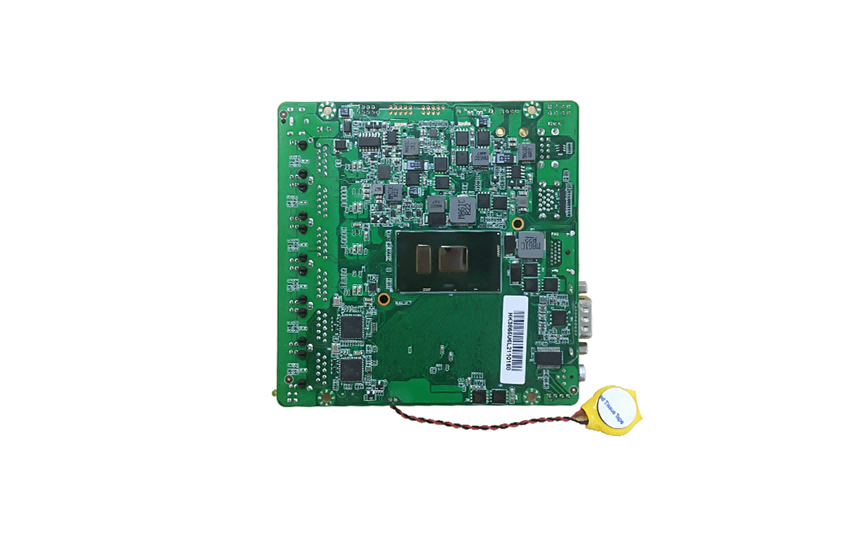

NANO-ITX AIMB-K304

Model: AIMB-K304

● 6th Gen Intel core i3 processor, 15W

● 2x 204-pin SO-DIMM up to 16 GB, DDR4 2400MHz SDRAM

● 6x Intel WGI211AT Ethrenet ports, 10/100/1000 Mbps

● 1 Mini PCIE, 1 SATA, 1 mSATA

● 2*USB3.0, 2*USB2.0, 1 x 9Pin USB2.0

● Support AES-NI, TPM

● Support RPL/PXE diskless boot, WOL, WDT

● Support Windows, Linux, PfSense, Sophos, VyOS, Linux iptables, Untangle etc

● Support 12V-64V power input

Intel core i3-6006u NANO-ITX with 6 Intel LAN, HDMI, 4 USB, 1 COM

Product Specification
Form Factor
  • AIMB-K304

    NANO-ITX

Processor
  • CPU

    AIMB-K304

    Intel Core i3-6006u

  • BIOS

    AIMB-K304

    AMI BIOS

  • Core Number

    AIMB-K304

    2

  • CPU TDP

    AIMB-K304

    15W

  • Frequency

    AIMB-K304

    2.0GHz

  • L3 Cache

    AIMB-K304

    3MB

Memory
  • Technology

    AIMB-K304

    DDR4 2400MHz

  • Max.Capacity

    AIMB-K304

    SO-DIMM up to 16GB

  • Socket

    AIMB-K304

    1*260 PIN SO-DIMM

Display
  • Controller

    AIMB-K304

    Intel HD Graphics 520

  • Video Interface

    AIMB-K304

    HDMI

  • DP

    AIMB-K304

    N/A

Expansion
  • Slot Type

    AIMB-K304

    1

  • PCI Express

    AIMB-K304

    1 (colay MINI PCIE) Support USB channel module

Ethernet
  • Speed

    AIMB-K304

    10/100/1000/2500 Mbps

  • Controller

    AIMB-K304

    intel I225-v

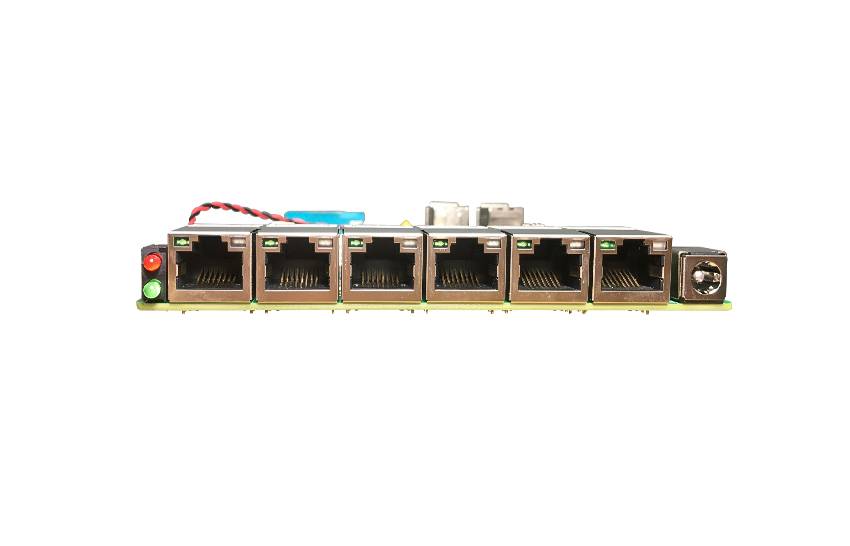

  • Connector

    AIMB-K304

    6*RJ45

Audio
  • Audio Interface

    AIMB-K304

    N/A

  • CODEC

    AIMB-K304

    N/A

  • Connector

    AIMB-K304

    N/A

WatchDog Timer
  • AIMB-K304

    Yes

I/O

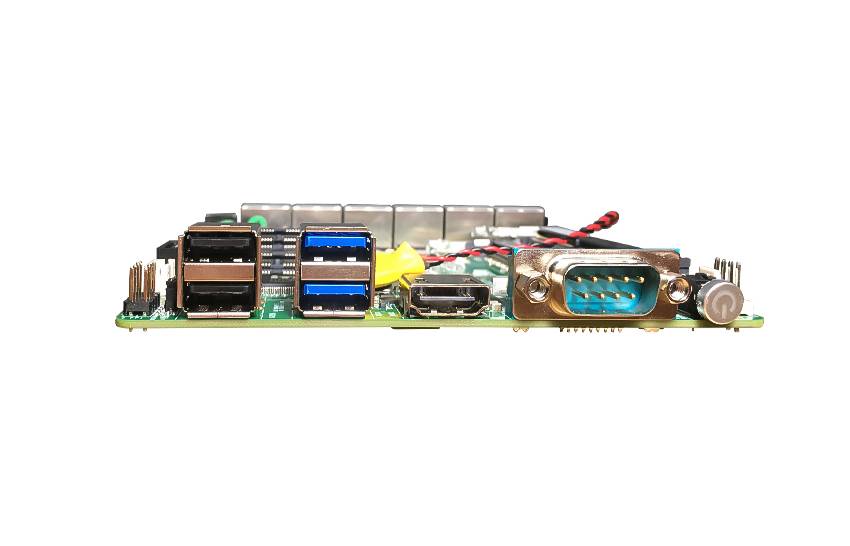

  • USB

    AIMB-K304

    2*USB3.0, 2*USB2.0, 1 x 9Pin USB2.0

  • GPIO

    AIMB-K304

    N/A

  • COM Port

    AIMB-K304

    1*COM

  • TPM

    AIMB-K304

    N/A

Storage
  • M-SATA

    AIMB-K304

    1*MSATA 30MM*50MM*3MM

  • SATA

    AIMB-K304

    1*SATA, support 2.5inch sata Interface

Power
  • Power type

    AIMB-K304

    DC 12V

  • Connector

    AIMB-K304

    DC jack

  • Power Adaptor

    AIMB-K304

    Yes

Environment
  • Non-Operational Temperature

    AIMB-K304

    "-10℃~60℃"

  • Operational Temperature

    AIMB-K304

    "-10℃~60℃"

Physical
  • Dimension

    AIMB-K304

    140mmX140mm

  • Weight

    AIMB-K304

    162g

  • Construction

    AIMB-K304

    with fanless design

Operating System
  • Microsoft Windows

    AIMB-K304

    Yes

  • Linux

    AIMB-K304

    Yes
