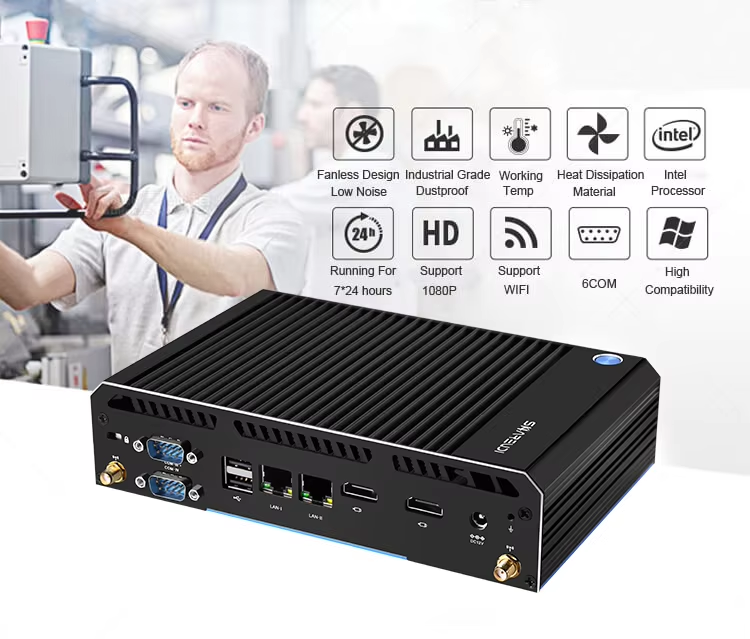

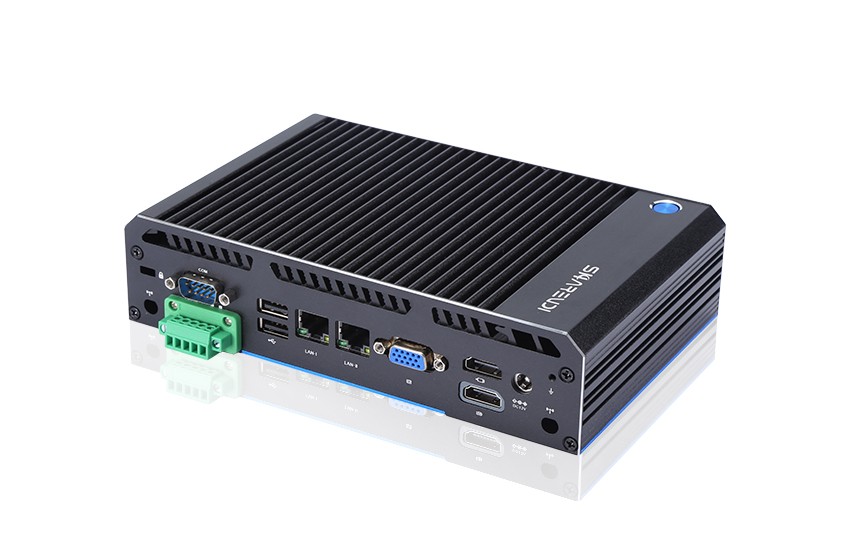

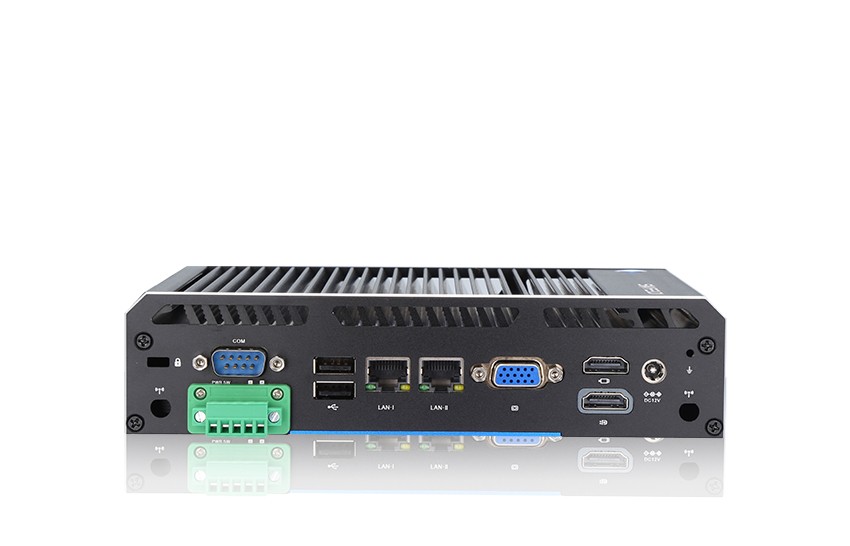

K5-F17H Industrial Embedded PC
Model: K5-F17H
● Intel i5 processor
● mSATA and 2.5'' SATA Storage device
● 4 x RS232/ RS485
● Optional GPIO available
● Dual independent displays VGA+HDMI
● M.2 expansion slot
● Support TPM 2.0 (optional)
● 12V ~ 48V wide range power input
● Wide temperature -20~65°C
● Anti-vibration & shock proof, industrial grade design for 7/24 use
Data Sheet 1

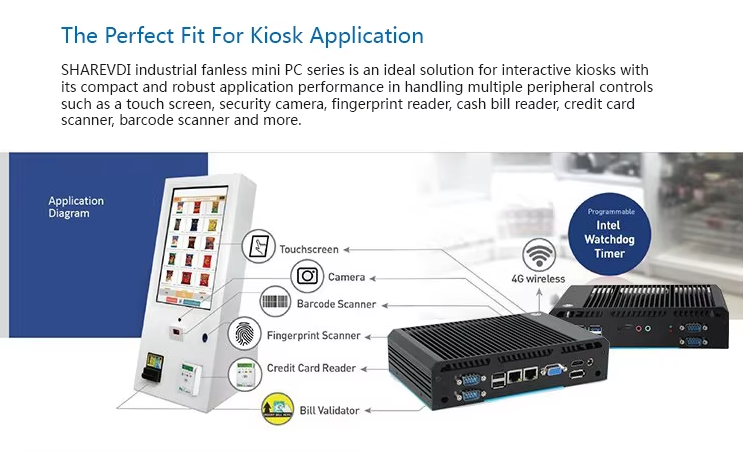

Send InquiryK5-F17H is Industrial Box PC powered by Intel core i5 processor, with multiple interfaces and extendable I/O ports. It adopt industrial grade components for the design of 7/24 working in extreme conditions, operating temperature from -10 to 65 °C. Widely used in self-service equipment, transportation, medical, industrial automation etc.
-
Part No.K5-F17H-5300U
-
-
Processor
CPU
Intel Core I5-5300U
Core Number
2 Cores / 4 Threads
Frequency
2.3GHz
Max Turbo Frequency
2.9GHz
Chipset
Broadwell
-
Memory
Technology
2*DDR3L slots
Max. Capacity
16GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel HD Graphics 5500
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 1*Serial RS232/RS485(Optional)，1*GPIO,DC 12V
Rear

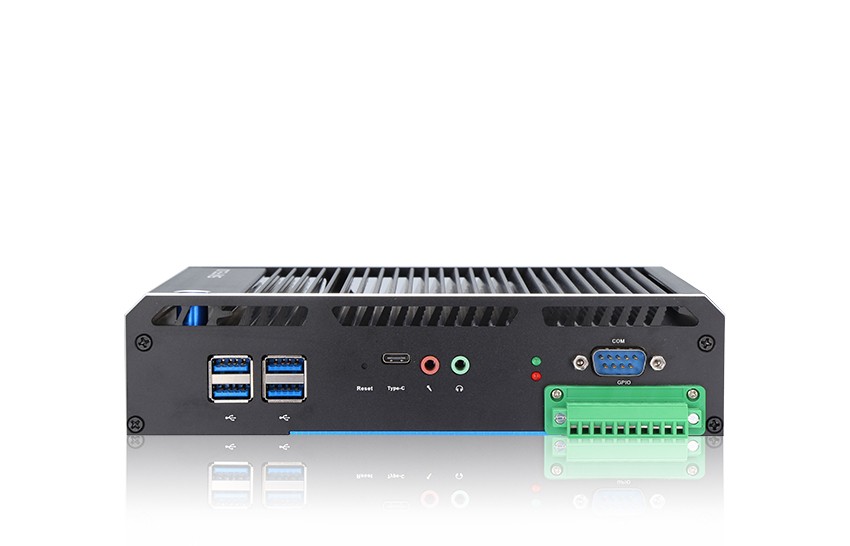

4*USB3.0, 1*Type-C, 1*MIC& SPK, 1*Serial RS232/RS485，1*Phoenix Terminal
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-5A
Wide Voltage
12-64V phoenix connector （Optional）
-
Operating System
Operating System
Windows/Linux
-
Physical
Dimension

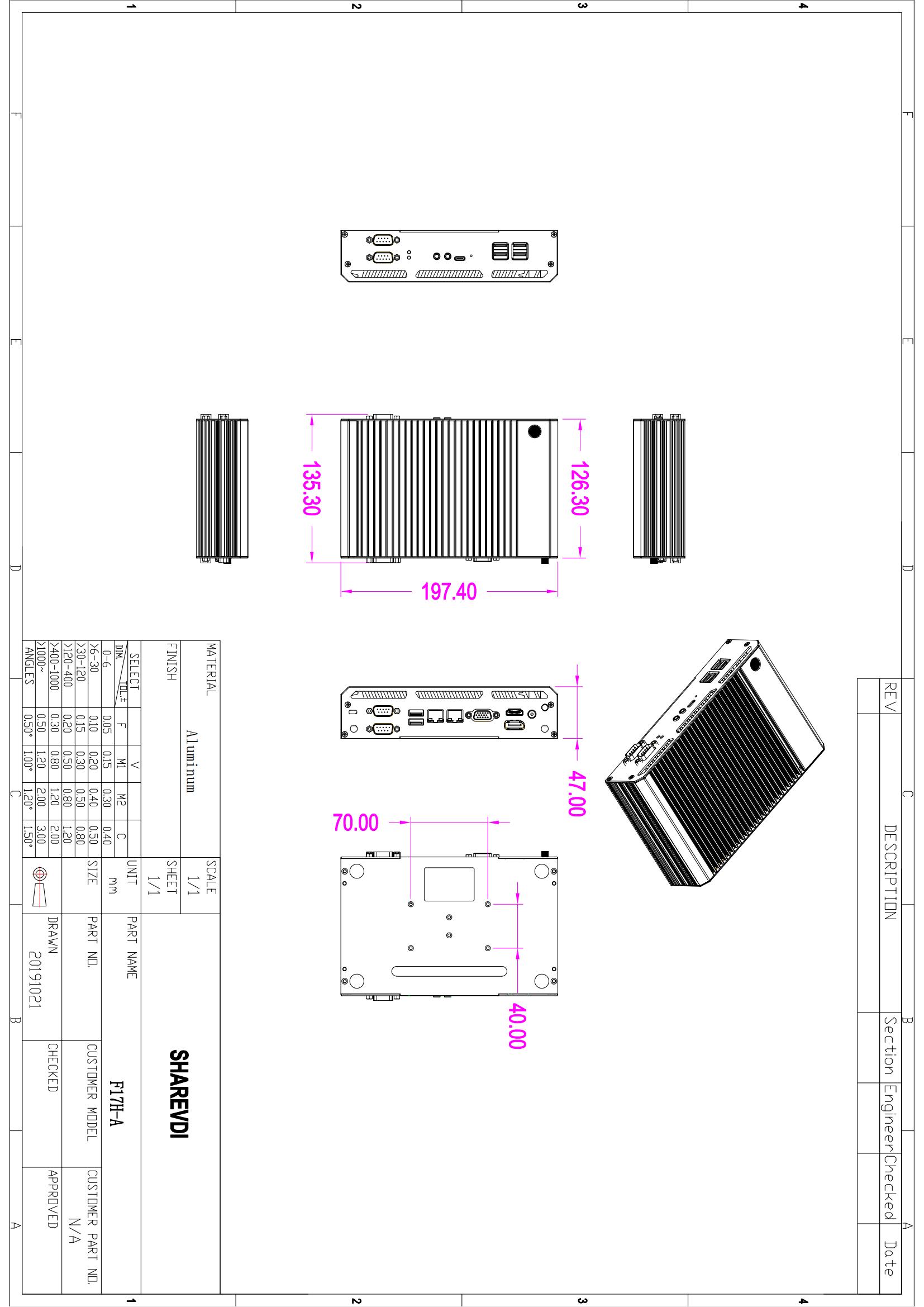

L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling

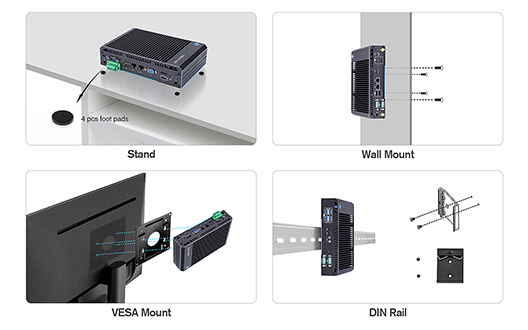

Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
