Model:
Fanless industrial-grade chassis engineered for 7×24 continuous operation
Intel Core i3-8130U processor (2.20GHz base, up to 3.40GHz Turbo).
2 x Gigabit Ethernet ports (10/100/1000BASE-T) Realtek 8111H
2 x Serial ports (RS232/RS485) ,6 x USB ports
1x External toggle switch for Power-on Self-start capability
1x External PWRBTN header for connecting a power switch extension cable
Support Windows11, Windows 11 IoT, Linux
Wide-range power input 9–36V through a 3-pin connector
Operating temperature range: -10 ℃ to 60 ℃
Supports VESA mount and Din Rail bracket installation
Built for 24/7 reliability in the harshest environments, the K3-F17H industrial computer is the robust core your applications demand. Its rugged, fanless design ensures dust-free, silent, and maintenance-free operation, making it the ideal computing solution for self-service kiosks, intelligent automation, and real-time edge computing.
Engineered for performance and versatility, it features an Intel Core i3-8130U processor, dual Gigabit LAN, multiple industrial I/O ports, and a wide 9-36V DC input. Designed to operate from -10°C to 60°C and supporting flexible VESA/DIN-rail mounting, it offers effortless integration and steadfast reliability. It comes pre-configured Windows 11 IoT, offering a deeply secure long-term servicing system for your intelligent edge solutions.

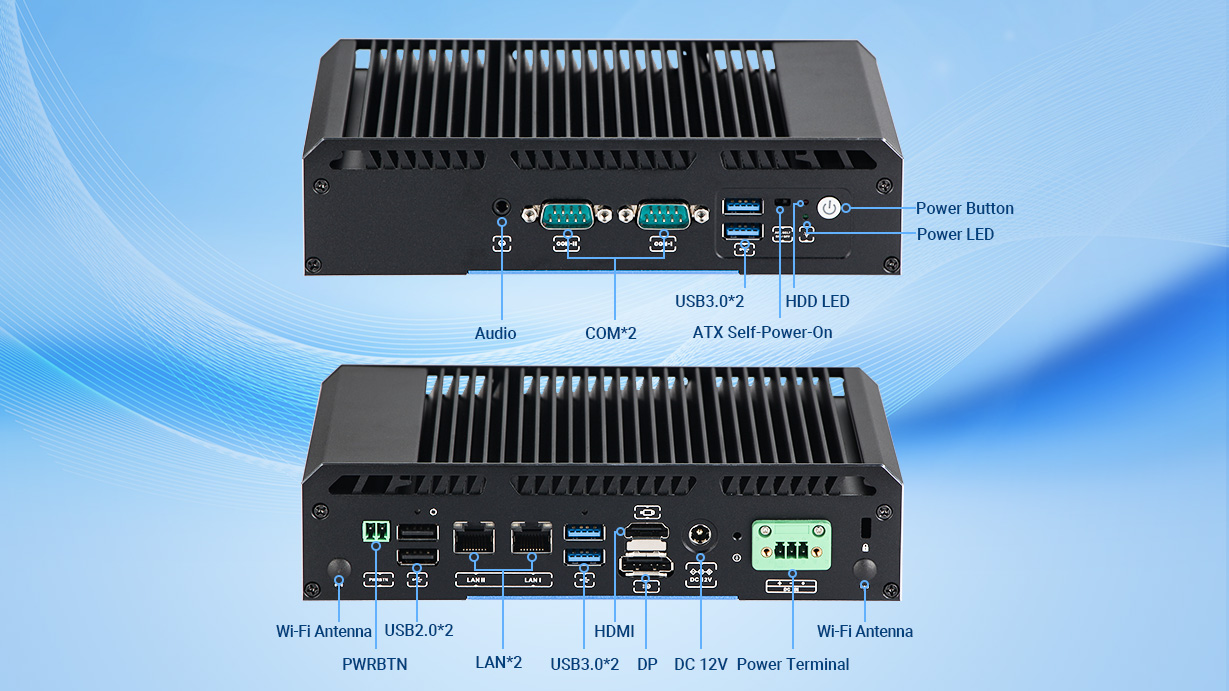

The Embedded Mini PC K3-F17H-8130U delivers flexible, robust connectivity: 2-4 x COM ports (compatible with RS232/RS485), 6 x USB ports, dual Ethernet ports, and dual display outputs (HDMI + DP). It supports a 9-36V wide-range DC power input, plus integrated Wi-Fi (with antenna support) for wireless flexibility. Its compact, fanless design makes it ideal for industrial automation, kiosk, and digital signage—providing reliable performance for diverse deployment needs.
The Intel® Core i3-8130U is a dual-core (2c), quad-thread (4T) processor engineered for balanced performance and efficiency: it runs at a 2.2GHz base frequency, features 4MB Intel Smart Cache, and operates on a low 15W default TDP. As the processing core powering this mini PC (and compact industrial terminals), it delivers consistent, responsive performance for everyday and embedded workloads—all while maintaining the low power draw critical for space-constrained devices.

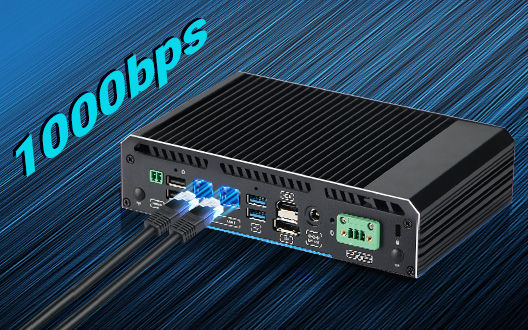

Flexible network expansion: Supports simultaneous connection to two separate networks (e.g., internal management network + external service network) or multi-device access.
Convenient deployment: Eliminates the need for additional network switches, simplifying wiring and reducing deployment costs in small-scale setups.
The Embedded Mini PC K3-F17H is built for uninterrupted performance, featuring:
A fanless, rugged housing design paired with 15W low-TDP efficiency, preventing overheating during round-the-clock use.
Wide temperature resilience (-10°C to 60°C) to handle extreme industrial environment fluctuations.
24/7 stable running capabilities, plus vibration & dust-proof protection — ideal for demanding, high-reliability settings.

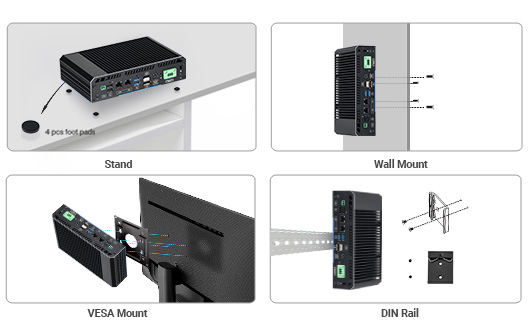

Measuring just L197.4mm×W126.3mm×H47.5mm, the Embedded Windows PC K3-F17H combines ultra-compact size with flexible mounting options (shown left):
Stand: Simple desktop placement for quick setup.
Wall Mount: Space-saving vertical installation.
VESA Mount: Seamless integration with monitors/displays.
DIN Rail: Standard industrial rack compatibility.
The K3-F17H Embedded Mini PC excels across diverse professional scenarios (shown right):
Self-Service Terminals:Powers retail, banking & ticketing KIOSKs with compact, stable design for smooth user interactions.
Industrial Automation: Delivers reliable performance for factory/line equipment control and data acquisition.
Edge Computing: Supports low-latency data processing in distributed network environments.
Digital Signage: Drives seamless content display for advertising, directional signage and information screens.
Its adaptable design makes it a go-to choice for efficiency-focused deployments across industries.
CPU
Intel® Core I3 8130U, 2 Cores / 4 Threads
Frequency
2.2GHz
Max Turbo Frequency
3.4GHz
Cache
4 MB
Chipset
Kaby Lake R
Technology
SO-DIMM DDR3 slot x 1
Max. Capacity
16GB
M.2 2280 SATA/NVME
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
Graphics
Intel® UHD Graphics 620
Audio
HD Audio realtek ALC 897
LAN
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
Wireless
WIFI+Bluetooth (M. 2 PCIE)
4G module
3G/4G Module (with SIM card slot)
Front

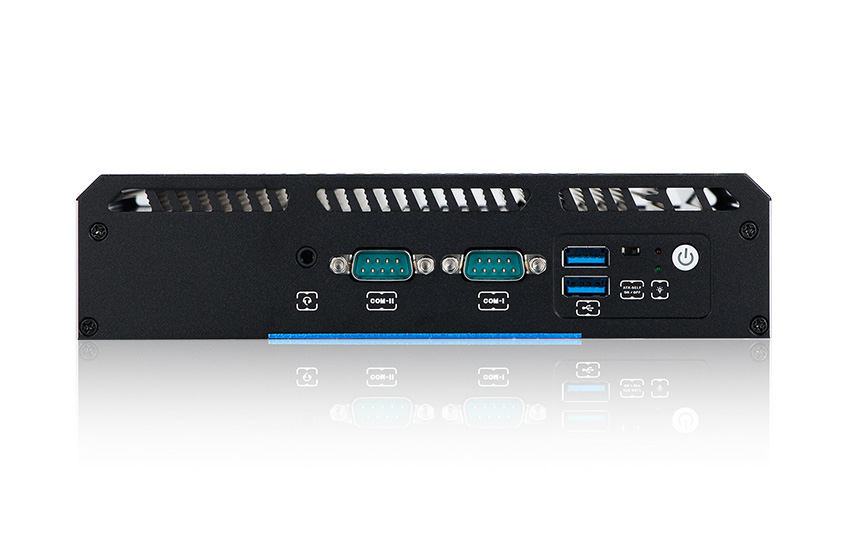

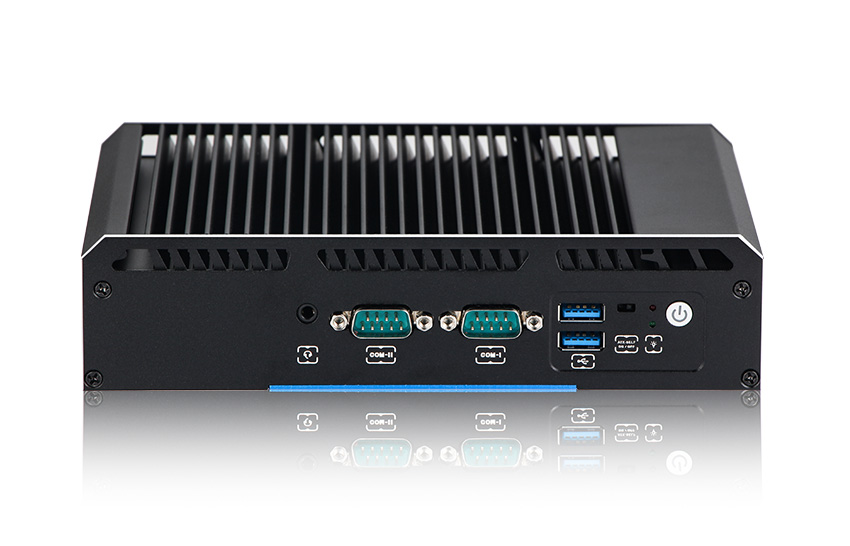

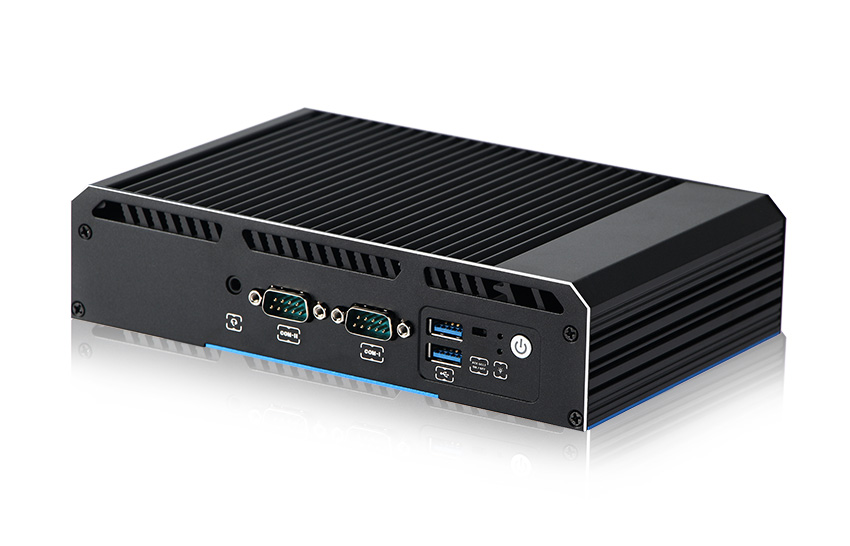

2*USB3.0，2~4*DB-9 RS-232 (485) COM，Power ON/OFF，1*3.5mm Audio Combo (Out + In), ATX Self-Power-On
Rear

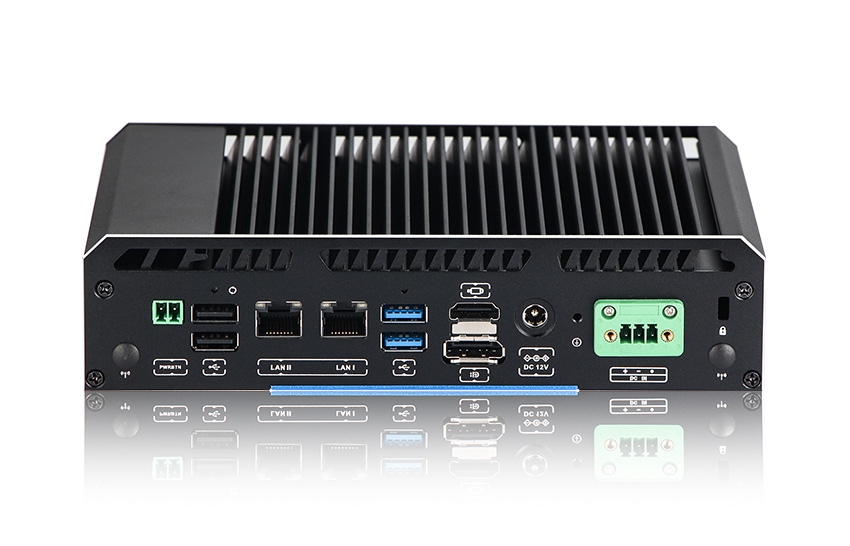

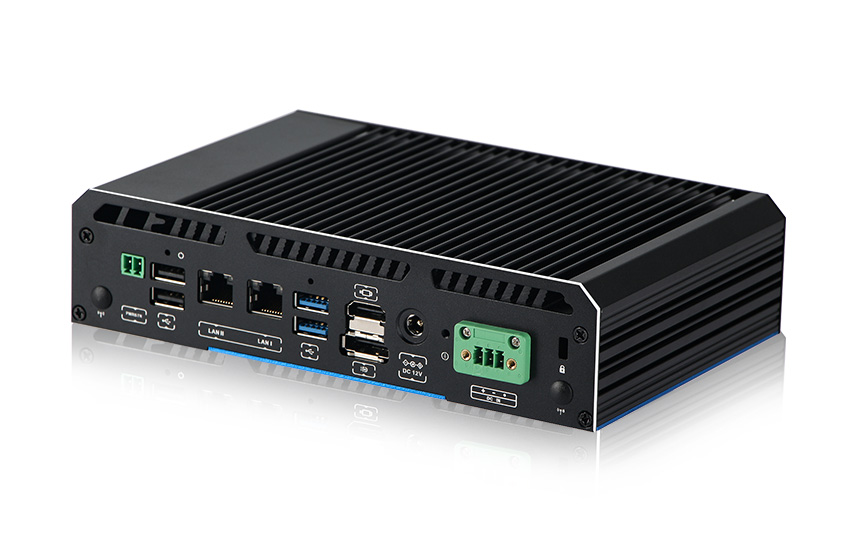

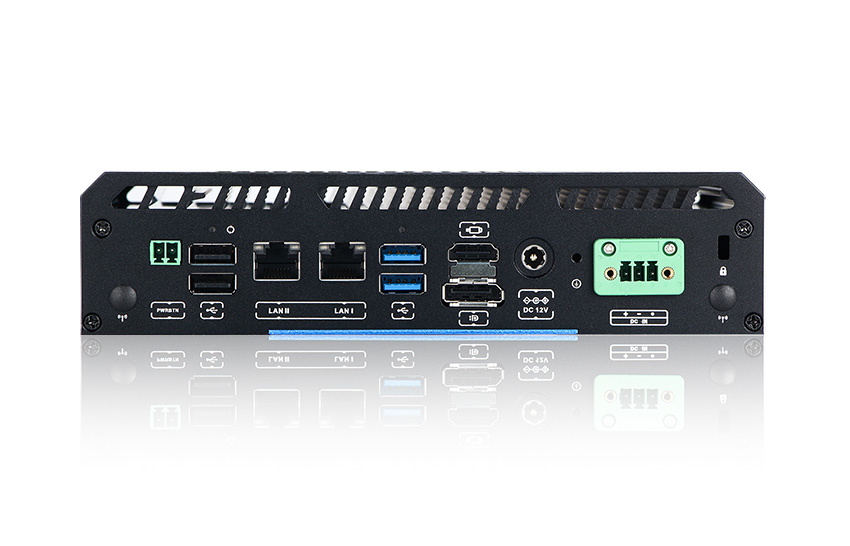

2*Wi-Fi Antenna，1*3 - pin Power Terminal，2*USB2.0，2*USB3.0, 2*LAN，1*HDMI 1.4，1*DP 1.2，1*PWRBTN, 1*DC
I/O Ports
COM signal switch pin x 2, F _USB pin x 1, F_PANEL pin x 1, SATA1 pin x 1,HGPIO pin x 1, SPEAKER x 1, F_AUDIO x 1, CFAN1 x 1, JVGA1 x 1, Wired BAT battery connector x 1, PWR _ JSATA pin x 1,SIM CardSlot x 1.
Module
WIFI+Bluetooth Module(M.2 PCIE)or 3G/4G Module( SIM card slot on the motherboard)
Input
AC100-240V. 50-60Hz DC
Output
12V - 5A
Wide Voltage
9-36V phoenix connector（Optional）
Windows 10, Windows 11, Linux
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.2KG
Color
Black
Cooling Method
Passive cooling (natural heat dissipation)
Mounting Options
Dedicated Bracket; Support VESA Bracket, Optional Ear Mount/DIN Bracket
Certification
CE, FCC, ROHS, ISO, UL
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
K3-F17H-8130U
Intel® Core I3 8130U, 2 Cores / 4 Threads
K3-F17H-8130U
2.2GHz
K3-F17H-8130U
3.4GHz
K3-F17H-8130U
4 MB
K3-F17H-8130U
Kaby Lake R
K3-F17H-8130U
SO-DIMM DDR3 slot x 1
K3-F17H-8130U
16GB
K3-F17H-8130U
SSD 64GB/128GB/256GB/512GB/1TB
K3-F17H-8130U
HDD 500GB/1TB/2TB (Optional)
K3-F17H-8130U
Intel® UHD Graphics 620
K3-F17H-8130U
HD Audio realtek ALC 897
K3-F17H-8130U
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
K3-F17H-8130U
WIFI+Bluetooth (M. 2 PCIE)
K3-F17H-8130U
3G/4G Module (with SIM card slot)
K3-F17H-8130U
2*USB3.0，2~4*DB-9 RS-232 (485) COM，Power ON/OFF，1*3.5mm Audio Combo (Out + In), ATX Self-Power-On
K3-F17H-8130U
2*Wi-Fi Antenna，1*3 - pin Power Terminal，2*USB2.0，2*USB3.0, 2*LAN，1*HDMI 1.4，1*DP 1.2，1*PWRBTN, 1*DC
K3-F17H-8130U
COM signal switch pin x 2, F _USB pin x 1, F_PANEL pin x 1, SATA1 pin x 1,HGPIO pin x 1, SPEAKER x 1, F_AUDIO x 1, CFAN1 x 1, JVGA1 x 1, Wired BAT battery connector x 1, PWR _ JSATA pin x 1,SIM CardSlot x 1.
K3-F17H-8130U
WIFI+Bluetooth Module(M.2 PCIE)or 3G/4G Module( SIM card slot on the motherboard)
K3-F17H-8130U
AC100-240V. 50-60Hz DC
K3-F17H-8130U
12V - 5A
K3-F17H-8130U
9-36V phoenix connector（Optional）
K3-F17H-8130U
Windows 10, Windows 11, Linux
K3-F17H-8130U
L 197.4mm*W 126.3mm*H 47.5mm
K3-F17H-8130U
1.2KG
K3-F17H-8130U
Black
K3-F17H-8130U
Passive cooling (natural heat dissipation)
K3-F17H-8130U
Dedicated Bracket; Support VESA Bracket, Optional Ear Mount/DIN Bracket
K3-F17H-8130U
CE, FCC, ROHS, ISO, UL
K3-F17H-8130U
-10~60 ℃
K3-F17H-8130U
-10~60 ℃
K3-F17H-8130U
0~95% (No Condensation)
K3-F17H-8130U
0~95% (No Condensation)
