Industrial PCs/ Rugged Mini PC/ F17- Industrial Mini PC/ K3-F17 Rugged Mini Computer

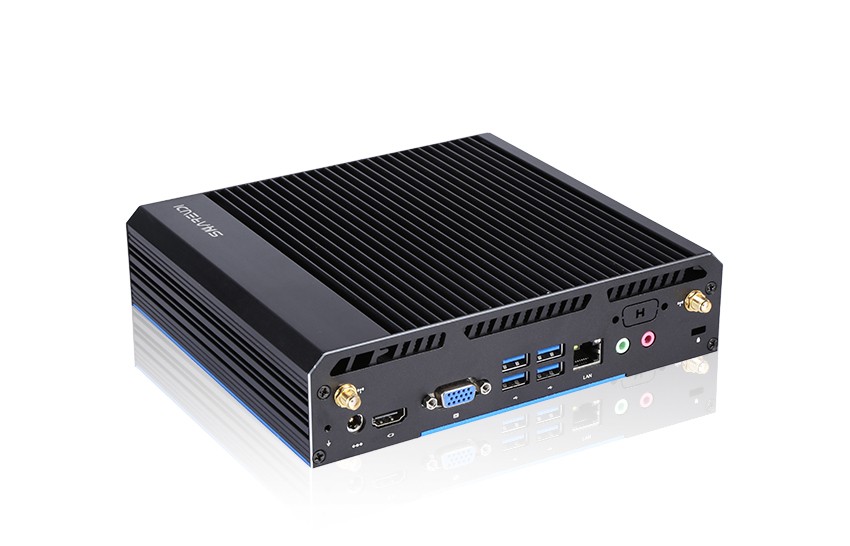

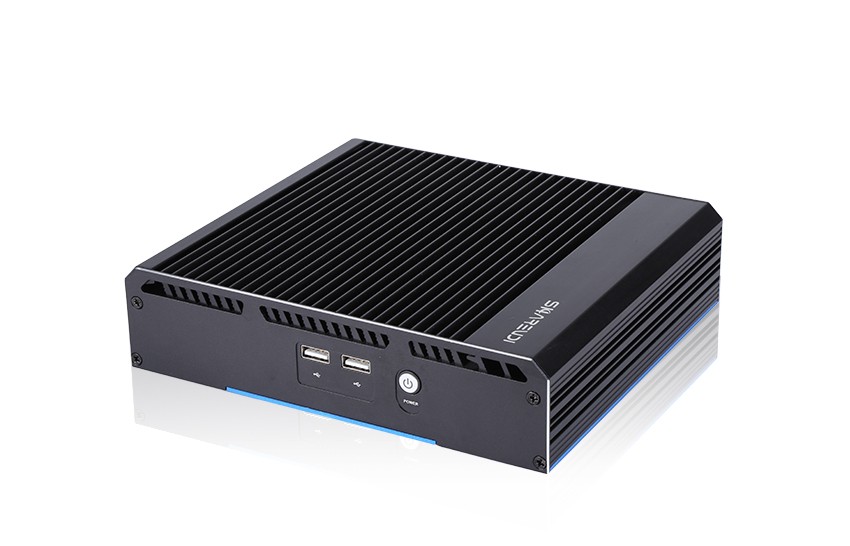

K3-F17 Rugged Mini Computer

Model:

K3-F17-6157U

● Industrial Fanless System with compact rugged design

● Optional processor Intel core i3 / i5 / i7

● -20 ~ 65  °C working temperature

● Extendable COM RS232/RS485

● Support 3G / 4G LTE Module

● 6xUSB, 1xEthernet, 1xHDMI, 1xVGA

● Anti-vibration & shock proof, industrial grade design for 7/24 use

● Support RPL / PXE diskless boot, wake on lan, WDT

Data sheet Send Inquiry

With rugged and compact construture, Industrial embedded PC K3-F17 is designed for 24 / 7 use in extreme conditions for ues. The high compability makes it can be configured with wide range process, RAM, SSD and extendable I/O ports.

Specification K3-F17-6157U
  • Part No.
    K3-F17-6157U
  • Get A Quote
  • Processor

    CPU

    Intel Core i3-6157U, 2 Cores / 4 Threads

    Frequency

    2.4GHz

    Max Turbo Frequency

    2.4GHz

    Cache

    3 MB Intel Smart Cache

    Chipset

    Products formerly Skylake

  • Memory

    Technology

    2*DDR4 slots

    Max. Capacity

    32GB

  • Storage

    M.2 SATA

    SSD 64GB/128GB/256GB/512GB/1TB

    SATA

    HDD 500GB/1TB/2TB (Optional)

  • Graphics

    Intel Iris Graphics 550

  • Audio

    Audio

    HD Audio realtek ALC 662

  • Network

    LAN

    10/100/1000Mbps Adaptive, RTL 8111H

    Wireless

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

  • I/O Interface

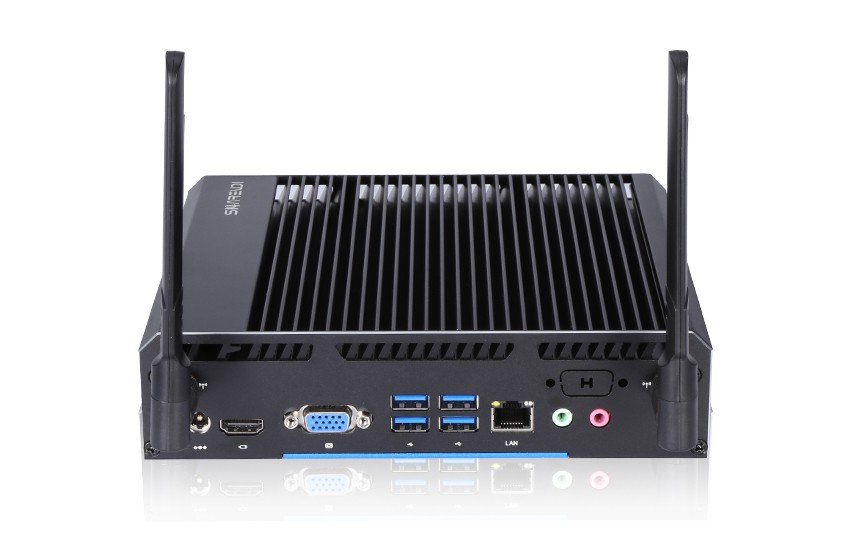

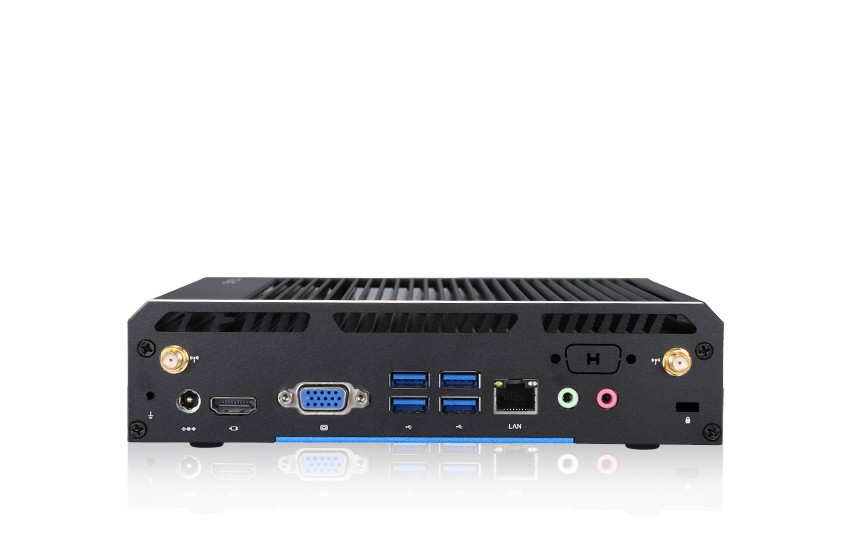

    Front

    HDMI, VGA, 2*USB3.0, 2*USB2.0, RJ45, MIC, SPK, RS232(Optional)，DC12V

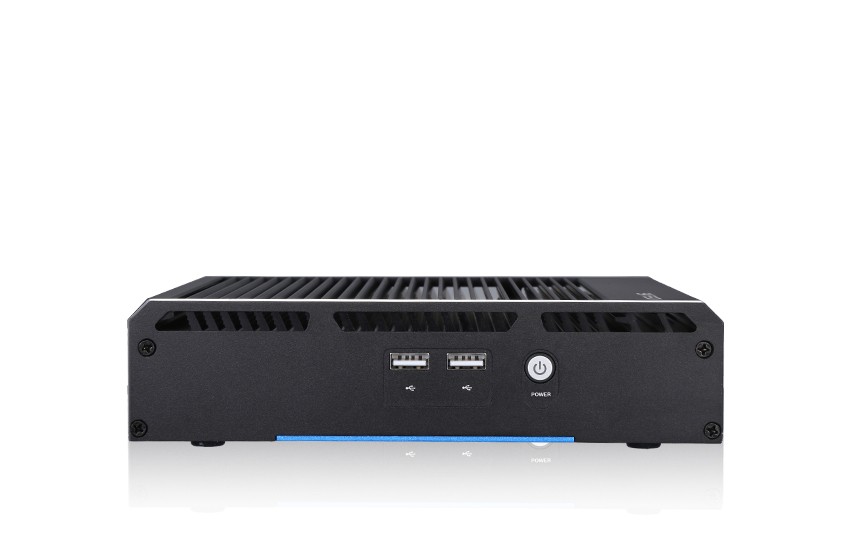

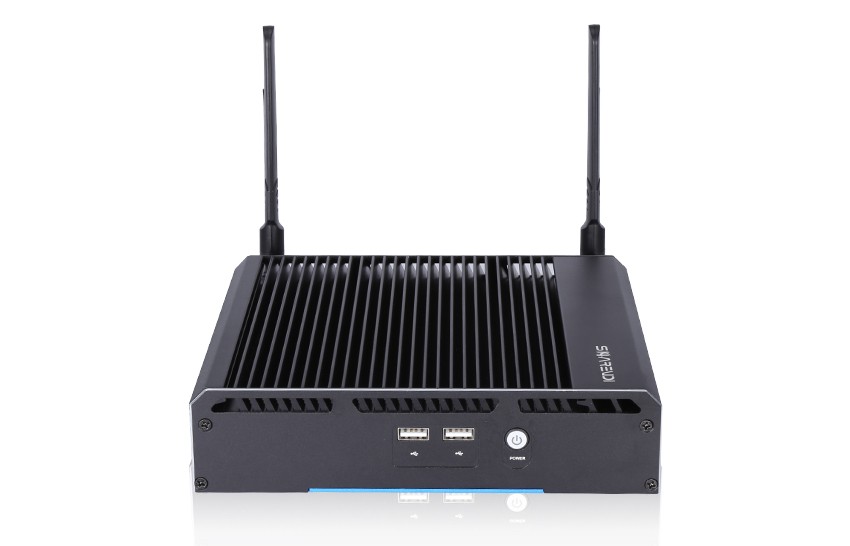

    Rear

    2*USB2.0, Power ON/OFF

  • Extendable

    I/O

    1*F_AUIO、1*LVDS、2*F_USB3、1*LPTI、1*COM_CON1、1*COM2、1*F_PANEL

    Module

    WIFI+Bluetooth Module (M.2 PCIE)

  • Power

    Input

    AC100-240V. 50-60Hz DC

    Output

    12V-5A

  • Operating System

    Windows/Linux

  • Physical

    Dimension

    L 187mm*W 187mm*H 33.5mm

    Weight(Net)

    1.6KG

    Color

    Black

    Cooling Method

    Fanless Passive Cooling

    Mounting Options

    Dedicated bracket; Support VESA bracket

    Certification

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Get A Quote
Processor
  • CPU

    K3-F17-6157U

    Intel Core i3-6157U, 2 Cores / 4 Threads

  • Frequency

    K3-F17-6157U

    2.4GHz

  • Max Turbo Frequency

    K3-F17-6157U

    2.4GHz

  • Cache

    K3-F17-6157U

    3 MB Intel Smart Cache

  • Chipset

    K3-F17-6157U

    Products formerly Skylake

Memory
  • Technology

    K3-F17-6157U

    2*DDR4 slots

  • Max. Capacity

    K3-F17-6157U

    32GB

Storage
  • M.2 SATA

    K3-F17-6157U

    SSD 64GB/128GB/256GB/512GB/1TB

  • SATA

    K3-F17-6157U

    HDD 500GB/1TB/2TB (Optional)

Graphics

  • K3-F17-6157U

    Intel Iris Graphics 550

Audio
  • Audio

    K3-F17-6157U

    HD Audio realtek ALC 662

Network
  • LAN

    K3-F17-6157U

    10/100/1000Mbps Adaptive, RTL 8111H

  • Wireless

    K3-F17-6157U

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

I/O Interface
  • Front

    K3-F17-6157U

    HDMI, VGA, 2*USB3.0, 2*USB2.0, RJ45, MIC, SPK, RS232(Optional)，DC12V

  • Rear

    K3-F17-6157U

    2*USB2.0, Power ON/OFF

Extendable
  • I/O

    K3-F17-6157U

    1*F_AUIO、1*LVDS、2*F_USB3、1*LPTI、1*COM_CON1、1*COM2、1*F_PANEL

  • Module

    K3-F17-6157U

    WIFI+Bluetooth Module (M.2 PCIE)

Power
  • Input

    K3-F17-6157U

    AC100-240V. 50-60Hz DC

  • Output

    K3-F17-6157U

    12V-5A

Operating System

  • K3-F17-6157U

    Windows/Linux

Physical
  • Dimension

    K3-F17-6157U

    L 187mm*W 187mm*H 33.5mm

  • Weight(Net)

    K3-F17-6157U

    1.6KG

  • Color

    K3-F17-6157U

    Black

  • Cooling Method

    K3-F17-6157U

    Fanless Passive Cooling

  • Mounting Options

    K3-F17-6157U

    Dedicated bracket; Support VESA bracket

  • Certification

    K3-F17-6157U

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K3-F17-6157U

    -10~60 ℃

  • Storage Temperature

    K3-F17-6157U

    -10~60 ℃

  • Operation Humidity

    K3-F17-6157U

    0~95% (No Condensation)

  • Storage Humidity

    K3-F17-6157U

    0~95% (No Condensation)
