K8-F24 Edge Computer
Model:
K8-F24-7505
Industrial-grade with compact design for dustproof and shockproof

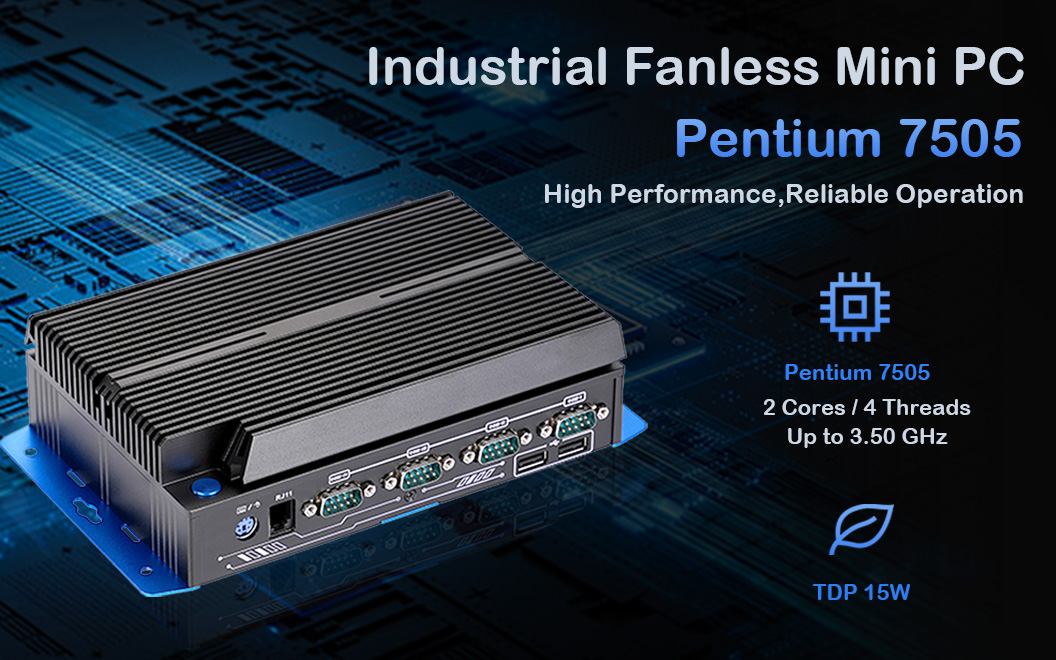

Equipped with the Intel 11th Gen Pentium 7505 processor, main frequency 2.0-3.5GHz

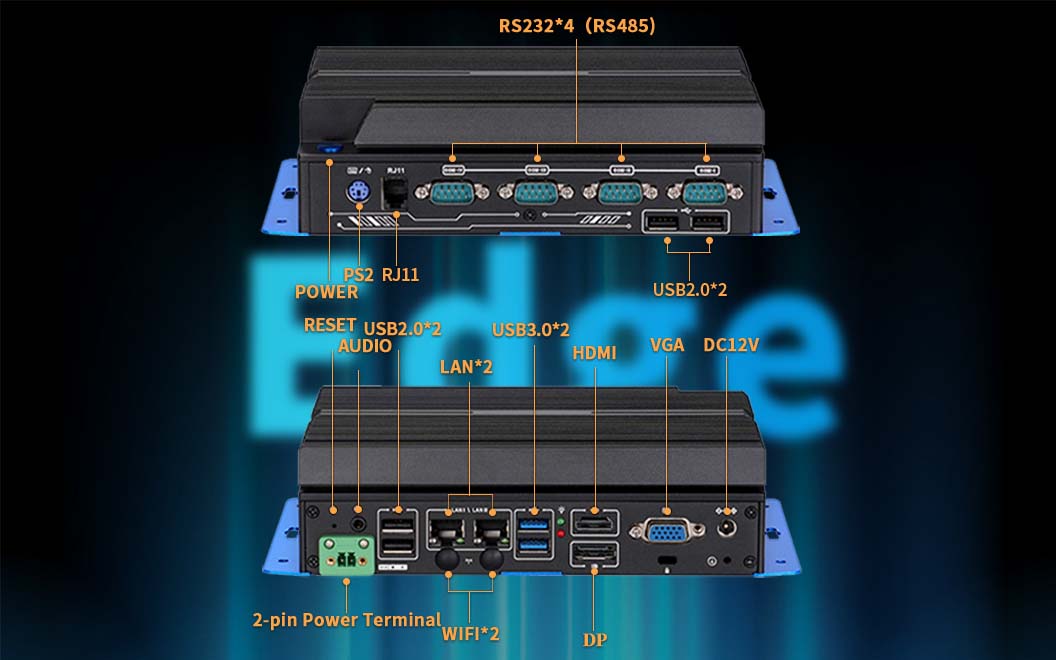

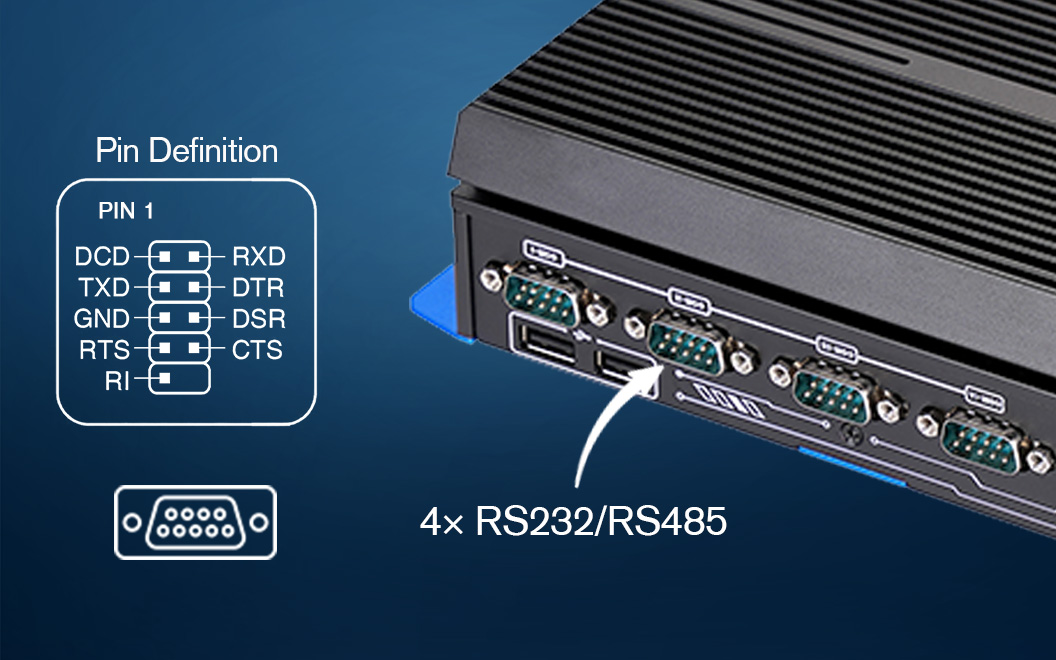

4*COM ports, supporting RS232/RS485 protocols
Integrated PS/2 and RJ11 interfaces to meet multi-peripheral connection

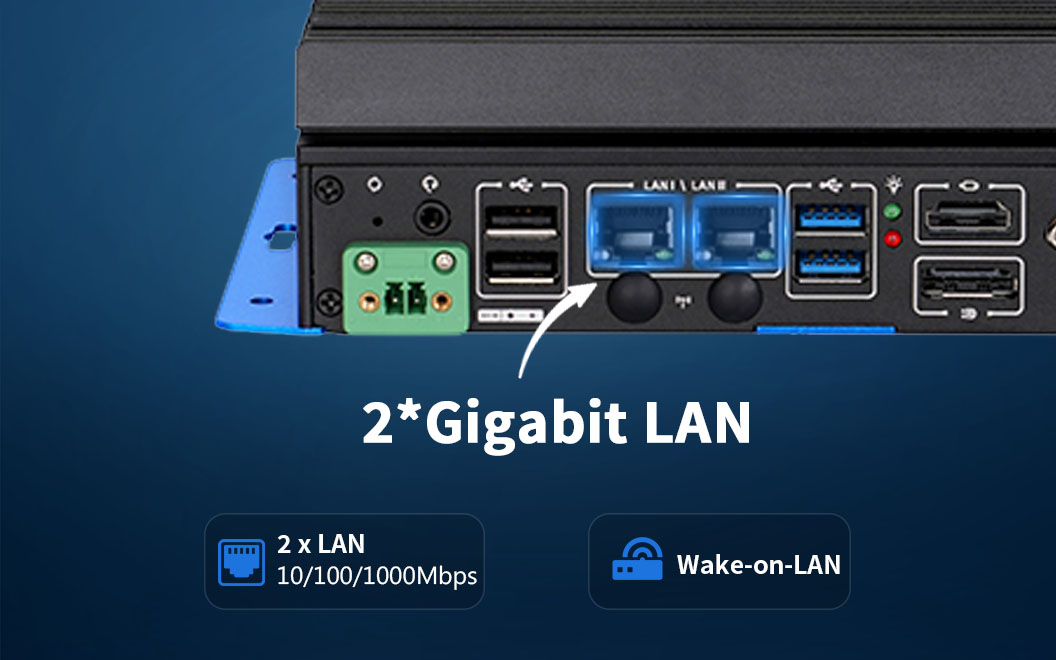

Dual Gigabit LAN ports with Intel I226-V and Realtek 8111H chipsets
Simultaneous triple-display support via 1x HDMI, 1x VGA, and 1x DP port

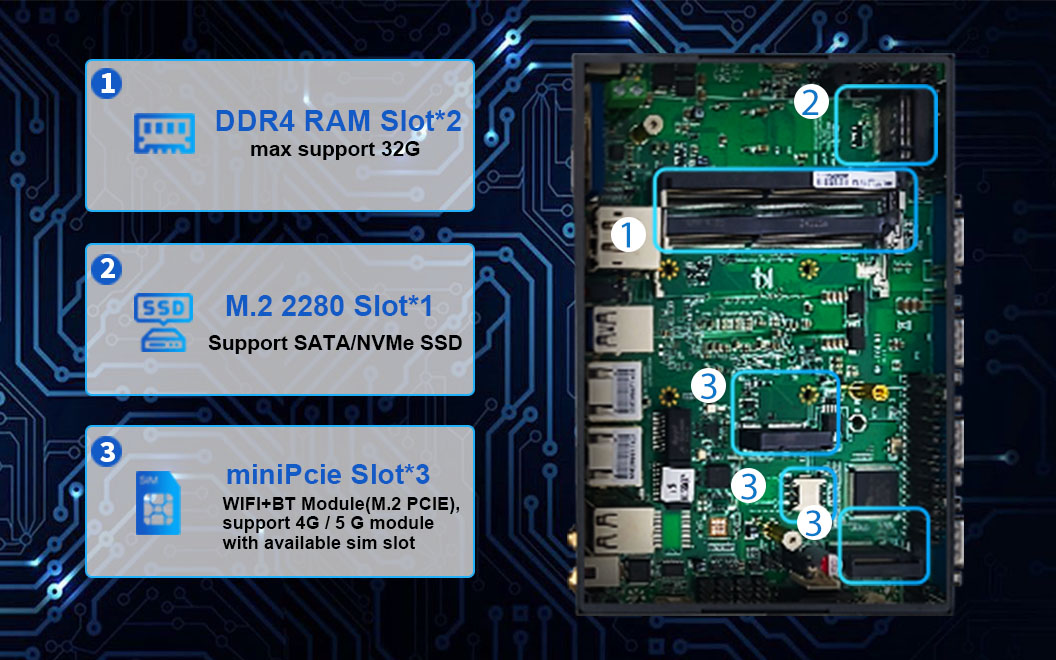

1*M.2 E KEY slot and 1*M.2 B KEY slot for expansion

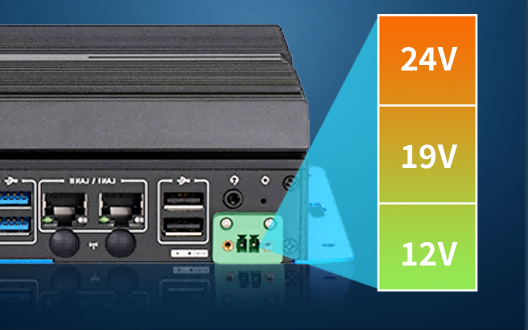

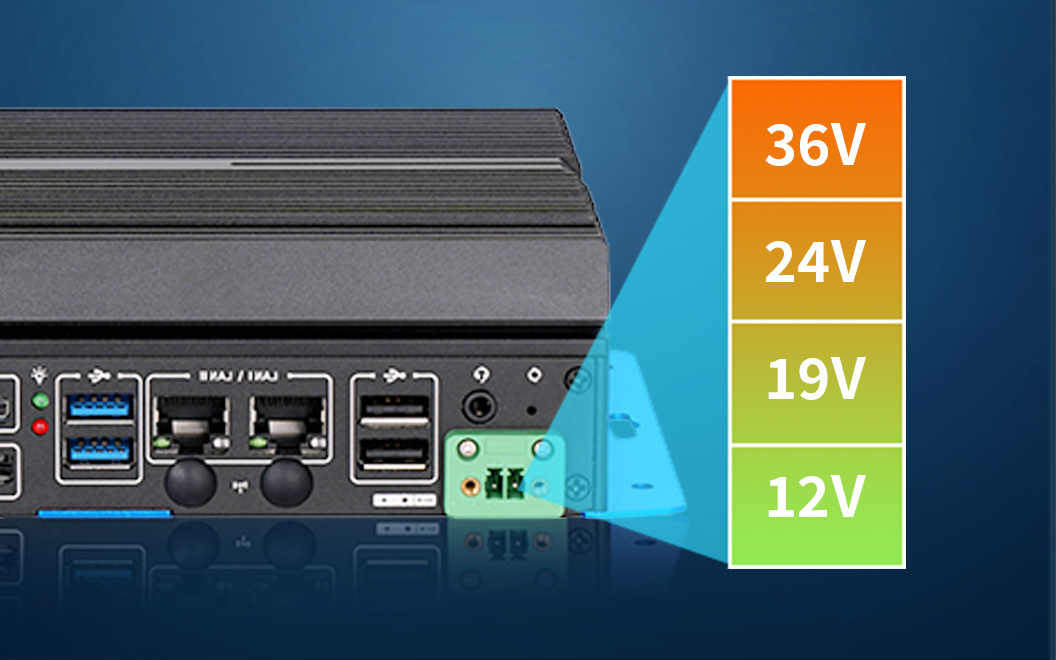

Supports 19-24V wide voltage input
OS：Windows 10/Windows 11/linux

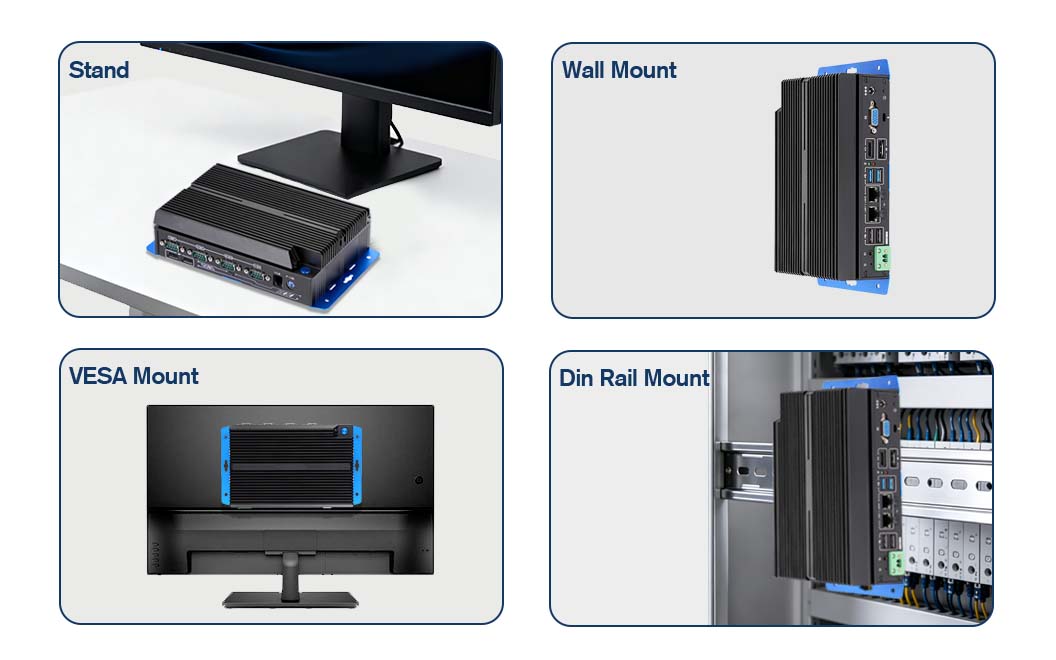

Supports various mounting methods: Ear, VESA, and Din Rail
Industrial-grade with compact design for dustproof and shockproof
Equipped with the Intel 11th Gen Pentium 7505 processor, main frequency 2.0-3.5GHz
4*COM ports, supporting RS232/RS485 protocols
Integrated PS/2 and RJ11 interfaces to meet multi-peripheral connection
Dual Gigabit LAN ports with Intel I226-V and Realtek 8111H chipsets
Simultaneous triple-display support via 1x HDMI, 1x VGA, and 1x DP port
1*M.2 E KEY slot and 1*M.2 B KEY slot for expansion
Supports 19-24V wide voltage input
OS：Windows 10/Windows 11/linux
Supports various mounting methods: Ear, VESA, and Din Rail

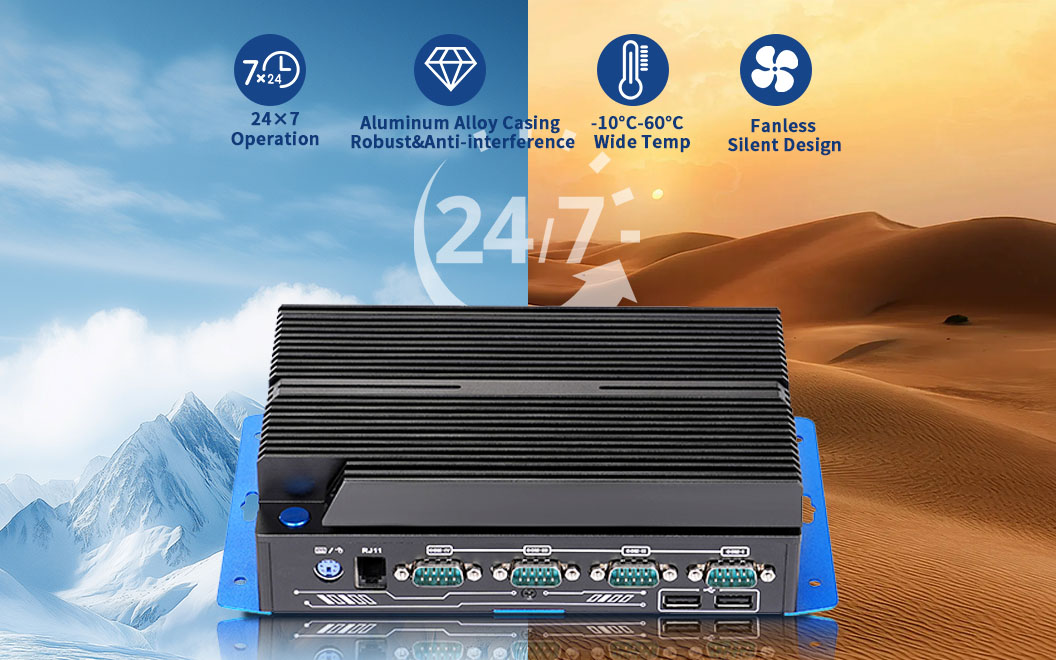

ShareVDI K8-F24 is industrial rugged embedded computer features an aluminum alloy shell with fully enclosed design, achieving dustproof and shockproof performance,Equipped with Intel Pentium 7505 processor. Boasting practical expansion and stable operation, this mini PC comes with comprehensive interfaces, including 4*COM ports (supporting RS232/RS485), dual Gigabit LAN ports, PS/2, RJ11, and triple-display ports, ensuring effortless connectivity in industrial environments.
With 1*M.2 E KEY and 1*M.2 B KEY slots for expansion, it supports 19-24V wide voltage input, it is a reliable solution for industrial automation, smart terminals and IoT scenarios, providing stable support for daily operation.
-
Part No.K8-F24-7505
-
-
Processor
CPU
Intel Pentium 7505，2 Cores / 4 Threads
Frequency
2.00GHz
Max Turbo Frequency
3.50GHz
Cache
4 MB Intel® Smart Cache
Chipset
Tiger Lake
-
Memory
Technology
2* SO-DIMM DDR4 slot
Max. Capacity
32GB
-
Storage
M.2 SATA
SSD 128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Audio
Audio
HD Audio realtek ALC 897
-
Network
LAN
10/100/1000/2500BASE-T Ethernet (RJ45) x 2, Intel I226V x 1, Realtek 8111H x 1
Wireless
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
I/O Interface
Front

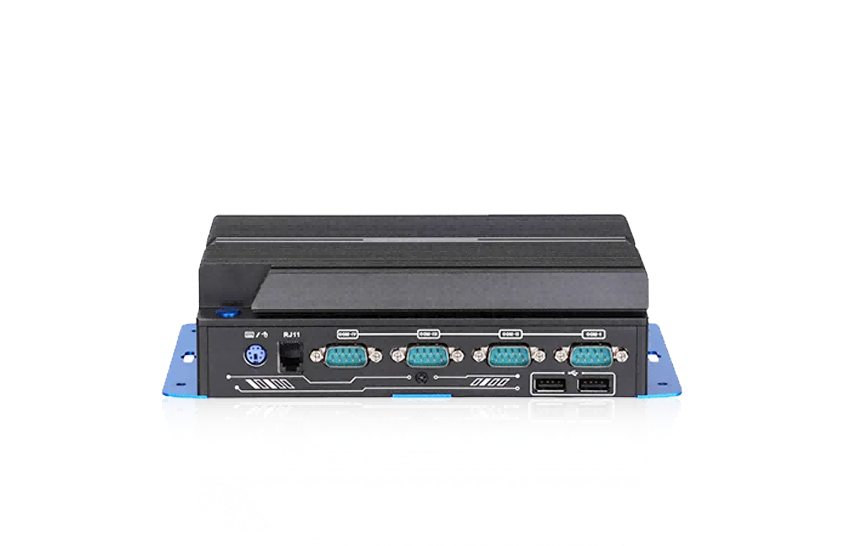

RJ11 x 1, PS/2 Combo Port x 1, DB-9 RS-232 (485) x 4, USB2.0 x 2
Rear

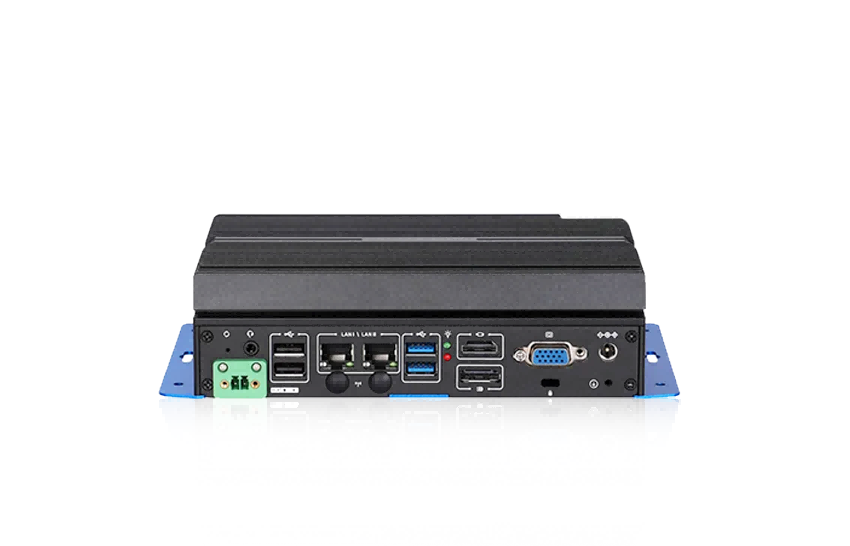

USB3.0 x 2, USB2.0 x 2, HDMI 2.0 x 1, DP 1.4 x 1, VGA x 1, LAN x 2, DC-IN 12V x 1, BIOS Reset Button x 1, 3.5mm Audio Combo (Out + In) x 1, 3 - pin Power Terminal x 1.
-
Extendable
I/O Ports
2PIN PW Phoenix Terminal x 1, 12-1 pin TPM2.0 pin x 1, 6PIN M. 2 hard disk mode switch PIN x 2, 4PIN switch and indicator lamp pin x 2, 9PIN USB2.0 pin x 3, 4PIN CPU pin x 1, JATX-AT pin x 1, 4PIN SATA extended hard disk 5V power supply interface x 1, 4PIN SPK power amplifier pin x 1, 3PIN JP1 jump RJ11 voltage pin x 1, 5PIN GPIO pin x 2, RS232/485 switch pin x 1, LVDS_CON1, INVERTER pin x 1, JLCD1，SW1.
Module
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
Power
Output
12V - 5A
-
Operating System
Windows 10, Windows 11, Linux
-
Physical
Dimension

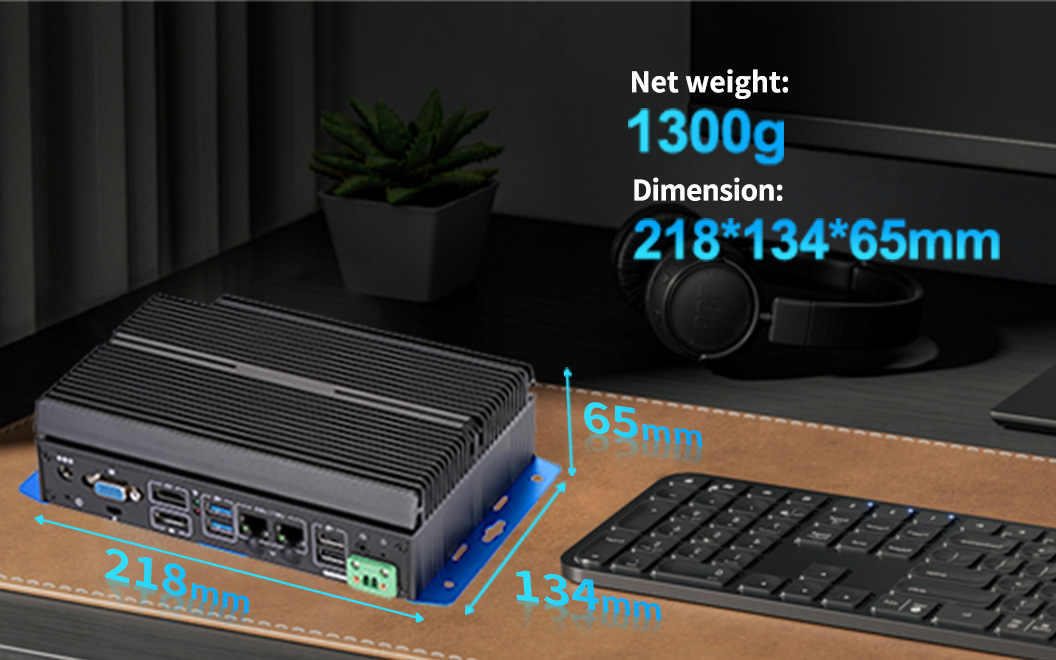

L 218mm x W 134mm x H 65mm
Weight(Net)
1.3KG
Color
Black
Cooling Method
Passive cooling (natural heat dissipation)
Mounting Options
Dedicated bracket;Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K8-F24-7505
Intel Pentium 7505，2 Cores / 4 Threads
-
Frequency
K8-F24-7505
2.00GHz
-
Max Turbo Frequency
K8-F24-7505
3.50GHz
-
Cache
K8-F24-7505
4 MB Intel® Smart Cache
-
Chipset
K8-F24-7505
Tiger Lake
-
Technology
K8-F24-7505
2* SO-DIMM DDR4 slot
-
Max. Capacity
K8-F24-7505
32GB
-
M.2 SATA
K8-F24-7505
SSD 128GB/256GB/512GB/1TB
-
SATA
K8-F24-7505
HDD 500GB/1TB/2TB (Optional)
-
Audio
K8-F24-7505
HD Audio realtek ALC 897
-
LAN
K8-F24-7505
10/100/1000/2500BASE-T Ethernet (RJ45) x 2, Intel I226V x 1, Realtek 8111H x 1
-
Wireless
K8-F24-7505
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
Front
K8-F24-7505
RJ11 x 1, PS/2 Combo Port x 1, DB-9 RS-232 (485) x 4, USB2.0 x 2
-
Rear
K8-F24-7505
USB3.0 x 2, USB2.0 x 2, HDMI 2.0 x 1, DP 1.4 x 1, VGA x 1, LAN x 2, DC-IN 12V x 1, BIOS Reset Button x 1, 3.5mm Audio Combo (Out + In) x 1, 3 - pin Power Terminal x 1.
-
I/O Ports
K8-F24-7505
2PIN PW Phoenix Terminal x 1, 12-1 pin TPM2.0 pin x 1, 6PIN M. 2 hard disk mode switch PIN x 2, 4PIN switch and indicator lamp pin x 2, 9PIN USB2.0 pin x 3, 4PIN CPU pin x 1, JATX-AT pin x 1, 4PIN SATA extended hard disk 5V power supply interface x 1, 4PIN SPK power amplifier pin x 1, 3PIN JP1 jump RJ11 voltage pin x 1, 5PIN GPIO pin x 2, RS232/485 switch pin x 1, LVDS_CON1, INVERTER pin x 1, JLCD1，SW1.
-
Module
K8-F24-7505
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
Output
K8-F24-7505
12V - 5A
-
K8-F24-7505
Windows 10, Windows 11, Linux
-
Dimension
K8-F24-7505
L 218mm x W 134mm x H 65mm
-
Weight(Net)
K8-F24-7505
1.3KG
-
Color
K8-F24-7505
Black
-
Cooling Method
K8-F24-7505
Passive cooling (natural heat dissipation)
-
Mounting Options
K8-F24-7505
Dedicated bracket;Support VESA bracket
-
Certification
K8-F24-7505
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K8-F24-7505
-10~60 ℃
-
Storage Temperature
K8-F24-7505
-10~60 ℃
-
Operation Humidity
K8-F24-7505
0~95% (No Condensation)
-
Storage Humidity
K8-F24-7505
0~95% (No Condensation)
