K6-F17H Rugged Fanless Computer
Model: K6-F17H-J4125
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible expansion for I/O ports
● 4x COM ports (RS232, RS485)
● 3x display ports (2 x HDMI + 1 x DP)
● 4x USB3.0, 2x USB2.0
● Support 4G LTE module
● Support TPM 2.0 (optional)
● 12V ~ 64V wide range power input
● Wide temperature -20~65°C

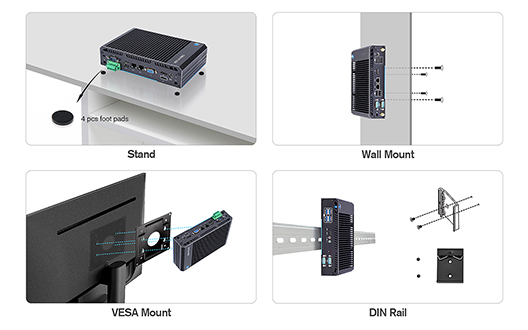

● Support Din rail, Embedded, Stand, Mount installation
Data Sheet 1
Send InquiryK6-F17H is a rugged fanless computer with small size and compact box PC housing design. It support mini PC Din rail bracket, and optional embedded, mount, stand installation methods. K6-F17H mini PC has 2 LAN, 4 COM, 3 HD display ports, and wide options for the CPU. No matter work as a windows embedded PC or Linux mini PC server in rugged environment, K5-F17H is a good choice to meet the requirement.
| CPU | Intel Celeron J4125 2.0GHz-2.7GHz, 4 Core 4 Threads, 4MB Cache |
| TDP | 10W |
| Memory | Come with 8GB RAM, 1*SO-DIMM DDR4 slot, max support 16GB |
| Storage | Come with 128GB SSD (mSATA), Optional HDD (supports expansion of a 2.5-inch hard drive) |
| Graphics | Intel UHD Graphics 600 |
| OS | Activated Windows 11 Pro with License |
| I/O Ports | 4*USB3.0, 2*USB2.0, 1*DP, 2*HDMI, 2*RJ45 LAN, 2*RS232 COM, 1*MIC-IN & LINE-OUT, 1*TYPE-C, 1*DC IN |
| Display Mode | Support Triple display (Duplicate mode, Extend mode); Max Resolution(DP): 4096x2160@60Hz, Max Resolution(HDMI): 4096*2160@30Hz |
| Boot Mode | Support PXE / Auto-power-on / Wake-on-LAN |
| Intel Virtualization | Support VT-x，Support VT-d |
| Intel Hyper-Threading | Not Support |
| Working/Storage Temperature | -10℃~60℃ (14℉~140℉) |
| Working Voltage | DC 12V - 3A |
| Heat Dissipation | Fanless Passive Cooling |
| Size | L: 19.7cm/7.8inch, W: 12.6cm/5inch, H: 4.8cm/1.9inch |
| Weight | Net: 1.0kg/2.2lb |
-
Part No.K6-F17H-J4125
-
-
Processor
CPU
Intel Celeron J4125
Core Number
4 Cores / 4 Threads
Frequency
2.0GHz
Max Turbo Frequency
2.7GHz
Chipset
Gemini Lake
-
Memory
Technology
1*DDR4L slot
Max. Capacity
16GB
-
Storage
M.2 SATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel UHD Graphics 600
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN

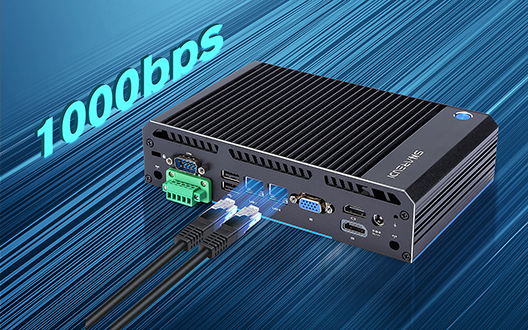

10/100/1000Mbps adaptive RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
support 4G module with available sim slot
-
I/O Interface

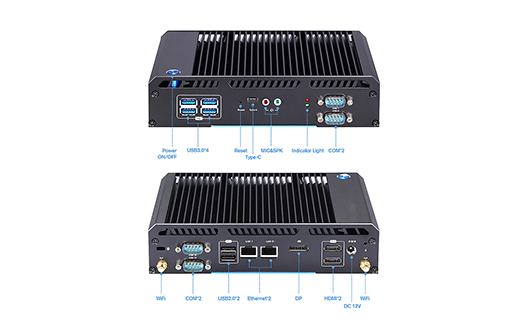

Front
2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
Rear
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
4G LTE , WIFI+Bluetooth Module (Mini PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K6-F17H-J4125
Intel Celeron J4125
-
Core Number
K6-F17H-J4125
4 Cores / 4 Threads
-
Frequency
K6-F17H-J4125
2.0GHz
-
Max Turbo Frequency
K6-F17H-J4125
2.7GHz
-
Chipset
K6-F17H-J4125
Gemini Lake
-
Technology
K6-F17H-J4125
1*DDR4L slot
-
Max. Capacity
K6-F17H-J4125
16GB
-
M.2 SATA
K6-F17H-J4125
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
K6-F17H-J4125
HDD 500GB/1TB/2TB (Optional )
-
Graphics
K6-F17H-J4125
Intel UHD Graphics 600
-
Audio
K6-F17H-J4125
HD Audio realtek ALC 662
-
LAN
K6-F17H-J4125
10/100/1000Mbps adaptive RTL 8111E
-
Wireless
K6-F17H-J4125
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
4G module
K6-F17H-J4125
support 4G module with available sim slot
-
Front
K6-F17H-J4125
2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
-
Rear
K6-F17H-J4125
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
I/O
K6-F17H-J4125
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
-
Module
K6-F17H-J4125
4G LTE , WIFI+Bluetooth Module (Mini PCIE)
-
Input
K6-F17H-J4125
AC100-240V.50-60HZ DC
-
Output
K6-F17H-J4125
12V-5A
-
Wide Voltage
K6-F17H-J4125
12-64V phoenix connector（Optional）
-
K6-F17H-J4125
Windows/Linux
-
Dimension
K6-F17H-J4125
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K6-F17H-J4125
1.0KG
-
Color
K6-F17H-J4125
Black
-
Cooling Method
K6-F17H-J4125
Fanless Passive Cooling
-
Mounting Options
K6-F17H-J4125
Desk / Wall Mount / Embedded / DIN Rail
-
Certification
K6-F17H-J4125
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K6-F17H-J4125
-10~65 ℃
-
Storage Temperature
K6-F17H-J4125
-10~60 ℃
-
Operation Humidity
K6-F17H-J4125
0~95% (No Condensation)
-
Storage Humidity
K6-F17H-J4125
0~95% (No Condensation)
