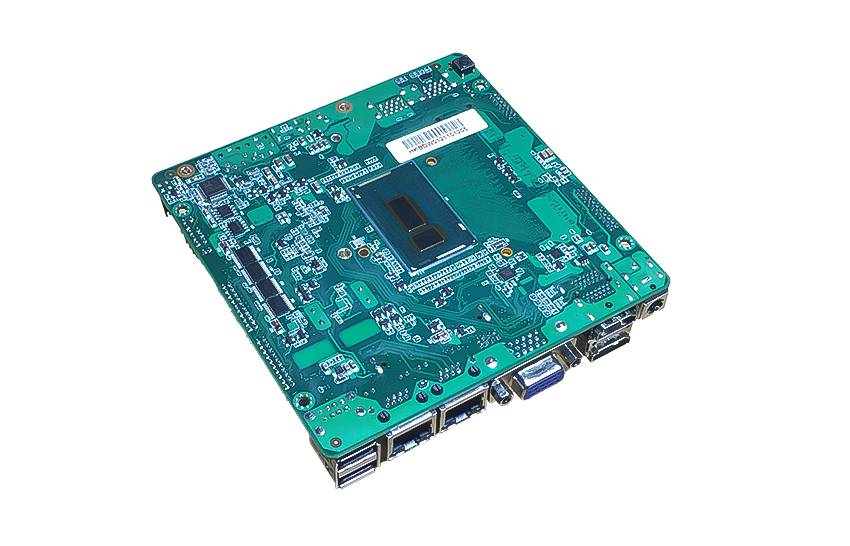

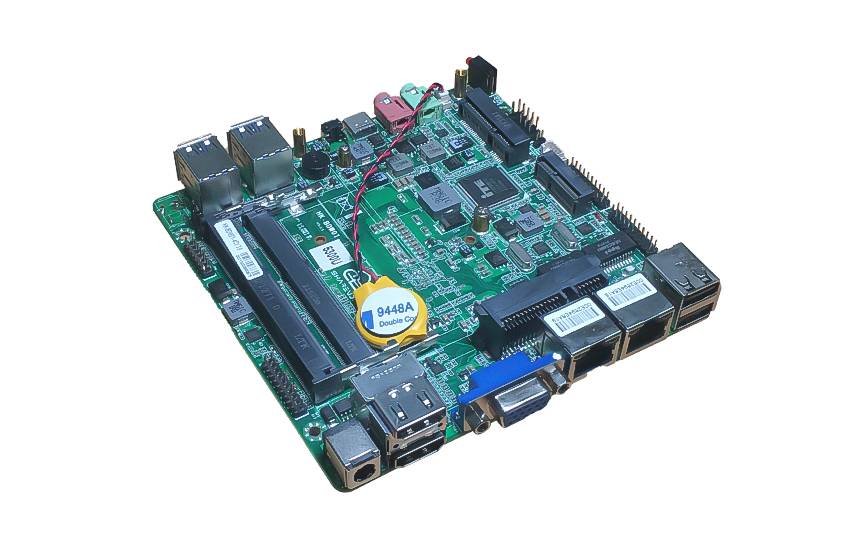

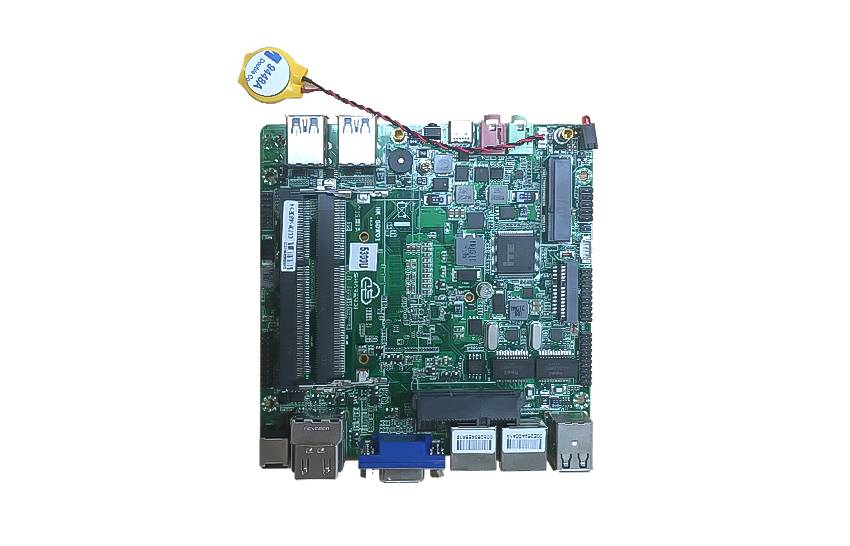

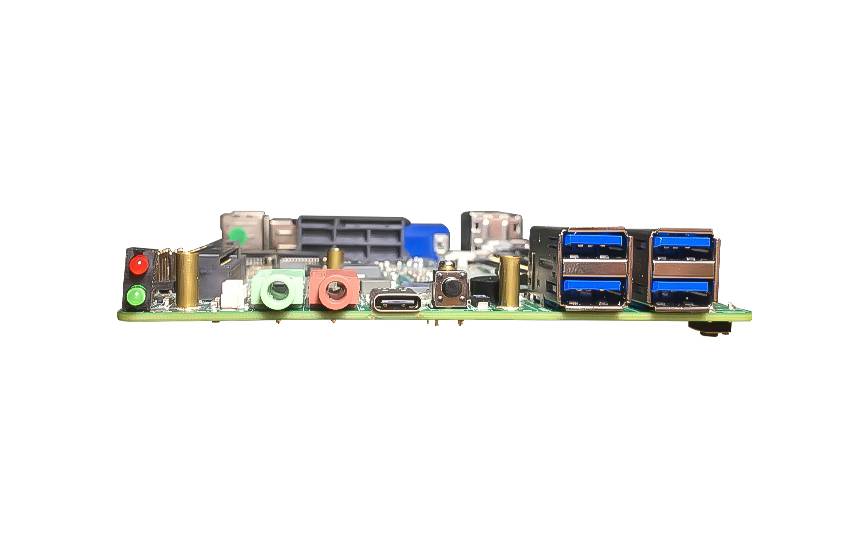

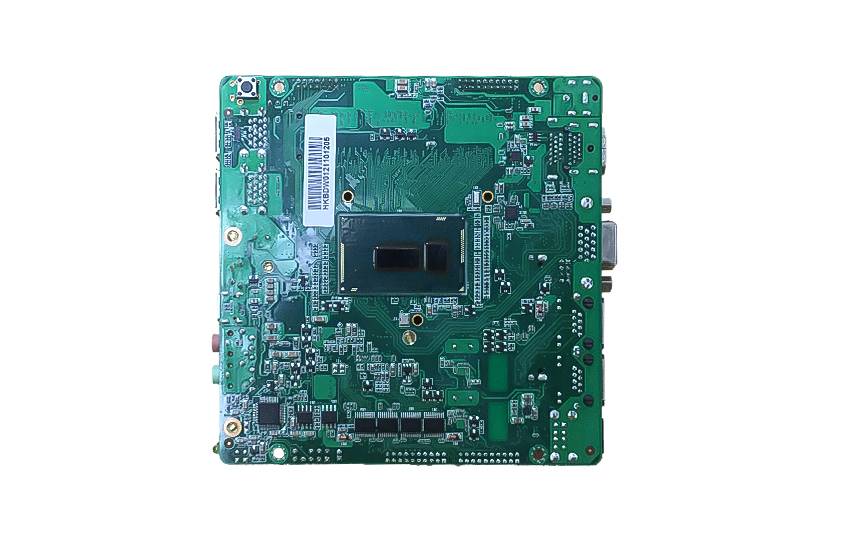

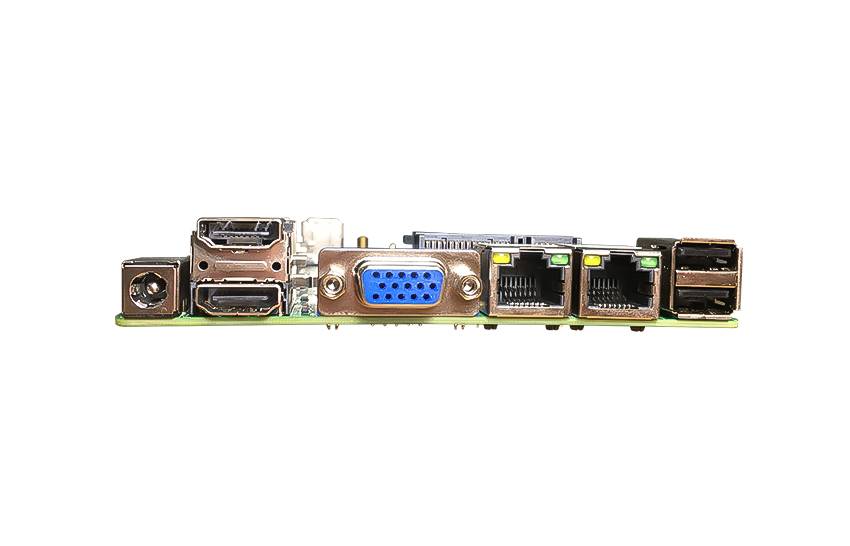

NANO-ITX AIMB-K301

Model: AIMB-K301

● Intel® Core i3-5005u/i7-5600u processor, 15W TDP

● 2x 204-pin SO-DIMM up to 16 GB, DDR3L 1600MHz SDRAM

● Triple display : Dual HDMI, one VGA, Intel HD Graphics 5500

● Realtek ALC662, 2 channel HD audio

● Dual 10/100/1000 Mbps LAN

● 1 PCIE M.2 E Key, 1 SATA, 1 mSATA

● 2 USB 3.0, 4 USB 2.0, 4 COM, 1 PCIE-GPIO

● 14pin TPM

● 12V DC, supports 12-64V wide voltage power Input

Intel core i3-5005u NANO-ITX with VGA/2xHDMI, 6 USB, 4 COM, Dual LAN

Product Specification
Form Factor
  • AIMB-K301

    NANO-ITX

    AIMB-K701

    NANO-ITX

Processor
  • CPU

    AIMB-K301

    Intel Core i3-5005U

    AIMB-K701

    Intel Core i7-5600U

  • BIOS

    AIMB-K301

    AMI BIOS

    AIMB-K701

    AMI BIOS

  • Core Number

    AIMB-K301

    2

    AIMB-K701

    2

  • CPU TDP

    AIMB-K301

    15W

    AIMB-K701

    15W

  • Frequency

    AIMB-K301

    2.0GHz

    AIMB-K701

    2.6GHz~3.2GHz

  • L3 Cache

    AIMB-K301

    3MB

    AIMB-K701

    4MB

Memory
  • Technology

    AIMB-K301

    DDR3L 1600MHz

    AIMB-K701

    DDR3L 1600MHz

  • Max.Capacity

    AIMB-K301

    SO-DIMM up to 16GB

    AIMB-K701

    SO-DIMM up to 16GB

  • Socket

    AIMB-K301

    2*204 PIN SO-DIMM

    AIMB-K701

    2*204 PIN SO-DIMM

Display
  • Controller

    AIMB-K301

    Intel HD Graphics 5500

    AIMB-K701

    Intel HD Graphics 5500

  • Video Interface

    AIMB-K301

    2*HDMI+VGA

    AIMB-K701

    2*HDMI+VGA

  • DP

    AIMB-K301

    N/A

    AIMB-K701

    N/A

  • Multiple Display

    AIMB-K301

    Triple

    AIMB-K701

    Triple

Expansion
  • Slot Type

    AIMB-K301

    1

    AIMB-K701

    1

  • PCI Express

    AIMB-K301

    1 (colay M.2 E key)

    AIMB-K701

    1 (colay M.2 E key)

Ethernet
  • Speed

    AIMB-K301

    10/100/1000 Mbps

    AIMB-K701

    10/100/1000 Mbps

  • Controller

    AIMB-K301

    Realtek 8111G

    AIMB-K701

    Realtek 8111G

  • Connector

    AIMB-K301

    2*RJ45

    AIMB-K701

    2*RJ45

Audio
  • Audio Interface

    AIMB-K301

    HD Audio

    AIMB-K701

    HD Audio

  • CODEC

    AIMB-K301

    Realtek ALC887/662

    AIMB-K701

    Realtek ALC887/662

  • Connector

    AIMB-K301

    2(HP_OUT/ MIC_IN)

    AIMB-K701

    2(HP_OUT/ MIC_IN)

WatchDog Timer
  • AIMB-K301

    Yes

    AIMB-K701

    Yes

I/O
  • USB

    AIMB-K301

    4*USB2.0, 2*USB3.0

    AIMB-K701

    4*USB2.0, 2*USB3.0

  • GPIO

    AIMB-K301

    1*PCIE-GPIO 20PIN

    AIMB-K701

    1*PCIE-GPIO 20PIN

  • COM Port

    AIMB-K301

    4*10PIN COM

    AIMB-K701

    4*10PIN COM

  • TPM

    AIMB-K301

    1*14-1Pin TPM

    AIMB-K701

    1*14-1Pin TPM

Storage
  • M-SATA

    AIMB-K301

    1*MSATA 30MM*50MM*3MM

    AIMB-K701

    1*MSATA 30MM*50MM*3MM

  • SATA

    AIMB-K301

    1*SATA, support 2.5inch sata Interface

    AIMB-K701

    1*SATA, support 2.5inch sata Interface

Power
  • Power type

    AIMB-K301

    DC 12V

    AIMB-K701

    DC 12V

  • Connector

    AIMB-K301

    DC jack

    AIMB-K701

    DC jack

  • Power Adaptor

    AIMB-K301

    Yes

    AIMB-K701

    Yes

Environment
  • Non-Operational Temperature

    AIMB-K301

    "-10℃~60℃"

    AIMB-K701

    "-10℃~60℃"

  • Operational Temperature

    AIMB-K301

    "-10℃~60℃"

    AIMB-K701

    "-10℃~60℃"

Physical
  • Dimension

    AIMB-K301

    120mmX120mm

    AIMB-K701

    120mmX120mm

  • Weight

    AIMB-K301

    158g

    AIMB-K701

    158g

  • Construction

    AIMB-K301

    with fanless design

    AIMB-K701

    with fanless design

Operating System
  • Microsoft Windows

    AIMB-K301

    Yes

    AIMB-K701

    Yes

  • Linux

    AIMB-K301

    Yes

    AIMB-K701

    Yes
