K2-F19-7inch Industrial AIO PC333
Model:
K2-F19-N100 7" Panel PC
Fanless rugged design
Intel Processor N100 (4C/4T, 6W TDP)
7-inch industrial touch screen

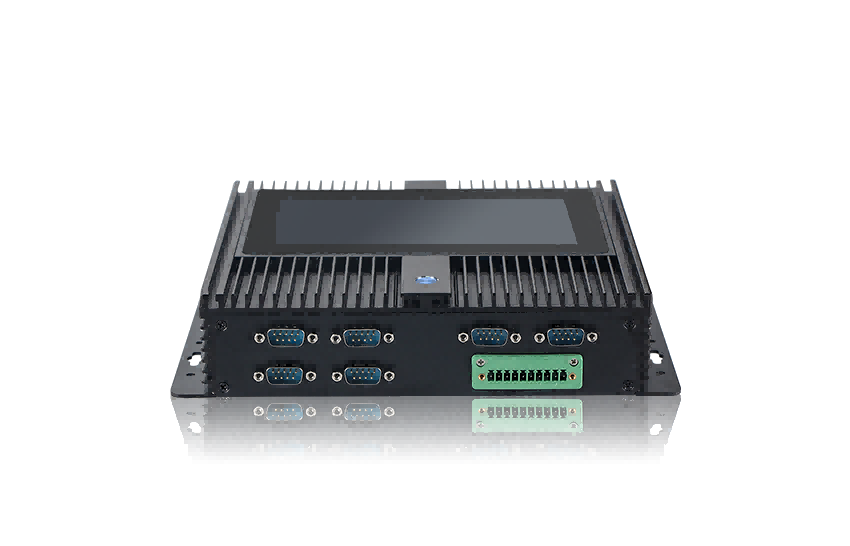

6× COM Ports (RS232/485 Switchable), 1 x GPIO
Support 4G/WiFi/BT module expansion
Dual display output, PXE/auto-power-on/Wake-on-LAN
Compatible with Windows 10/11, and Linux operating systems
Supports VESA, DIN-rail, Embedded mounting
Data Sheet 1
Send InquiryK2-F19-N100 is a fanless industrial pc with a bright 7-inch integrated touch screen, engineered with industrial-grade durability, all-scenario adaptability, and effortless deployment for industrial use. Its fanless aluminum passive cooling chassis ensures dust-proof, interference-resistant, and 24/7 stable operation.
Powered by Intel N100,it features Gigabit Ethernet, 6x COM ports, a built-in 7-inch high-brightness touch screen, and dual 4K output. With support for wide temperature and wide voltage operation, it is ideal for industrial automation, IoT gateways, smart security, and embedded applications, powering the digital transformation of industrial operations.
-
Part No.K2-F19-N100
-
-
Processor System
CPU
Intel Processor N100 4C/4T
Cache
6 MB
·
Chipset
Alder Lake-N
-
Memory & Storage
Technology
1*DDR4L slots
Max. Capacity
16GB
Storage
SSD (MINI SATA) + Optional HDD (supports expansion of a 2.5-inch hard drive)
-
Graphics
Graphics
Intel UHD Graphics 600
-
Audio
Audio
Realtek ALC897+NS4251
-
Network
LAN
10/100/1000Mbps Adaptive, Realtek 8111H
4G module
WIFI+Bluetooth Module(MPCIE)or 3G/4G Module( SIM card slot on the motherboard)
-

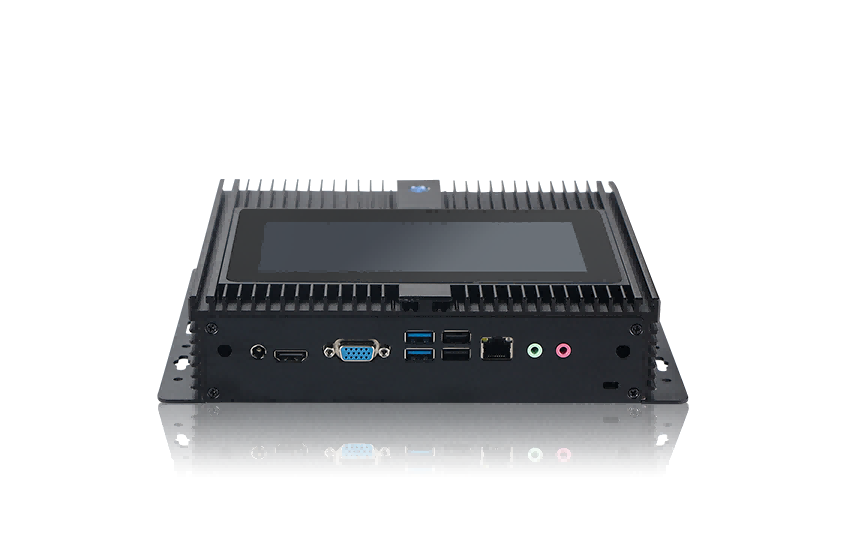

I/O Interface
Video output
1*VGA、1*HDMI
Serial Port
6*RS232 COM
USB Port
2*USB3.0、2*USB2.0
GPIO
1*GPIO(8PIN)
Ethernet
1*Ethernet
CMOS
1*CLR CMOS
-
General
Size
L 245mm*W 200mm*H 54mm
Power Output
DC 12V - 3A
Weight(Net)
2.0kg
OS
Windows 10/11、 Linux
-
Environment
Operating Temperature
-10 ~ 60℃
Storage Temperature
-10 ~ 60℃
Operation Humidity
0% ~ 95%
Storage Humidity
0% ~ 95%
-
CPU
K2-F19-N100
Intel Processor N100 4C/4T
-
Cache
K2-F19-N100
6 MB
·
-
Chipset
K2-F19-N100
Alder Lake-N
-
Technology
K2-F19-N100
1*DDR4L slots
-
Max. Capacity
K2-F19-N100
16GB
-
Storage
K2-F19-N100
SSD (MINI SATA) + Optional HDD (supports expansion of a 2.5-inch hard drive)
-
Graphics
K2-F19-N100
Intel UHD Graphics 600
-
Audio
K2-F19-N100
Realtek ALC897+NS4251
-
LAN
K2-F19-N100
10/100/1000Mbps Adaptive, Realtek 8111H
-
4G module
K2-F19-N100
WIFI+Bluetooth Module(MPCIE)or 3G/4G Module( SIM card slot on the motherboard)
-
Video output
K2-F19-N100
1*VGA、1*HDMI
-
Serial Port
K2-F19-N100
6*RS232 COM
-
USB Port
K2-F19-N100
2*USB3.0、2*USB2.0
-
GPIO
K2-F19-N100
1*GPIO(8PIN)
-
Ethernet
K2-F19-N100
1*Ethernet
-
CMOS
K2-F19-N100
1*CLR CMOS
-
Size
K2-F19-N100
L 245mm*W 200mm*H 54mm
-
Power Output
K2-F19-N100
DC 12V - 3A
-
Weight(Net)
K2-F19-N100
2.0kg
-
OS
K2-F19-N100
Windows 10/11、 Linux
-
Operating Temperature
K2-F19-N100
-10 ~ 60℃
-
Storage Temperature
K2-F19-N100
-10 ~ 60℃
-
Operation Humidity
K2-F19-N100
0% ~ 95%
-
Storage Humidity
K2-F19-N100
0% ~ 95%
