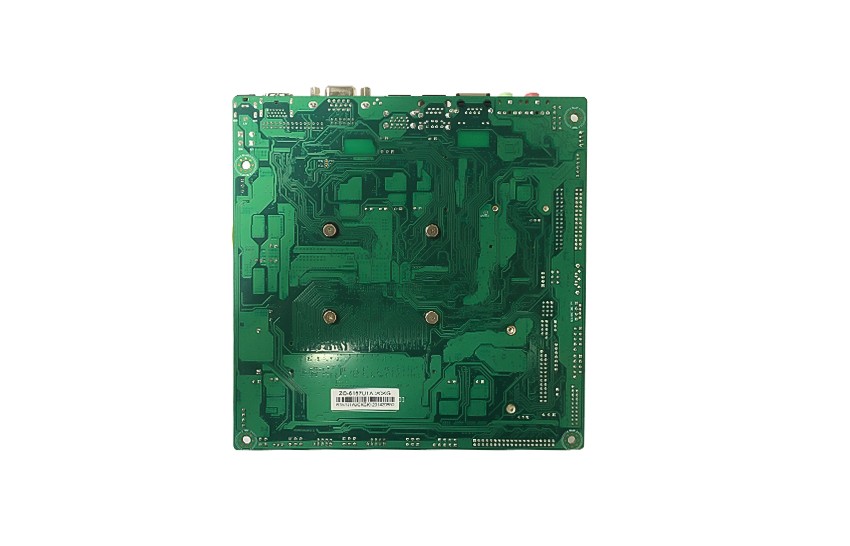

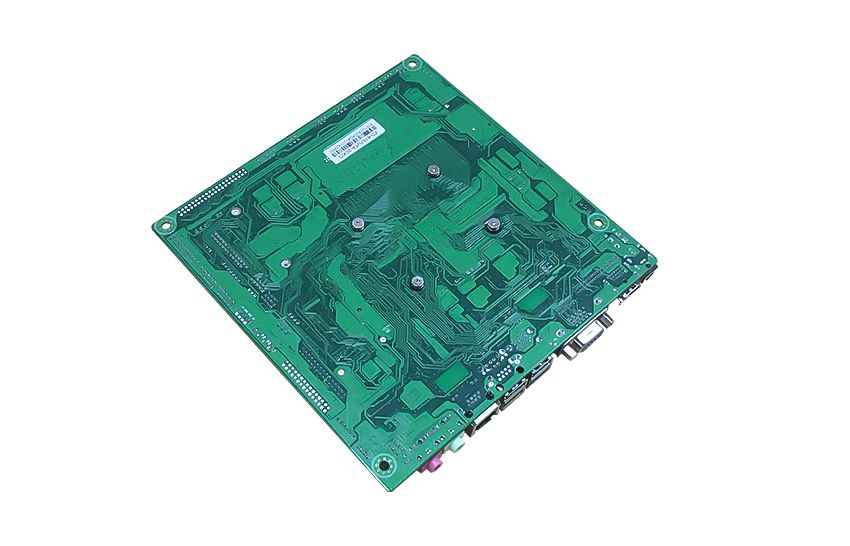

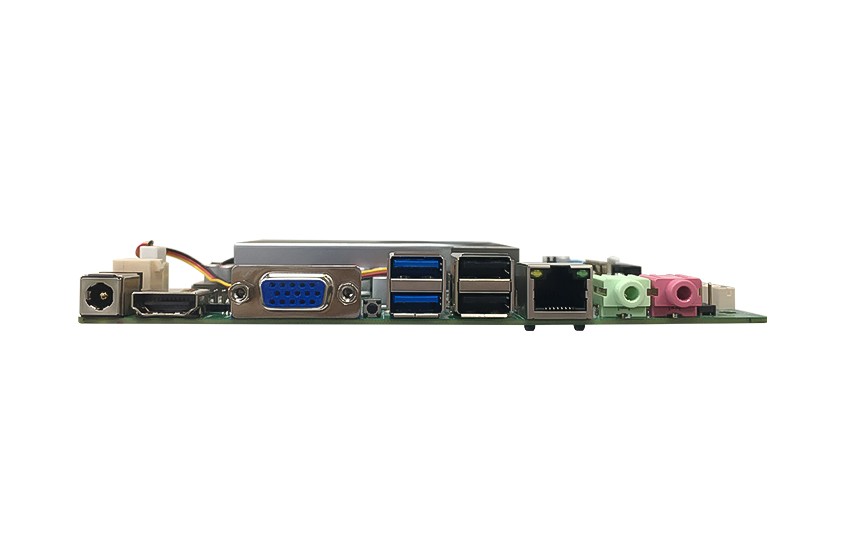

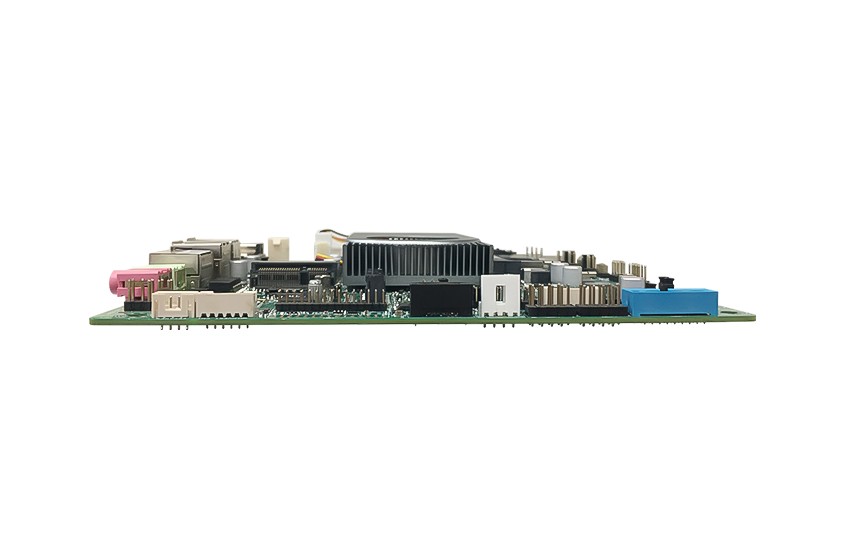

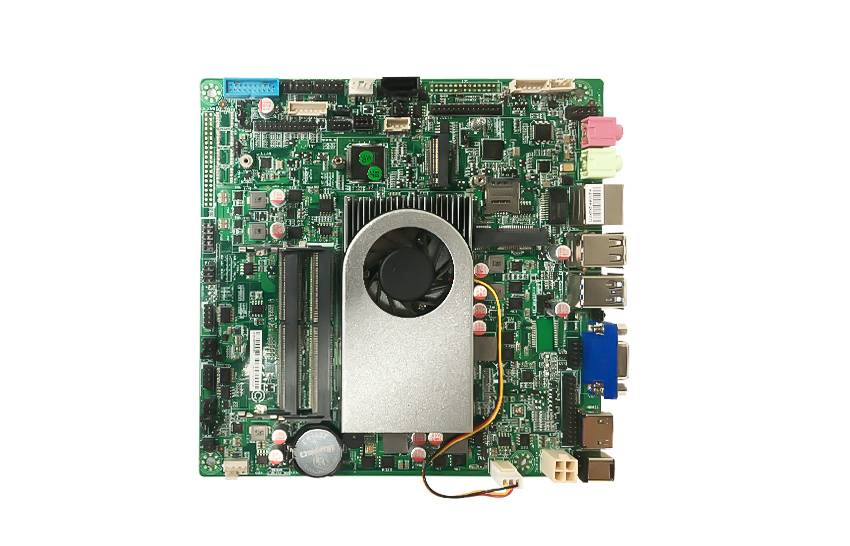

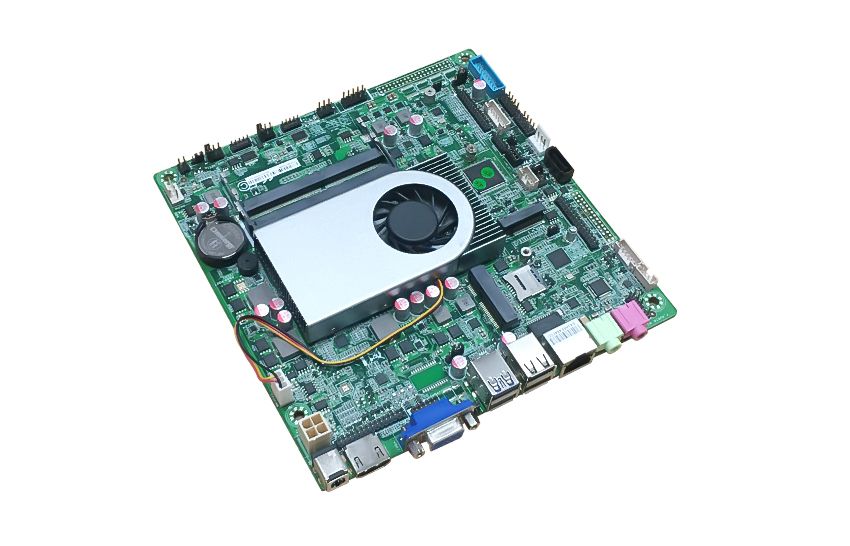

Mini-ITX AIMB-K3001

Model: AIMB-K3001

● Intel® Core i3-6157u, 28W TDP

● 2x 260-pin SO-DIMM DDR4 2400MHz SDRAM

● eDP/LVDS/HDMI/VGA

● 10/100/1000 Mbps LAN

●  Intel Iris Graphics 550

● 2*USB3.0, 2*USB2.0, 1 x 9Pin USB2.0, 1 x F_USB 3.0pin, 2 x F_USBpin

● 1*GPIO, 1*COM

● M.2 SATA/NVMe 2242/2280, 1 SATA

Intel core i3-6157 Mini-ITX with eDP/LVDS/HDMI/VGA, LAN, 4 USB, 1 COM, 1*GPIO

Product Specification
Form Factor
  • AIMB-K3001

    Mini ITX

Processor
  • CPU

    AIMB-K3001

    Intel Core i3-6157u

  • BIOS

    AIMB-K3001

    AMI BIOS

  • Core Number

    AIMB-K3001

    2

  • CPU TDP

    AIMB-K3001

    28W

  • Frequency

    AIMB-K3001

    2.4GHz

  • L3 Cache

    AIMB-K3001

    3MB

Memory
  • Technology

    AIMB-K3001

    DDR4 2400MHz

  • Max.Capacity

    AIMB-K3001

    SO-DIMM up to 16GB

  • Socket

    AIMB-K3001

    2*260 PIN SO-DIMM

Display
  • Controller

    AIMB-K3001

    Intel Iris Graphics 550

  • eDP

    AIMB-K3001

    eDP supports up to 1920*1080@ 60 Hz

  • LVDS

    AIMB-K3001

    Dual channel 24-bit LVDS, max resolution up to 1920 x 1080with 60Hz

  • Video Interface

    AIMB-K3001

    HDMI+VGA

  • DP

    AIMB-K3001

    N/A

  • Multiple Display

    AIMB-K3001

    Two

Expansion
  • Slot Type

    AIMB-K3001

    1

  • PCI Express

    AIMB-K3001

    1 (colay MINI PCIE)

Ethernet
  • Speed

    AIMB-K3001

    10/100/1000 Mbps

  • Controller

    AIMB-K3001

    Realtek 8111H

  • Connector

    AIMB-K3001

    1*RJ45

Audio
  • Audio Interface

    AIMB-K3001

    HD Audio

  • CODEC

    AIMB-K3001

    HS-100B

  • Connector

    AIMB-K3001

    2(HP_OUT/ MIC_IN)

WatchDog Timer
  • AIMB-K3001

    NO

I/O
  • USB

    AIMB-K3001

    2*USB3.0, 2*USB2.0, 1 x 9Pin USB2.0, 1 x F_USB 3.0pin, 2 x F_USBpin

  • GPIO

    AIMB-K3001

    1*GPIO 6Pin

  • COM Port

    AIMB-K3001

    1*COM

  • TPM

    AIMB-K3001

    N/A

Storage
  • M.2

    AIMB-K3001

    1*M.2 M KEY, support M.2 SATA/NVMe 2242/2280

  • SATA

    AIMB-K3001

    1*SATA, support 2.5inch sata Interface

Power
  • Power type

    AIMB-K3001

    DC 12V

  • Connector

    AIMB-K3001

    DC jack

  • Power Adaptor

    AIMB-K3001

    Yes

Environment
  • Non-Operational Temperature

    AIMB-K3001

    "-10℃~60℃"

  • Operational Temperature

    AIMB-K3001

    "-10℃~60℃"

Physical
  • Dimension

    AIMB-K3001

    170mmX170mm

  • Weight

    AIMB-K3001

    302g

  • Construction

    AIMB-K3001

    with cooling fan

Operating System
  • Microsoft Windows

    AIMB-K3001

    Yes

  • Linux

    AIMB-K3001

    Yes
