Industrial PCs/ Rugged Mini PC/ K6-F13A Mini PC 2 Lan

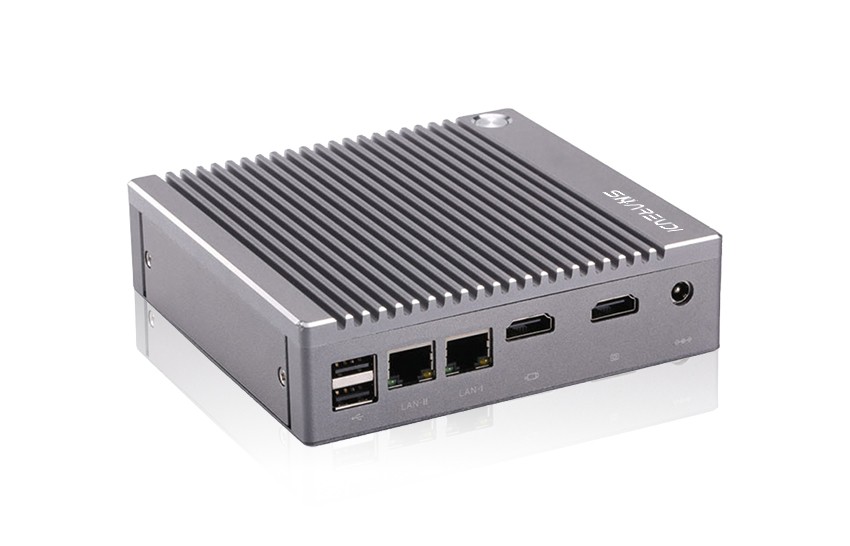

K6-F13A Mini PC 2 Lan

Model:

K6-F13A

● Fanless and compact design

● Ultra low power consumption, TDP 7.5W

● Dual HDMI port

● Dual LAN port

● 6 USB port (4xUSB3.0, 2xUSB2.0)

● External SATA 3.0 slot (2.5'')

● DDR3L Max 8GB RAM, Mini SATA SSD up to 256GB

● Support RPL / PXE, wake on lan, electricity boot, WDT


Data sheet Data sheet Send Inquiry

K6-F13A is a compact and fanless Mini PC designed with 2 HDMI and 2 Ethernet. This product has been widel used for dual display Digital signage, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS, Retail, Networking, Automation, Surveillance, Parking Pay Station, Channel System, Medical electronic etc.

Specification K6-F13A
  • Part No.
    K6-F13A-N2840
    K6-F13A-N2940
  • Get A Quote
    Get A Quote
  • Processor

    CPU

    Intel Celeron N2840

    Intel Celeron N2940

    Core Number

    2 Cores / 2 Threads

    4 Cores / 4 Threads

    Frequency

    2.16GHz

    1.83GHz

    Max Turbo Frequency

    2.16GHz

    2.25GHz

    Chipset

    Bay Trail

    Bay Trail

  • Memory

    Technology

    1*DDR3L slot

    1*DDR3L slot

    Max. Capacity

    8GB

    8GB

  • Storage

    MSATA

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    SATA

    Optional HDD

    Optional HDD

  • Graphics

    Intel HD Graphics

    Intel HD Graphics

  • Audio

    HD Audio realtek ALC 662

    HD Audio realtek ALC 662

  • Network

    10/100/1000Mbps Adaptive, RTL 8111F

    10/100/1000Mbps Adaptive, RTL 8111F

  • I/O Interface

    Front

    DC12V Input, 2*HDMI, 2*USB2.0, 2*RJ45

    DC12V Input, 2*HDMI, 2*USB2.0, 2*RJ45

    Rear

    2*USB3.0, 2*USB2.0, MIC, SPK

    2*USB3.0, 2*USB2.0, MIC, SPK

  • Extendable

    I/O

    4*USB2.0、2*USB3.0、2*HDMI、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT 1*FP、1*JP3、2~4*COM、1*GPIO

    4*USB2.0、2*USB3.0、2*HDMI、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*FP、1*JP3、2~4*COM、1*GPIO

    Module

    WIFI+Bluetooth Module (M.2 PCIE)

    WIFI+Bluetooth Module (M.2 PCIE)

  • Power

    Input

    AC100-240V.50-60HZ DC

    AC100-240V.50-60HZ DC

    Output

    12V-3A

    12V-3A

  • Operating System

    Windows/Linux

    Windows/Linux

  • Physical

    Dimension

    L 133.8mm*W 126.6mm*H 36.5mm

    L 133.8mm*W 126.6mm*H 36.5mm

    Weight(Net)

    0.6KG

    0.6KG

    Color

    Silver

    Silver

    Cooling Method

    Fanless Passive Cooling

    Fanless Passive Cooling

    Mounting Options

    Desk/ Wall Mount/Embedded/ DIN Rail

    Desk/ Wall Mount/Embedded/ DIN Rail

    Certification

    CE,FCC,ROHS,ISO

    CE,FCC,ROHS,ISO

  • Environment

    Operating Temperature

    -10~60 ℃

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

    0~95% (No Condensation)

Get A Quote
Processor
  • CPU

    K6-F13A-N2840

    Intel Celeron N2840

    K6-F13A-N2940

    Intel Celeron N2940

  • Core Number

    K6-F13A-N2840

    2 Cores / 2 Threads

    K6-F13A-N2940

    4 Cores / 4 Threads

  • Frequency

    K6-F13A-N2840

    2.16GHz

    K6-F13A-N2940

    1.83GHz

  • Max Turbo Frequency

    K6-F13A-N2840

    2.16GHz

    K6-F13A-N2940

    2.25GHz

  • Chipset

    K6-F13A-N2840

    Bay Trail

    K6-F13A-N2940

    Bay Trail

Memory
  • Technology

    K6-F13A-N2840

    1*DDR3L slot

    K6-F13A-N2940

    1*DDR3L slot

  • Max. Capacity

    K6-F13A-N2840

    8GB

    K6-F13A-N2940

    8GB

Storage
  • MSATA

    K6-F13A-N2840

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    K6-F13A-N2940

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

  • SATA

    K6-F13A-N2840

    Optional HDD

    K6-F13A-N2940

    Optional HDD

Graphics

  • K6-F13A-N2840

    Intel HD Graphics

    K6-F13A-N2940

    Intel HD Graphics

Audio

  • K6-F13A-N2840

    HD Audio realtek ALC 662

    K6-F13A-N2940

    HD Audio realtek ALC 662

Network

  • K6-F13A-N2840

    10/100/1000Mbps Adaptive, RTL 8111F

    K6-F13A-N2940

    10/100/1000Mbps Adaptive, RTL 8111F

I/O Interface
  • Front

    K6-F13A-N2840

    DC12V Input, 2*HDMI, 2*USB2.0, 2*RJ45

    K6-F13A-N2940

    DC12V Input, 2*HDMI, 2*USB2.0, 2*RJ45

  • Rear

    K6-F13A-N2840

    2*USB3.0, 2*USB2.0, MIC, SPK

    K6-F13A-N2940

    2*USB3.0, 2*USB2.0, MIC, SPK

Extendable
  • I/O

    K6-F13A-N2840

    4*USB2.0、2*USB3.0、2*HDMI、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT 1*FP、1*JP3、2~4*COM、1*GPIO

    K6-F13A-N2940

    4*USB2.0、2*USB3.0、2*HDMI、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*FP、1*JP3、2~4*COM、1*GPIO

  • Module

    K6-F13A-N2840

    WIFI+Bluetooth Module (M.2 PCIE)

    K6-F13A-N2940

    WIFI+Bluetooth Module (M.2 PCIE)

Power
  • Input

    K6-F13A-N2840

    AC100-240V.50-60HZ DC

    K6-F13A-N2940

    AC100-240V.50-60HZ DC

  • Output

    K6-F13A-N2840

    12V-3A

    K6-F13A-N2940

    12V-3A

Operating System

  • K6-F13A-N2840

    Windows/Linux

    K6-F13A-N2940

    Windows/Linux

Physical
  • Dimension

    K6-F13A-N2840

    L 133.8mm*W 126.6mm*H 36.5mm

    K6-F13A-N2940

    L 133.8mm*W 126.6mm*H 36.5mm

  • Weight(Net)

    K6-F13A-N2840

    0.6KG

    K6-F13A-N2940

    0.6KG

  • Color

    K6-F13A-N2840

    Silver

    K6-F13A-N2940

    Silver

  • Cooling Method

    K6-F13A-N2840

    Fanless Passive Cooling

    K6-F13A-N2940

    Fanless Passive Cooling

  • Mounting Options

    K6-F13A-N2840

    Desk/ Wall Mount/Embedded/ DIN Rail

    K6-F13A-N2940

    Desk/ Wall Mount/Embedded/ DIN Rail

  • Certification

    K6-F13A-N2840

    CE,FCC,ROHS,ISO

    K6-F13A-N2940

    CE,FCC,ROHS,ISO

Environment
  • Operating Temperature

    K6-F13A-N2840

    -10~60 ℃

    K6-F13A-N2940

    -10~60 ℃

  • Storage Temperature

    K6-F13A-N2840

    -10~60 ℃

    K6-F13A-N2940

    -10~60 ℃

  • Operation Humidity

    K6-F13A-N2840

    0~95% (No Condensation)

    K6-F13A-N2940

    0~95% (No Condensation)

  • Storage Humidity

    K6-F13A-N2840

    0~95% (No Condensation)

    K6-F13A-N2940

    0~95% (No Condensation)
