K8-F12D 6LAN Industrial Networks

Model:

K8-F12D
F12D 主图 1.jpg
F12D 主图 2.jpg
F12D 主图 3.jpg
F12D 主图 4.jpg
F12D 主图 5.jpg
F12D 主图 6.jpg
F12D 主图 7.jpg
F12D 主图 1.jpg
F12D 主图 2.jpg
F12D 主图 3.jpg
F12D 主图 4.jpg
F12D 主图 5.jpg
F12D 主图 6.jpg
F12D 主图 7.jpg

● Intel Pentium N3710 processor

● 6 x 10/100/1000/2500 BASE-T Ethernet (RJ45), Intel 226

● Support TF Card and 4G Module

● Support multiple Operating System: Windows & Linux & Pfsense & Openwrt

● Support Dual display, 2x HDMI 1.4

● Supports SIM card installation without removing the PC case

The K8-F12D network security appliance is equipped with an Intel Pentium N3710 processor and features six 2.5 Gigabit Ethernet ports (Intel I226 controllers), providing robust performance and greater throughput than typical consumer routers.Its compact, fanless design ensures silent and reliable operation.

Key features include support for TF card expansion and an optional 4G module, dual HDMI 1.4 outputs for simultaneous display, and a convenient externally accessible SIM card slot.The device is compatible with a wide range of operating systems, including Windows, Linux, pfSense, OpenWrt, and other major firewall and routing platforms.

Firewall PC 6LAN with Pentium N3700 in NUC Design
Firewall PC 6LAN with Pentium N3700 in NUC Design

The firewall PC 6LAN in NUC design houses a Pentium N3710 processor. Six network ports enhance connectivity. It's compact yet powerful, suitable for diverse applications. The processor ensures stable performance for multitasking. Ideal for small offices or home networks, its efficient design allows for easy setup and maintenance, making it a reliable choice for network-intensive tasks within limited space.

Firewall PC K6 - F12C Interface Insights

The Firewall PC is equipped with a variety of useful interfaces. It has 6x Intel 2.5Gbe LAN ports, providing high-speed network connectivity. The combination of HDMI and VGA allows for flexible display options. There are 2x USB3.0 ports for efficient data transfer. The reset button offers convenience for system resetting. And it is powered by DC 12V, ensuring stable power supply for its operation.

Firewall PC K6 - F12C Interface Insights
Network Performance Showcase
Network Performance Showcase

The Firewall PC exhibits remarkable network capabilities. With 6x Intel Gigabit Ethernet, it ensures stable wired connections. The 2.4G WIFI/4G module, supporting 802.11 b/g and operating via USB channel, offers convenient wireless access. This combination provides flexible and efficient network performance, suitable for diverse networking scenarios, enhancing data transfer speed and connectivity reliability.

Dual Display Support of HDMI + VGA

The Firewall Device comes with HDMI and VGA interfaces that enable dual display functionality. This allows users to extend or duplicate their screen output, enhancing productivity and providing more flexibility in multitasking. Whether for surveillance setups, data analysis, or other applications, the dual display support offers a convenient way to view and manage multiple windows or programs simultaneously, optimizing the user's visual experience and work efficiency.

Dual Display Support of HDMI + VGA
Firewall PC K6 - F12C: System Compatibility
Firewall PC K6 - F12C: System Compatibility

The Firewall PC exhibits excellent system compatibility. It can run various operating systems such as WIN10/11, Ubuntu, pfsense, OPNsense, and Proxmax. This versatility allows users to choose the most suitable system according to their specific needs, whether for enterprise network management, personal security applications, or other scenarios. It offers flexibility and adaptability to meet diverse requirements in network security and computing tasks.

Specification K8-F12D
  • Part No.
    K8-F12D-N3710
  • Processor

    CPU

    Intel Pentium N3710

    Core Number

    4 Cores / 4 Threads

    Frequency

    1.6GHz

    Max Turbo Frequency

    2.56GHz

    Chipset

    Braswell

  • Memory

    Technology

    1*SO-DIMM DDR3L slot

    Max. Capacity

    8GB

  • Storage

    MSATA

    SSD 64GB/128GB/256GB/512GB

  • Graphics

    Intel HD Graphics

  • Audio

    HD Audio realtek ALC 662

  • Network

    LAN

    6 x 10/100/1000/2500BASE-T Ethernet (RJ45), Intel 226

  • I/O Interface

    Front

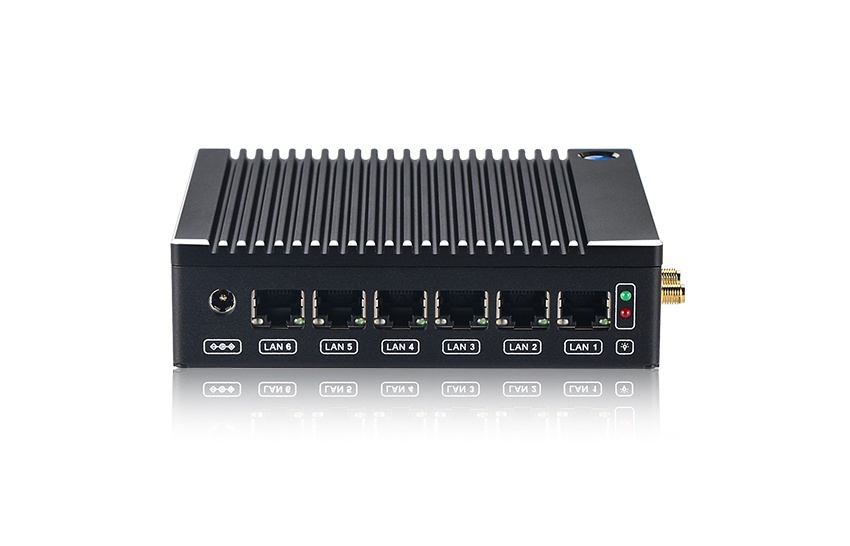

    6*RJ45 Gigabit LAN, Indicator Light, 1*DC 12V

    Rear

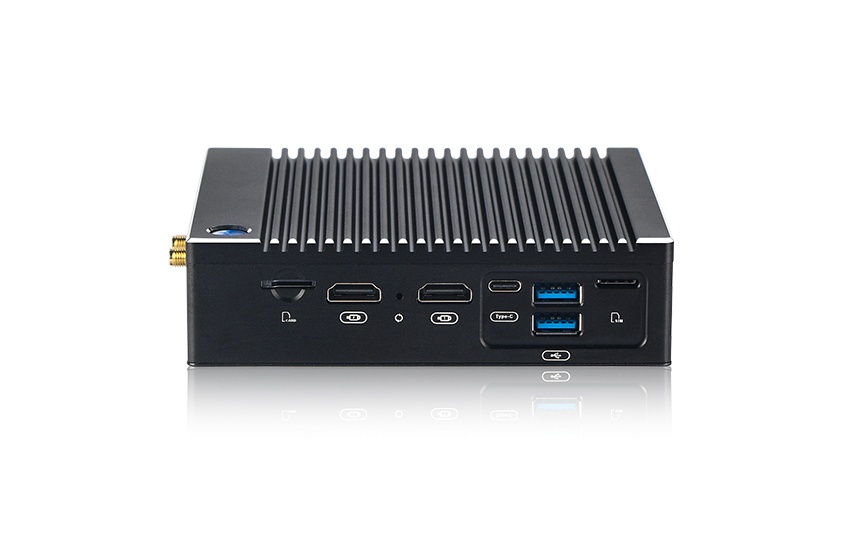

    1*Power ON/OFF,1*SIM Slot, 2*HDMI 1.4, 1*Reset, 1*Type-C, 2*USB3.0, 1*TF Card

  • Extendable

    Module

    Wi-Fi+Bluetooth(MINI PCIE) or 3G/4G Module(MINI PCIE)

    Antenna

    External antennas

  • Power

    Input

    AC100-240V. 50-60Hz

    Output

    12V - 3A

  • Operating System

    Windows / Linux / Pfsense / Openwrt

  • Physical

    Dimension

    L 133.8mm*W 126.6mm*H 36.5mm

    Weight(Net)

    0.65kg

    Color

    Black

    Cooling Method

    Fanless Passive Cooling

    Mounting Options

    Dedicated bracket ; Support VESA bracket

    Certification

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Processor
  • CPU

    K8-F12D-N3710

    Intel Pentium N3710

  • Core Number

    K8-F12D-N3710

    4 Cores / 4 Threads

  • Frequency

    K8-F12D-N3710

    1.6GHz

  • Max Turbo Frequency

    K8-F12D-N3710

    2.56GHz

  • Chipset

    K8-F12D-N3710

    Braswell

Memory
  • Technology

    K8-F12D-N3710

    1*SO-DIMM DDR3L slot

  • Max. Capacity

    K8-F12D-N3710

    8GB

Storage
  • MSATA

    K8-F12D-N3710

    SSD 64GB/128GB/256GB/512GB

Graphics
  • K8-F12D-N3710

    Intel HD Graphics

Audio
  • K8-F12D-N3710

    HD Audio realtek ALC 662

Network
  • LAN

    K8-F12D-N3710

    6 x 10/100/1000/2500BASE-T Ethernet (RJ45), Intel 226

I/O Interface
  • Front

    K8-F12D-N3710

    6*RJ45 Gigabit LAN, Indicator Light, 1*DC 12V

  • Rear

    K8-F12D-N3710

    1*Power ON/OFF,1*SIM Slot, 2*HDMI 1.4, 1*Reset, 1*Type-C, 2*USB3.0, 1*TF Card

Extendable
  • Module

    K8-F12D-N3710

    Wi-Fi+Bluetooth(MINI PCIE) or 3G/4G Module(MINI PCIE)

  • Antenna

    K8-F12D-N3710

    External antennas

Power
  • Input

    K8-F12D-N3710

    AC100-240V. 50-60Hz

  • Output

    K8-F12D-N3710

    12V - 3A

Operating System
  • K8-F12D-N3710

    Windows / Linux / Pfsense / Openwrt

Physical
  • Dimension

    K8-F12D-N3710

    L 133.8mm*W 126.6mm*H 36.5mm

  • Weight(Net)

    K8-F12D-N3710

    0.65kg

  • Color

    K8-F12D-N3710

    Black

  • Cooling Method

    K8-F12D-N3710

    Fanless Passive Cooling

  • Mounting Options

    K8-F12D-N3710

    Dedicated bracket ; Support VESA bracket

  • Certification

    K8-F12D-N3710

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K8-F12D-N3710

    -10~60 ℃

  • Storage Temperature

    K8-F12D-N3710

    -10~60 ℃

  • Operation Humidity

    K8-F12D-N3710

    0~95% (No Condensation)

  • Storage Humidity

    K8-F12D-N3710

    0~95% (No Condensation)
