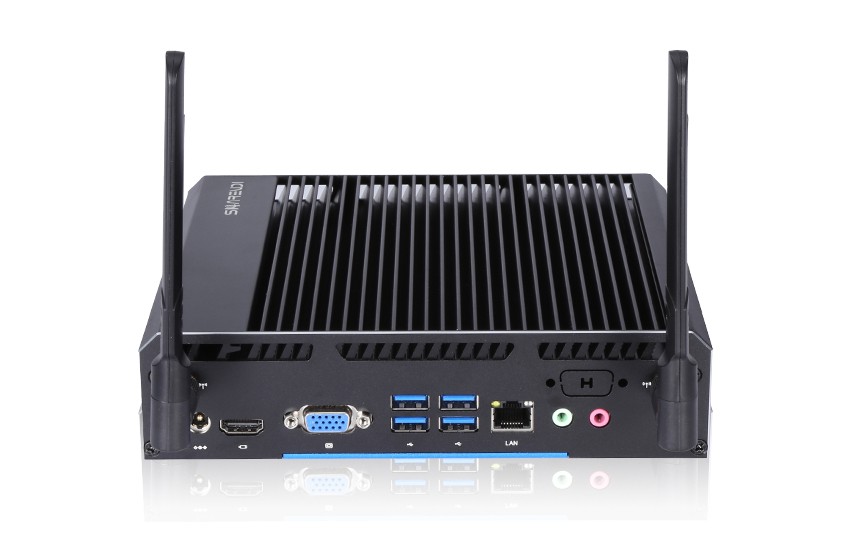

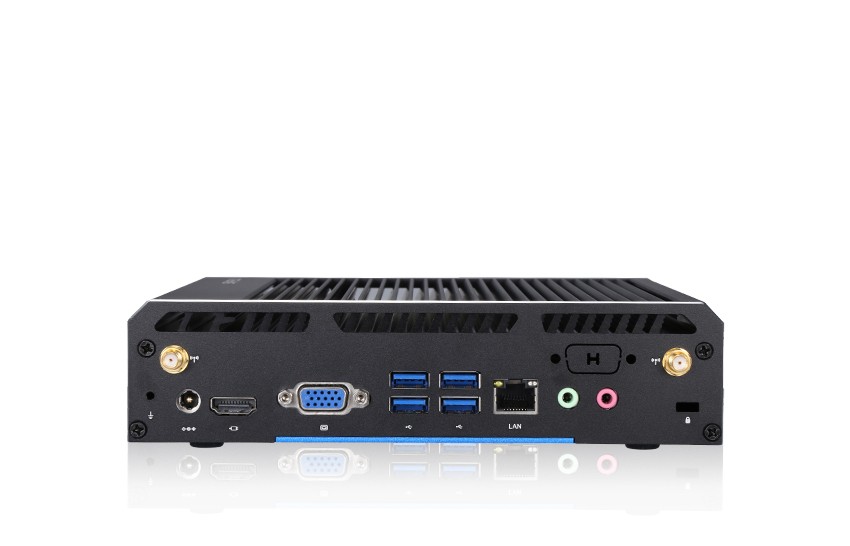

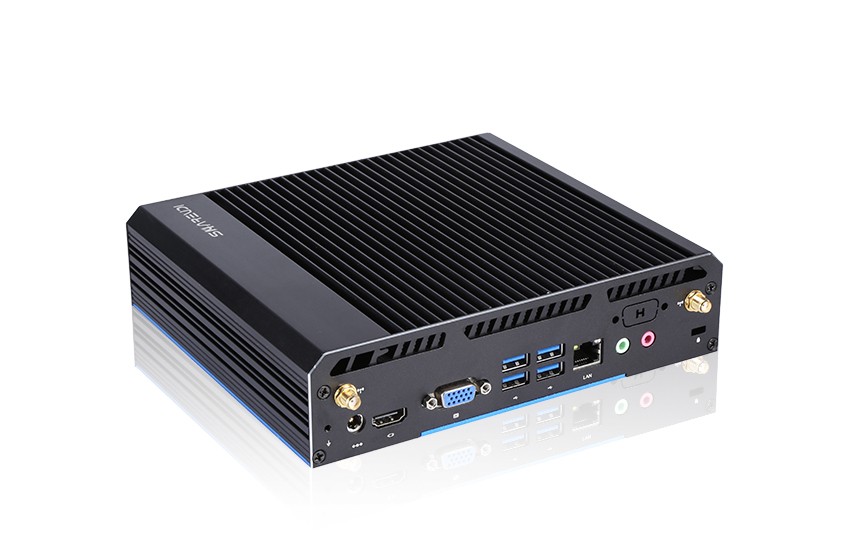

K5-F17 Rugged Fanless PC
Model: K5-F17
● Industrial Fanless System with compact rugged design
● Optional processor Intel core i3 / i5 / i7
● -20 ~ 65 °C working temperature
● Extendable COM RS232/RS485
● Support 3G / 4G LTE Module
● 8xUSB, 1xEthernet, 1xHDMI, 1xVGA
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● support RPL / PXE diskless boot, wake on lan, WDT
Data Sheet 1
Send InquiryWith rugged and compact construture, Industrial embedded PC KF17 is designed for 24 / 7 use in extreme conditions for ues. The high compability makes it can be configured with wide range process,RAM,SSD,and extendable I/O ports.
-
Part No.K5-F17-5250uK5-F17-6360u
-
-
Processor System
CPU
Intel Core I5 5250U
Intel Core I5 6360U
Core Number
2 Cores / 4 Threads
2 Cores / 4 Threads
Frequency
1.60 GHz
2.3 GHz
Max Turbo Frequency
2.70GHz
2.8 GHz
Chipset
Products formerly Broadwell
Products formerly Skylake
Graphics
Intel HD Graphics 6000
Intel Iris Graphics 550
-
Memory
Technology
2*DDR3L slot
1*DDR3L slot
Max. Capacity
16GB
8G
-
Storage
MSATA
SSD (mSATA)
SSD (mSATA)
SATA
Optional HDD (The motherboard supports the expansion of a 2.5-inch hard drive)
Optional HDD (The motherboard supports the expansion of a 2.5-inch hard drive)
-
Graphics
Intel HD Graphics 6000
Intel Iris Graphics 550
-
Audio
ChipsetHD
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111H
10/100/1000Mbps Adaptive, RTL 8111H
-
I/O Interface
Front
DC12V Input, HDMI, VGA, 4*USB3.0, RJ45, MIC, SPK, RS232(Optional)
DC12V Input, HDMI, VGA, 4*USB3.0, RJ45, MIC, SPK, RS232(Optional)
Rear
2*USB2.0, Power ON/OFF
2*USB2.0, Power ON/OFF
-
Extendable
Module
WIFI+Bluetooth Module (M.2 PCIE)
2*USB2.0, Power ON/OFF
I/O
2*USB2.0、4*USB3.0、1*VGA、1*HDMI、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT Internal I/O Ports: 1*F_AUIO、1*LVDS、2*F_USB3、1*LPTI、1*COM_CON1、1*COM2、1*F_PANEL
2*USB2.0、4*USB3.0、1*VGA、1*HDMI、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT Internal I/O Ports: 1*F_AUIO、1*LVDS、2*F_USB3、1*LPTI、1*COM_CON1、1*COM2、1*F_PANEL
Antenna
External antennas
External antennas
-
Power
Input
AC100-240V.50-60HZ DC
AC100-240V.50-60HZ DC
Output
12V - 5A
12V - 5A
-
Operating System
Windows & Linux
Windows & Linux
-
General
Dimension
L 187mm*W 187mm*H 33.5mm
L 187mm*W 187mm*H 33.5mm
Weight(Net)
1.59KG
1.59KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
VESA bracket or standing use
VESA bracket or standing use
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
