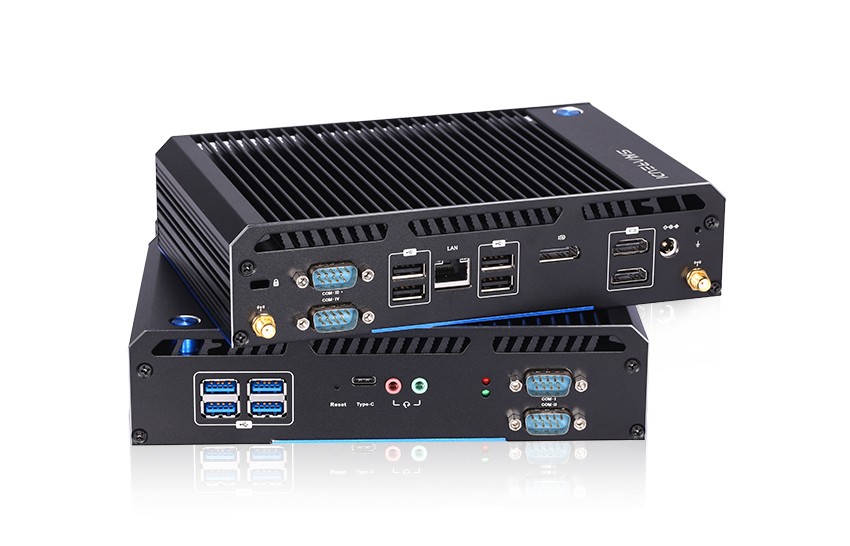

K5-F17H Intel Industrial PC

Model: K5-F17H

● Intel core i5-10th generation processor

● Anti-vibration & shock proof, industrial grade design for 7/24 use

● Flexible expansion for I/O ports

● 4 x Serial port

● Support triple screen simultaneously display (2 x HDMI + 1 x DP)

● 6 x USB ports

● Support 4G LTE module

● Support TPM 2.0 (optional)

● 12V ~ 64V wide range power input

● Wide temperature -20~65°C


Data Sheet 1 Data Sheet 2 Send Inquiry

K5-F17H is a fanless embedded pc powered by Intel core i5 10Gen processor. The PC body adopt industrial grade components for the design of 7/24 working in extreme conditions, operating temperature from -20 to 65 °C. It is compact, dustproof, shockproof and with strong computing power, which makes it widely used in various harsh environments.

Specification K5-F17H
Get A Quote
Processor
  • CPU

    K3-F17H-10110

    Intel Core I3-10110U

    K5-F17H-10210

    Intel Core I5-10210U

  • Core Number

    K3-F17H-10110

    2 Cores / 4 Threads

    K5-F17H-10210

    4 Cores / 8 Threads

  • Frequency

    K3-F17H-10110

    2.1GHz

    K5-F17H-10210

    1.6GHz

  • Max Turbo Frequency

    K3-F17H-10110

    4.1GHz

    K5-F17H-10210

    4.2 GHz

  • Chipset

    K3-F17H-10110

    Products formerly Broadwell

    K5-F17H-10210

    Products formerly Comet Lake

Memory
  • Technology

    K3-F17H-10110

    2*DDR4L slot

    K5-F17H-10210

    2*DDR4L slot

  • Max. Capacity

    K3-F17H-10110

    32GB

    K5-F17H-10210

    32GB

Storage
  • M.2 SATA

    K3-F17H-10110

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    K5-F17H-10210

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

  • SATA

    K3-F17H-10110

    HDD 500GB/1TB/2TB (Optional )

    K5-F17H-10210

    HDD 500GB/1TB/2TB (Optional )

Graphics
  • Graphics

    K3-F17H-10110

    Intel UHD Graphics for 10th Gen Intel Processors

    K5-F17H-10210

    Intel® UHD Graphics for 10th Gen Intel® Processors

Audio
  • Audio

    K3-F17H-10110

    HD Audio realtek ALC 662

    K5-F17H-10210

    HD Audio realtek ALC 662

Network
  • LAN

    K3-F17H-10110

    10/100/1000Mbps adaptive RTL 8111E

    K5-F17H-10210

    10/100/1000Mbps adaptive RTL 8111E

  • Wireless

    K3-F17H-10110

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    K5-F17H-10210

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

  • 4G module

    K3-F17H-10110

    support 4G module with available sim slot

    K5-F17H-10210

    support 4G module with available sim slot

I/O Interface

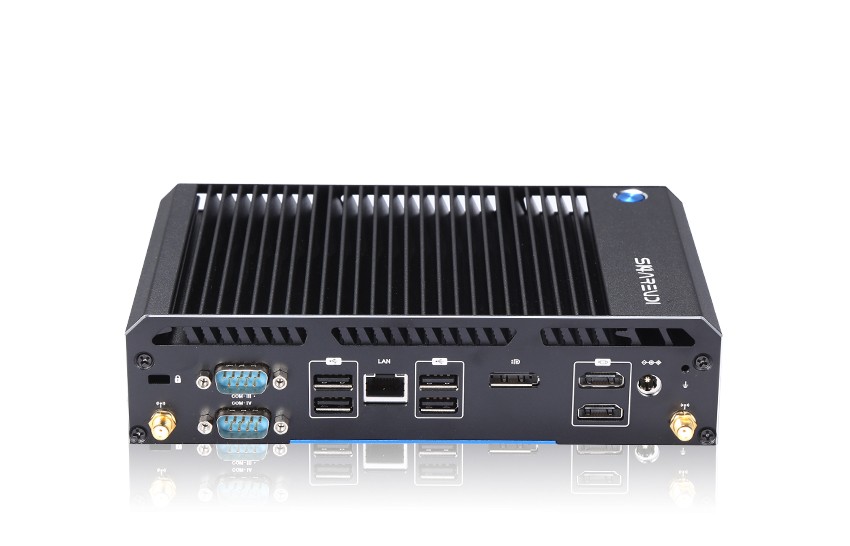

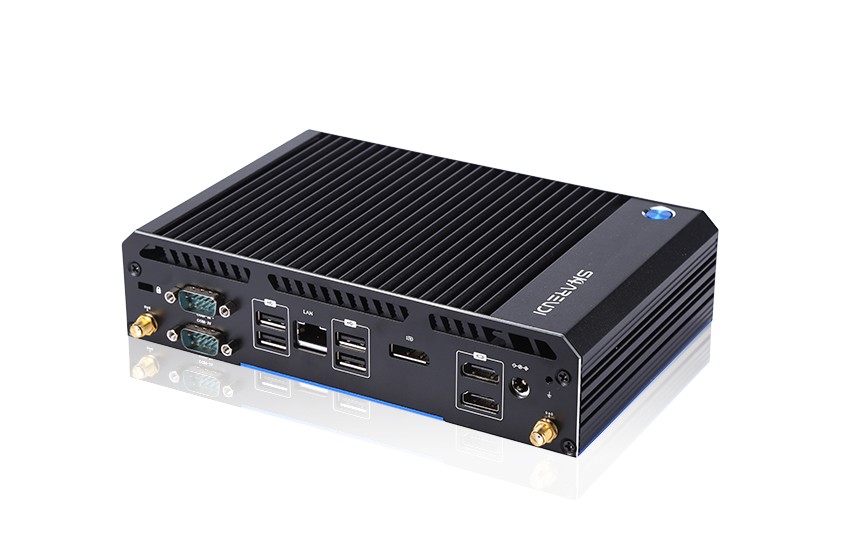

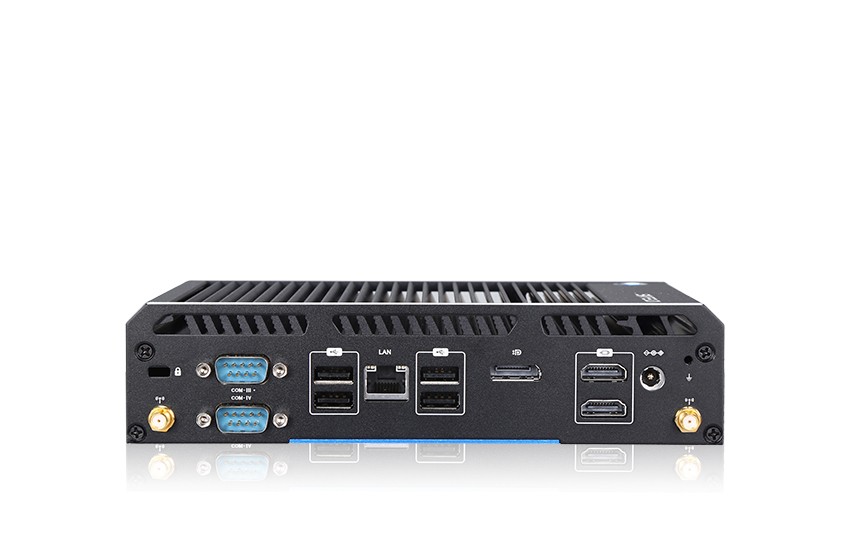

  • Front

    K3-F17H-10110

    2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V

    K5-F17H-10210

    2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V

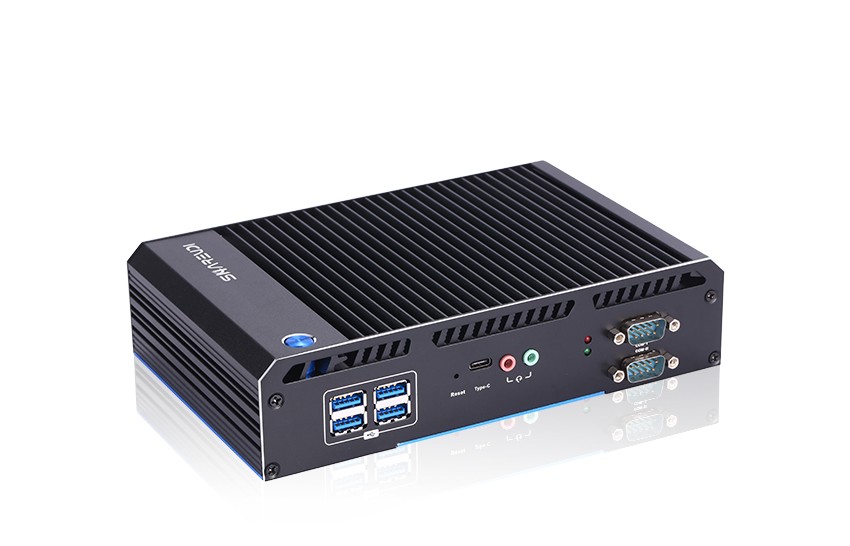

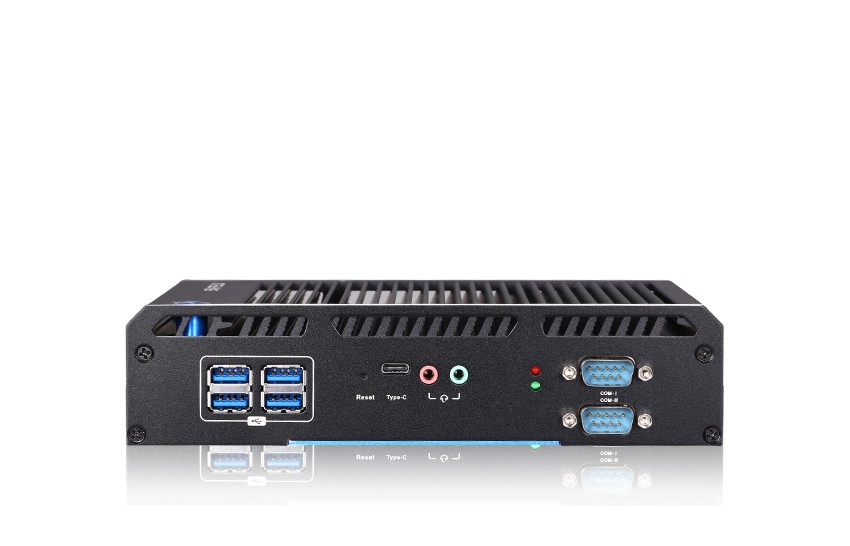

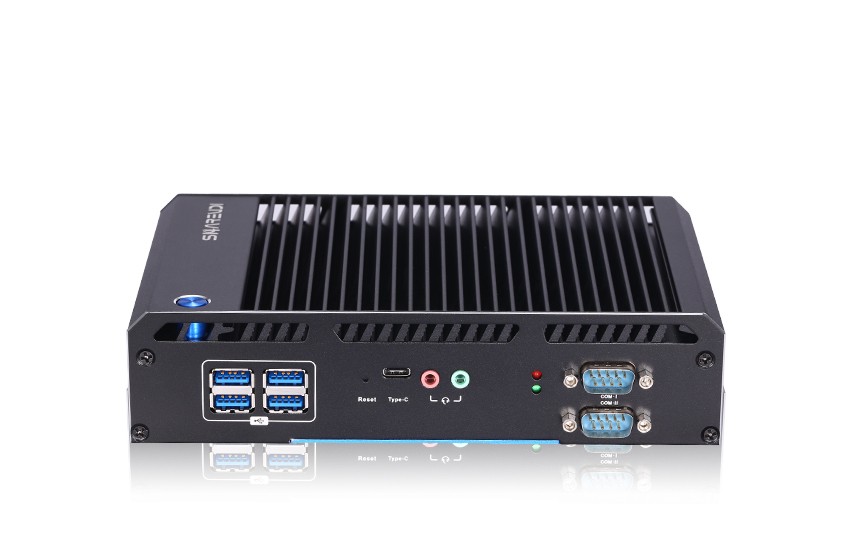

  • Rear

    K3-F17H-10110

    4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485

    K5-F17H-10210

    4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485

Extendable
  • I/O

    K3-F17H-10110

    2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin

    K5-F17H-10210

    2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin

  • Module

    K3-F17H-10110

    4G LTE , WIFI+Bluetooth Module (Mini PCIE)

    K5-F17H-10210

    4G LTE , WIFI+Bluetooth Module (Mini PCIE)

Power
  • Input

    K3-F17H-10110

    AC100-240V.50-60HZ DC

    K5-F17H-10210

    AC100-240V.50-60HZ DC

  • Output

    K3-F17H-10110

    12V-5A

    K5-F17H-10210

    12V-5A

  • Wide Voltage

    K3-F17H-10110

    12-64V phoenix connector（Optional）

    K5-F17H-10210

    12-64V phoenix connector（Optional）

Operating System

  • K3-F17H-10110

    Windows/Linux

    K5-F17H-10210

    Windows/Linux

Physical
  • Dimension

    K3-F17H-10110

    L 197.4mm*W 126.3mm*H 47.5mm

    K5-F17H-10210

    L 197.4mm*W 126.3mm*H 47.5mm

  • Weight(Net)

    K3-F17H-10110

    1.0KG

    K5-F17H-10210

    1.0KG

  • Color

    K3-F17H-10110

    Black

    K5-F17H-10210

    Black

  • Cooling Method

    K3-F17H-10110

    Fanless Passive Cooling

    K5-F17H-10210

    Fanless Passive Cooling

  • Mounting Options

    K3-F17H-10110

    Desk / Wall Mount / Embedded / DIN Rail

    K5-F17H-10210

    Desk / Wall Mount / Embedded / DIN Rail

  • Certification

    K3-F17H-10110

    CE, FCC, ROHS, ISO, UL

    K5-F17H-10210

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K3-F17H-10110

    -10~65 ℃

    K5-F17H-10210

    -10~65 ℃

  • Storage Temperature

    K3-F17H-10110

    -10~60 ℃

    K5-F17H-10210

    -10~60 ℃

  • Operation Humidity

    K3-F17H-10110

    0~95% (No Condensation)

    K5-F17H-10210

    0~95% (No Condensation)

  • Storage Humidity

    K3-F17H-10110

    0~95% (No Condensation)

    K5-F17H-10210

    0~95% (No Condensation)
