2 LAN Firewall PC
Model: G4C
Tiny size, 65*65mm
Rockchip RK3399 6 core 64 bit
DDR3 1G LPDDR4 （Up to 4GB)
16GB Flash optional, Extendable TF card
2*Gbps Ethernet ports(LAN+WAN)
2xUSB3.0
Type-C 5V Supply Input
Preinstall OpenWRT or CentOS
Suitable for IoT applications, NAS applications, smart home gateways
Data Sheet 1
Send InquiryG4C is powered by RK3399，a six-core 64-bit CPU based on dual-core A72+quad-core A53 architecture, and GPU uses quad-core Mali-T860, It is a High-end mini router with edge-computing and dual Gbps Ethernet ports, and powered through USB Type C port, it works well with CentOS and OpenWRT
-
Part No.G4C-RK3399
-
-
Processor
CPU
RK3399 (28 NM HKMG procedure)
Core number
6 cores 64 bit
Frequency
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
Max Turbo Frequency
2.0GHz
Chipset
ARM
-
GPU
GPU
Mail-T860 MP4 quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, support AFBC (frame buffer compression)
-
Memory
Memory
LPDDR4 1G/(4G MAX)
-
Storage
EMMC
16G optional
Expansion
TF card
-
I/O Interface
Front

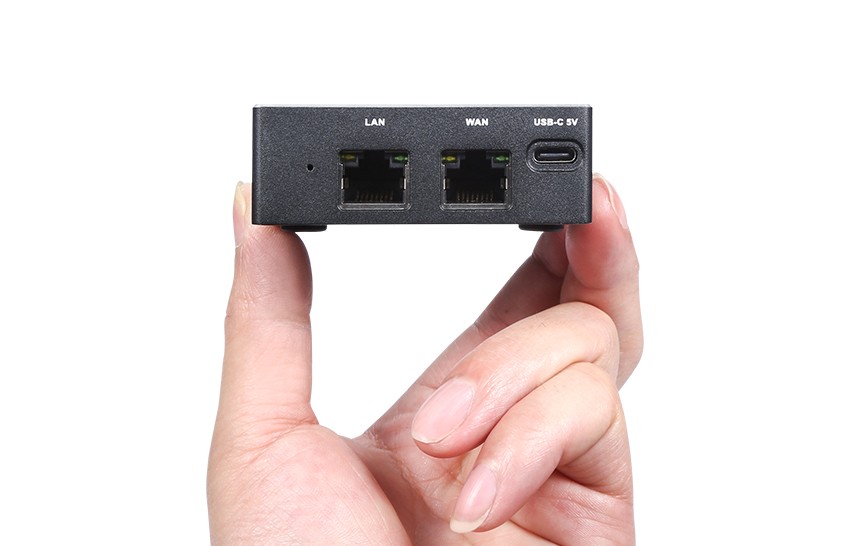

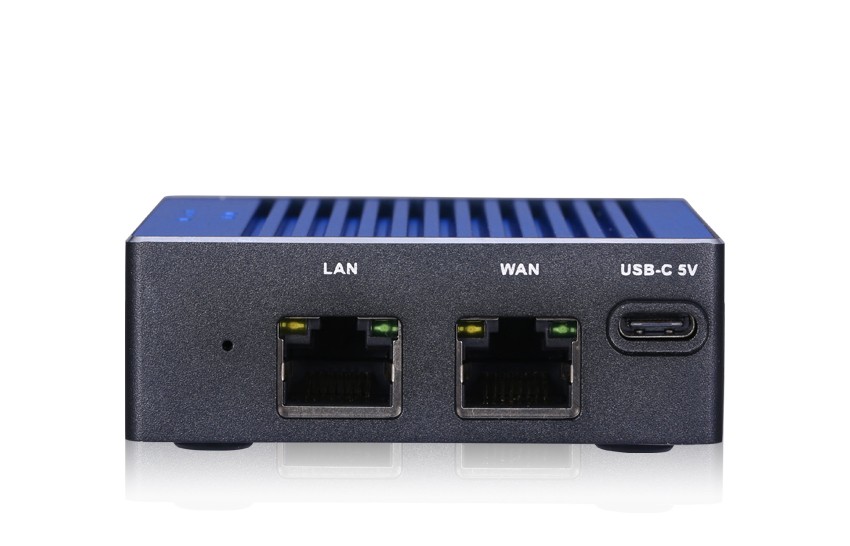

2*LAN(WAN+LAN), Type-C 5V input
Rear

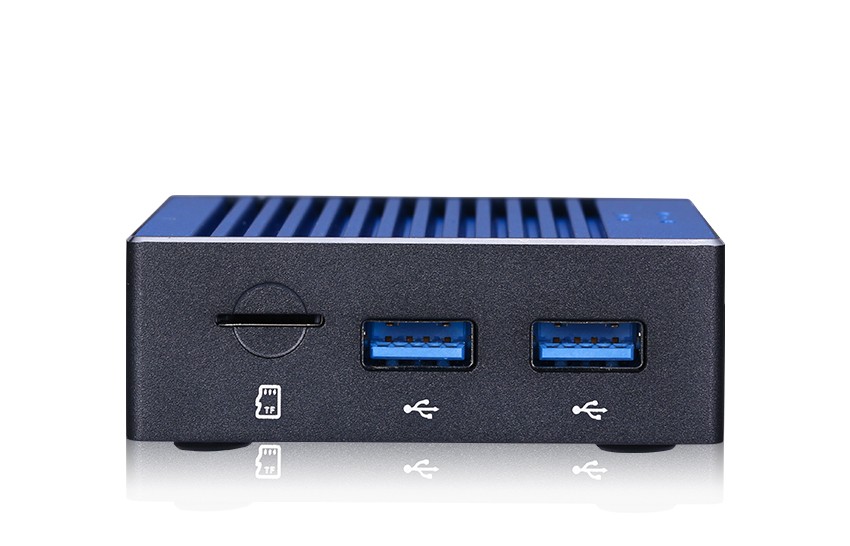

2*USB3.0，TF Card Slot
-
Network
Network
Support Ethernet 10/100/1000Mbps, support Ethernet TX/RX:935Mbps
-
Power adapter
Power adapter
Type-C 5V input
-
Operating System
Operating System
OpenWRT or CentOS
-
Physical
Dimension
65*65mm
Weight(Net)
0.3kg
Color
Blue
Cooling Method
Fanless Passive Cooling
Certification
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
G4C-RK3399
RK3399 (28 NM HKMG procedure)
-
Core number
G4C-RK3399
6 cores 64 bit
-
Frequency
G4C-RK3399
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
-
Max Turbo Frequency
G4C-RK3399
2.0GHz
-
Chipset
G4C-RK3399
ARM
-
GPU
G4C-RK3399
Mail-T860 MP4 quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, support AFBC (frame buffer compression)
-
Memory
G4C-RK3399
LPDDR4 1G/(4G MAX)
-
EMMC
G4C-RK3399
16G optional
-
Expansion
G4C-RK3399
TF card
-
Front
G4C-RK3399
2*LAN(WAN+LAN), Type-C 5V input
-
Rear
G4C-RK3399
2*USB3.0，TF Card Slot
-
Network
G4C-RK3399
Support Ethernet 10/100/1000Mbps, support Ethernet TX/RX:935Mbps
-
Power adapter
G4C-RK3399
Type-C 5V input
-
Operating System
G4C-RK3399
OpenWRT or CentOS
-
Dimension
G4C-RK3399
65*65mm
-
Weight(Net)
G4C-RK3399
0.3kg
-
Color
G4C-RK3399
Blue
-
Cooling Method
G4C-RK3399
Fanless Passive Cooling
-
Certification
G4C-RK3399
CE,FCC,ROHS,ISO
-
Operating Temperature
G4C-RK3399
-10~60 ℃
-
Storage Temperature
G4C-RK3399
-10~60 ℃
-
Operation Humidity
G4C-RK3399
0~95% (No Condensation)
-
Storage Humidity
G4C-RK3399
0~95% (No Condensation)
