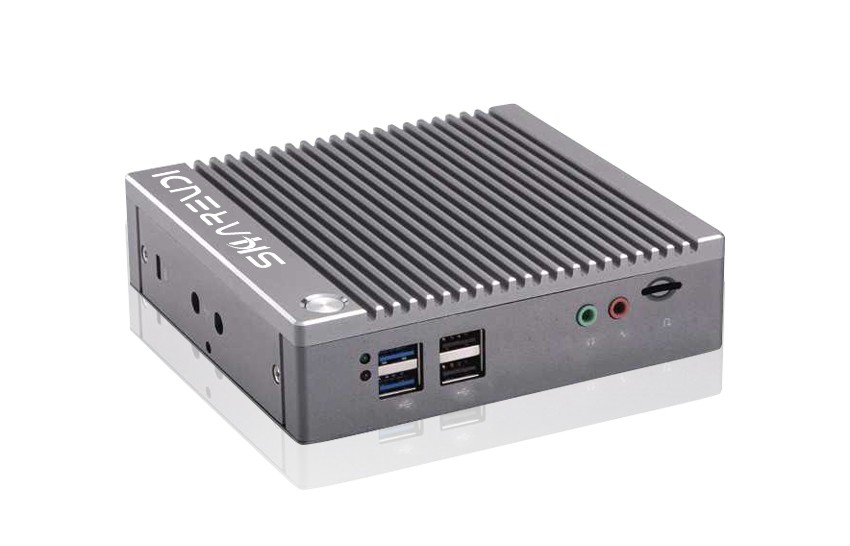

X9 Android Mini PC
Model: X9
Support dual-screen different display function, dual 6 / 8-bit LVDS interface,.
Support 1080P output, can drive 7-inch or more 1080P display.
Support HDMI dual output and 4K video playback.
Support infrared remote control.
Support 2.4GHz / 5GHz dual-band WiFi.
Support Bluetooth 4.1-BLE function.
Support high-speed USB3.0 and other functions.
Data Sheet 1
Send InquiryX9 adopts RK3399 six-core 64-bit server-level chip solution, supports Ubuntu 18.04 / Google Android 7.1 operating system / Kirin domestic operating system.The GPU uses quad-core Mali -T860, support mainstream audio and video formats and picture decoding.
-
Part No.X9-RK3399
-
-
General
Certification
CE,FCC,ROHS,ISO
Dimension(W*H*D)
L 133.8mm*W 126.6mm*H 36.5mm
Power Input
AC100-240V.50-60HZ
Power Output
DC12V/5.5mm,internal diameter 2.1 mm
Mounting Options
VESA bracket or standing use
Cooling Method
Heat Sink
Weight(Net)
0.65KG
-
Color
Silver
-
Processor System
CPU
RK3399 (28 NM HKMG procedure)
Core Number
6 cores 64 bit
Frequency
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
Max Turbo Frequency
2.0GHz
Chipset
ARM
Graphics
Mail-T860 MP4 Quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11; Support AFBC
-
Audio
Support
Spk&Mic 2 in 1
-
Memory
Technology
DDR3L 1866 MHz
Max. Capacity
4GB
-
Storage
MSATA
64GB(16GB/32GB/128GB)EMMC; TF Card Extendable
SATA
NONE
-
I/O Interface

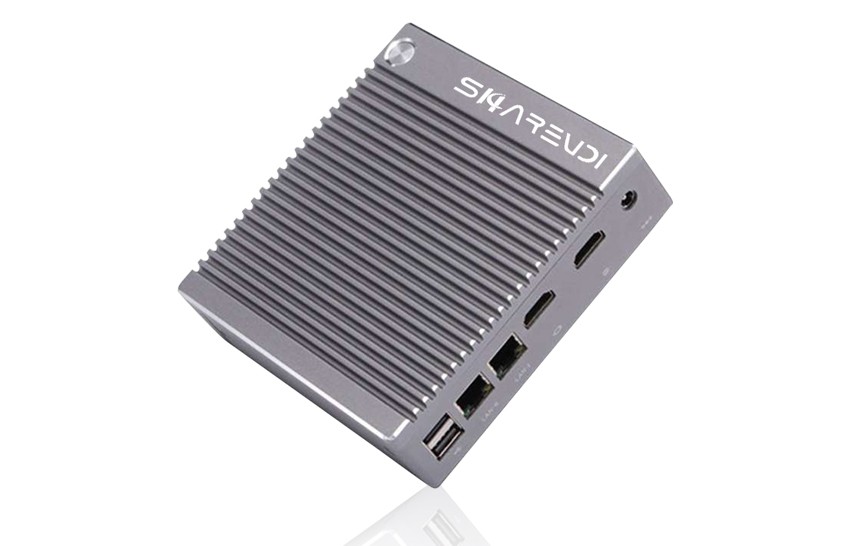

Front
DC Connector(5V IN); Inner net RJ45; Outer net RJ45; 2*HDMI2*USB2.0;

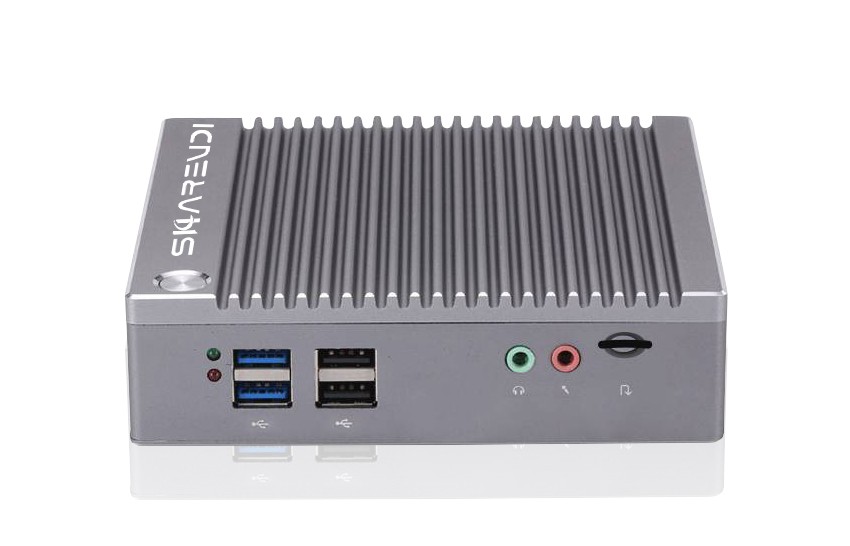

Rear
2*USB3.0, 2*USB2.0, MIC, SPK
-
Network
10/100/1000Mb
-
WIFI
Module
1*mini PCIE-half port wifi module
1*mini PCIE full port 3G/4G module
Antenna
2*inner RF cable and 2* external antennas
-
Power
Input Voltage
AC100-240V.50-60HZ
Output
DC12V/5.5mm, internal diameter 2.1 mm
Connector Type
DC Plug in
-
Software Specification
OS
Android7.1/Ubuntu18.04 /Android10.0/KYLIN
Video
Support video format: H.265/H.264/VP9/MAV/ WMV/AVS/H.263/MPEG4 1080P/2160P; Support multi-view video decoding
Support JPG/PNG
Default Application Software
Calculator, Browser, Calendar, Settings, Clock, Video Player, Search, Explorer
API
API can be applied for brightness, volume, power on/off, Automatic Power Up, restart, screenshot, synchronize time with host server, rotate screen
-
Certification
X9-RK3399
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
X9-RK3399
L 133.8mm*W 126.6mm*H 36.5mm
-
Power Input
X9-RK3399
AC100-240V.50-60HZ
-
Power Output
X9-RK3399
DC12V/5.5mm,internal diameter 2.1 mm
-
Mounting Options
X9-RK3399
VESA bracket or standing use
-
Cooling Method
X9-RK3399
Heat Sink
-
Weight(Net)
X9-RK3399
0.65KG
-
X9-RK3399
Silver
-
CPU
X9-RK3399
RK3399 (28 NM HKMG procedure)
-
Core Number
X9-RK3399
6 cores 64 bit
-
Frequency
X9-RK3399
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
-
Max Turbo Frequency
X9-RK3399
2.0GHz
-
Chipset
X9-RK3399
ARM
-
Graphics
X9-RK3399
Mail-T860 MP4 Quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11; Support AFBC
-
Support
X9-RK3399
Spk&Mic 2 in 1
-
Technology
X9-RK3399
DDR3L 1866 MHz
-
Max. Capacity
X9-RK3399
4GB
-
MSATA
X9-RK3399
64GB(16GB/32GB/128GB)EMMC; TF Card Extendable
-
SATA
X9-RK3399
NONE
-
Front
X9-RK3399
DC Connector(5V IN); Inner net RJ45; Outer net RJ45; 2*HDMI2*USB2.0;
-
Rear
X9-RK3399
2*USB3.0, 2*USB2.0, MIC, SPK
-
X9-RK3399
10/100/1000Mb
-
Module
X9-RK3399
1*mini PCIE-half port wifi module
-
X9-RK3399
1*mini PCIE full port 3G/4G module
-
Antenna
X9-RK3399
2*inner RF cable and 2* external antennas
-
Input Voltage
X9-RK3399
AC100-240V.50-60HZ
-
Output
X9-RK3399
DC12V/5.5mm, internal diameter 2.1 mm
-
Connector Type
X9-RK3399
DC Plug in
-
OS
X9-RK3399
Android7.1/Ubuntu18.04 /Android10.0/KYLIN
-
Video
X9-RK3399
Support video format: H.265/H.264/VP9/MAV/ WMV/AVS/H.263/MPEG4 1080P/2160P; Support multi-view video decoding
-
X9-RK3399
Support JPG/PNG
-
Default Application Software
X9-RK3399
Calculator, Browser, Calendar, Settings, Clock, Video Player, Search, Explorer
-
API
X9-RK3399
API can be applied for brightness, volume, power on/off, Automatic Power Up, restart, screenshot, synchronize time with host server, rotate screen
