K6-F13H Mini PC COM
Model: K6-F13H
Fanless Industrial design
Intel Celeron N3150 quad core
2 LAN ports
1 RS232 Seriel port
4 USB 3.0, 2x USB
2.0 2 HDMI, 1 DP
Preinstalled Windows10/Windows 10 IOT/Linux
Support RPL / PXE, wake on lan, electricity boot, WDT
Send InquiryK6-F13H is small, fanless Mini PC with rich interfaces available. The processor adopt ultra low power consumption Intel Celeron N3150, only 6W TDP,which is designed for 7/24h working in a compact and tough environment.
-
Part No.K6-F13H-N3150
-
-
Processor
CPU
Intel Celeron N3150
Core Number
4 Cores / 4 Threads
Frequency
1.60GHz
Max Turbo Frequency
2.08GHz
Chipset
Bay Trail
-
Memory
Technology
1*DDR3L slot
Max. Capacity
8GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
Optional HDD
-
Graphics
Intel HD Graphics for Intel Celeron Processor N3000 Series
-
Audio
HD Audio realtek ALC 662
-
Network
10/100/1000Mbps Adaptive, RTL 8111F
-
I/O Interface
Front

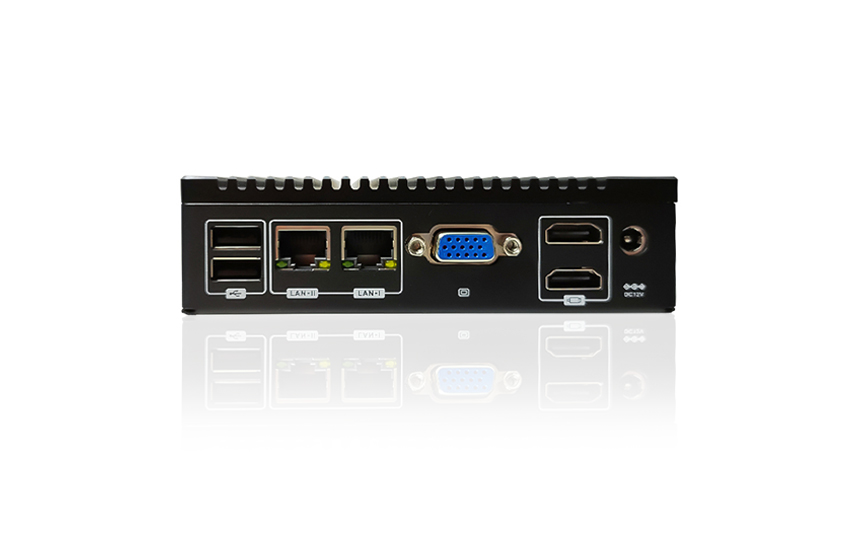

DC12V Input, 2*HDMI, 2*USB2.0, 2*RJ45,1*VGA
Rear

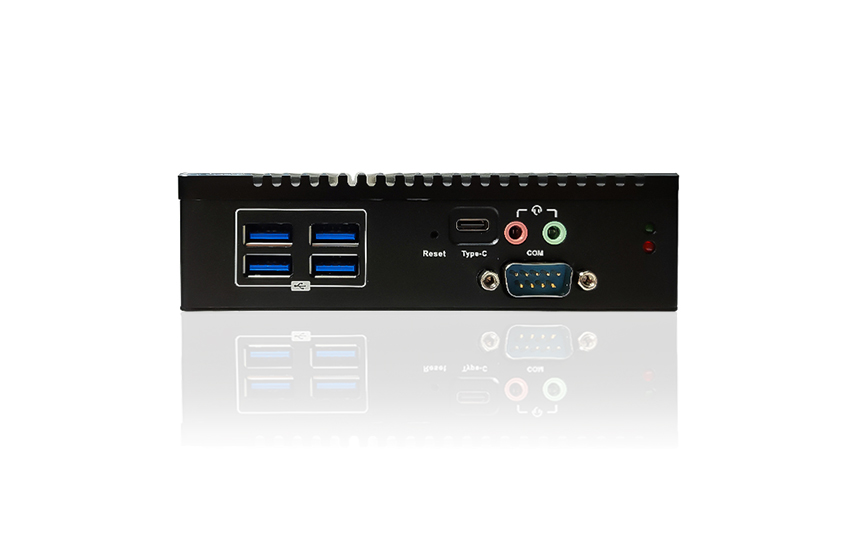

4*USB3.0, 1*Type-C,1*COM, MIC, SPK
-
Extendable
I/O
2*USB2.0、4*USB3.0、2*HDMI、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*VGA、1*COM
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-3A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight(Net)
0.6KG
Color
Silver
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk/ Wall Mount/Embedded/ DIN Rail
Certification
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K6-F13H-N3150
Intel Celeron N3150
-
Core Number
K6-F13H-N3150
4 Cores / 4 Threads
-
Frequency
K6-F13H-N3150
1.60GHz
-
Max Turbo Frequency
K6-F13H-N3150
2.08GHz
-
Chipset
K6-F13H-N3150
Bay Trail
-
Technology
K6-F13H-N3150
1*DDR3L slot
-
Max. Capacity
K6-F13H-N3150
8GB
-
MSATA
K6-F13H-N3150
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
K6-F13H-N3150
Optional HDD
-
K6-F13H-N3150
Intel HD Graphics for Intel Celeron Processor N3000 Series
-
K6-F13H-N3150
HD Audio realtek ALC 662
-
K6-F13H-N3150
10/100/1000Mbps Adaptive, RTL 8111F
-
Front
K6-F13H-N3150
DC12V Input, 2*HDMI, 2*USB2.0, 2*RJ45,1*VGA
-
Rear
K6-F13H-N3150
4*USB3.0, 1*Type-C,1*COM, MIC, SPK
-
I/O
K6-F13H-N3150
2*USB2.0、4*USB3.0、2*HDMI、2*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*VGA、1*COM
-
Module
K6-F13H-N3150
WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K6-F13H-N3150
AC100-240V.50-60HZ DC
-
Output
K6-F13H-N3150
12V-3A
-
K6-F13H-N3150
Windows/Linux
-
Dimension
K6-F13H-N3150
L 133.8mm*W 126.6mm*H 36.5mm
-
Weight(Net)
K6-F13H-N3150
0.6KG
-
Color
K6-F13H-N3150
Silver
-
Cooling Method
K6-F13H-N3150
Fanless Passive Cooling
-
Mounting Options
K6-F13H-N3150
Desk/ Wall Mount/Embedded/ DIN Rail
-
Certification
K6-F13H-N3150
CE,FCC,ROHS,ISO
-
Operating Temperature
K6-F13H-N3150
-10~60 ℃
-
Storage Temperature
K6-F13H-N3150
-10~60 ℃
-
Operation Humidity
K6-F13H-N3150
0~95% (No Condensation)
-
Storage Humidity
K6-F13H-N3150
0~95% (No Condensation)
