G6 AI BOX PC

Model:

  • Industrial rugged design with a fanless cooling system

  • RK3588 Octa-core (4×A76+4×A55)

  • 6TOPS Native AI, 13/26TOPS Accelerator Expandable

  • 8GB/16GB Large Memory Option

  • 64GB/128GB eMMC + 2×M.2 2280 SATA/NVME SSD Expansion

  • 8pin GPIO, customizable compilation

  • HDMI 2.1 (up to 8K@60Hz) + HDMI In

  • 1×Full-Featured Type-C: One Port for Data, Video & Power, Ultimate Expansion lexibility

  • Dual-Gigabit Ethernet

  • Supports Ubuntu 22.04 operating systems.

G6 AI BOX PC is powered by Rockchip RK3588, integrating 4Cortex-A76 + 4Cortex-A55 CPUs, 6TOPS NPU (expandable 13/26TOPS), 8GB/16GB memory and dual SSD expansion. It supports 8K@60Hz video encoding/decoding, dual-gigabit Ethernet, full-featured Type-C and rich I/O, with a compact fanless design for reliable 24/7 operation.

Featuring wide temperature support and Ubuntu compatibility, it is ideal for industrial vision, edge AI computing, smart surveillance, IoT gateways and embedded AI applications, delivering powerful, efficient edge intelligence for diverse scenarios.

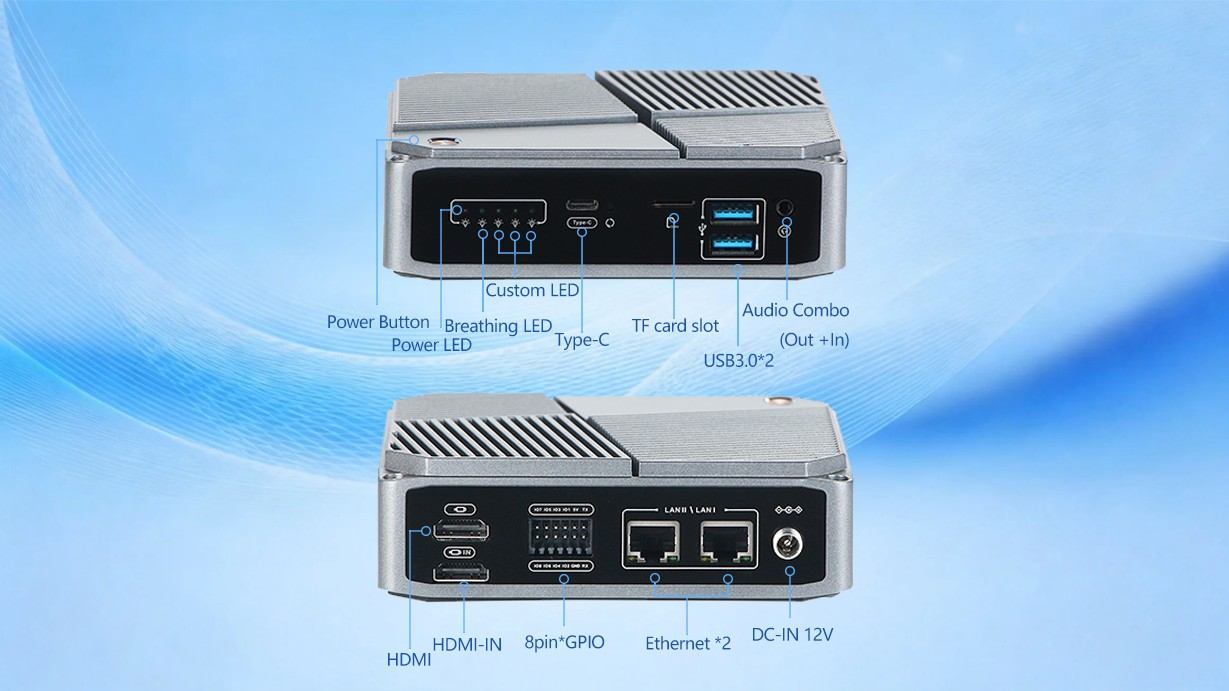

The AI Edge Computing Terminal G6 features a versatile, high-density I/O layout engineered to simplify deployment in smart retail, industrial IoT, video analytics, and self-service terminals:

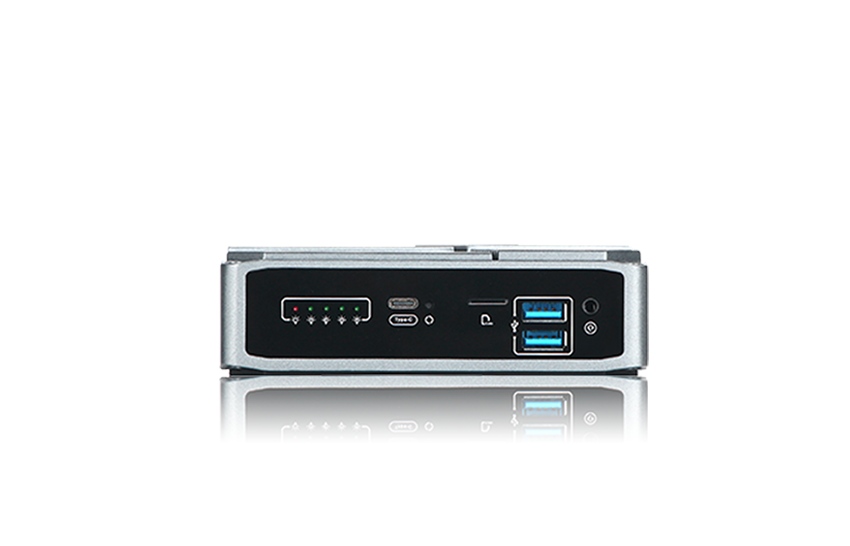

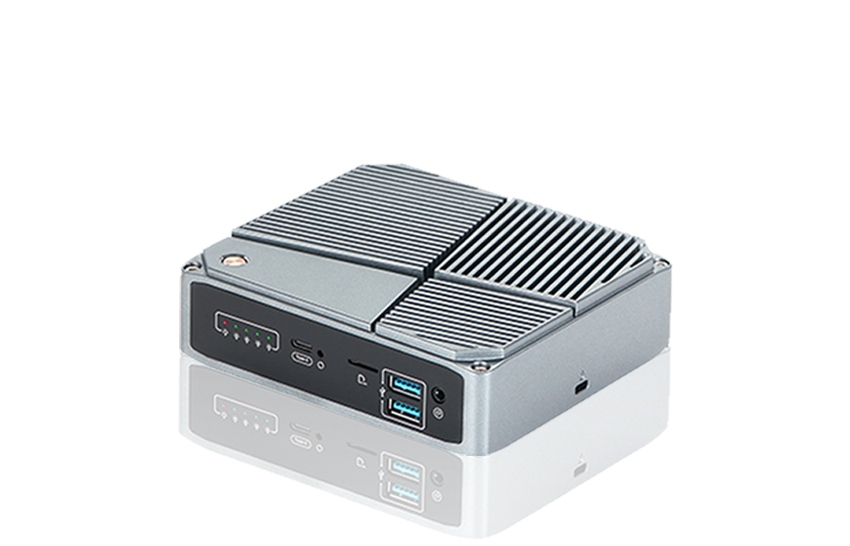

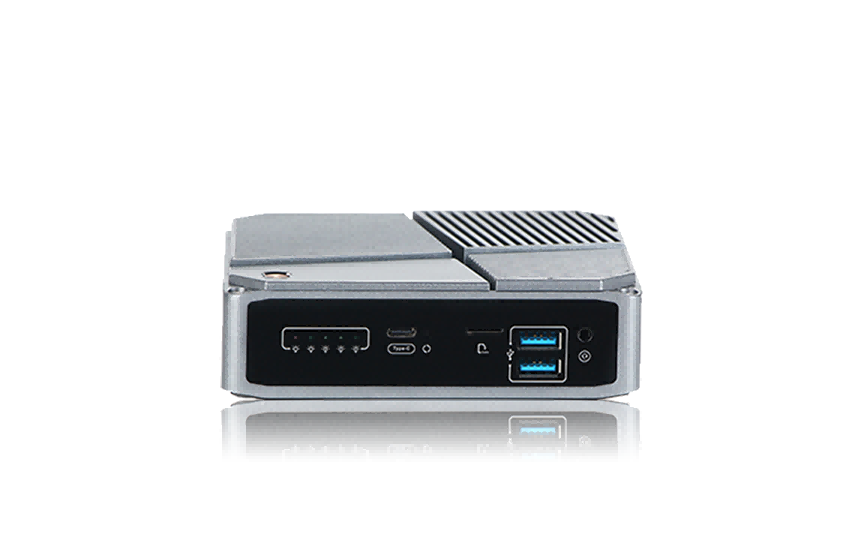

  • Front I/O Panel: Equipped with 2× USB 3.0, 1× Type-C, a TF card slot, and an audio combo jack, alongside customizable LED indicators for easy on-site status monitoring.

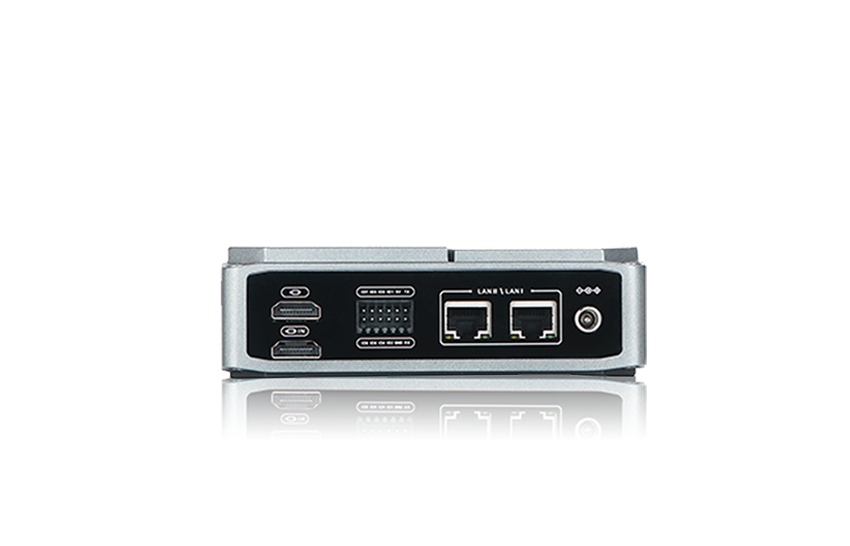

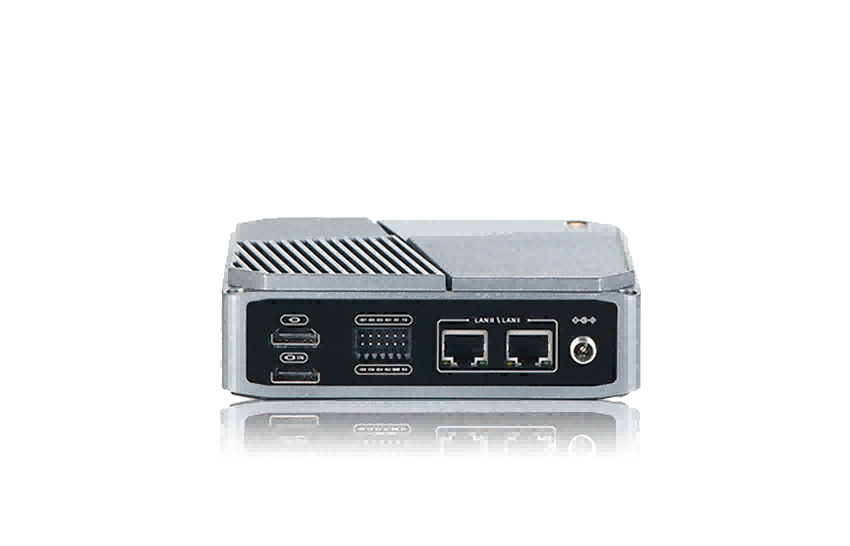

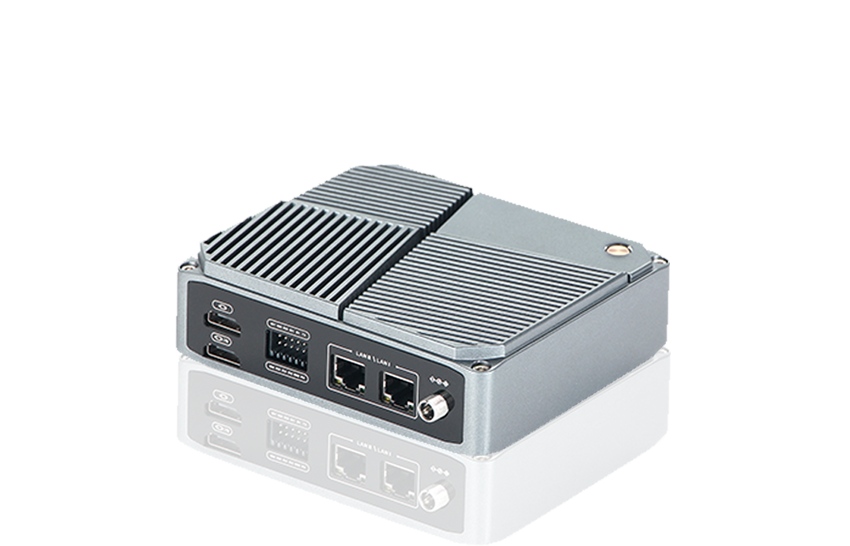

  • Rear I/O Panel: Equipped with dual HDMI ports, 2× Gigabit Ethernet ports (RJ45), an 8-pin GPIO interface, and a 12V DC-IN connector for reliable connectivity with displays, cameras, and sensors.

Flagship RK3588 Processor
Flagship RK3588 Processor

Powered by the Rockchip RK3588 (an 8nm, 8-core, 64-bit high-end SoC), the G6 AI Edge Terminal delivers outstanding performance and power efficiency for industrial edge applications, offering flexible configurations with 8GB/16GB of memory, 64GB/128GB of onboard eMMC storage, and dual M.2 2280 slots (supporting SATA/NVMe SSDs) to perfectly meet diverse project demands for high-capacity, high-speed expansion.

Modular AI Acceleration

It features a 6 TOPS built-in NPU for efficient local AI inference—fully optimized for the entire YOLO family (up to YOLOv11), ROS2, and OpenClaw robot control. To handle next-level workloads, the system supports up to 26 TOPS of additional acceleration via M.2 Hailo extension modules. This powerful combination allows you to run robust local vision algorithms today, while ensuring the future-proof scalability needed to deploy advanced LLMs and voice AI like DeepSeek, Llama.cpp, and Whisper.

Modular AI Acceleration

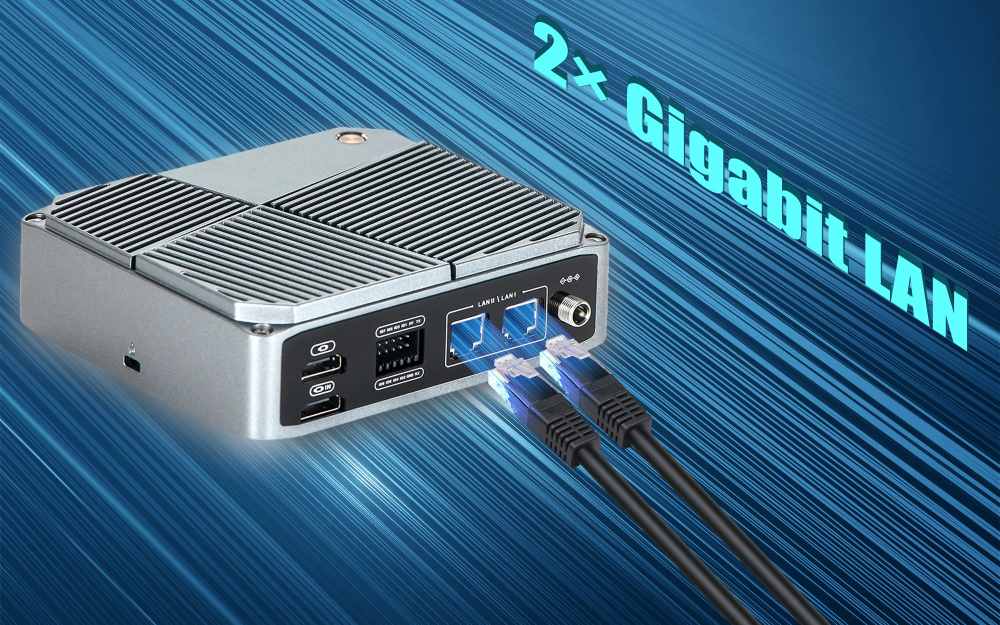

Flexible Network Topology
Flexible Network Topology

The G6-F25-RK3588 is equipped with dual Gigabit LAN ports, supporting network redundancy (failover) to guarantee uninterrupted uptime in mission-critical environments. This configuration allows developers to easily isolate local device traffic—such as IP cameras or PLCs on one port—from the main factory network on the other, while its scalable storage capabilities provide ample space for reliable local data logging and edge processing.

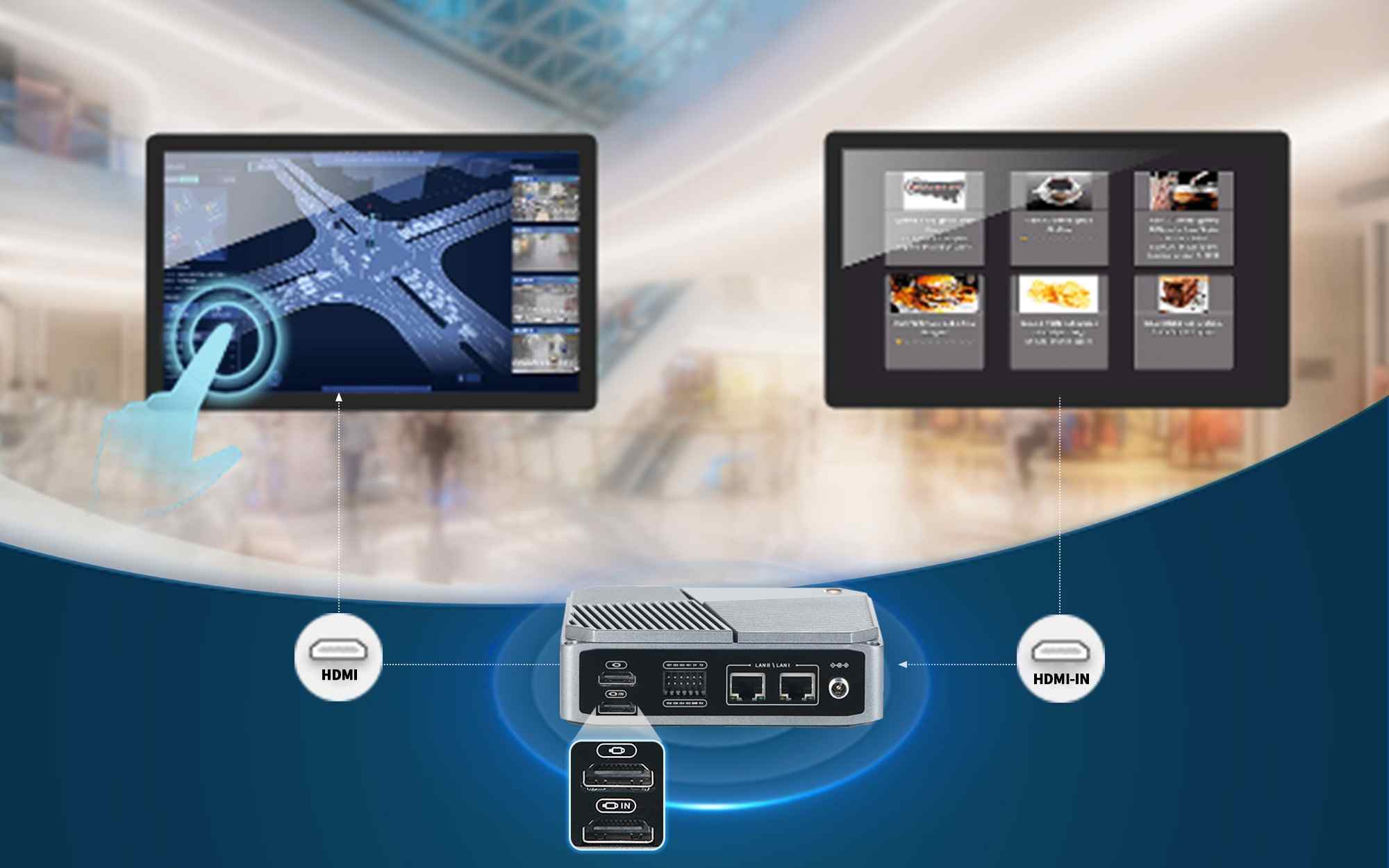

8K Video Processing

Featuring dual HDMI interfaces with 8K@60fps video encoding and decoding capabilities, alongside a dedicated HDMI-IN port for hardware-level video capture, the G6-F25-RK3588 is a powerful engine tailored for modern security surveillance and advanced industrial HMI. This combination allows the system to seamlessly ingest real-time feeds from ultra-HD cameras or external medical/industrial devices, while simultaneously driving multiple high-resolution displays in control rooms. It bridges the gap between raw video data acquisition and immediate edge AI analysis, making it an ideal choice for smart traffic monitoring, automated inspection lines, and mission-critical command centers.

8K Video Processing

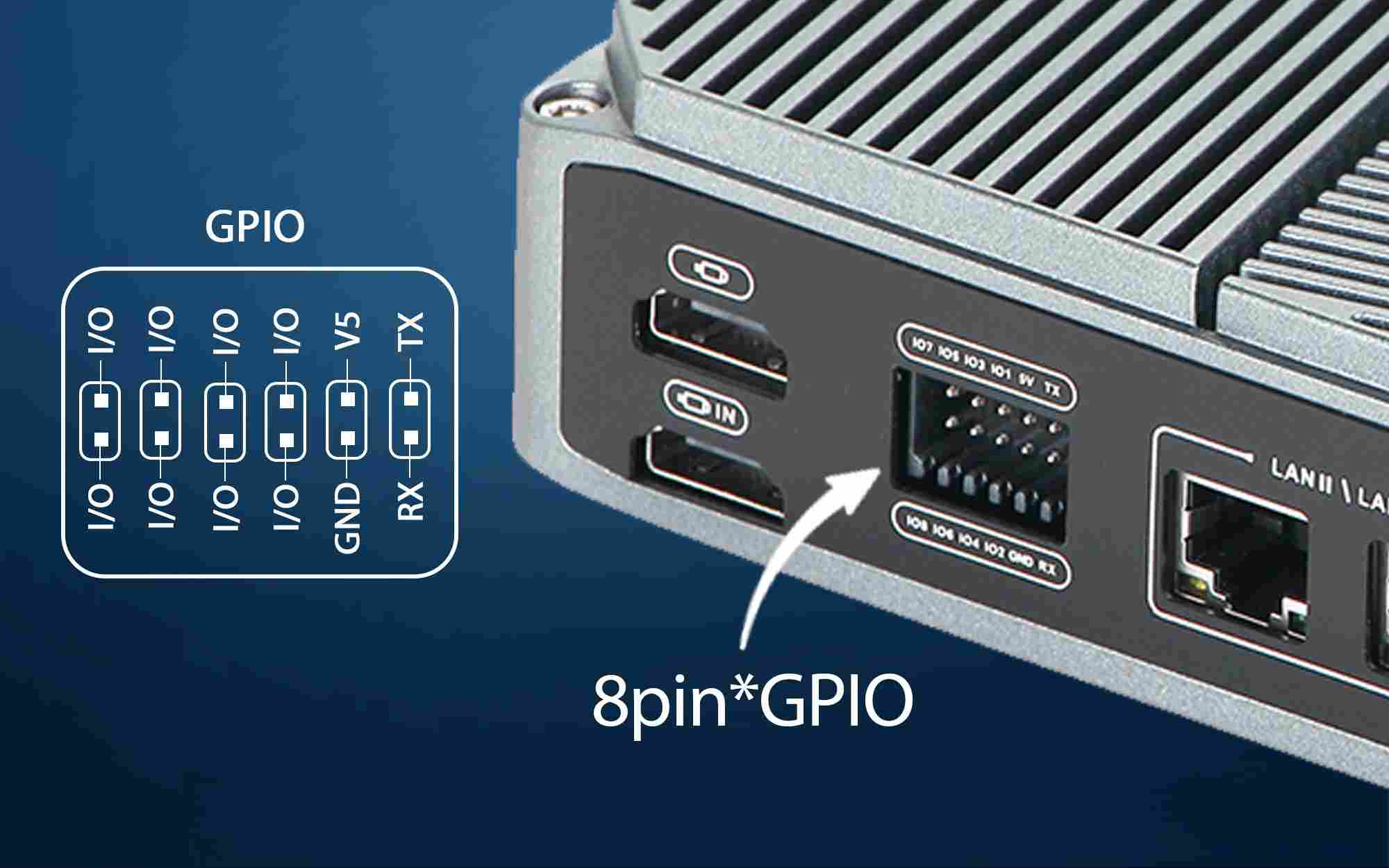

8-Channel GPIO
8-Channel GPIO

The G6-F25-RK3588 features an industrial-grade 12-pin multi-function header, integrating 8-channel GPIO and a dedicated UART serial port. This allows for direct, rock-solid connectivity to field sensors, PLCs, and relays—streamlining deployment in industrial automation and control systems. By eliminating the need for external adapter boards, it reduces system complexity, minimizes signal interference, and significantly lowers integration costs.

Industrial-Grade Reliability

Built for the harshest industrial environments, the G6 features a rugged, fanless metal housing with highly efficient passive cooling. Engineered to withstand temperature extremes from -30°C to 60°C, it delivers exceptional dust and vibration resistance. With support for 24/7 continuous operation, this heavy-duty system ensures rock-solid reliability and consistent uptime across factory floors, outdoor cabinets, and other mission-critical settings.

Industrial-Grade Reliability

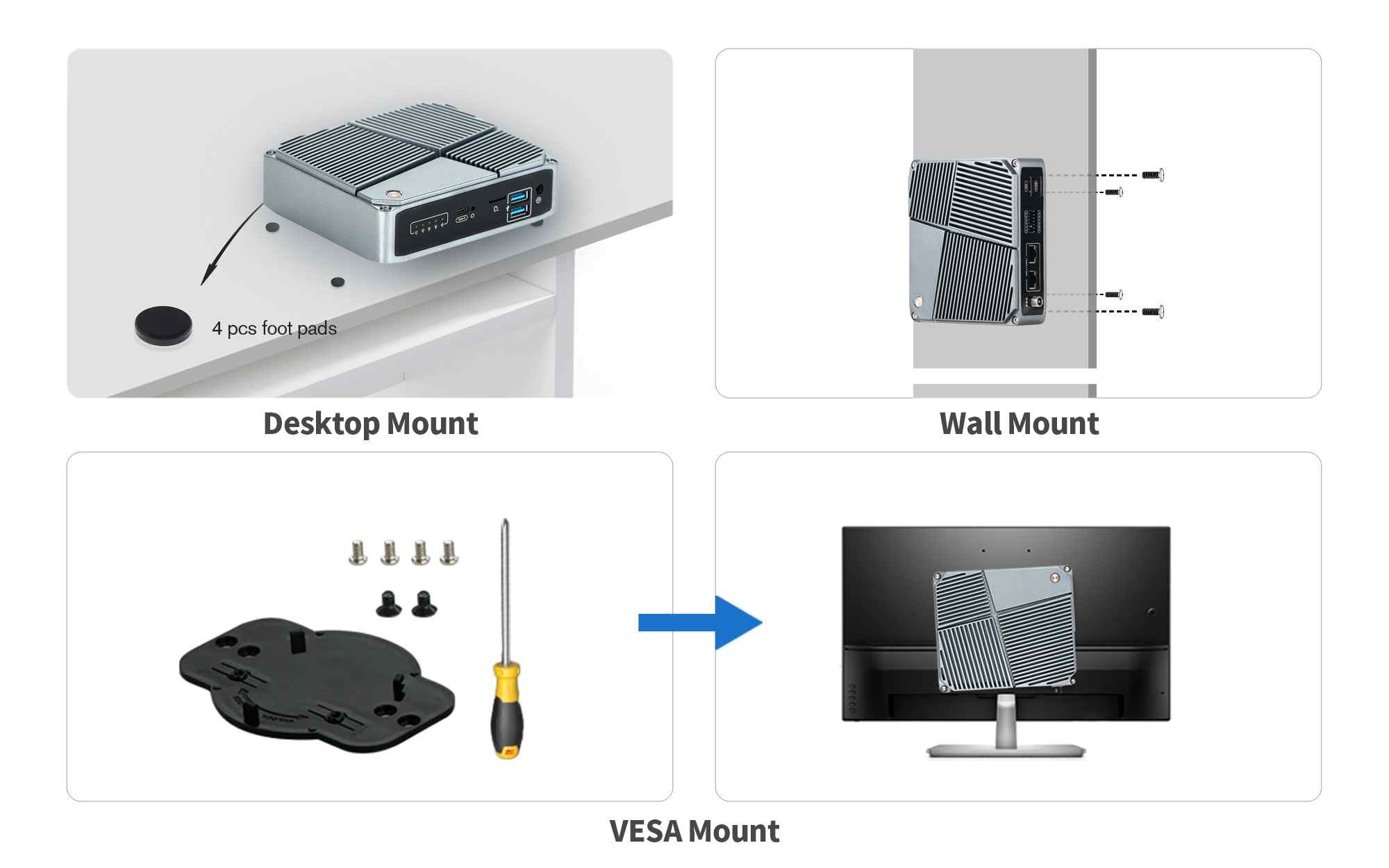

Versatile Installation Options
Versatile Installation Options

Measuring just 72.0 x 71.0 x 25.0mm, the G6-F25-RK3588 combines a ultra-compact form factor with flexible mounting options to streamline your system integration:

  • Desktop Placement: Quick horizontal setup with included foot pads, ideal for standalone edge AI inference gateways and compact media stream processing nodes.

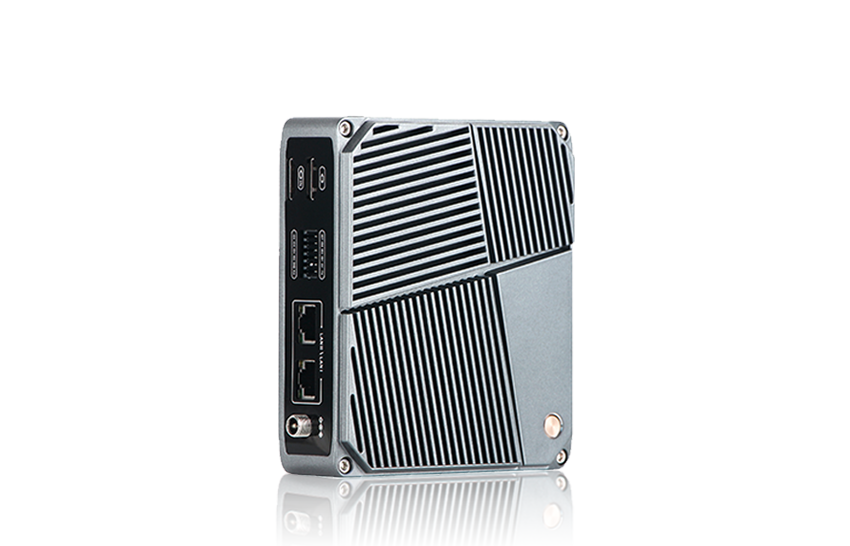

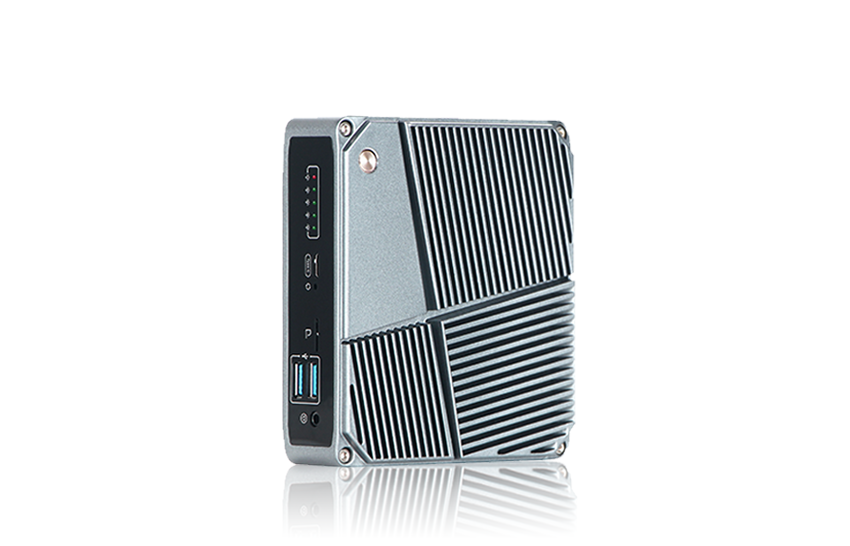

  • Wall Mount: Space-saving vertical installation on walls or panels, optimized for industrial automation and embedded control terminals inside tight enclosures.

  • VESA Mount: Seamless integration onto the back of displays, perfect for out-of-sight deployment in smart digital signage, self-service kiosks, and interactive medical monitors.

Versatile Edge Computing

The G6-F25-RK3588 AI Edge Computing Terminal supports Ubuntu 22.04 and delivers reliable, 24/7 performance across critical industrial and smart infrastructure use cases:

  • Smart Digital Signage: Powers high-resolution, always-on interactive displays and retail advertising.

  • Industrial Edge Control: Acts as a robust controller for real-time data acquisition, HMI, and equipment monitoring.

  • Edge AI & IoT: Enables low-latency local processing and AI inference for smart city and IoT deployments.

  • Video Analytics & Monitoring: Supports multi-channel video capture and real-time processing for surveillance.

Versatile Edge Computing
G6-RK3588-F25
  • Part No.
    G6-RK3588-F25
  • System

    SOC

    4*Cortex-A76 + 4*Cortex-A55

    CPU

    Rockchip RK3588

    NPU

    6TOPS, Scalable from 13/26 TOPS

    Memory

    8GB / 16GB

    Storage & Expansion

    EMMC 64G/128GB; 2*SSD (M.2 2280 SATA/NVME)

  • Video

    GPU

    Mali-G610

    Hardware Codec

    JPEG Encoder/Decoder;8K Video Encoder (H265/H264...);8K 10-bits Video Decoder (H265/H264/VP9/AV1...)

    Display Interfaces

    1*HDMI2.1;1*HDMI in. 4K resolution output,up to 8K@60HZ; Supports video input

  • Network

    Ethernet

    Dual-Gigabit Ethernet

    Wireless Network

    NOT

  • I/O

    USB

    2*USB3.0

    Audio

    Audio Combo(Out +In)

    I/O

    8pin*GPIO

    Type-c

    1*Universal Type-C

  • Others

    Watchdog

    Supports customization

    RTC

    Supported

  • Power supply

    Power Input

    DC 12V - 2A

    Buttons/Indicators

    Red/Green

  • Physical Parameters

    Enclosure Dimension

    129*113*39mm

    Package Dimensions

    244*187*62mm

    Net Weight

    0.47 KG

    Gross Weight

    0.95 KG

  • Software

    Operating System

    Ubuntu22.04

  • Environment

    Working Temperature

    -20~60°C (-4°~140°F)

    Storage Temperature

    -20~60°C (-4°~140°F)

    Working/Storage Humidity

    Relative Humidity:0~85%(No Condensation)/ Relative Humidity:0~85% (No Condensation)

    Safety Certifications

    CCC,CE

System
  • SOC

    G6-RK3588-F25

    4*Cortex-A76 + 4*Cortex-A55

  • CPU

    G6-RK3588-F25

    Rockchip RK3588

  • NPU

    G6-RK3588-F25

    6TOPS, Scalable from 13/26 TOPS

  • Memory

    G6-RK3588-F25

    8GB / 16GB

  • Storage & Expansion

    G6-RK3588-F25

    EMMC 64G/128GB; 2*SSD (M.2 2280 SATA/NVME)

Video
  • GPU

    G6-RK3588-F25

    Mali-G610

  • Hardware Codec

    G6-RK3588-F25

    JPEG Encoder/Decoder;8K Video Encoder (H265/H264...);8K 10-bits Video Decoder (H265/H264/VP9/AV1...)

  • Display Interfaces

    G6-RK3588-F25

    1*HDMI2.1;1*HDMI in. 4K resolution output,up to 8K@60HZ; Supports video input

Network
  • Ethernet

    G6-RK3588-F25

    Dual-Gigabit Ethernet

  • Wireless Network

    G6-RK3588-F25

    NOT

I/O
  • USB

    G6-RK3588-F25

    2*USB3.0

  • Audio

    G6-RK3588-F25

    Audio Combo(Out +In)

  • I/O

    G6-RK3588-F25

    8pin*GPIO

  • Type-c

    G6-RK3588-F25

    1*Universal Type-C

Others
  • Watchdog

    G6-RK3588-F25

    Supports customization

  • RTC

    G6-RK3588-F25

    Supported

Power supply
  • Power Input

    G6-RK3588-F25

    DC 12V - 2A

  • Buttons/Indicators

    G6-RK3588-F25

    Red/Green

Physical Parameters
  • Enclosure Dimension

    G6-RK3588-F25

    129*113*39mm

  • Package Dimensions

    G6-RK3588-F25

    244*187*62mm

  • Net Weight

    G6-RK3588-F25

    0.47 KG

  • Gross Weight

    G6-RK3588-F25

    0.95 KG

Software
  • Operating System

    G6-RK3588-F25

    Ubuntu22.04

Environment
  • Working Temperature

    G6-RK3588-F25

    -20~60°C (-4°~140°F)

  • Storage Temperature

    G6-RK3588-F25

    -20~60°C (-4°~140°F)

  • Working/Storage Humidity

    G6-RK3588-F25

    Relative Humidity:0~85%(No Condensation)/ Relative Humidity:0~85% (No Condensation)

  • Safety Certifications

    G6-RK3588-F25

    CCC,CE
