Model:
Adopts 8nm process, 8-core 64-bit architecture, high performance & low power consumption
Equipped with ARM Mali-G610 MC4 GPU and a dedicated graphics acceleration module
Fanless rugged design with wide temperature - 40℃ to 60℃
Onboard 6TOPS NPU, expandable to 32TOPS for diverse AI scenarios
Supports video input; 8K video encoding and decoding
Equipped with 2RS485 1RS232 CAN GPIO terminal and dual Gigabit Ethernet ports.
Supports Ubuntu 22.04 or Debian 11 operating systems
The G6-F1-RK3588 is a fanless industrial edge AI box powered by the Rockchip RK3588 8-core processor with an onboard 6 TOPS NPU, expandable to 32 TOPS via an M.2 2280 computing stick. It supports hardware-accelerated 8K video encoding/decoding, 1x HDMI input and 2x HDMI outputs with independent display and image overlay – ideal for video analytics, machine vision, and 8K digital signage. Equipped with 2x RS485, 1x RS232, 2x CAN, and GPIO, it seamlessly connects to PLCs and industrial sensors. Dual Gigabit Ethernet ports and optional 2.4G/5G Wi-Fi + 4G/5G cellular (via SIM slot) enable flexible networking and remote management. Rated for -40°C to 60°C operation, this rugged box runs Ubuntu 22.04 , making it a reliable edge computing platform for smart manufacturing, intelligent transportation, and industrial IoT gateways.
ShareVDI G6-F1 is powered by the Rockchip RK3588 octa-core processor with 4× Cortex-A76 and 4× Cortex-A55 architecture, delivering high-performance computing with low power consumption.
The integrated 6 TOPS NPU and Mali-G610 MC4 GPU provide powerful AI inference and graphics acceleration for industrial edge applications.
G6-F1 supports scalable AI acceleration with built-in 6 TOPS NPU and optional 26 TOPS computing power expansion, delivering up to 32 TOPS AI performance for advanced edge AI workloads.
The expandable architecture enables flexible upgrades for machine vision, intelligent video analysis and industrial AI applications.

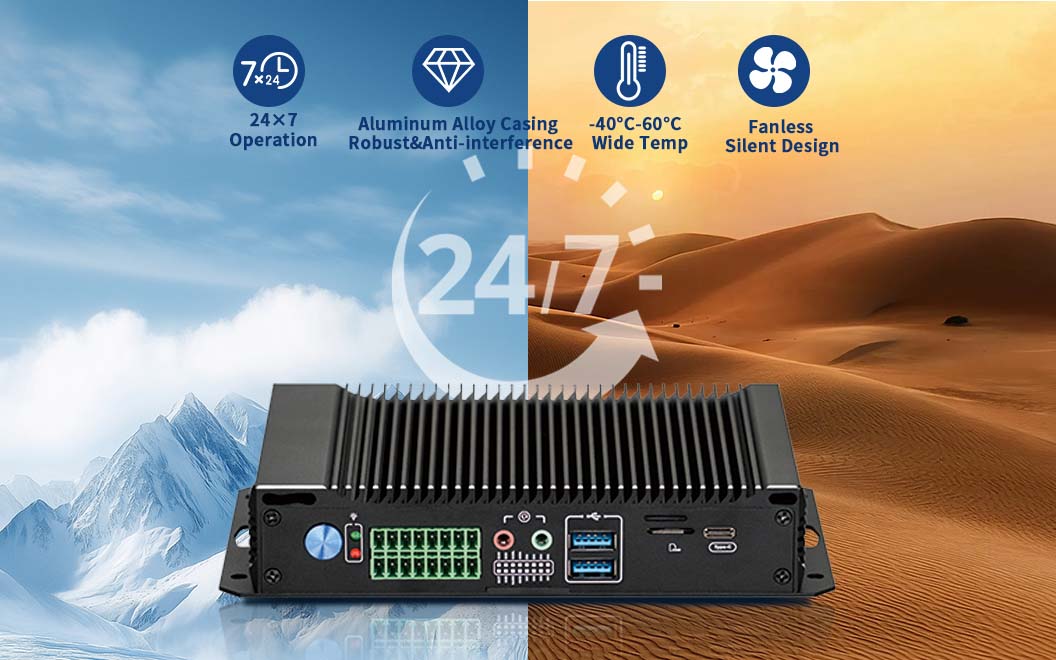

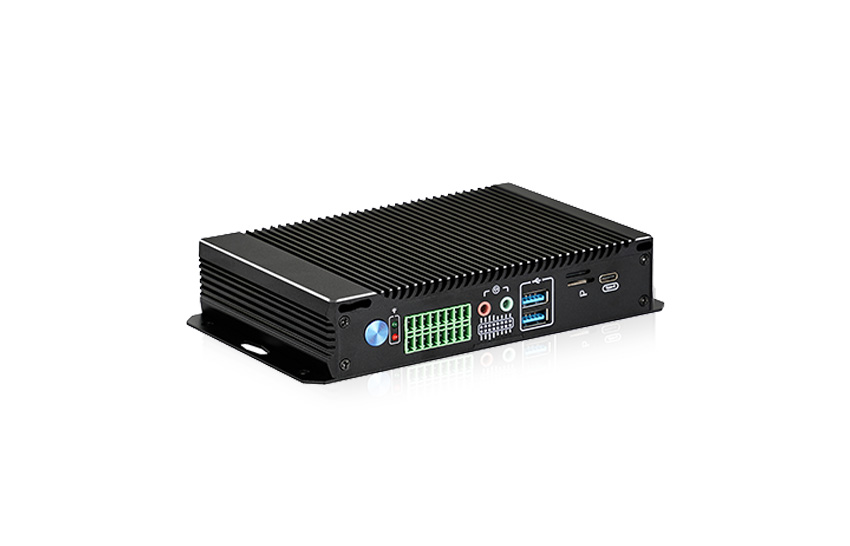

Designed as a fanless rugged ARM computer, G6-F1 adopts a compact industrial enclosure for stable operation in demanding environments.
The system supports a wide operating temperature range from -40°C to 60°C, making it suitable for long-term industrial deployment.
G6-F1 integrates advanced multimedia processing capabilities with HDMI input and output interfaces.
Supporting 8K video encoding and decoding, it enables high-resolution video processing for intelligent monitoring, machine vision and edge AI applications.

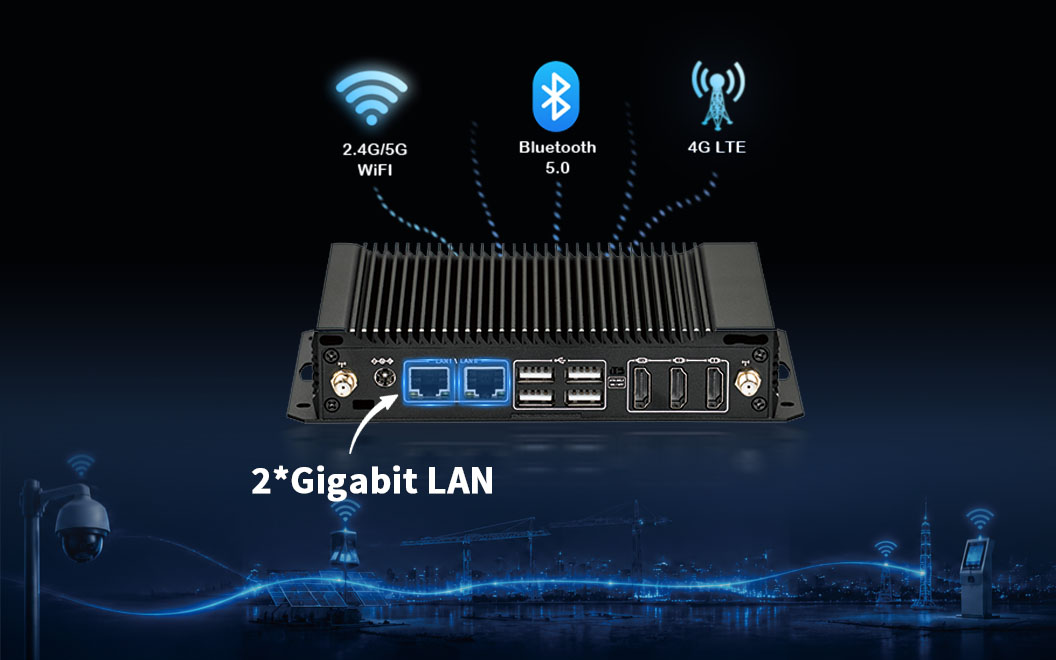

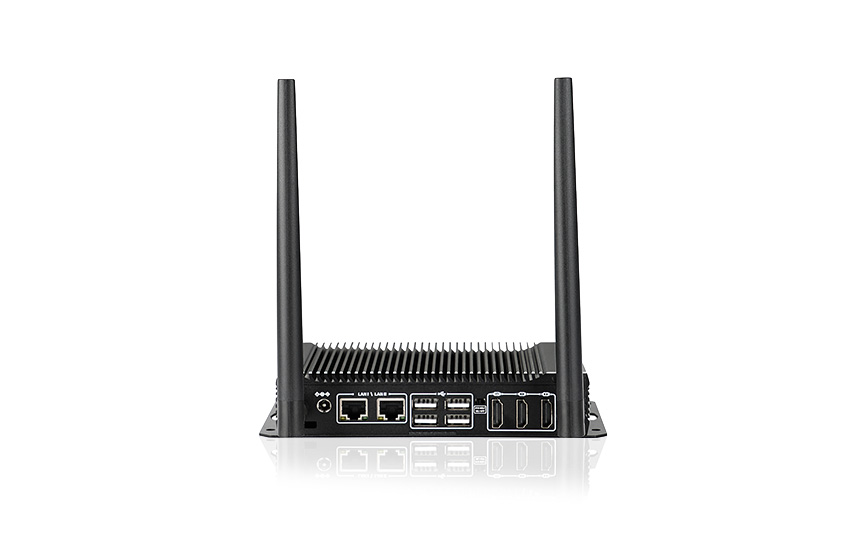

G6-F1 features dual Gigabit Ethernet connectivity for reliable industrial communication and edge data transmission.
With optional dual-band WiFi, Bluetooth and 4G/5G module support, the device provides flexible wireless networking options for industrial IoT applications.

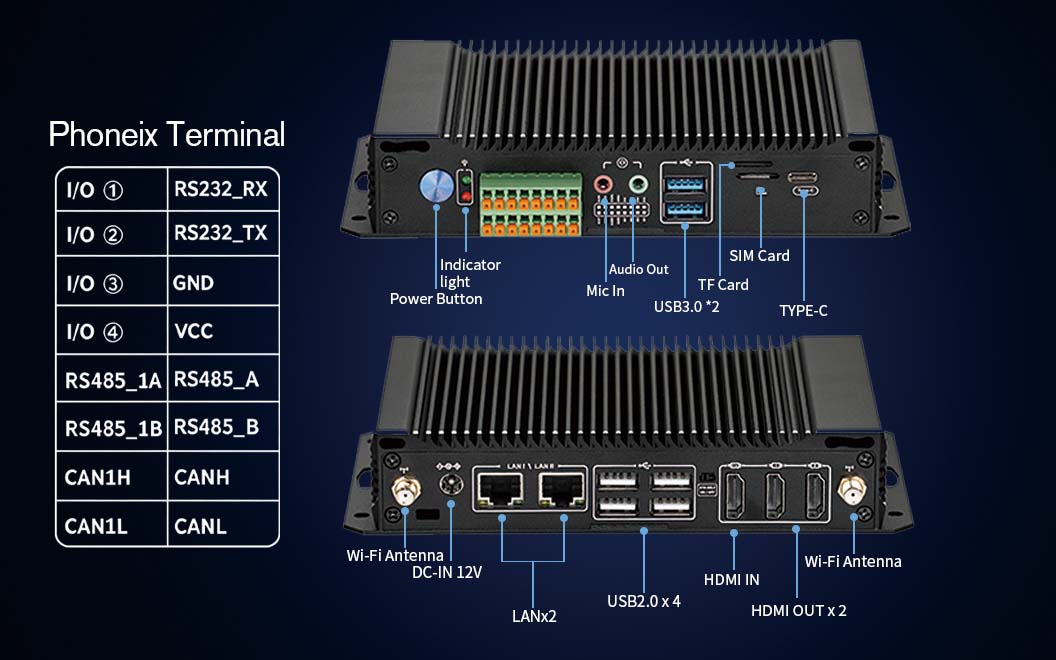

Designed for industrial equipment integration, G6-F1 provides rich interfaces including 2× RS485, 1× RS232, 2× CAN and GPIO terminal.
These industrial communication interfaces enable direct connection with sensors, controllers and field devices in automation systems.
G6-F1 is designed for intelligent industrial applications requiring local AI processing and real-time data analysis.
Supports smart manufacturing, equipment monitoring and industrial control applications.
Provides local AI computing for image recognition, visual inspection and quality control.
Enables real-time video analysis, intelligent monitoring and AI-based security applications.
SOC
4*Cortex-A76 + 4*Cortex-A55
CPU
RK3588
NPU
6TOPS/32TOPS (On-board 26 TOPS computing power chip)
Memory
8GB/16GB
Storage & Expansion
EMMC 64GB； 1TF card slot (supports storage expansion); 1*M.2 2280 NVME (expandable SSD & computing power stick)
Watchdog
Supports customization
RTC
Supported
GPU
Mali-G610 MC4
Hardware Codec
JPEG Encoder/Decoder；8K Video Encoder (H265/H264...）； 8K 10-bits Video Decoder (H265/H264/VP9/AV1...)
Display Interfacs
1HDMI in; 2HDMI out; supports image overlay & independent display; 4K resolution output (max 8K@60Hz)
Ethernet
Dual-Gigabit Ethernet
Wireless Network
2.4G+5G Dual-band WiFi + Bluetooth (optional)
USB
2×USB3.0 + 4×USB2.0
Phoneix Terminal
1 × RS232; 2 × RS485; 2 × CAN; 1 × GND; 4‑pin GPIO
Audio
3.5‑mm AUX headphone‑output port + 3.5‑mm AUX microphone‑input port
SIM
1*SIM card slot; (Mini-PCIe slot) Supports built-in 4G/5G module
Power Input
DC 12V - 2 A；Supports 9V~36V wide voltage
Buttons/Indicators
Red/Green
Enclosure Dimension
178mm×105mm×38mm (7.01in×4.13in×1.50in)
Package Dimension
213mm×210mm×50mm (8.39in×8.27in×1.97in)
Net Weight
0.68kg (1.50lbs)
Gross Weight
1.3kg (2.87lbs)
Operating System
Ubuntu22.04
Working Temperature
Ambient Temperature:-40~60 ℃
Storage Temperature
Ambient Temperature:-40~85 ℃
Working/Storage Humidity
Relative Humidity:0~85%（No Condensation）/ Relative Humidity:0~85%（No Condensation）
Certifications
CE；3C
