Fanless industrial-grade chassis engineered for 7×24 continuous operation
Intel Core i3-8130U processor (2.20GHz base, up to 3.40GHz Turbo).
2 x Gigabit Ethernet ports (10/100/1000BASE-T) Realtek 8111H
2 x Serial ports (RS232/RS485) ,6 x USB ports
1x External toggle switch for Power-on Self-start capability
1x External PWRBTN header for connecting a power switch extension cable
Support Windows11, Windows 11 IoT, Linux
Wide-range power input 9–36V through a 3-pin connector
Operating temperature range: -10 ℃ to 60 ℃
Supports VESA mount and Din Rail bracket installation
● Compact fanless design measuring 106×159×32mm for space-constrained installations
● Intel Celeron N3160 quad-core processor
● Dual LAN, 4 USB ports, 1 VGA, 1 HDMI, and 1 Type-C port
● External ATX switch for Auto Power-On function control
● External F_Panel PIN for power switch extension cable connection
● One M.2 PCIe slot for Wi-Fi and Bluetooth module
● Integrated support for TPM 2.0
● Support Windows 10/IoT/Linux OS
● Supports PXE, Auto Power-On, WOL
● Low 6W TDP with stable 24/7 operation for continuous reliability

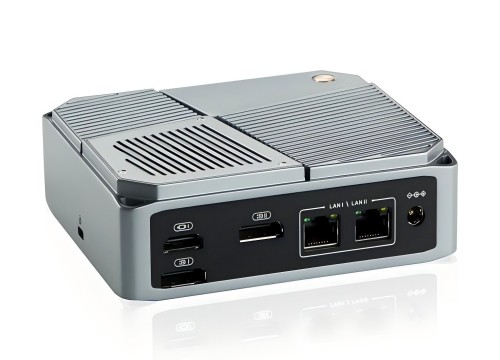

Intel N100 Processor / AMD 9420 processor
NUC Slim design (L 129mm*W 113mm*H 39mm)
1xHDMI+2xDP, support Triple Display
Support playing 4K Video
2xRealtek 8111G Gigabit
TPM2.0 security encryption
Comptiable with WIN10 / WIN11 / Linux
Traditional digital signage systems often face challenges such as outdated content, decentralized management difficulties, and limited interactivity. ShareVDI’s Mini PC is specifically designed for digital signage applications, delivering high performance, low power consumption, and centralized management. It supports dynamic content distribution, remote control, and multi-screen interactivity, enabling businesses to achieve efficient digital information display.
-Retail: Shopping mall promotional displays, product information screens, self-service kiosks.
-Transportation: Subway/airport information screens, real-time schedule displays, emergency notifications.
-Corporate Offices: Meeting room booking displays, corporate branding walls, employee announcement boards.
-Public Services: Hospital registration guides, government lobby information screens, smart campus notice boards.
Media Player: Serves as the central computing terminal, supporting 4K decoding and multi-screen output.
Display Devices: LCD/LED screens, touchscreens, etc.
Networking Equipment: Wired/wireless connectivity for real-time content synchronization.
Content Management Platform: On-premises servers or cloud-based CMS.
Peripheral Expansion: Cameras (facial recognition), sensors (foot traffic monitoring), scanners, etc.
-High-Performance Media Processing
Supports 4K/8K video playback, dynamic ad rendering, and multi-tasking.
-24/7 Stable Operation
Fanless or efficient cooling design to prevent overheating and crashes.
-Remote Centralized Management
Enables batch deployment, content updates, and device monitoring to reduce maintenance costs.
-Flexible Scalability
Compatible with peripherals (touchscreens, NFC modules) for interactive applications.
-Processor: Intel N100 (4-core, 4-thread), low-power efficiency, reducing long-term operational costs.
-Memory & Storage: DDR4 up to 16G, M.2 2280 SATA/NVME, support 2.5-inch HDD expansion.
-Networking: Dual Gigabit Ethernet (optional WiFI/4G) for high-bandwidth content delivery.
-Installation Flexibility: Compact Size (Critical for Signage): 129mm x 113mm x 39mm ultra-slim profile fits space-constrained installations (e.g., behind thin displays or in kiosks), and VESA Mount supported.

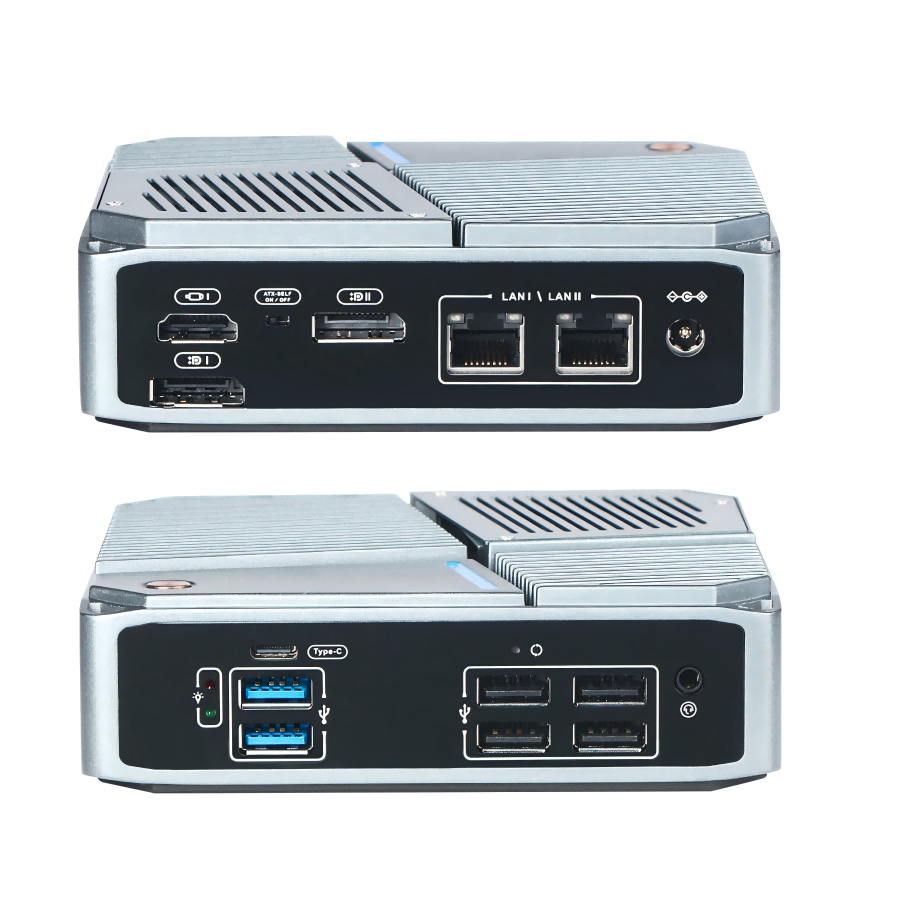

-Display Output: HDMI + DPx2 interfaces for multi-screen or video wall configurations.
-Peripheral Connectivity: USB 3.0x2 and USB 2.0x4 for flexible peripheral integration.
-Software Ecosystem: Compatible with Windows 10/11, Ubuntu 24.04, Centos 9
The F25-N100 Mini PC delivers a compact, high-performance, and energy-efficient solution for modern digital signage needs. With 4K-ready playback, centralized management, and flexible scalability, it transforms static displays into dynamic, interactive communication hubs—saving costs while enhancing engagement. Contact us to discuss a tailored solution for your business.
