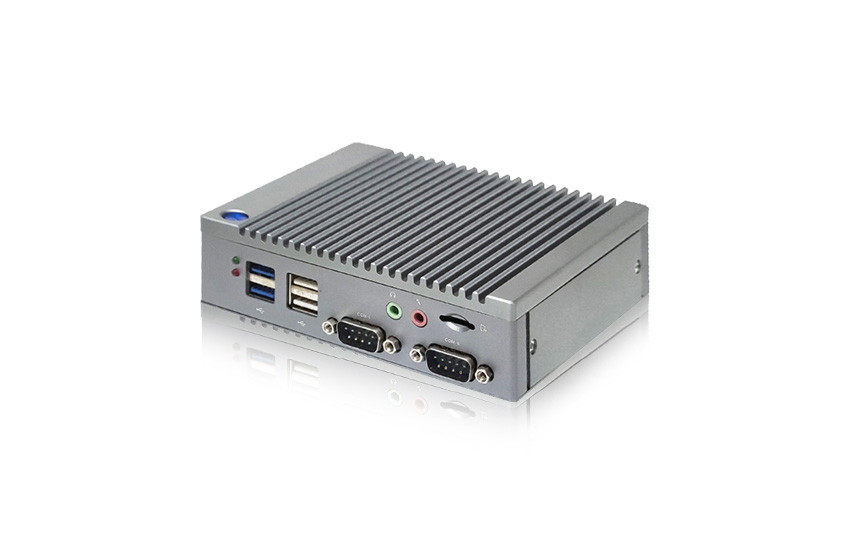

G6-RK3588 AI Edge Gateway
Model:
G6-RK3588
● 8nm advanced manufacturing process,8-core 64-bit architecture,delivering high performance and low power consumption.
● Equipped with ARM Mali-G610 MC4 GPU and a dedicated 2D graphics acceleration module.
● 6TOPS NPU,Support the installation of computing power sticks,empowering various AI scenarios.
● Capable of 8K video encoding and decoding.
● Features multiple built-in display interfaces,supporting multi-screen heterogeneous display.
● Boasts a powerful image processing ability with a 48MP ISP.
● Comes with a wealth of high-speed interfaces (PCle, Gigabit Ethernet), facilitating easy expansion.
● Supports Android and Linux operating systems.
G6-RK3588 is an AI-optimized computing platform featuring an 8-core 64-bit CPU, 6TOPS NPU, and 8K media processing, with rich I/O and multi-OS support for demanding AI vision and edge computing applications.
-
Part No.G6-RK3588
-
-
System
SOC
4*Cortex-A76 + 4*Cortex-A55
CPU
Rockchip RK3588
NPU
6TOPS，Support the installation of computing power sticks（M.2 2280 SATA/NVME）
Memory
8GB
Storage & Expansion
EMMC 128GB； SSD （M.2 2280 SATA/NVME）
-
Video
GPU
Mali-G610
Hardware Codec
JPEG Encoder/Decoder；8K Video Encoder (H265/H264...）；8K 10-bits Video Decoder (H265/H264/VP9/AV1...)
Display Interfaces
2*HDMI 2.1 ； Supports heterogeneous display; 4K resolution output, up to 8K@60HZ
-
Network
Ethernet
Dual Gigabit Ethernet
Wireless Network
2.4G+5G Dual-band WIFI+Bluetooth
-
I/O
USB
2*USB3.0；4*USB2.0
RS232
2*RS232 （External RS485 conversion module can be installed）
Audio
AUX3.5* headphone output + AUX3.5* microphone input
SIM
1*SIM card slot; Supports built-in 4G/5G module
-
Others
Watchdog
Supports customization
RTC
Supported
-
Power Input
Power Input
DC 12V - 3A
Buttons/Indicators
Red/Green
-
Physical Parameters
Board Dimensions
133*126*36.5mm
Package Dimensions
245*190*60mm
Net Weight
0.57 KG
Gross Weight
0.95 KG
-
Software
Operating System
Ubuntu22.04；Android 12； debain11
-
Environment
Operating Temperature
-10~40°C (14~104°F)
Storage Temperature
-10~40°C (14~104°F)
Operating/Storage Humidity
0~85% RH (Non-condensing)
Safety Certifications
CCC，CE，ISO
-
