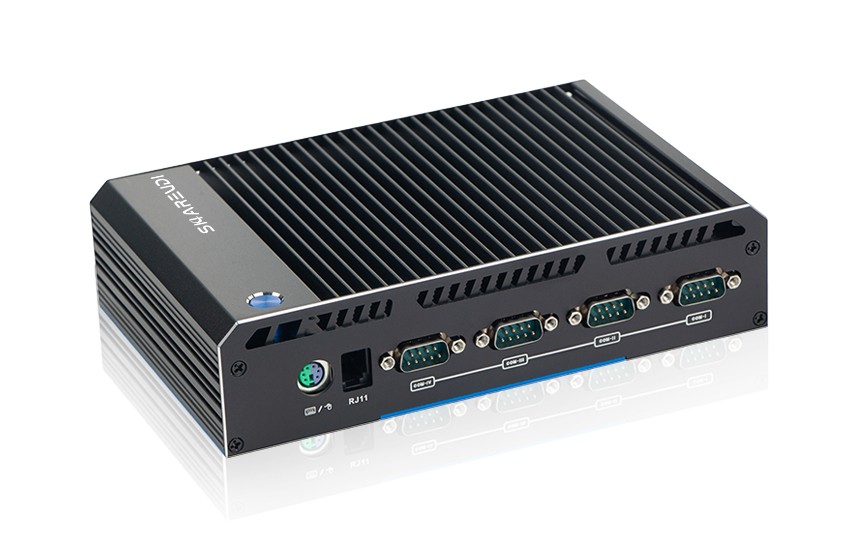

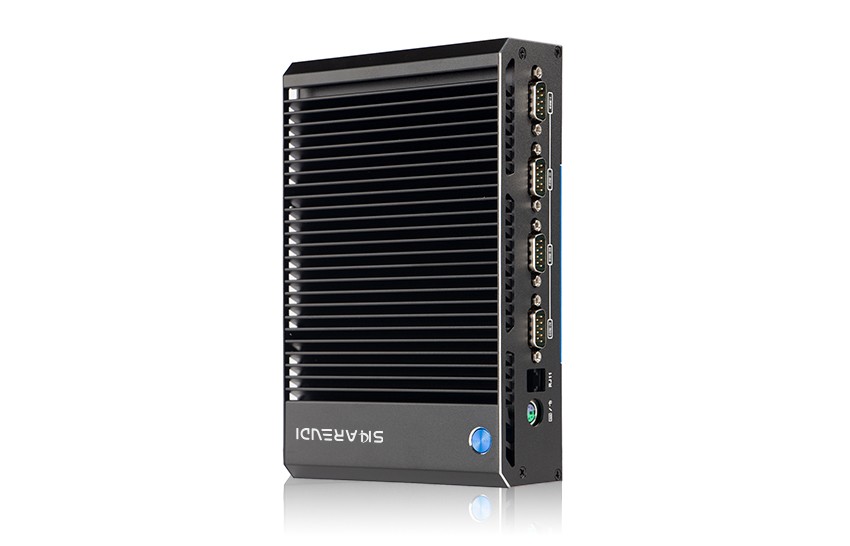

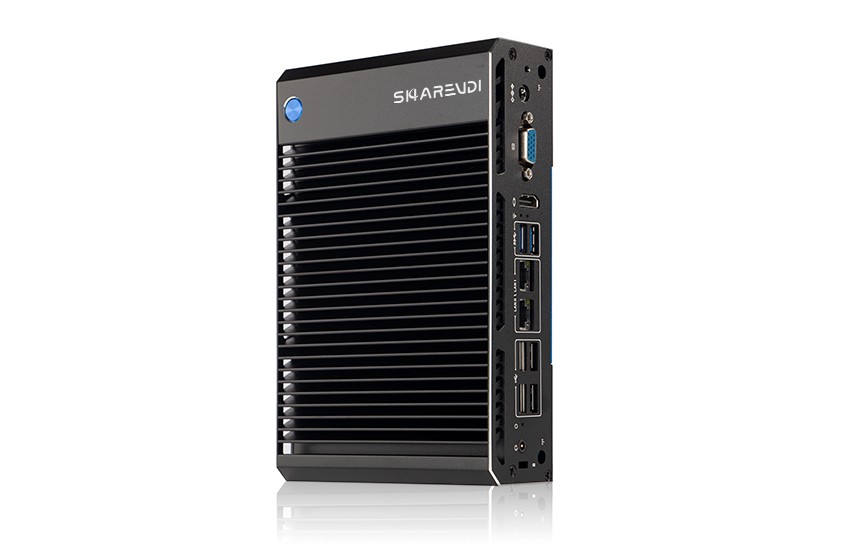

K3-F17HI Fanless PC POS
Model:
K3-F17HI-5005U
● Intel Core i3-5005U/i5-5300U/i7-5500U processors available
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible expansion for I/O ports
● 4x COM ports (RS232/RS485, 0V/5V/12V)
● 2x Gigabit LAN
● Dual Display (HDMI+VGA)
● 1x RJ11 port
● 1x PS/2 port
● 12V ~64V wide range power input
● Wide temperature -20~65°C
● Support Din rail, Embedded, Stand, Mount installation
The K3-F17HI Fanless PC POS is equipped with the 5th Generation i3/i5/i7 CPUs, guaranteeing reliable and efficient performance. This PC is notable for its extensive range of interfaces, facilitating seamless connectivity and operation.
-
Part No.K3-F17HI-5005UK5-F17HI-5300U
-
-
Processor
CPU
Intel Core i3-5005U, 2 Cores / 4 Threads
Intel Core i5-5300U, 2 Cores / 4 Threads
Frequency
2.0 GHz
2.3 GHz
Max Turbo Frequency
2.0 GHz
2.9 GHz
Cache
3 MB Cache
3 MB Cache
Chipset
Broadwell
Broadwell
-
Memory
Technology
2*SO-DIMM DDR3 slots
2*SO-DIMM DDR3 slots
Max. Capacity
16GB
16GB
-
Storage
MSATA
SSD 32GB/64GB/128GB/256GB/512GB
SSD 32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional)
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel HD Graphics
Intel HD Graphics
-
Audio
Audio
HD Audio Realtek ALC 897
HD Audio Realtek ALC 897
-
Network
LAN
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
Wireless
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
I/O Interface
Front

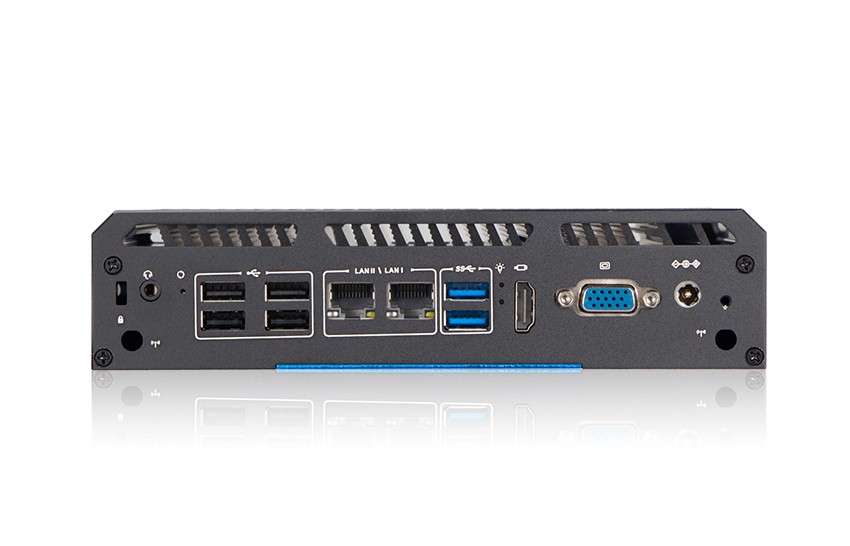

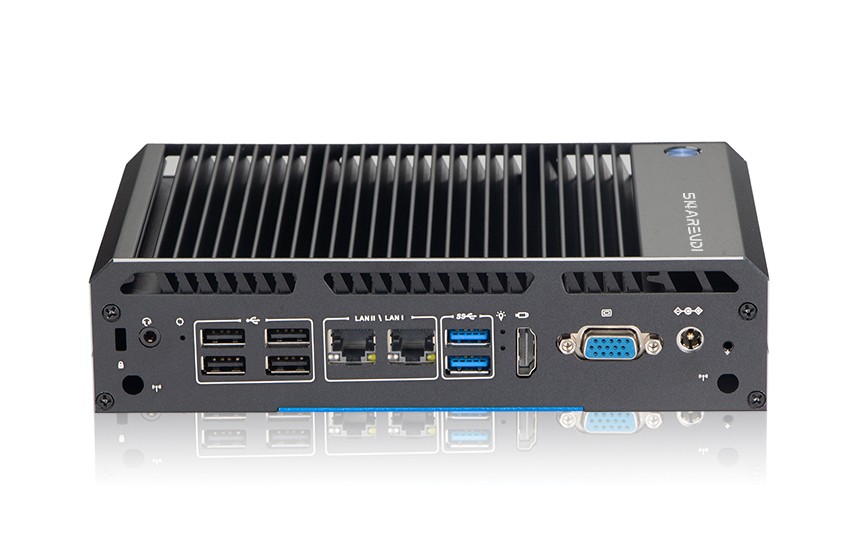

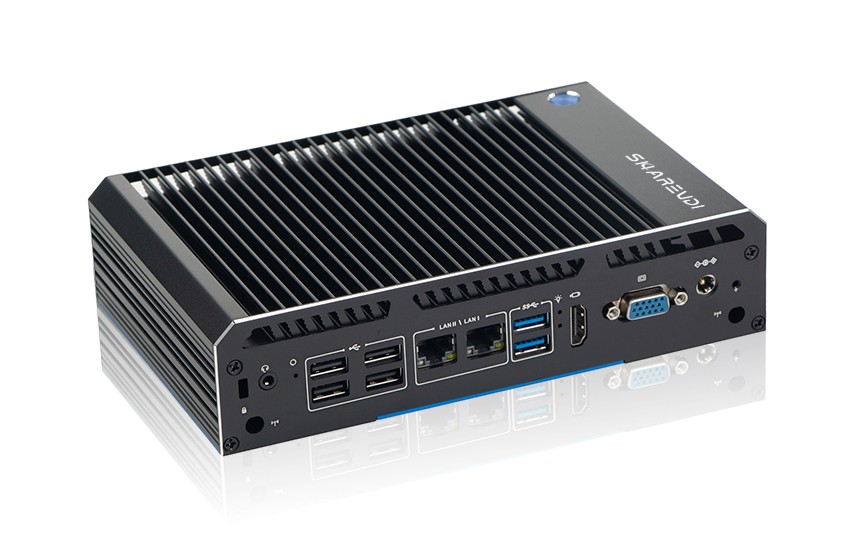

1*HDMI,1*VGA, 2*USB3.0, 4*USB2.0, 2*Ethernet RJ45, 1*DC_IN,1*MIC& SPK
1*HDMI,1*VGA, 2*USB3.0, 4*USB2.0, 2*Ethernet RJ45, 1*DC_IN,1*MIC& SPK
Rear

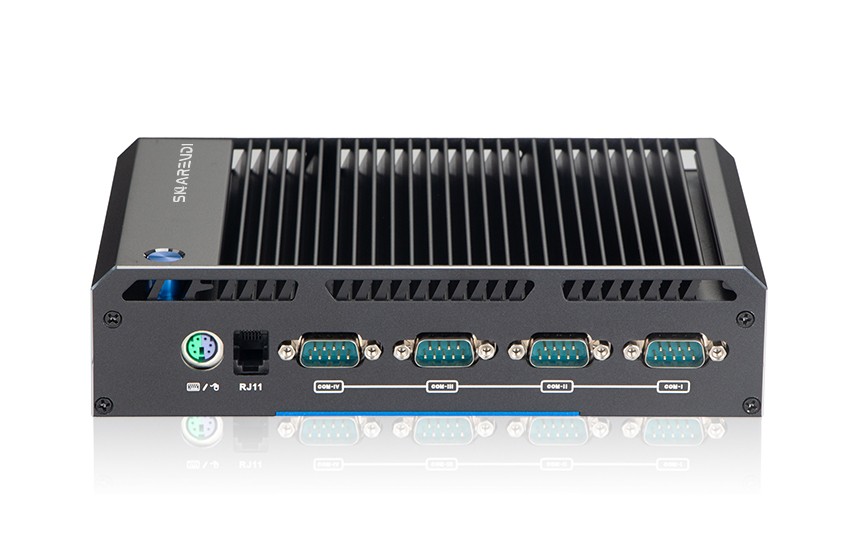

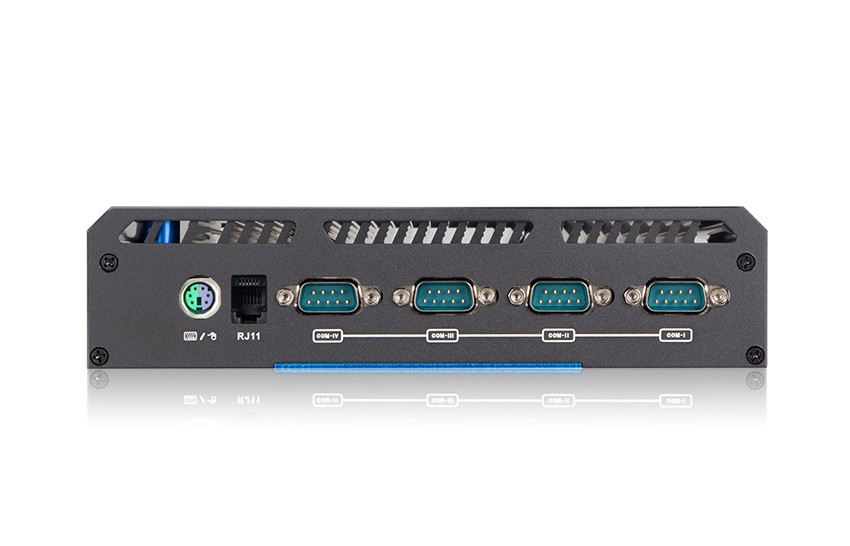

1*RJ11, 1*PS/2, 4*Serial RS232/RS485 COM (Optional)
1*RJ11, 1*PS/2, 4*Serial RS232/RS485 COM (Optional)
-
Extendable
I/O
Screen backlight power supply pin x 1, USB 2.0 pin x 2, TPM pin x 1, Speaker x 1, F_PANEL x 1, LVDS x 1, COM signal switch pin x 2, COM voltage switch pin x 2, Sata and power supply x 1, 20 PIN GPIO x 1, JSW1 pin (set power on auto start) x 1, JBAT1 pin x 1, CPU_FAN x 1
Screen backlight power supply pin x 1, USB 2.0 pin x 2, TPM pin x 1, Speaker x 1, F_PANEL x 1, LVDS x 1, COM signal switch pin x 2, COM voltage switch pin x 2, Sata and power supply x 1, 20 PIN GPIO x 1, JSW1 pin (set power on auto start) x 1, JBAT1 pin x 1, CPU_FAN x 1
Module
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
Power
Input
AC100-240V. 50-60Hz DC
AC100-240V. 50-60Hz DC
Output
12V-5A
12V-5A
Wide Voltage
9-36V phoenix connector （Optional）
9-36V phoenix connector （Optional）
-
Operating System
Windows/Linux/Centos
Windows/Linux/Centos
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
1.0KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
CPU
K3-F17HI-5005U
Intel Core i3-5005U, 2 Cores / 4 Threads
K5-F17HI-5300U
Intel Core i5-5300U, 2 Cores / 4 Threads
-
Frequency
K3-F17HI-5005U
2.0 GHz
K5-F17HI-5300U
2.3 GHz
-
Max Turbo Frequency
K3-F17HI-5005U
2.0 GHz
K5-F17HI-5300U
2.9 GHz
-
Cache
K3-F17HI-5005U
3 MB Cache
K5-F17HI-5300U
3 MB Cache
-
Chipset
K3-F17HI-5005U
Broadwell
K5-F17HI-5300U
Broadwell
-
Technology
K3-F17HI-5005U
2*SO-DIMM DDR3 slots
K5-F17HI-5300U
2*SO-DIMM DDR3 slots
-
Max. Capacity
K3-F17HI-5005U
16GB
K5-F17HI-5300U
16GB
-
MSATA
K3-F17HI-5005U
SSD 32GB/64GB/128GB/256GB/512GB
K5-F17HI-5300U
SSD 32GB/64GB/128GB/256GB/512GB
-
SATA
K3-F17HI-5005U
HDD 500GB/1TB/2TB (Optional)
K5-F17HI-5300U
HDD 500GB/1TB/2TB (Optional)
-
Graphics
K3-F17HI-5005U
Intel HD Graphics
K5-F17HI-5300U
Intel HD Graphics
-
Audio
K3-F17HI-5005U
HD Audio Realtek ALC 897
K5-F17HI-5300U
HD Audio Realtek ALC 897
-
LAN
K3-F17HI-5005U
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
K5-F17HI-5300U
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
-
Wireless
K3-F17HI-5005U
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
K5-F17HI-5300U
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
Front
K3-F17HI-5005U
1*HDMI,1*VGA, 2*USB3.0, 4*USB2.0, 2*Ethernet RJ45, 1*DC_IN,1*MIC& SPK
K5-F17HI-5300U
1*HDMI,1*VGA, 2*USB3.0, 4*USB2.0, 2*Ethernet RJ45, 1*DC_IN,1*MIC& SPK
-
Rear
K3-F17HI-5005U
1*RJ11, 1*PS/2, 4*Serial RS232/RS485 COM (Optional)
K5-F17HI-5300U
1*RJ11, 1*PS/2, 4*Serial RS232/RS485 COM (Optional)
-
I/O
K3-F17HI-5005U
Screen backlight power supply pin x 1, USB 2.0 pin x 2, TPM pin x 1, Speaker x 1, F_PANEL x 1, LVDS x 1, COM signal switch pin x 2, COM voltage switch pin x 2, Sata and power supply x 1, 20 PIN GPIO x 1, JSW1 pin (set power on auto start) x 1, JBAT1 pin x 1, CPU_FAN x 1
K5-F17HI-5300U
Screen backlight power supply pin x 1, USB 2.0 pin x 2, TPM pin x 1, Speaker x 1, F_PANEL x 1, LVDS x 1, COM signal switch pin x 2, COM voltage switch pin x 2, Sata and power supply x 1, 20 PIN GPIO x 1, JSW1 pin (set power on auto start) x 1, JBAT1 pin x 1, CPU_FAN x 1
-
Module
K3-F17HI-5005U
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
K5-F17HI-5300U
M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module； M. 2 B KEY 3042/3052 slot x 1, support 3G/4G module (with SIM card slot)
-
Input
K3-F17HI-5005U
AC100-240V. 50-60Hz DC
K5-F17HI-5300U
AC100-240V. 50-60Hz DC
-
Output
K3-F17HI-5005U
12V-5A
K5-F17HI-5300U
12V-5A
-
Wide Voltage
K3-F17HI-5005U
9-36V phoenix connector （Optional）
K5-F17HI-5300U
9-36V phoenix connector （Optional）
-
K3-F17HI-5005U
Windows/Linux/Centos
K5-F17HI-5300U
Windows/Linux/Centos
-
Dimension
K3-F17HI-5005U
L 197.4mm*W 126.3mm*H 47.5mm
K5-F17HI-5300U
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K3-F17HI-5005U
1.0KG
K5-F17HI-5300U
1.0KG
-
Color
K3-F17HI-5005U
Black
K5-F17HI-5300U
Black
-
Cooling Method
K3-F17HI-5005U
Fanless Passive Cooling
K5-F17HI-5300U
Fanless Passive Cooling
-
Mounting Options
K3-F17HI-5005U
Dedicated bracket; Support VESA bracket
K5-F17HI-5300U
Dedicated bracket; Support VESA bracket
-
Certification
K3-F17HI-5005U
CE, FCC, ROHS, ISO, UL
K5-F17HI-5300U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K3-F17HI-5005U
-10~60 ℃
K5-F17HI-5300U
-10~60 ℃
-
Storage Temperature
K3-F17HI-5005U
-10~60 ℃
K5-F17HI-5300U
-10~60 ℃
-
Operation Humidity
K3-F17HI-5005U
0~95% (No Condensation)
K5-F17HI-5300U
0~95% (No Condensation)
-
Storage Humidity
K3-F17HI-5005U
0~95% (No Condensation)
K5-F17HI-5300U
0~95% (No Condensation)
