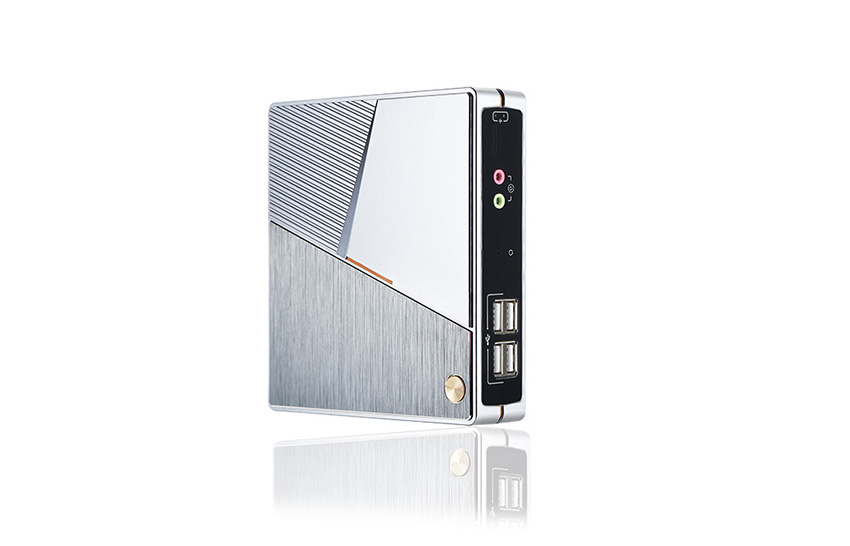

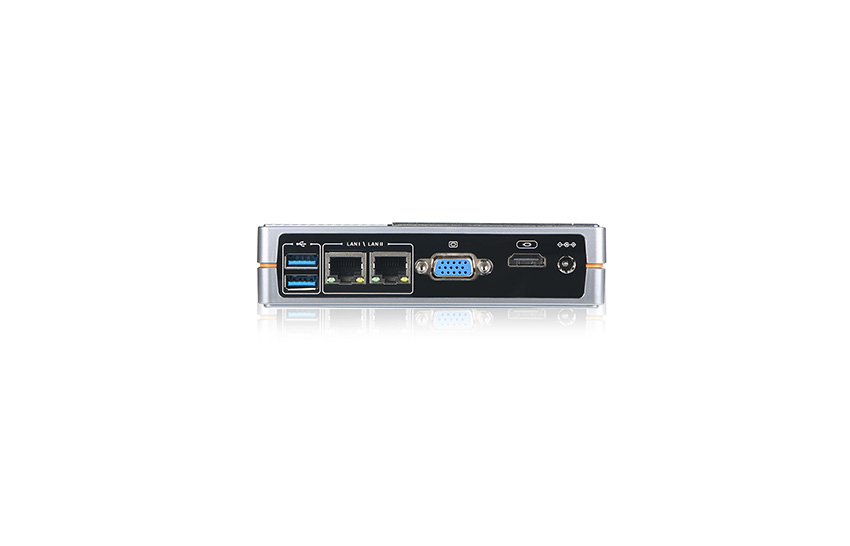

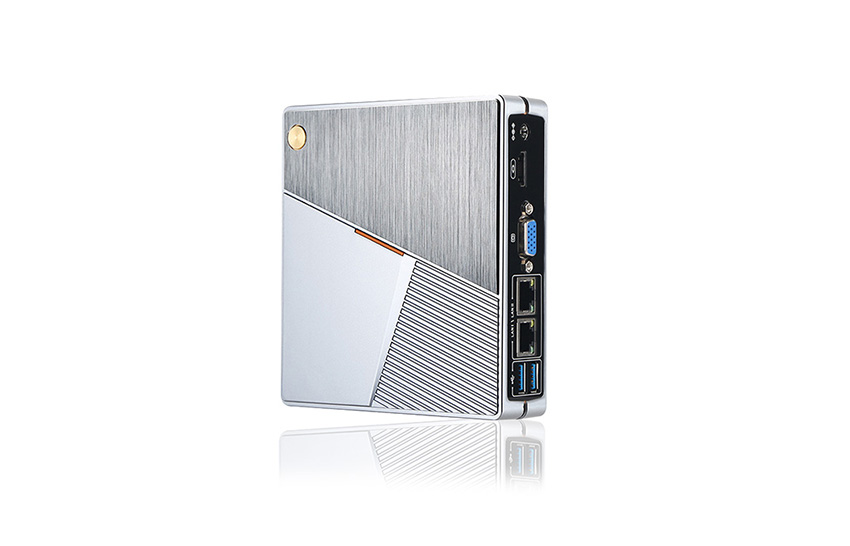

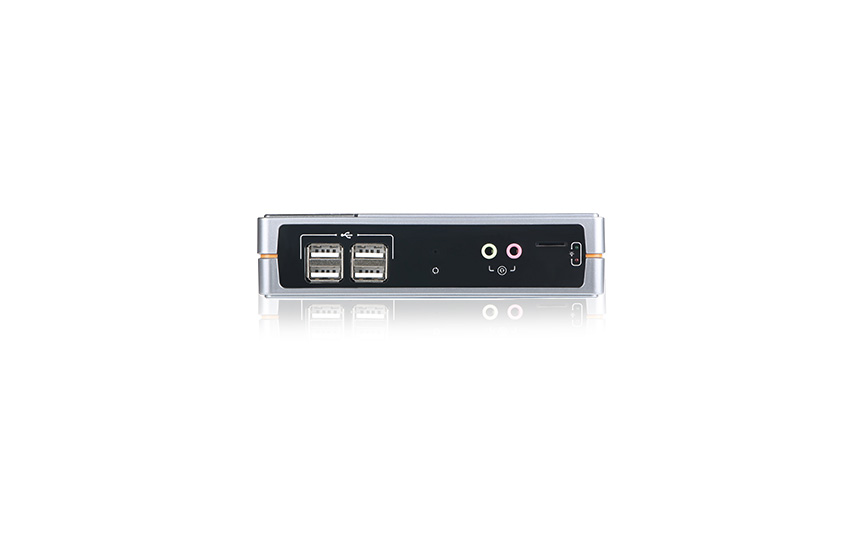

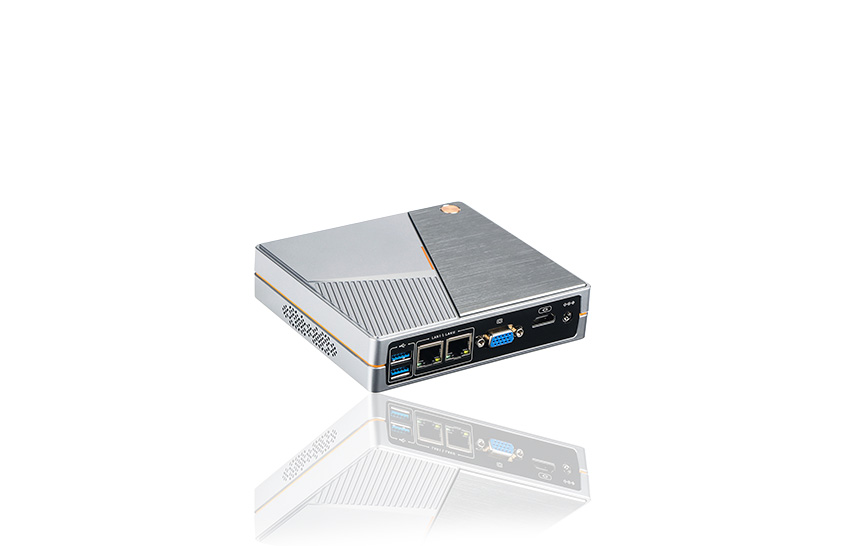

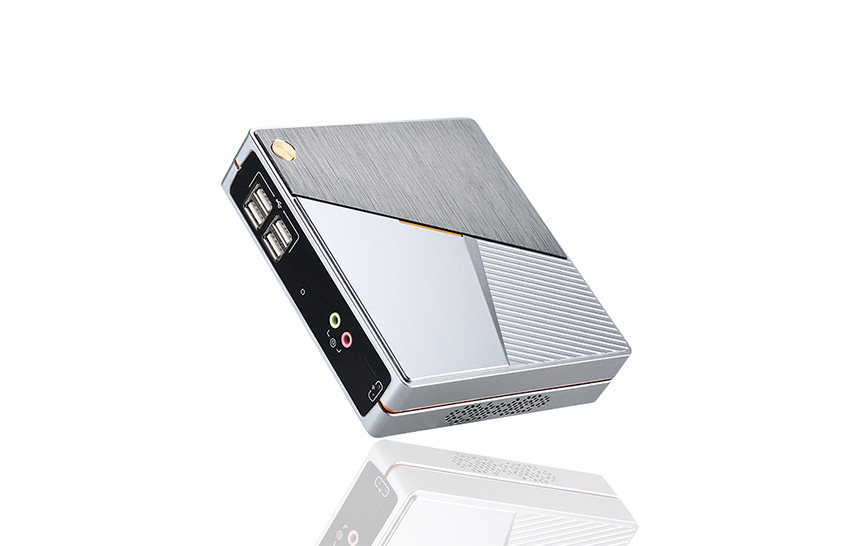

R2-Rplus Thin Client
Model:
R2-Rplus
● Desktop Cloud Computing Solution
● With Management Software
● Quad core Cortex-A55,2GB RAM DDR4,16GB Flash
● 2x LAN,4xUSB2.0, 2xUSB3.0, 1xVGA , 1xHDMI, 1xDC Power, 1xSPK&MIC, 1xSD card
● Support Peripherals via USB- Printer, Scanner etc
● Video Resolution 1920*1080px
● Support Windows10/11 / Server 2022/2025 / Linux
Thin Client R2 Plus is an ideal multi-user cloud terminal for schools & educational offices. Powered by quad-core Cortex-A55 with abundant ports including dual LAN, HDMI and VGA, it delivers full 1920*1080 HD display. It supports USB peripherals like printers and scanners, compatible with Windows, Server and Linux systems. Equipped with dedicated management software, admins can centrally manage mass devices easily to cut campus IT costs and simplify daily office operation.
-
Part No.R2-Plus-RK3568-C8R2-Plus-RK3568-C8
-
-
System
Processor
Quad‑core Cortex‑A55
Memory
DDR4 2GB RAM
Storage
16GB flash
Graphics
ARM G52 2EE
Protocol
HVDP
-
Operating‑System
OS supported (Server side)
Windows 10/11 and server 2022/2025
OS(Local)
Embedded linux kernel
-
Video & Display
VGA Resolution
1024x768/1366*768/1440*900/1280*1024/1600*900/1280*720/1920*1080/1680*1050
HDMI Resolution
1920*1200/1920*1080
Online video
1280*720p
-
Network
Wired Network
2 × RJ45 LAN Port
WIFI
No by default ,Optional
-
I‑O Interfaces
I/O port
VGA x 1,HDMI x 1,USB2.0 x 4,USB3.0 x 2,RJ45 LAN x 2,DC Power x 1, SPK&MIC x 1,SD card x 1.
-
Power‑supply
Power supply
12V-2A
Power Consumption
5W-10W
-
Physical Parameters
Device Size
139x128x34mm
Weight
293g
-
Environment Parameter
Working temperature
0℃~45℃
-
Software‑related Function
Language
English/Chinese
Upgrade
Firmware upgrade
Management Software
Hmanager
Printer Redirect
Support
-
Processor
R2-Plus-RK3568-C8
Quad‑core Cortex‑A55
R2-Plus-RK3568-C8
-
Memory
R2-Plus-RK3568-C8
DDR4 2GB RAM
R2-Plus-RK3568-C8
-
Storage
R2-Plus-RK3568-C8
16GB flash
R2-Plus-RK3568-C8
-
Graphics
R2-Plus-RK3568-C8
ARM G52 2EE
R2-Plus-RK3568-C8
-
Protocol
R2-Plus-RK3568-C8
HVDP
R2-Plus-RK3568-C8
-
OS supported (Server side)
R2-Plus-RK3568-C8
Windows 10/11 and server 2022/2025
R2-Plus-RK3568-C8
-
OS(Local)
R2-Plus-RK3568-C8
Embedded linux kernel
R2-Plus-RK3568-C8
-
VGA Resolution
R2-Plus-RK3568-C8
1024x768/1366*768/1440*900/1280*1024/1600*900/1280*720/1920*1080/1680*1050
R2-Plus-RK3568-C8
-
HDMI Resolution
R2-Plus-RK3568-C8
1920*1200/1920*1080
R2-Plus-RK3568-C8
-
Online video
R2-Plus-RK3568-C8
1280*720p
R2-Plus-RK3568-C8
-
Wired Network
R2-Plus-RK3568-C8
2 × RJ45 LAN Port
R2-Plus-RK3568-C8
-
WIFI
R2-Plus-RK3568-C8
No by default ,Optional
R2-Plus-RK3568-C8
-
I/O port
R2-Plus-RK3568-C8
VGA x 1,HDMI x 1,USB2.0 x 4,USB3.0 x 2,RJ45 LAN x 2,DC Power x 1, SPK&MIC x 1,SD card x 1.
R2-Plus-RK3568-C8
-
Power supply
R2-Plus-RK3568-C8
12V-2A
R2-Plus-RK3568-C8
-
Power Consumption
R2-Plus-RK3568-C8
5W-10W
R2-Plus-RK3568-C8
-
Device Size
R2-Plus-RK3568-C8
139x128x34mm
R2-Plus-RK3568-C8
-
Weight
R2-Plus-RK3568-C8
293g
R2-Plus-RK3568-C8
-
Working temperature
R2-Plus-RK3568-C8
0℃~45℃
R2-Plus-RK3568-C8
-
Language
R2-Plus-RK3568-C8
English/Chinese
R2-Plus-RK3568-C8
-
Upgrade
R2-Plus-RK3568-C8
Firmware upgrade
R2-Plus-RK3568-C8
-
Management Software
R2-Plus-RK3568-C8
Hmanager
R2-Plus-RK3568-C8
-
Printer Redirect
R2-Plus-RK3568-C8
Support
R2-Plus-RK3568-C8
