RK3588 industrial edge AI box
Model:
G6-F1-RK3588
Adopts 8nm process, 8-core 64-bit architecture, high performance & low power consumption
Equipped with ARM Mali-G610 MC4 GPU and a dedicated graphics acceleration module
Fanless rugged design with wide temperature - 40℃ to 60℃
Onboard 6TOPS NPU, expandable to 32TOPS for diverse AI scenarios
Supports video input; 8K video encoding and decoding
Equipped with 2RS485 1RS232 CAN GPIO terminal and dual Gigabit Ethernet ports.
Supports Ubuntu 22.04 or Debian 11 operating systems
Adopts 8nm process, 8-core 64-bit architecture, high performance & low power consumption
Equipped with ARM Mali-G610 MC4 GPU and a dedicated graphics acceleration module
Fanless rugged design with wide temperature - 40℃ to 60℃
Onboard 6TOPS NPU, expandable to 32TOPS for diverse AI scenarios
Supports video input; 8K video encoding and decoding
Equipped with 2RS485 1RS232 CAN GPIO terminal and dual Gigabit Ethernet ports.
Supports Ubuntu 22.04 or Debian 11 operating systems

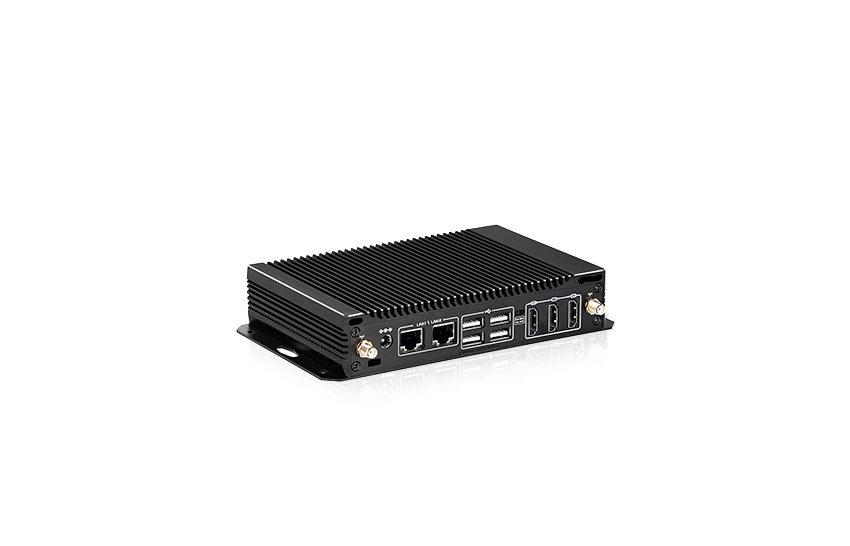

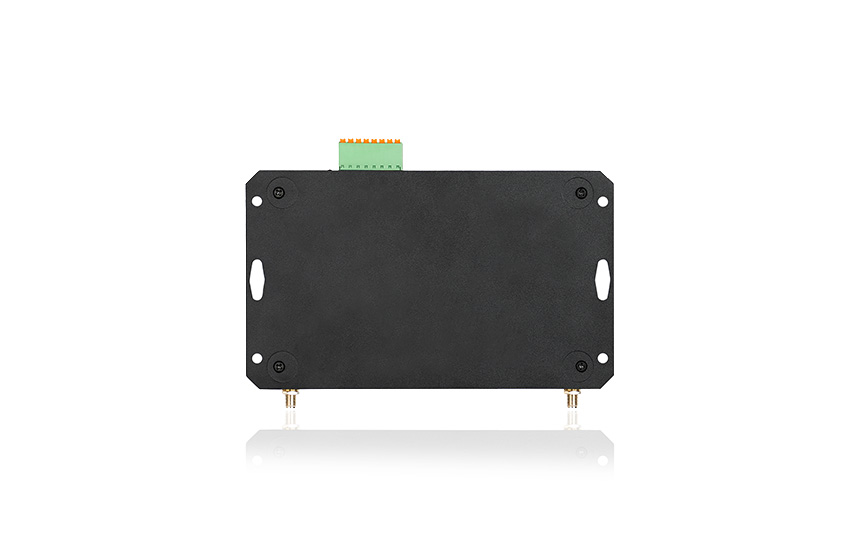

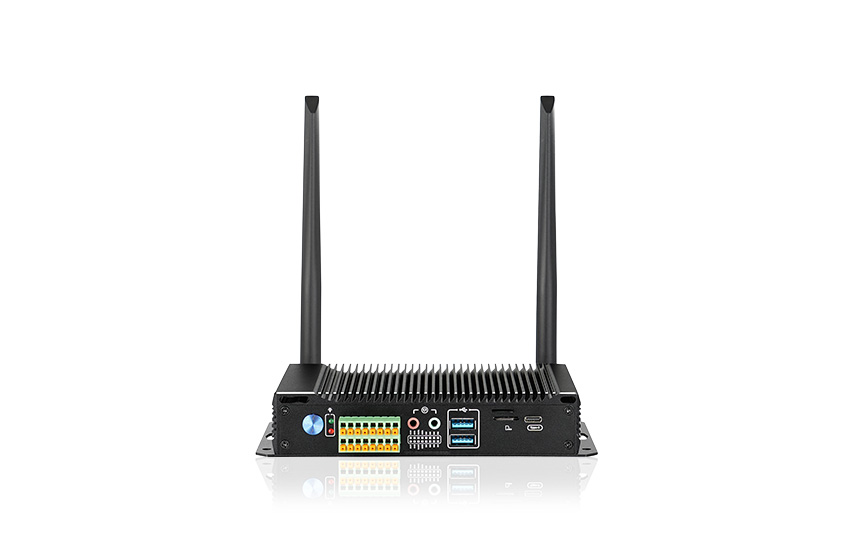

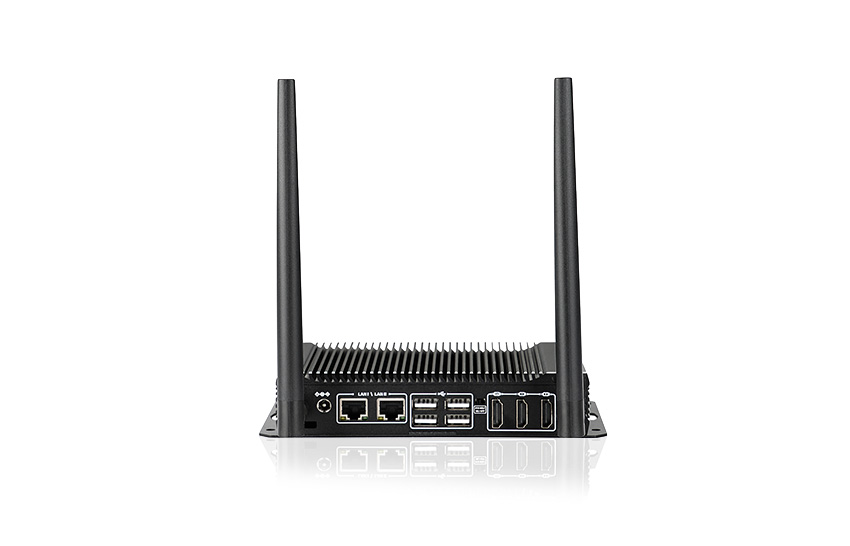

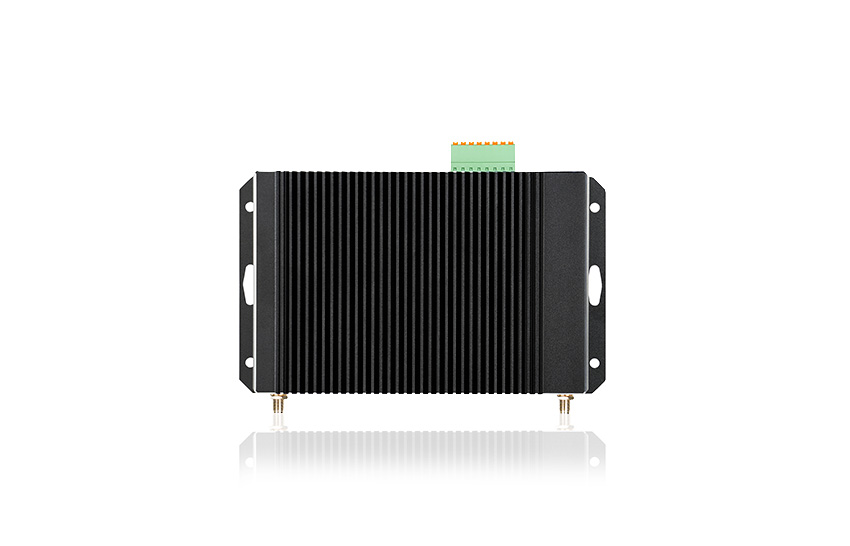

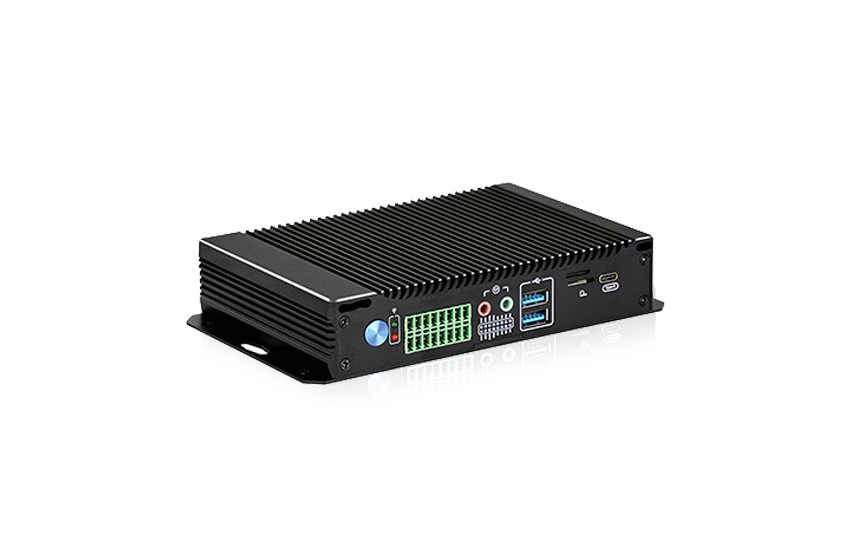

The G6-F1-RK3588 is a fanless industrial edge AI box powered by the Rockchip RK3588 8-core processor with an onboard 6 TOPS NPU, expandable to 32 TOPS via an M.2 2280 computing stick. It supports hardware-accelerated 8K video encoding/decoding, 1x HDMI input and 2x HDMI outputs with independent display and image overlay – ideal for video analytics, machine vision, and 8K digital signage. Equipped with 2x RS485, 1x RS232, 2x CAN, and GPIO, it seamlessly connects to PLCs and industrial sensors. Dual Gigabit Ethernet ports and optional 2.4G/5G Wi-Fi + 4G/5G cellular (via SIM slot) enable flexible networking and remote management. Rated for -40°C to 60°C operation, this rugged box runs Ubuntu 22.04 , making it a reliable edge computing platform for smart manufacturing, intelligent transportation, and industrial IoT gateways.
-
Part No.G6-RK3588-F1G6-RK3588-F1
-
-
System
SOC
4*Cortex-A76 + 4*Cortex-A55
CPU
RK3588
NPU
6TOPS/32TOPS (On-board 26 TOPS computing power chip)
Memory
8GB/16GB
Storage & Expansion
EMMC 64GB； 1TF card slot (supports storage expansion); 1*M.2 2280 NVME (expandable SSD & computing power stick)
-
Others
Watchdog
Supports customization
RTC
Supported
-
Video
GPU
Mali-G610 MC4
Hardware Codec
JPEG Encoder/Decoder；8K Video Encoder (H265/H264...）； 8K 10-bits Video Decoder (H265/H264/VP9/AV1...)
Display Interfacs
1HDMI in; 2HDMI out; supports image overlay & independent display; 4K resolution output (max 8K@60Hz)
-
Network
Ethernet
Dual-Gigabit Ethernet
Wireless Network
2.4G+5G Dual-band WiFi + Bluetooth (optional)
-
I/O
USB
2×USB3.0 + 4×USB2.0
Phoneix Terminal
1 × RS232; 2 × RS485; 2 × CAN; 1 × GND; 4‑pin GPIO
Audio
3.5‑mm AUX headphone‑output port + 3.5‑mm AUX microphone‑input port
SIM
1*SIM card slot; (Mini-PCIe slot) Supports built-in 4G/5G module
-
Power supply
Power Input
DC 12V - 2 A；Supports 9V~36V wide voltage
Buttons/Indicators
Red/Green
-
Physical parameters
Enclosure Dimension
178mm×105mm×38mm (7.01in×4.13in×1.50in)
Package Dimension
213mm×210mm×50mm (8.39in×8.27in×1.97in)
Net Weight
0.68kg (1.50lbs)
Gross Weight
1.3kg (2.87lbs)
-
Software
Operating System
Ubuntu22.04
-
Environment
Working Temperature
Ambient Temperature:-40~60 ℃
Storage Temperature
Ambient Temperature:-40~85 ℃
Working/Storage Humidity
Relative Humidity:0~85%（No Condensation）/ Relative Humidity:0~85%（No Condensation）
Certifications
CE；3C
-
SOC
G6-RK3588-F1
4*Cortex-A76 + 4*Cortex-A55
G6-RK3588-F1
-
CPU
G6-RK3588-F1
RK3588
G6-RK3588-F1
-
NPU
G6-RK3588-F1
6TOPS/32TOPS (On-board 26 TOPS computing power chip)
G6-RK3588-F1
-
Memory
G6-RK3588-F1
8GB/16GB
G6-RK3588-F1
-
Storage & Expansion
G6-RK3588-F1
EMMC 64GB； 1TF card slot (supports storage expansion); 1*M.2 2280 NVME (expandable SSD & computing power stick)
G6-RK3588-F1
-
Watchdog
G6-RK3588-F1
Supports customization
G6-RK3588-F1
-
RTC
G6-RK3588-F1
Supported
G6-RK3588-F1
-
GPU
G6-RK3588-F1
Mali-G610 MC4
G6-RK3588-F1
-
Hardware Codec
G6-RK3588-F1
JPEG Encoder/Decoder；8K Video Encoder (H265/H264...）； 8K 10-bits Video Decoder (H265/H264/VP9/AV1...)
G6-RK3588-F1
-
Display Interfacs
G6-RK3588-F1
1HDMI in; 2HDMI out; supports image overlay & independent display; 4K resolution output (max 8K@60Hz)
G6-RK3588-F1
-
Ethernet
G6-RK3588-F1
Dual-Gigabit Ethernet
G6-RK3588-F1
-
Wireless Network
G6-RK3588-F1
2.4G+5G Dual-band WiFi + Bluetooth (optional)
G6-RK3588-F1
-
USB
G6-RK3588-F1
2×USB3.0 + 4×USB2.0
G6-RK3588-F1
-
Phoneix Terminal
G6-RK3588-F1
1 × RS232; 2 × RS485; 2 × CAN; 1 × GND; 4‑pin GPIO
G6-RK3588-F1
-
Audio
G6-RK3588-F1
3.5‑mm AUX headphone‑output port + 3.5‑mm AUX microphone‑input port
G6-RK3588-F1
-
SIM
G6-RK3588-F1
1*SIM card slot; (Mini-PCIe slot) Supports built-in 4G/5G module
G6-RK3588-F1
-
Power Input
G6-RK3588-F1
DC 12V - 2 A；Supports 9V~36V wide voltage
G6-RK3588-F1
-
Buttons/Indicators
G6-RK3588-F1
Red/Green
G6-RK3588-F1
-
Enclosure Dimension
G6-RK3588-F1
178mm×105mm×38mm (7.01in×4.13in×1.50in)
G6-RK3588-F1
-
Package Dimension
G6-RK3588-F1
213mm×210mm×50mm (8.39in×8.27in×1.97in)
G6-RK3588-F1
-
Net Weight
G6-RK3588-F1
0.68kg (1.50lbs)
G6-RK3588-F1
-
Gross Weight
G6-RK3588-F1
1.3kg (2.87lbs)
G6-RK3588-F1
-
Operating System
G6-RK3588-F1
Ubuntu22.04
G6-RK3588-F1
-
Working Temperature
G6-RK3588-F1
Ambient Temperature:-40~60 ℃
G6-RK3588-F1
-
Storage Temperature
G6-RK3588-F1
Ambient Temperature:-40~85 ℃
G6-RK3588-F1
-
Working/Storage Humidity
G6-RK3588-F1
Relative Humidity:0~85%（No Condensation）/ Relative Humidity:0~85%（No Condensation）
G6-RK3588-F1
-
Certifications
G6-RK3588-F1
CE；3C
