K3-G5 6 LAN Network appliance
Model:
K3-G5-6006

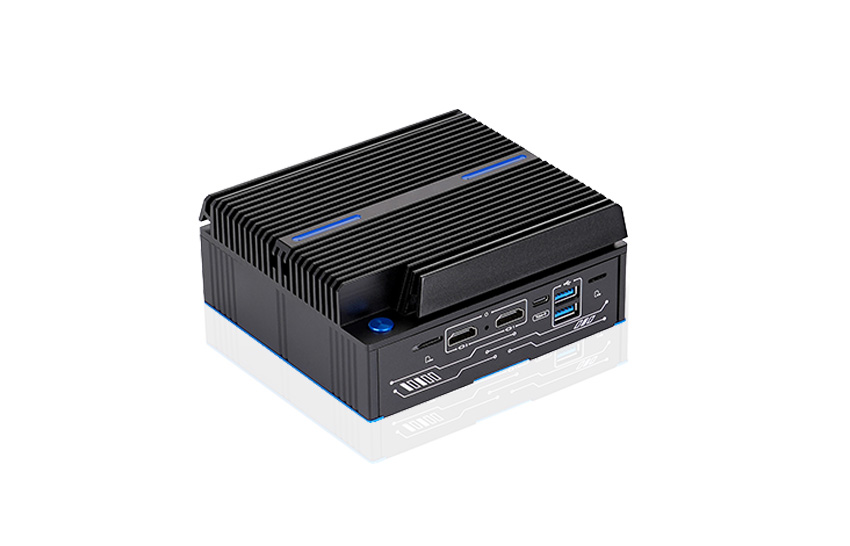

K3-G5 is a fanless box pc with 6 gigabit ethernet ports. It's industrial and ruggedized design that capable of running more reliably and steadily in terminal and other industrial applications,catering to various requirements in challenging environment,the box pc is capable with,Windows(Not Include XP),Linux,which makes it good as a 6LAN software Router or Firewall Mini PC
-
Part No.
-
-
Processor
CPU
Intel® Core I3‑6006U
Frequency
2.0 GHz
Cores/Threads
2 Cores / 4 Threads
Cache
3 MB Intel Smart Cache
TDP
15W
Chipset
Skylake
-
Memory
Technology
1*SO‑DIMM DDR4
Max. Capacity
32GB
-
Storage
M.2‑NVME
1*SSD (M.2 NVME)
MSATA
1*SSD (m‑SATA)
SATA
Support 2.5‑inch HDD expansion
-
Graphics
Graphics
Intel HD Graphics 520
-
Network
LAN
6*Intel I226V, 10/100/1000/2500BASE‑T Ethernet(RJ45)
Wireless
WIFI+Bluetooth(MINI‑PCIE) or 3G/4G‑Module(MINI‑PCIE)
-
I/O Interface
Rear

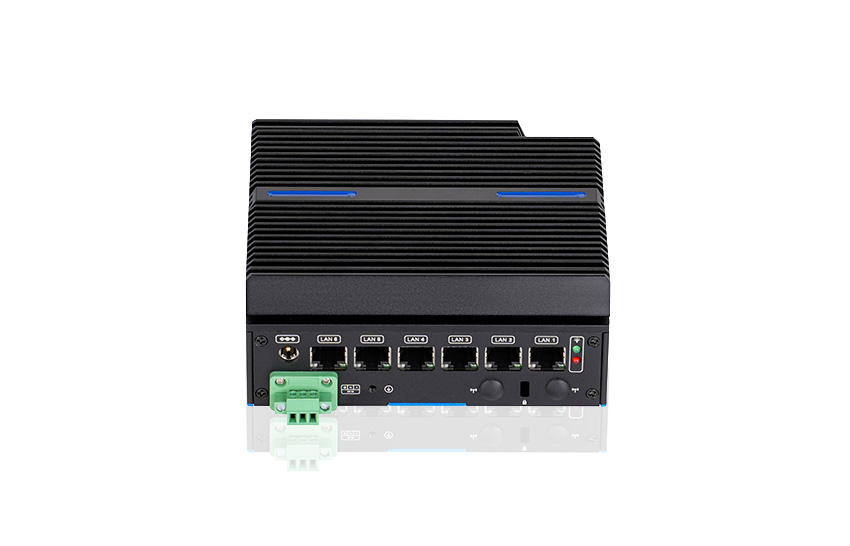

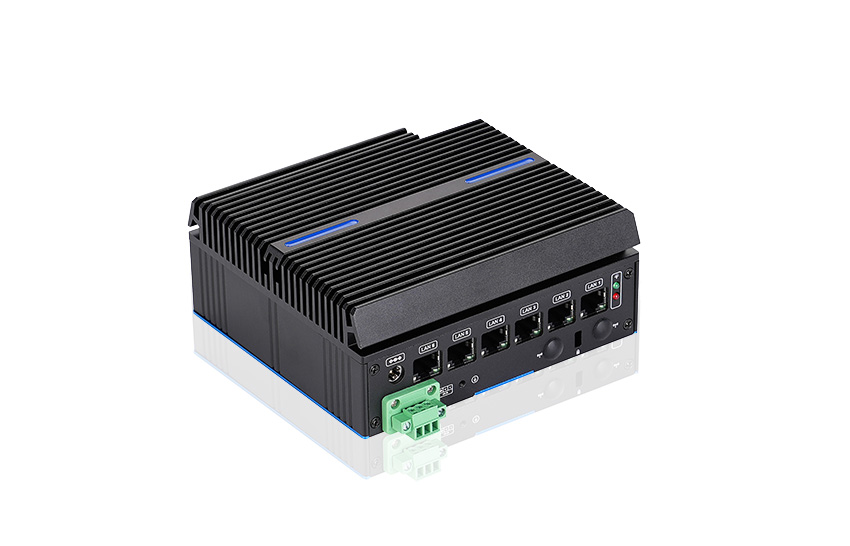

LAN x6, USB3.0 x2, HDMI 1.4 x2, USB TYPE‑C x1, TF‑card slot x1, SIM‑card slot x1, DC‑IN 12V x1, 3‑pin Power Terminal x1, BIOS Reset Button x1
-
Extendable
I/O
JBAT x1, AT_MODE x1, FP1 x1, SATAPWR x1, SATA x1, COM9pin x1, PW_IN x1, TPM1 x1, CPU_FAN x1
-
Power
Input
DC 12V‑5A
-
Operating System
OS
Windows (Excluding XP) & Linux
-
Physical
Display‑Mode
Support Dual‑screen (HDMI1.4+HDMI1.4), Copy‑mode / Extension‑mode
Max‑Resolution
HDMI1.4: 4096*2304@24HZ
Boot‑Mode
PXE / Auto‑power‑on / Wake‑on‑LAN
Intel‑VT‑x
Supported
Intel‑VT‑d
Supported
Hyper‑Threading
Supported
-
Environment
Operating Temperature
-10℃ ~ 60℃
Storage Temperature
-10℃ ~ 60℃
Operation Humidity
0%‑95% (No Condensation)
Storage Humidity
0%‑95% (No Condensation)
Static‑Electricity
Contact discharge 2K, Air discharge 6K
-
