Model:
● Fanless industrial-grade design,suitable for 7×24 continuous operation
● Intel core i3/i5/i7 processor
● 4 × Serial ports (RS232/RS485 configurable), 6 × USB ports,GPIO support
● 2 × Gigabit Ethernet ports (LAN)
● 1 × M.2 PCIe slot for Wi-Fi & Bluetooth module
● OS: Windows 10, IoT, and Linux
● Supports PXE, Auto Power-On, WOL
● Support Wide power input: 9–36V
● Operating temperature range: -10 ℃ to 60 ℃
● Supports VESA mount and Din Rail bracket installation
ShareVDI K3-F17H is a highly compact and robust industrial box PC, engineered for space-sensitive and harsh deployment scenarios. Its fanless cooling system and low-power TDP 15W architecture not only minimize energy consumption but also ensure exceptional long-term operational stability and reliability, capable of supporting 24/7 continuous operation across an extensive temperature range of -10 °C to 60 °C.
Despite its small dimension, the device offers remarkable connectivity and expansion capabilities, including 4 serial and 6 USB ports, 2 Gigabit LAN, and extendable I/O options. It also supports a range of industrial features such as GPIO, TPM, and flexible mounting via VESA and Din Rail brackets. These attributes, combined with its stable performance under demanding conditions, make the K3-F17H an ideal solution for a wide array of applications—from self-service kiosks and intelligent transportation systems to medical devices and industrial automation environments.

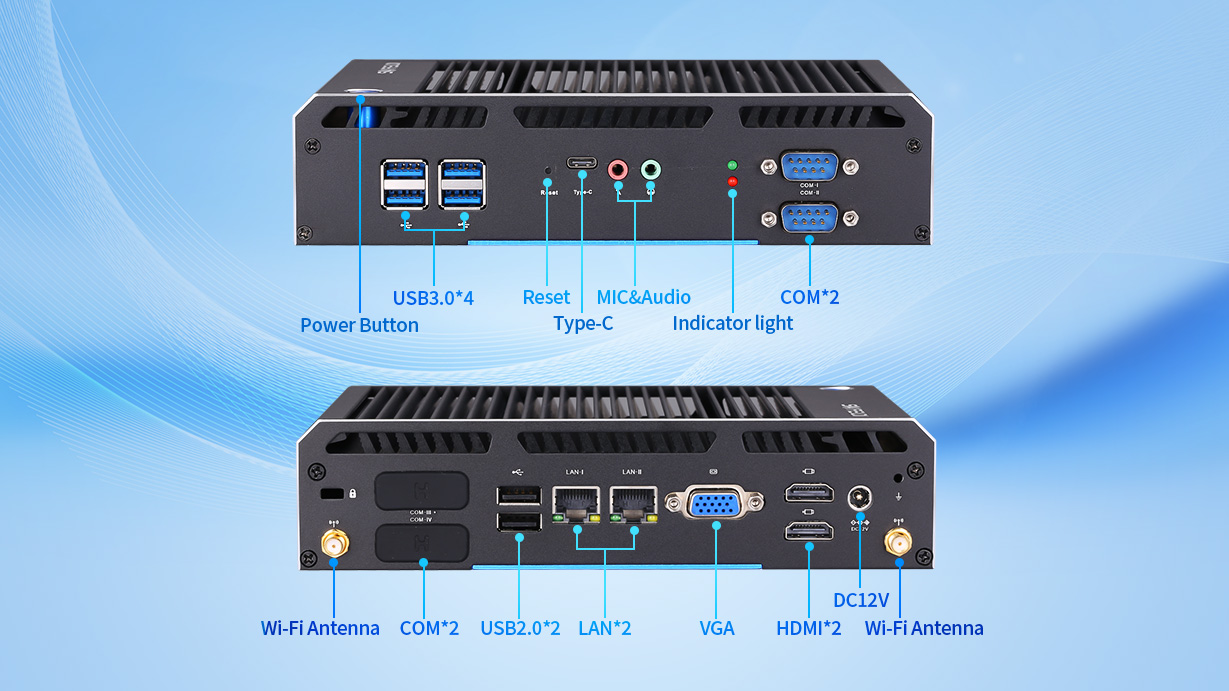

The Embedded Mini PC K3-F17H-5005U boasts a comprehensive range of connectivity options, including 4x COM ports (supporting RS232 and RS485), 6 USB ports, dual Ethernet ports, and 3 display outputs. Furthermore, it supports a 9-36V wide-range DC power input, optional 4G (LTE) module with SIM card slot, and integrated Wi-Fi & Bluetooth, significantly enhancing its connectivity for remote operations and data transmission.
This unit is powered by the Intel® Core™ i3-5005U processor (2 cores, 4 threads) — boasting a 2.0GHz base frequency, 3MB Intel® Smart Cache, and a 15W low-power design.
Equipped with extendable memory and storage capacity, this configuration balances snappy, efficient processing performance (backed by multi-threaded capability) and low power draw. It also supports future upgrades, keeping the system adaptable to growing operational demands.

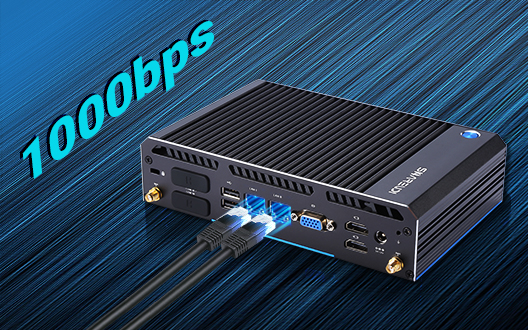

Flexible network expansion: Supports simultaneous connection to two separate networks (e.g., internal management network + external service network) or multi-device access.
Convenient deployment: Eliminates the need for additional network switches, simplifying wiring and reducing deployment costs in small-scale setups.
The Embedded Mini PC K3-F17H is built for uninterrupted performance, featuring:
A fanless, rugged housing design paired with 15W low-TDP efficiency, preventing overheating during round-the-clock use.
Wide temperature resilience (-10°C to 60°C) to handle extreme industrial environment fluctuations.
24/7 stable running capabilities, plus vibration & dust-proof protection — ideal for demanding, high-reliability settings.

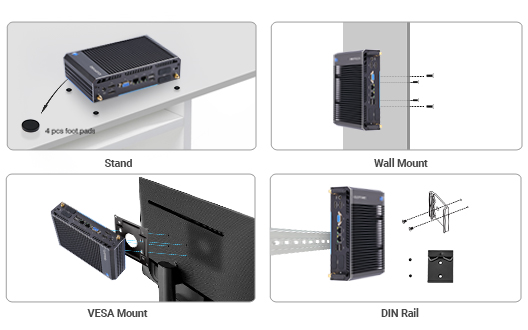

Measuring just L197.4mm×W126.3mm×H47.5mm, the Embedded Windows PC K3-F17H combines ultra-compact size with flexible mounting options (shown left):
Stand: Simple desktop placement for quick setup.
Wall Mount: Space-saving vertical installation.
VESA Mount: Seamless integration with monitors/displays.
DIN Rail: Standard industrial rack compatibility.
The K3-F17H Embedded Mini PC excels across diverse professional scenarios (shown right):
Self-Service Terminals:Powers retail, banking & ticketing KIOSKs with compact, stable design for smooth user interactions.
Industrial Automation: Delivers reliable performance for factory/line equipment control and data acquisition.
Edge Computing: Supports low-latency data processing in distributed network environments.
Digital Signage: Drives seamless content display for advertising, directional signage and information screens.
Its adaptable design makes it a go-to choice for efficiency-focused deployments across industries.
CPU
Intel Core i3-5005U, 2 Cores / 4 Threads
Intel Core i3-6006U, 2 Cores / 4 Threads
Frequency
2.0GHz
2.0GHz
Max Turbo Frequency
2.0GHz
2.0GHz
Cache
3 MB Cache
3 MB Cache
Chipset
Broadwell
Broadwell
Technology
2*DDR3L slots
2*DDR3L slots
Max. Capacity
16GB
16GB
MSATA
SSD 64GB/128GB/256GB/512GB
SSD 64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional)
HDD 500GB/1TB/2TB (Optional)
Graphics
Intel® HD Graphics 5500
Intel® HD Graphics 520
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
LAN
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
Wireless
WIFI+Bluetooth (M.2 PCIE)
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
Front
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional), DC 12V
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45,DC 12V
Rear
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
I/O
COM PIN Headers (RS-232) x 2, CPU_FAN x 1, JP1 Pin x 1, FP_AUDIO Pin x 1, JP3 Pin x 1, TPM Pin x 1, PCIE_GPIO Pin x 1, BAT_CON(Battery) x 1, Power Switch indicator Pin x 1
1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1* JSATA_PWR1、2*CPU（CFAN1,SFAN1）、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、 1*GPIO2、1*PRINT1
Module
WIFI+Bluetooth Module (M.2 PCIE)
WIFI+Bluetooth Module (M.2 PCIE)
Input
AC100-240V. 50-60Hz DC
AC100-240V. 50-60Hz DC
Output
12V-5A
12V-5A
Wide Voltage
9-36V phoenix connector（Optional）
9-36V phoenix connector（Optional）
Windows/Linux/Centos
Windows/Linux
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
1.0KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
K3-F17H-5005U
Intel Core i3-5005U, 2 Cores / 4 Threads
K3-F17H-6006U
Intel Core i3-6006U, 2 Cores / 4 Threads
K3-F17H-5005U
2.0GHz
K3-F17H-6006U
2.0GHz
K3-F17H-5005U
2.0GHz
K3-F17H-6006U
2.0GHz
K3-F17H-5005U
3 MB Cache
K3-F17H-6006U
3 MB Cache
K3-F17H-5005U
Broadwell
K3-F17H-6006U
Broadwell
K3-F17H-5005U
2*DDR3L slots
K3-F17H-6006U
2*DDR3L slots
K3-F17H-5005U
16GB
K3-F17H-6006U
16GB
K3-F17H-5005U
SSD 64GB/128GB/256GB/512GB
K3-F17H-6006U
SSD 64GB/128GB/256GB/512GB
K3-F17H-5005U
HDD 500GB/1TB/2TB (Optional)
K3-F17H-6006U
HDD 500GB/1TB/2TB (Optional)
K3-F17H-5005U
Intel® HD Graphics 5500
K3-F17H-6006U
Intel® HD Graphics 520
K3-F17H-5005U
HD Audio realtek ALC 662
K3-F17H-6006U
HD Audio realtek ALC 662
K3-F17H-5005U
10/100/1000BASE-T Ethernet (RJ45) x 2, Realtek 8111H
K3-F17H-6006U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
K3-F17H-5005U
WIFI+Bluetooth (M.2 PCIE)
K3-F17H-6006U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K3-F17H-5005U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional), DC 12V
K3-F17H-6006U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45,DC 12V
K3-F17H-5005U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
K3-F17H-6006U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
K3-F17H-5005U
COM PIN Headers (RS-232) x 2, CPU_FAN x 1, JP1 Pin x 1, FP_AUDIO Pin x 1, JP3 Pin x 1, TPM Pin x 1, PCIE_GPIO Pin x 1, BAT_CON(Battery) x 1, Power Switch indicator Pin x 1
K3-F17H-6006U
1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1* JSATA_PWR1、2*CPU（CFAN1,SFAN1）、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、 1*GPIO2、1*PRINT1
K3-F17H-5005U
WIFI+Bluetooth Module (M.2 PCIE)
K3-F17H-6006U
WIFI+Bluetooth Module (M.2 PCIE)
K3-F17H-5005U
AC100-240V. 50-60Hz DC
K3-F17H-6006U
AC100-240V. 50-60Hz DC
K3-F17H-5005U
12V-5A
K3-F17H-6006U
12V-5A
K3-F17H-5005U
9-36V phoenix connector（Optional）
K3-F17H-6006U
9-36V phoenix connector（Optional）
K3-F17H-5005U
Windows/Linux/Centos
K3-F17H-6006U
Windows/Linux
K3-F17H-5005U
L 197.4mm*W 126.3mm*H 47.5mm
K3-F17H-6006U
L 197.4mm*W 126.3mm*H 47.5mm
K3-F17H-5005U
1.0KG
K3-F17H-6006U
1.0KG
K3-F17H-5005U
Black
K3-F17H-6006U
Black
K3-F17H-5005U
Fanless Passive Cooling
K3-F17H-6006U
Fanless Passive Cooling
K3-F17H-5005U
Dedicated bracket; Support VESA bracket
K3-F17H-6006U
Dedicated bracket; Support VESA bracket
K3-F17H-5005U
CE, FCC, ROHS, ISO, UL
K3-F17H-6006U
CE, FCC, ROHS, ISO, UL
K3-F17H-5005U
-10~60 ℃
K3-F17H-6006U
-10~60 ℃
K3-F17H-5005U
-10~60 ℃
K3-F17H-6006U
-10~60 ℃
K3-F17H-5005U
0~95% (No Condensation)
K3-F17H-6006U
0~95% (No Condensation)
K3-F17H-5005U
0~95% (No Condensation)
K3-F17H-6006U
0~95% (No Condensation)
