6x Ethernet Ports: 2x 10Gbps SFP+ (Intel 82599ES)+4x Intel I226
K8-F12 Pfsense Mini PC
Model:
K8-F12
● Compact fanless design measuring 133×126×36mm for space-constrained installations
● Intel pentium J3710 quad core processor
● 4×LAN, 2.5G Ethernet INTEL I226-V
● 2*USB3.0,1*VGA,1*HDMI
● 1 × MPCIe slot for Wi-Fi & Bluetooth module
● Support OS Windows, Ubuntu, Debian, PfSense,OpenSense, OpenWrt, CentOS, Untangle etc
● Supports RPL, PXE, Auto Power-On, WOL, WDT (Watchdog Timer)
Share：
ShareVDI Firewall PC K8-F12 is a compact, fanless network appliance designed for high-performance firewall and routing applications. Measuring just 133×126×36mm, it features four its Intel I226-V 2.5GbE ports, delivering significantly greater throughput and reliability than conventional routers. Its fanles design ensures durable 24/7 operation while minimizing power consumption.
In addition to robust network connectivity, the device offers versatile expansion and interface options, including 2 USB 3.0 ports, VGA and HDMI , and 1 MPCIe slot for Wi-Fi and Bluetooth modules. It supports a wide range of OS such as pfSense, OpenWrt, Untangle, Windows, and multiple Linux distributions, providing flexibility for diverse deployment scenarios. Advanced management features including PXE boot, Auto Power-On, Wake-on-LAN (WoL), and Watchdog Timer (WDT) further enhance its reliability and ease of integration in industrial, commercial, and security-sensitive networks.

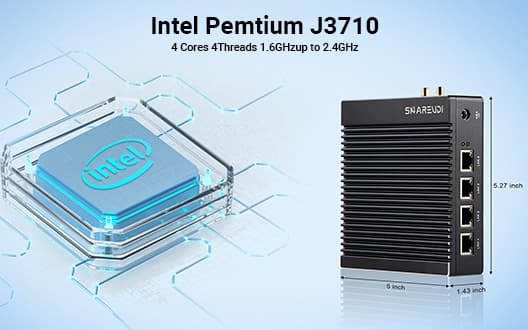

Firewall PC 4LAN with Pentium J3710 in NUC Design
The firewall PC K8-F12 in NUC design houses a Pentium J3710 processor. Four network ports enhance connectivity. It's compact yet powerful, suitable for diverse applications. The processor ensures stable performance for multitasking. Ideal for small offices or home networks, its efficient design allows for easy setup and maintenance, making it a reliable choice for network-intensive tasks within limited space.
Network Performance Showcase
The Firewall Device K8 - F12 exhibits remarkable network capabilities. With 4x Gigabit Ethernet, it ensures stable wired connections. The 2.4G WIFI module, supporting 802.11 b/g and operating via USB channel, offers convenient wireless access. This combination provides flexible and efficient network performance, suitable for diverse networking scenarios, enhancing data transfer speed and connectivity reliability.

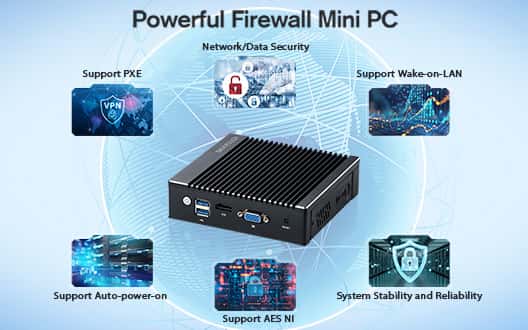

Firewall PC K8 - F12 Function Highlights
The Firewall PC K8 - F12 offers multiple key functions. It supports PXE for network booting, Auto - Power - on for automated startup, Wake - on - LAN for remote activation. With AES NI support, it enhances network and data security. This device ensures system stability and reliability, making it an ideal choice for safeguarding network infrastructure and maintaining efficient data management operations.
Multi-Scenario Network Security
The Firewall PC K8 - F12 delivers tailored security across settings: In schools, it segments classroom networks and filters threats; in offices, it splits team networks to safeguard data and remote collaboration; at home, it shields smart devices with safe bandwidth distribution; in industry, it isolates automation gear, blocking unauthorized access.

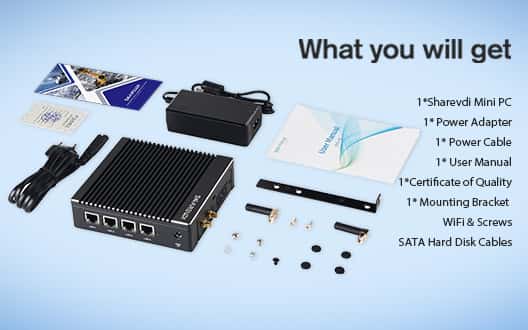

What You'll Get with Firewall Device K8 - F12
When you purchase the Firewall Device K8 - F12, you will get a comprehensive package. It includes a Share VDI firewall router for versatile computing. A power adapter and cable for power supply. A user manual to guide you. A certificate of quality for assurance. A mounting bracket for installation. WIFI components and screws. Also, a SATA hard disk cable for storage connection, fulfilling all your basic setup and operation needs.
Specification K8-F12-J3710
-
Part No.K8-F12-J3710
-
-
Processor
CPU
Intel Pentium J3710
Core Number
4 Cores/4 Threads
Frequency
1.60GHz
Max Turbo Frequency
2.64GHz
Chipset
Braswell
-
Memory
Technology
1*DDR3L slots
Max. Capacity
8GB
-
Storage
MSATA
SSD 16GB/32GB/64GB
-
Graphics
Intel UHD Graphics
-
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000/2500BASE-T Ethernet (RJ45) x 4, Intel I226V
-
I/O Interface
Front
4*RJ45 Gigabit LAN, DC12V Input, Indicator light
Rear
2*USB3.0, HDMI ,VGA ,Power ON/OFF, Reset
-
Extendable
Module
WIFI+Bluetooth (MINI PCIE) or 3G/4G Module (with SIM card slot)
Antenna
External antennas
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V - 3A
-
Operating System
Windows/Linux/Pfsense
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight
0.65kg
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk/ Wall Mount/Embedded
Certification
CE,FCC,ROHS,ISO,UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
Processor
-
CPU
K8-F12-J3710
Intel Pentium J3710
-
Core Number
K8-F12-J3710
4 Cores/4 Threads
-
Frequency
K8-F12-J3710
1.60GHz
-
Max Turbo Frequency
K8-F12-J3710
2.64GHz
-
Chipset
K8-F12-J3710
Braswell
Memory
-
Technology
K8-F12-J3710
1*DDR3L slots
-
Max. Capacity
K8-F12-J3710
8GB
Storage
-
MSATA
K8-F12-J3710
SSD 16GB/32GB/64GB
Graphics
-
K8-F12-J3710
Intel UHD Graphics
Audio
-
K8-F12-J3710
HD Audio realtek ALC 662
Network
-
LAN
K8-F12-J3710
10/100/1000/2500BASE-T Ethernet (RJ45) x 4, Intel I226V
I/O Interface
-
Front
K8-F12-J3710
4*RJ45 Gigabit LAN, DC12V Input, Indicator light
-
Rear
K8-F12-J3710
2*USB3.0, HDMI ,VGA ,Power ON/OFF, Reset
Extendable
-
Module
K8-F12-J3710
WIFI+Bluetooth (MINI PCIE) or 3G/4G Module (with SIM card slot)
-
Antenna
K8-F12-J3710
External antennas
Power
-
Input
K8-F12-J3710
AC100-240V.50-60HZ DC
-
Output
K8-F12-J3710
12V - 3A
Operating System
-
K8-F12-J3710
Windows/Linux/Pfsense
Physical
-
Dimension
K8-F12-J3710
L 133.8mm*W 126.6mm*H 36.5mm
-
Weight
K8-F12-J3710
0.65kg
-
Color
K8-F12-J3710
Black
-
Cooling Method
K8-F12-J3710
Fanless Passive Cooling
-
Mounting Options
K8-F12-J3710
Desk/ Wall Mount/Embedded
-
Certification
K8-F12-J3710
CE,FCC,ROHS,ISO,UL
Environment
-
Operating Temperature
K8-F12-J3710
-10~60 ℃
-
Storage Temperature
K8-F12-J3710
-10~60 ℃
-
Operation Humidity
K8-F12-J3710
0~95% (No Condensation)
-
Storage Humidity
K8-F12-J3710
0~95% (No Condensation)
