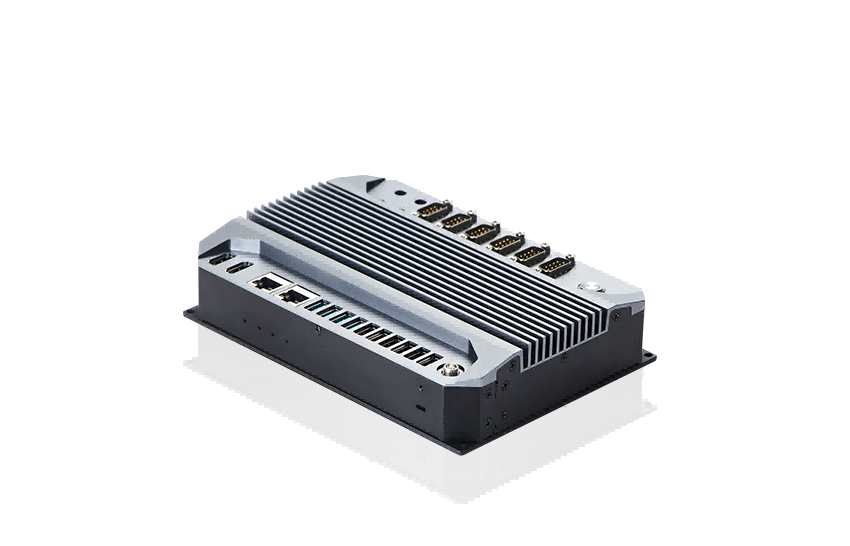

K5-F28 Embedded Controller
Model:
K3-F28-12th
All-aluminum fanless fully enclosed design
Front-facing centralized I/O design
12th Gen Intel® Core™ i3/i5/i7 Processors
6×COM Ports (4×RS232/485 Switchable + 2×RS232)
2×Realtek 8111H Gigabit Ethernet NICs
10×USB ports (4xUSB3.0, 6xUSB2.0)
Dual M.2 Slots, Support WiFi/Bluetooth/4G/5G, SIM Card Expansion
DC 12V~24V Wide Voltage Input with Lockable Connector
Supports Win10/Win11/Linux OS
Wall-mount / Panel-mount installation
All-aluminum fanless fully enclosed design
Front-facing centralized I/O design
12th Gen Intel® Core™ i3/i5/i7 Processors
6×COM Ports (4×RS232/485 Switchable + 2×RS232)
2×Realtek 8111H Gigabit Ethernet NICs
10×USB ports (4xUSB3.0, 6xUSB2.0)
Dual M.2 Slots, Support WiFi/Bluetooth/4G/5G, SIM Card Expansion
DC 12V~24V Wide Voltage Input with Lockable Connector
Supports Win10/Win11/Linux OS
Wall-mount / Panel-mount installation
K5-F28 is an industrial Embedded Controller with high reliability, rich expansion, and stable 24/7 operation, featuring fanless dustproof design, strong anti-interference, and front-facing centralized I/O layout.Equipped with 6x COM ports (4×RS232/485 + 2×RS232), 2x Gigabit Ethernet, and 10x USB ports, plus wide voltage DC input (12V~24V) with lockable connector to meet diverse connection needs.
It is mainly applied to self-service terminals and KIOSK scenarios, such as self-service payment, ticket vending, information inquiry, and industrial automation, providing reliable and efficient operation support.
-
Part No.K5-F28
-
-
Processor
CPU
Intel® Core I5-12th Gen
Cores/Threads
8 Cores / 12 Threads
Cache
12 MB Intel® Smart Cache
-
Memory
Technology
2* SO-DIMM DDR4 slot
Max. Capacity
64G
-
Storage
M.2 SATA/NVME
SSD (M.2 2280 SATA/NVME)
SATA
Support 2.5-inch HDD/SSD expansion
-
Graphics
Graphics
Intel® UHD Graphics
-
Audio
Audio
HD Audio realtek ALC 897
-
I/O
USB
4* USB3.0, 6* USB2.0
COM
4* RS232/485 + 2* RS232
LAN
2* LAN
HDMI
2* HDMI2.1
-
Working Voltage
Working Voltage
DC 12V~24V
-
Operating System
OS Support
Windows 10, Windows 11, Linux
-
Environment
Operating Temperature
-10~60°C（14~140°F）
Storage Temperature
-10~60°C（14~140°F）
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
