A10 10'' Rugged Tablet PC
Model:
A10-K5-8200Y
● High quality capacitive screen 10-point touch
● Intel I5-8200Y, Dual Core, Quad Threads, 1.30GHz
● Anti-dust & Waterproof IP65, dropping Resistance 1.2 meters
● Built in WIFI & BT
● Built in scanner and camera
● Support SIM card slot
● Optional TF card slot
The A10-K5-8200Y integrates a camera and scanner, providing powerful data capture and interactive capabilities, making it ideally suited for industries like retail, material handling, and manufacturing. Its scanner rapidly reads product barcodes to streamline inventory counts, update inventory data in real-time, and ensure precise inventory control, while the camera can be used for capturing and documenting the appearance of goods. Featuring 10-point multi-touch functionality and a built-in rechargeable battery, it enables convenient and efficient handheld operation—enhancing rapid information access and instant data recording for dramatically boosted overall work efficiency.
-
Part No.A10-K5-8200Y
-
-
Processor System
CPU
Intel I5-8200Y (Dual Core, Quad Threads, 1.30GHz), Turbo can reach 3.90GHz
RAM
8GB
Storage
256GB
OS
Windows 10 Pro
-
Display
Panel Size
10.1''
Max. Resolution
1200*1920
GPU
Intel® UHD Graphics 615
Brightness
430nits (TYP), 450nits (MAX)
Viewing Direction
Full Viewing
Aspect Ratio
5:8
-
Touch Screen
Touch Points
10 Points, Support stylus
Type
Capacitive Touch
-
Color
Color
Black
-

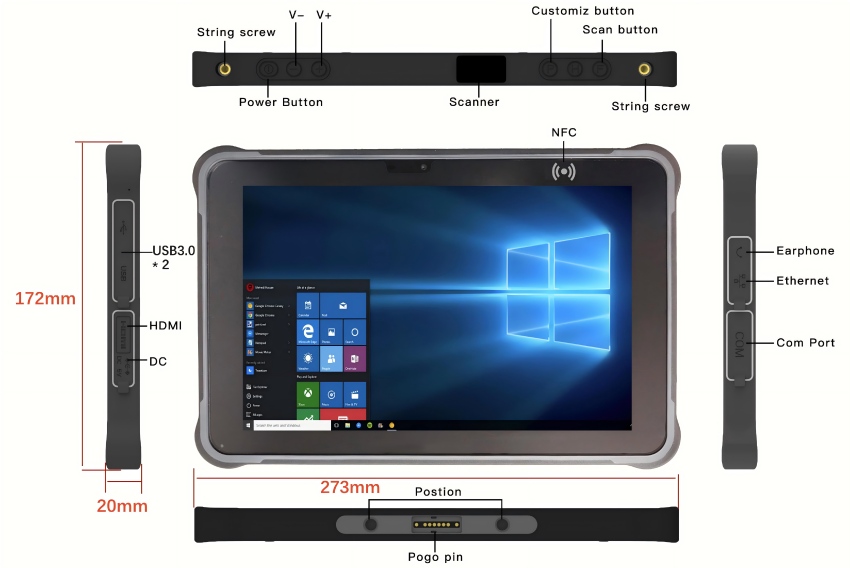

I/O Interface
Video output
1* HDMI
Serial Port
1* RS232
USB Port
2* USB3.0
Ethernet
1* RJ45
Extendable Port
1* TF Card Slot (Customized items)
SIM
1* SIM Card Slot
Audio Port
1* Earphone
-
Function
Camera
Front: 5MP; Rear: 13MP Optional
GPS
BDS, GPS, GLONASS
BLUETOOTH
4.2 Version
NFC
13.56 MHz, Distance: 1-3cm
MIC
Sensitivity: -32±2d Output Impedance: 2.2kΩx1
SPEAKER
8Ω 1.5 Watt
Sensor
Light sensor, Acceleration sensor, Gravity sensor
Button
V+ -, Power, "F" for Barcode Scan
-
General
Certification
CE, FCC, ROHS, ISO
Dimension
273*172*20mm
Power Input
AC 100-240V 50-60HZ
Power and Battery
6000mAh / voltage 7.6Vdc (45.6Wh)
Weight(Net)
1150±50g
-
Environment
Operating Temperature
-20 ~ 55℃
Storage Temperature
-25 ~ 80℃
-
Accessories
Accessories
Blue Box, DC Charger (12V 4A), Carry strap, Bag & Screw, Wrist strap
-
