Compared with traditional mechanical oil production, automated oil production can reduce overall costs and human errors while improving work efficiency. Through the automated control and monitoring of various links in the oil production process, the stability and reliability of product quality are ensured. ShareVDI Industrial Panel PC is designed for the application, ensuring seamless and efficient automated oil production.
Automated oilfields encompass a range of operations, from oil well drilling to extraction and transportation. The automated oil production equipment is generally composed of the following components:
-Mechanical lifting machine
-Oil pumping unit

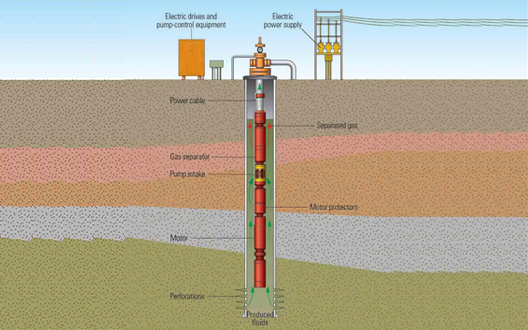

-Submersible electric pump
-Screw pump
-Control cabinet
Real-time Data Acquisition: There is an urgent need to collect and transmit data from various sensors and devices in real - time to enable timely decision making.
Precision Control: Achieving accurate control over drilling speed, depth, and fluid flow to maximize oil recovery while minimizing waste.
Reliability and Stability: Equipment must operate reliably in harsh oilfield environments, which often involve extreme temperatures, dust, and vibrations.
In automated oil production, the Industrial Panel PC needs to connect with various peripherals:
-Sensors: To monitor wellhead parameters like temperature, pressure, and liquid level.
-Controllers: Such as PLC (Programmable Logic Controller) for equipment control and VSD (Variable Speed Drive) for regulating motor speeds.
-Analyzers: Like Power Quality Analyzers to ensure the stability of the power supply.
-SCADA Systems: For centralized data management and control.

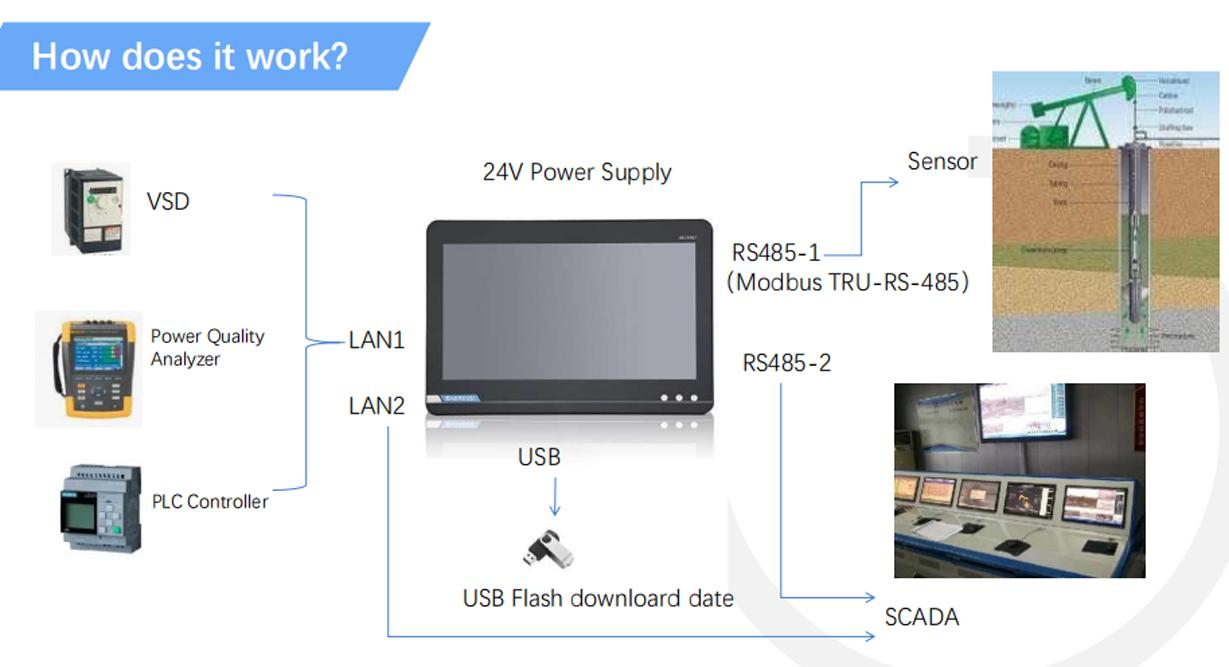

The operating mechanism involves the Industrial Panel PC collecting data from sensors via interfaces like RS485 (using protocols such as Modbus). It then processes this data and sends control commands to PLCs and other controllers through LAN or other communication ports. Additionally, data can be downloaded via USB for further analysis.
-Processing Power: A powerful processor is essential to handle real - time data processing and complex control algorithms.
-Connectivity: Multiple communication interfaces are required, including LAN ports for connecting to controllers and analyzers, RS232/RS485 ports for sensor communication, and expansion slots (like mini PCIE/M.2) for modules such as 4G LTE for remote connectivity.
-Power Supply: Support for a wide voltage range (e.g., 9 - 36V) is necessary to accommodate the inconsistent power conditions in oilfields.
-Durability: The panel PC must have a rugged design with features like an IP65 - rated front panel to resist dust and water, ensuring reliable operation in harsh environments.

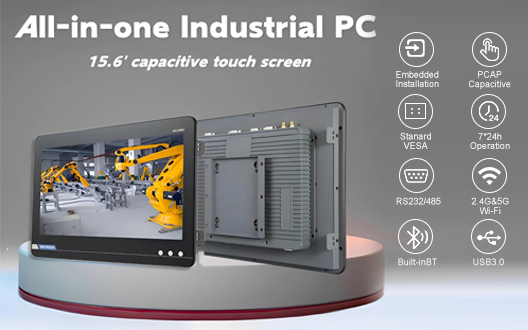

A15 - Touch IPC is specifically engineered to meet the rigorous demands of automated oil production, offering the following advantages:
1) Powerful performance and flexible configuration
Powered by Intel core i5 11th gen processor,equipped with 8GB RAM up to 32GB, SSD from 128GB up to 512GB. The performance is good to deal multiple processing and controlling tasks
Wide Range of Configurations: Customers can choose from a variety of configurations-RAM/Memory/Storage to meet their specific needs, ensuring the panel PC is perfectly tailored to their automated oil production system.
2) Robust Hardware for Harsh Environments
15.6" Capacitive Touch Screen: The flat 15.6 inch capacitive 10 point touch screen provides an intuitive and responsive user interface, even when operators are wearing gloves or in dusty conditions.Industrial design allows operating temperature from -10℃to 60℃.
IP65 Rated Front Panel: This high level of protection ensures the front of the panel PC is resistant to dust and water ingress, making it suitable for use in the dirty and wet environments often found in oilfields.
3) Versatile Connectivity

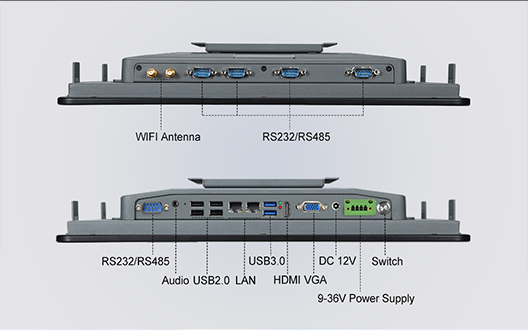

Diverse Interfaces: With support for 5 pin Phoenix connectors, 1/2 x COM ports (RS232/RS485), 1/2 x LAN ports, and expansion options for 4G LTE modules via mini PCIE/M.2, the A10 - Touch IPC can seamlessly connect to all necessary peripherals in an automated oilfield setup.
Wide Voltage Power Supply: The ability to operate on a 9 - 36V power supply ensures stable operation even when faced with fluctuations in the oilfield's power grid.
By integrating ShareVDI Industrial Panel PC into automated oil production systems, oilfield operators can significantly improve efficiency, reliability, and productivity, overcoming the challenges of traditional methods and meeting the demands of modern oilfield operations.
